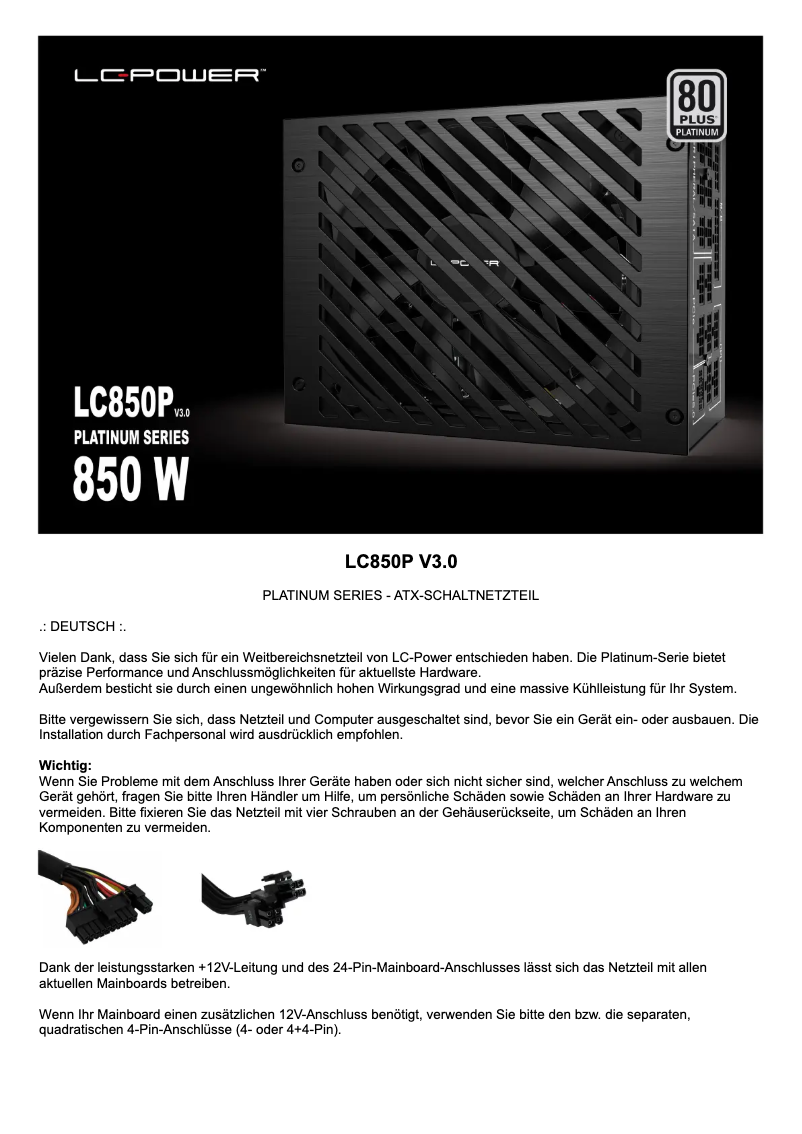

Manuals of product LC850P V3.0

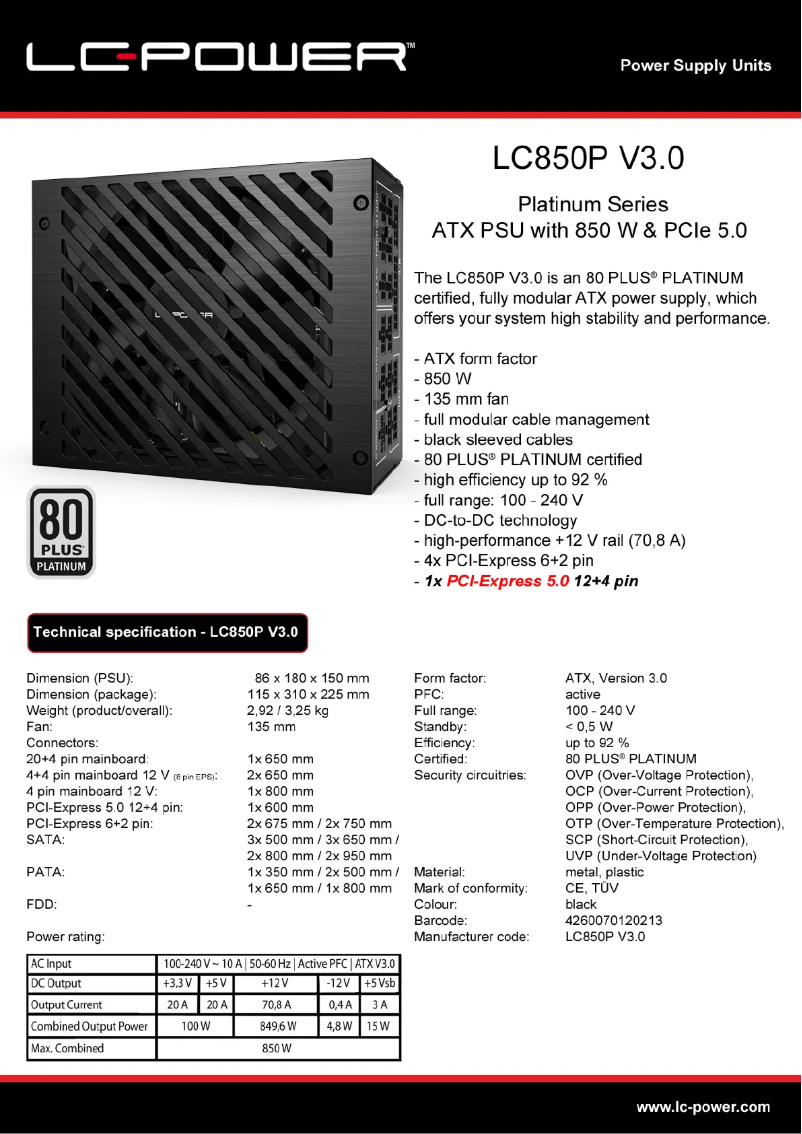

Technical Specifications LC850P V3.0
General Information
-
ModelLC850P V3.0
-
Brand
-
Category
-
Type
-
SKU1939471
-
MPN1939471
Design
-
Product colorBlack
-
Fan diameter135 mm
-
Number of fans1 fan(s)
-
Built-in power buttonYes
Representation / realization
-
UtilityPC
-
Version ATX3.0
-
80 PLUS Certification80 PLUS Platinum
-
Form factor of the power supply unitATX
-
CertificationCE, TÜV
Connectivity
-
Wiring typeFully modular
-
Motherboard connector20+4 pin ATX
-
Length of motherboard power cable650 mm
-
Number of SATA power cables10
-
Molex peripheral connector (4-pin)5
-
Length of the SATA power cable500,650,800,950 mm
-
Length of the device's power cable (Molex)350,500,650,800 mm
-
ATX power connector (20+4 pin)Yes
-
CPU Connector P4 (4-pin)1
-
PCI Express power connectors (12+4 pins) cable length600 mm
-
PCI Express power connectors (6 +2 pin)4
-
CPU Connector P4 (4-pin)1
-
Length of the CPU power cable800 mm
-
ATX power connector (20+4 pin)Yes
Power
-
Total power850 W
-
AC input voltage100 - 240 V
-
AC input frequency50/60 Hz
-
Type of Power Factor Corrector (PFC)Active
-
Input current10 A
-
Combined power (+5V)100 W
-
Combined power (+5V)100 W
-
Combined power (+12 V)849.6 W
-
Combined power (-12V)4.8 W
-
Combined power (+5Vsb)15 W
-
Maximum output current (+5V)20 A
-
Maximum output current (+5V)20 A
-
Maximum output current (+12V)70.8 A
-
Maximum output current (-12V)0.4 A
-
Maximum output current (+5Vsb)3 A
-
Effectiveness92 %
-
Electrical protection devicesOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Packaging information
-
Type of packagingBox
-
Package weight3250 g
-
Package width310 mm
-
Package depth115 mm
-
Package height225 mm
Weight and dimensions
-
Weight2920 g
-
Width180 mm
-
Depth150 mm
-
Height86 mm
Similar products
More product categories from brand LC-Power
More product types from brand LC-Power
Presentation of product LC850P V3.0 specifications from brand LC-Power
Design
The color of the product LC-Power LC850P V3.0 is Noir. This shade gives it a modern and elegant look. The diameter of the LC-Power LC850P V3.0 fan is 135 mm. This diameter is essential for ensuring optimal air circulation. Does the product LC-Power LC850P V3.0 have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device. The number of fans of the product LC-Power LC850P V3.0 is 1 ventilateur(s). This design allows for better air circulation and optimal performance.
Generalities
The brand of the product LC-Power LC850P V3.0 is LC-Power. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product LC-Power LC850P V3.0 is 4260070120213. This code allows for the unique identification of the product in the distribution system. The product model LC-Power LC850P V3.0 is LC850P V3.0 | LC850P V3.0. This model ensures optimal performance and an enhanced user experience.
Representation / realization
The ATX version of the product LC-Power LC850P V3.0 is 3.0. This specification ensures optimal compatibility with modern computer components. The product LC-Power LC850P V3.0 has the 80 PLUS 80 PLUS Platinum certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs. The usefulness of the product LC-Power LC850P V3.0 is PC. This product has been designed to meet specific needs and provide an optimal experience for its users. The form factor of the power supply unit of the product LC-Power LC850P V3.0 is ATX. This form factor determines the compatibility of the power supply with the case and components of your system. The certification of the product LC-Power LC850P V3.0 contains CE, TÜV. This certification guarantees compliance with the required safety and performance standards.
Packaging information
The packaging type of the product LC-Power LC850P V3.0 is Boîte. This type of packaging ensures optimal protection and facilitates transportation. The depth of the product package LC-Power LC850P V3.0 is 115 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product LC-Power LC850P V3.0 is 310 mm. This dimension is essential to ensure optimal transport and storage. The weight of the LC-Power LC850P V3.0 package is 3250 g. This weight ensures optimal protection during transport and delivery. The height of the package of the product LC-Power LC850P V3.0 is 225 mm. This dimension is essential to ensure optimal transport and storage.
Connectivity
The wiring type of the product LC-Power LC850P V3.0 is Entièrement modulaire. This non-modular wiring ensures a stable and reliable connection. The number of SATA power cables for the product LC-Power LC850P V3.0 is 10. These cables provide a reliable and efficient connection to power your components. The connector on the motherboard of the product LC-Power LC850P V3.0 contains 20+4 pin ATX. This connector is essential for ensuring a stable and reliable connection between the motherboard and the other components of the system. The length of the motherboard power cable of the product LC-Power LC850P V3.0 is 650 mm. This specification ensures optimal connectivity for your components. The Molex peripheral connector (4-pin) of the product LC-Power LC850P V3.0 contains 5. This connector is essential for ensuring a reliable connection between electronic components. Does the LC-Power LC850P V3.0 have an EPS power connector (8-pin)? Oui. This connector is essential for efficiently powering the components of your system. The SATA power cable of the product LC-Power LC850P V3.0 has a length of 500,650,800,950 mm. This specification ensures optimal connectivity for your components. The length of the power cable of the device (Molex) of the product LC-Power LC850P V3.0 is 350,500,650,800 mm. This specification ensures optimal connectivity for your power needs. The PCI Express power connector (12+4 pins) of the product LC-Power LC850P V3.0 contains 1. This connector is essential for providing stable and efficient power to your system's components. The PCI Express power connector (12+4 pins) of the LC-Power LC850P V3.0 has a cable length of 600 mm. This connector is ideal for ensuring stable and efficient power supply to your components. The product LC-Power LC850P V3.0 has a CPU power cable length of 800 mm. This specification ensures optimal connectivity for your system. The CPU P4 (4-pin) connector of the LC-Power LC850P V3.0 product contains 1. This connector is essential for ensuring stable and efficient power supply to your processor. The PCI Express power connector (6 +2 pin) of the product LC-Power LC850P V3.0 contains 4. This connector is essential for providing stable and efficient power to graphics cards and other components requiring a PCIe connection. Does the LC-Power LC850P V3.0 have an ATX power connector (20+4 pin)? Oui. This connector is essential for ensuring stable and efficient power supply to your system.
Weight and dimensions
The weight of the product LC-Power LC850P V3.0 is 2920 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product LC-Power LC850P V3.0 is 180 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product LC-Power LC850P V3.0 is 150 mm. This dimension allows for optimal integration into your space. The height of the product LC-Power LC850P V3.0 is 86 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Power
The total power of the product LC-Power LC850P V3.0 is 850 W. This power ensures optimal performance for efficient use. The AC input voltage of the LC-Power LC850P V3.0 is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The power factor correction device of the product LC-Power LC850P V3.0 is active. This type of correction device optimizes energy efficiency by improving the power factor of the system. The AC input frequency of the product LC-Power LC850P V3.0 is 50/60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The input current of the product LC-Power LC850P V3.0 is 10 A. This input current ensures optimal performance and increased energy efficiency. The product LC-Power LC850P V3.0 has a combined power (+3.3 V) of 100 W. This specification ensures optimal performance for your energy needs. The product LC-Power LC850P V3.0 has a combined power (+5V) of 100 W. This specification ensures optimal performance for your devices. The combined power (+12 V) of the product LC-Power LC850P V3.0 is 849.6 W. This specification ensures optimal performance for your energy needs. The product LC-Power LC850P V3.0 has a combined power (-12V) of 4.8 W. This specification ensures optimal performance and increased energy efficiency. The combined power (+5Vsb) of the LC-Power LC850P V3.0 is 15 W. This specification ensures optimal performance for your devices. The maximum output current (+3.3V) of the LC-Power LC850P V3.0 is 20 A. This current ensures optimal performance for your power supply needs. The product LC-Power LC850P V3.0 has a maximum output current (+5V) of 20 A. This current allows you to efficiently power your electronic devices. The product LC-Power LC850P V3.0 has a maximum output current (+12V) of 70.8 A. This specification ensures optimal performance for your power supply needs. The maximum output current (-12V) of the LC-Power LC850P V3.0 is 0.4 A. This specification ensures optimal performance for your energy needs. The maximum output current (+5Vsb) of the LC-Power LC850P V3.0 is 3 A. This current ensures a stable and efficient power supply for your devices. The electrical protection devices of the product LC-Power LC850P V3.0 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation. The effectiveness of the product LC-Power LC850P V3.0 is 92 %. This performance ensures optimal results for daily use.
