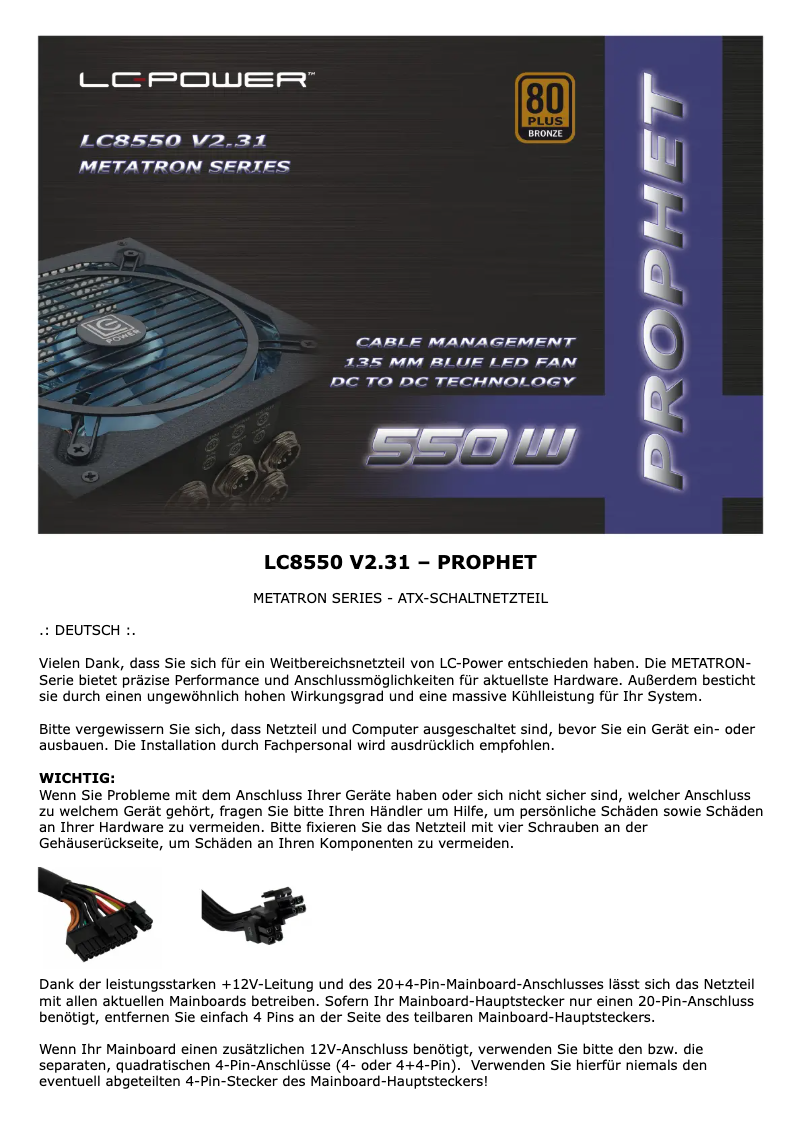

Manual of product LC8550 V2.31
Technical Specifications LC8550 V2.31
General Information
-
ModelLC8550 V2.31
-
Brand
-
Category
-
SKU1789701
-
MPN1789701
Power
-
Total power550 W
-
AC input voltage110 - 240 V
-
Type of Power Factor Corrector (PFC)Active
-
Maximum output current (+5V)20 A
-
Maximum output current (+12V)45.8 A
-
Maximum output current (+5V)20 A
-
Effectiveness85 %
-
Electrical protection devicesOver current, Over power, Over voltage, Short circuit, Under voltage
-
Combined power (+5V)110 W
-
Combined power (+5V)110 W
-
Combined power (+12 V)549.6 W
-
Power factor0.99
Design
-
Product colorBlack
-
Cooling typeActive
-
Number of fans1 fan(s)
-
Fan diameter135 mm
-
Fan locationHigh
-
Built-in power buttonYes
-
Built-in power buttonYes
Other features
-
Color of the lightingBlue
Connectivity
-
Motherboard connector20+4 pin ATX
-
Length of the PCI Express power cable550 mm
-
Molex peripheral connector (4-pin)6
-
Length of the SATA power cable500,650,800 mm
-
Molex peripheral connector (4-pin)6
-
Length of the device's power cable (Molex)450,600,750 mm
-
Floppy disk drive power connector2
-
Length of the PCI Express power cable550 mm
-
PCI Express connectorYes
-
Length of the CPU power cable600 mm
-
PCI Express connectorYes
-
Floppy disk drive power connector2
-
PCI Express connectorYes
-
Length of the floppy disk drive cable900 mm
-
PCI Express connectorYes
-
Wiring typeSemi-modular
Weight and dimensions
-
Width150 mm
-
Depth158 mm
-
Height86 mm
-
Weight2464 g
Representation / realization
-
UtilityPC
-
Form factor of the power supply unitATX
-
80 PLUS Certification80 PLUS Bronze
-
Version ATX2.31
-
Sound level- dB
Technical details
-
Sustainability certificatesRoHS
Logistics data
-
Harmonized System Code84733020
Similar products
More product categories from brand LC-Power
More product types from brand LC-Power
Presentation of product LC8550 V2.31 specifications from brand LC-Power
Other features
The color of the lighting of the product LC-Power LC8550 V2.31 is multi. This feature allows you to create a personalized and dynamic atmosphere according to your desires.
Generalities
The brand of the product LC-Power LC8550 V2.31 is LC-Power. This brand is known for its quality and innovation in the field of household appliances. The product model LC-Power LC8550 V2.31 is LC8550 V2.31 | LC8550 V2.31. This model ensures optimal performance and an enhanced user experience. The EAN code of the product LC-Power LC8550 V2.31 is 4260070125898. This code allows for the unique identification of the product in the distribution system.
Design
The color of the product LC-Power LC8550 V2.31 is Noir. This shade gives it a modern and elegant look. The cooling type of the product LC-Power LC8550 V2.31 is active. This system ensures optimal temperature management for improved performance. The diameter of the LC-Power LC8550 V2.31 fan is 135 mm. This diameter is essential for ensuring optimal air circulation. The number of fans of the product LC-Power LC8550 V2.31 is 1 ventilateur(s). This design allows for better air circulation and optimal performance. The location of the fan of the product LC-Power LC8550 V2.31 is at the front and back. This positioning allows for optimal air circulation to maintain an ideal temperature. Does the product LC-Power LC8550 V2.31 have Lighting? Oui. This lighting enhances the atmosphere and functionality of your space. Does the product LC-Power LC8550 V2.31 have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device.
Weight and dimensions
The width of the product LC-Power LC8550 V2.31 is 150 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product LC-Power LC8550 V2.31 is 2464 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product LC-Power LC8550 V2.31 is 86 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product LC-Power LC8550 V2.31 is 158 mm. This dimension allows for optimal integration into your space.
Power
The total power of the product LC-Power LC8550 V2.31 is 550 W. This power ensures optimal performance for efficient use. The AC input voltage of the LC-Power LC8550 V2.31 is 110 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The power factor correction device of the product LC-Power LC8550 V2.31 is active. This type of correction device optimizes energy efficiency by improving the power factor of the system. The maximum output current (+3.3V) of the LC-Power LC8550 V2.31 is 20 A. This current ensures optimal performance for your power supply needs. The product LC-Power LC8550 V2.31 has a maximum output current (+12V) of 45.8 A. This specification ensures optimal performance for your power supply needs. The product LC-Power LC8550 V2.31 has a maximum output current (+5V) of 20 A. This current allows you to efficiently power your electronic devices. The effectiveness of the product LC-Power LC8550 V2.31 is 85 %. This performance ensures optimal results for daily use. The product LC-Power LC8550 V2.31 has a combined power (+3.3 V) of 110 W. This specification ensures optimal performance for your energy needs. The product LC-Power LC8550 V2.31 has a combined power (+5V) of 110 W. This specification ensures optimal performance for your devices. The electrical protection devices of the product LC-Power LC8550 V2.31 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation. The combined power (+12 V) of the product LC-Power LC8550 V2.31 is 549.6 W. This specification ensures optimal performance for your energy needs. The power factor of the product LC-Power LC8550 V2.31 is 0.99. This power factor indicates the efficiency with which the product uses energy.
Representation / realization
The form factor of the power supply unit of the product LC-Power LC8550 V2.31 is ATX. This form factor determines the compatibility of the power supply with the case and components of your system. The usefulness of the product LC-Power LC8550 V2.31 is PC. This product has been designed to meet specific needs and provide an optimal experience for its users. The product LC-Power LC8550 V2.31 has the 80 PLUS 80 PLUS Bronze certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs. The ATX version of the product LC-Power LC8550 V2.31 is 2.31. This specification ensures optimal compatibility with modern computer components. The noise level of the product LC-Power LC8550 V2.31 is - dB. This noise level allows for pleasant use without excessive noise disturbances.
Logistics data
The Harmonized System code for the product LC-Power LC8550 V2.31 is 84733020. This code allows for the unique identification of goods in international trade.
Connectivity
The number of SATA power cables for the product LC-Power LC8550 V2.31 is 6. These cables provide a reliable and efficient connection to power your components. The length of the motherboard power cable of the product LC-Power LC8550 V2.31 is 550 mm. This specification ensures optimal connectivity for your components. The connector on the motherboard of the product LC-Power LC8550 V2.31 contains 20+4 pin ATX. This connector is essential for ensuring a stable and reliable connection between the motherboard and the other components of the system. The SATA power cable of the product LC-Power LC8550 V2.31 has a length of 500,650,800 mm. This specification ensures optimal connectivity for your components. The Molex peripheral connector (4-pin) of the product LC-Power LC8550 V2.31 contains 6. This connector is essential for ensuring a reliable connection between electronic components. The length of the power cable of the device (Molex) of the product LC-Power LC8550 V2.31 is 450,600,750 mm. This specification ensures optimal connectivity for your power needs. The PCI Express power connector (6 +2 pin) of the product LC-Power LC8550 V2.31 contains 2. This connector is essential for providing stable and efficient power to graphics cards and other components requiring a PCIe connection. The length of the PCI Express power cable of the product LC-Power LC8550 V2.31 is 550 mm. This cable is essential for ensuring a reliable and efficient connection between your power supply and your graphics card. Does the LC-Power LC8550 V2.31 have a CPU power connector (4+4 pin)? Oui. This connector is essential for providing stable and efficient power to your processor. The product LC-Power LC8550 V2.31 has a CPU power cable length of 600 mm. This specification ensures optimal connectivity for your system. Does the LC-Power LC8550 V2.31 have an ATX power connector (20+4 pin)? Oui. This connector is essential for ensuring stable and efficient power supply to your system. The power connector of the floppy disk drive of the product LC-Power LC8550 V2.31 contains 2. This connector is essential to ensure adequate power supply to the floppy disk drive. Does the product LC-Power LC8550 V2.31 have a floppy disk drive connector? Oui. This connector allows for easy and quick connection with floppy disk drives, ensuring optimal compatibility. The length of the floppy disk drive cable of the product LC-Power LC8550 V2.31 is 900 mm. This specification ensures optimal connectivity for your data transfer needs. Does the product LC-Power LC8550 V2.31 have a PCI Express Connector? Oui. This connector ensures fast and efficient communication between the components of your system. The wiring type of the product LC-Power LC8550 V2.31 is Semi-modulaire. This non-modular wiring ensures a stable and reliable connection.
Technical details
The product LC-Power LC8550 V2.31 has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
