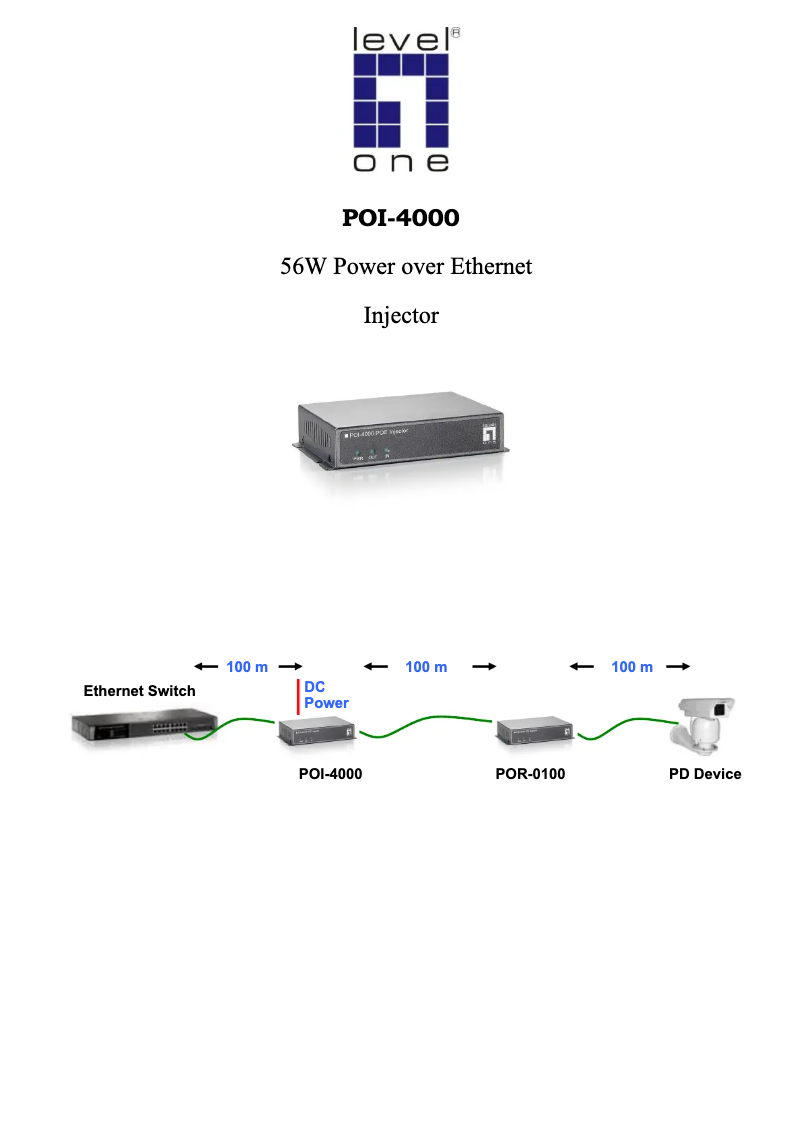

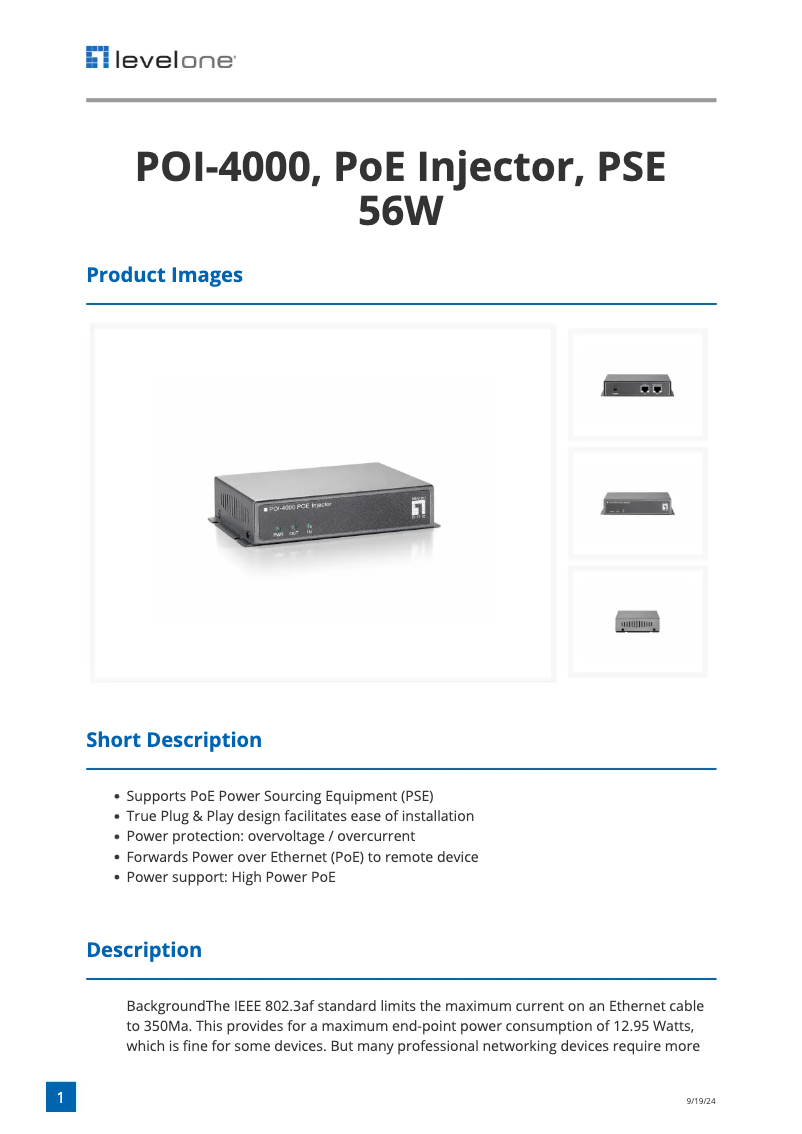

Manuals of product POI-4000
Technical Specifications POI-4000
General Information
-
ModelPOI-4000
-
Brand
-
Category
-
SKU535873
-
MPN535873
Network
-
Type of Ethernet interfaceFast Ethernet
-
LAN Ethernet: data transfer rate10, 100 Mbit/s
-
Wiring technology10/100
-
Network standardsIEEE 802.3x
-
Auto MDI/MDI-XYes
-
Auto MDI/MDI-XYes
Features
-
Product colorGray
-
IndicatorsLAN, Power
-
Pin assignment and polarity4/5 (+), 7/8 (-)
-
Plug and PlayYes
-
Electrical protection devicesOver voltage, Overcharge
-
Maximum operating distance100 m
Certificate
-
CertificationFCC Rules Part 15 Class A
-
CE
Connectivity
-
Number of Ethernet LAN ports (RJ-45)2
-
DC InputYes
Power
-
Power over Ethernet (PoE)56 V
-
Input voltage24 V
-
Input current2.7 A
-
Output current1 A
-
Total Power over Ethernet (PoE) Budget56 W
Environmental conditions
-
Operating temperature0 - 50 °C
-
Operating relative humidity (H-H)5 - 90 %
Weight and dimensions
-
Width90 mm
-
Depth120 mm
-
Height28 mm
Packaging contents
-
Number of products included1 piece(s)
-
Power adapter includedYes
Similar products
More product categories from brand LevelOne
More product types from brand LevelOne
Presentation of product POI-4000 specifications from brand LevelOne
Certificate
The certification of the product LevelOne POI-4000 contains FCC Rules Part 15 Class A\nCE. This certification guarantees compliance with the required safety and performance standards.
Generalities
The brand of the product LevelOne POI-4000 is LevelOne. This brand is known for its quality and innovation in the field of household appliances. The product model LevelOne POI-4000 is POI-4000 | POI-4000. This model ensures optimal performance and an enhanced user experience. The EAN code of the product LevelOne POI-4000 is 4015867148785, 878742006785, 8787420067852, 0878742006785, 0895234246399, 0998543264907. This code allows for the unique identification of the product in the distribution system.
Network
The Ethernet interface type of the product LevelOne POI-4000 is Fast Ethernet. This type of interface allows for fast and efficient network connections. The data transfer rate of the product LevelOne POI-4000 is 10, 100 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The network standards of the product LevelOne POI-4000 are IEEE 802.3x. These standards ensure optimal compatibility with various equipment and protocols. The wiring technology of the product LevelOne POI-4000 contains 10/100. This technology ensures a fast and reliable connection for your networking needs. Does the LevelOne POI-4000 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. Does the product LevelOne POI-4000 have Auto MDI/MDI-X? Oui. This specification allows for automatic detection of network connections, thus facilitating use and configuration.
Features
Does the product LevelOne POI-4000 have indicators? LAN, Power. These indicators allow you to visualize the operating status of the device. The pin assignment characteristics and polarity of the product LevelOne POI-4000 are 4/5, 7/8. These specifications ensure a precise and reliable connection for the proper functioning of the device. The color of the product LevelOne POI-4000 is Gris. This shade gives it a modern and elegant look. Does the product LevelOne POI-4000 have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable. The electrical protection devices of the product LevelOne POI-4000 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation. The maximum operating distance of the product LevelOne POI-4000 is 100 m. This specification ensures optimal connectivity over long distances.
Connectivity
Does the product LevelOne POI-4000 have a DC Input? Oui. This specification ensures compatibility with DC power supplies. The number of Ethernet LAN (RJ-45) ports of the product LevelOne POI-4000 is 2. These ports provide a stable and fast network connection for your devices.
Environmental conditions
The product LevelOne POI-4000 has an operating relative humidity (H-H) of 5 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product LevelOne POI-4000 is 0 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Packaging contents
Does the product LevelOne POI-4000 come with a power adapter? Oui. This allows you to use it immediately without having to purchase a separate adapter. The number of products included in the LevelOne POI-4000 is 1 pièce(s). This product is ideal for those looking for a practical and comprehensive solution.
Power
The input current of the product LevelOne POI-4000 is 2.7 A. This input current ensures optimal performance and increased energy efficiency. The input voltage of the product LevelOne POI-4000 is 24 V. This feature ensures compatibility with standard electrical systems. The product LevelOne POI-4000 features Power over Ethernet (PoE) of 56 V. This specification allows for the transmission of both data and electrical power over a single cable, thereby simplifying installation and reducing the need for additional electrical outlets. The output current of the product LevelOne POI-4000 is 1 A. This current ensures optimal performance for your electrical needs. The Total Power over Ethernet (PoE) budget of the product LevelOne POI-4000 is 56 W. This budget allows for the efficient powering of multiple devices through a single network cable.
Weight and dimensions
The height of the product LevelOne POI-4000 is 28 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product LevelOne POI-4000 is 90 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product LevelOne POI-4000 is 120 mm. This dimension allows for optimal integration into your space.
