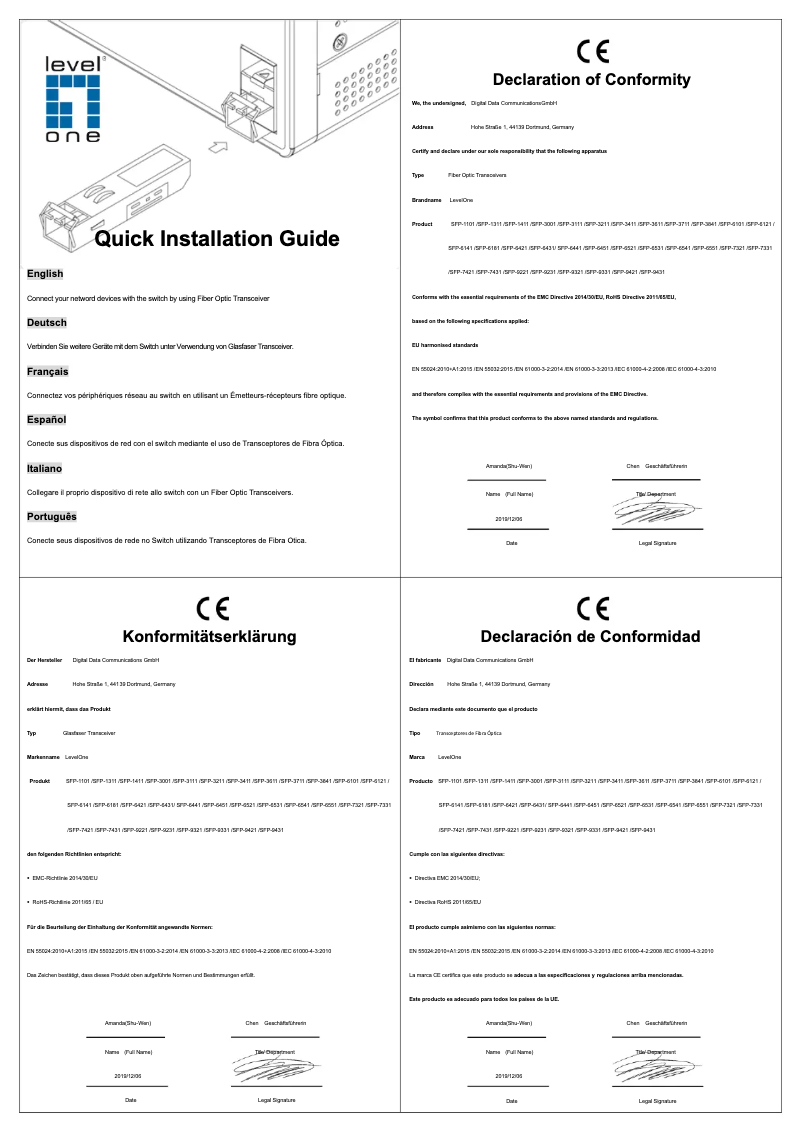

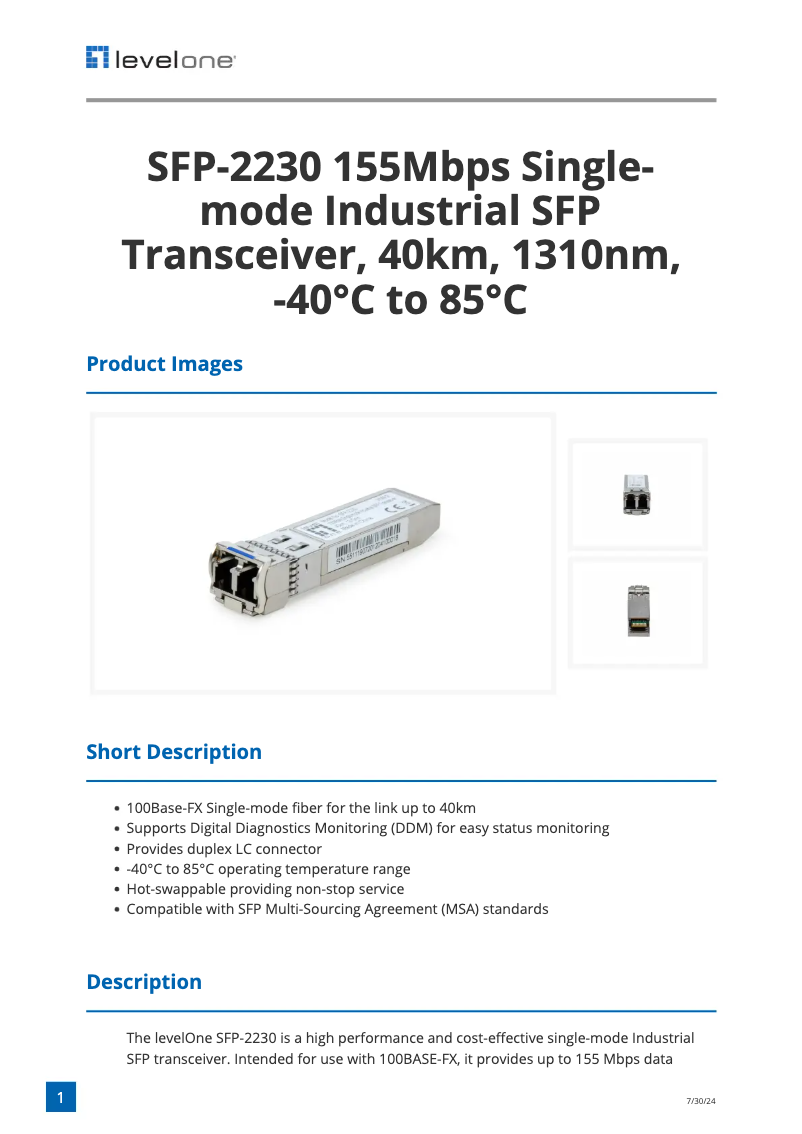

Manuals of product SFP-2230
Technical Specifications SFP-2230
General Information
-
ModelSFP-2230
-
Brand
-
Category
-
SKU1575596
-
MPN1575596
Packaging information
-
Package weight39.5 g
-
Type of packagingBox
-
User GuideYes
-
Package width65 mm
-
Package depth106 mm
-
Package height20 mm
Logistics data
-
Width of the main locker (external)310 mm
-
Length of the main locker (external)375 mm
-
Height of the main locker (external)268 mm
-
Gross weight of the main locker (external)6670 g
-
Product by main locker (external)150 piece(s)
-
Country of originChina
-
Products by pallet35 piece(s)
-
Gross length of the pallet800 mm
-
Gross width of the pallet1200 mm
-
Height of the pallet (air)1669 mm
-
Harmonized System Code85369010
Representation / realization
-
Maximum data transfer rate155 Mbit/s
-
SFP transceiver typeFiber optic
-
Type of interfaceSFP
-
Fiber optic connectorLC
-
Digital Diagnostics Monitoring (DDM)Yes
-
Multimode fiber compatible (MMF)No
-
SFP transceiver standardFX
-
Copper Ethernet cabling technology100BASE
-
Supported wire cable diameters9/125 µm
-
Wavelength Tx (min)1263 nm
-
Wavelength Tx (max)1360 nm
-
Wavelength Rx (min)1270 nm
-
Wavelength Rx (max)1600 nm
-
Power Tx (min)-5 dBmW
-
Power Tx (max)0 dBmW
-
Power Rx (min)-34 dBmW
-
Power Rx (max)-10 dBmW
-
Digital Diagnostics Monitoring (DDM)Yes
-
Maximum transfer distance2000 m
Power
-
Maximum tension3.47 V
-
Intensity (max.)0.3 A
-
Typical electricity consumption1 W
Environmental conditions
-
Operating temperature0 - 70 °C
-
Temperature out of operation-40 - 85 °C
-
Operating relative humidity (H-H)0 - 85 %
Features
-
Hot exchangeYes
-
Product colorSilver
Certificate
-
CertificationCE
-
SecurityFCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B
Sustainability
-
Sustainability certificatesRoHS
Weight and dimensions
-
Weight21 g
-
Width14 mm
-
Depth12 mm
-
Height57 mm
Similar products
More product categories from brand LevelOne
More product types from brand LevelOne
Presentation of product SFP-2230 specifications from brand LevelOne
Generalities
The brand of the product LevelOne SFP-2230 is LevelOne. This brand is known for its quality and innovation in the field of household appliances. The product model LevelOne SFP-2230 is SFP-2230 | SFP-2230. This model ensures optimal performance and an enhanced user experience. The EAN code of the product LevelOne SFP-2230 is 4015867181164, 4015867224427, 5050914833213. This code allows for the unique identification of the product in the distribution system.
Packaging information
The weight of the LevelOne SFP-2230 package is 39.5 g. This weight ensures optimal protection during transport and delivery. The width of the package of the product LevelOne SFP-2230 is 65 mm. This dimension is essential to ensure optimal transport and storage. Does the product LevelOne SFP-2230 have a User Guide? Oui. This guide will allow you to fully enjoy all the features of the product. The packaging type of the product LevelOne SFP-2230 is Boîte. This type of packaging ensures optimal protection and facilitates transportation. The depth of the product package LevelOne SFP-2230 is 106 mm. This dimension is essential to ensure proper packaging and secure transport. The height of the package of the product LevelOne SFP-2230 is 20 mm. This dimension is essential to ensure optimal transport and storage.
Logistics data
The width of the external main locker of the product LevelOne SFP-2230 is 310 mm. This dimension is essential to ensure optimal storage and efficient use of space. The gross weight of the main (external) case of the product LevelOne SFP-2230 is 6670 g. This weight is essential for optimizing logistics and transportation. The height of the external main locker of the product LevelOne SFP-2230 is 268 mm. This dimension is essential to ensure optimal storage. The length of the main (external) locker of the product LevelOne SFP-2230 is 375 mm. This specification is essential to ensure optimal storage and efficient use of space. The product LevelOne SFP-2230 contains 150 pièce(s) piece(s). This specification is essential for inventory management and shipping optimization. The country of origin of the product LevelOne SFP-2230 is Chine. This detail can influence the perception of quality and authenticity. The number of products per pallet of the product LevelOne SFP-2230 is 35 pièce(s). This specification is essential for optimizing logistics and inventory management. The gross length of the LevelOne SFP-2230 product pallet is 800 mm. This specification is essential for optimizing storage and transport. The gross width of the LevelOne SFP-2230 product palette is 1200 mm. This specification is essential for optimizing storage and transportation. The height of the product LevelOne SFP-2230 (air) is 1669 mm. This specification ensures optimization of storage and transport space. The Harmonized System code for the product LevelOne SFP-2230 is 85369010. This code allows for the unique identification of goods in international trade.
Power
The intensity (max.) of the product LevelOne SFP-2230 is 0.3 A. This specification ensures optimal performance and safe use. The maximum voltage of the product LevelOne SFP-2230 is 3.47 V. This specification ensures optimal performance and increased safety during its use. The typical power consumption of the product LevelOne SFP-2230 is 1 W. This feature allows for the assessment of the energy efficiency of the device.
Environmental conditions
The product LevelOne SFP-2230 has an operating relative humidity (H-H) of 0 - 85 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product LevelOne SFP-2230 is -40 - 85 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product LevelOne SFP-2230 is 0 - 70 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Certificate
The safety of the product LevelOne SFP-2230 includes FCC Part 15 Class B EN55022 Class B(CISPR 22B)VCCI Class B. This safety ensures optimal protection against electrical and environmental risks. The certification of the product LevelOne SFP-2230 contains CE. This certification guarantees compliance with the required safety and performance standards.
Features
Does the product LevelOne SFP-2230 have hot-swappable capability? Oui. This feature allows for the replacement of components without turning off the device, thus ensuring optimal continuity of use. The color of the product LevelOne SFP-2230 is Argent. This shade gives it a modern and elegant look.
Representation / realization
The maximum data transfer rate of the product LevelOne SFP-2230 is 155 Mbit/s. This rate ensures a fast and efficient connection for all your networking needs. The SFP transceiver type of the product LevelOne SFP-2230 is Fibre optique. This type of transceiver is essential for ensuring reliable and high-performance network connectivity. The type of interface of the product LevelOne SFP-2230 is SFP. This type of interface allows for a quick and efficient connection with other devices. The fiber optic connector of the product LevelOne SFP-2230 is LC. This connector is essential for ensuring fast and reliable data transmission in communication networks. The product LevelOne SFP-2230 is compatible with single-mode fiber (SMF). This specification ensures a reliable and high-performance connection for your communication needs. The product LevelOne SFP-2230 has compatibility with multimode fiber (MMF). This specification ensures optimal performance in applications requiring advanced connectivity. The diameter of the fiber cables supported by the product LevelOne SFP-2230 is 9/125 µm. This diameter allows for optimal data transmission. The wavelength Tx (min) of the product LevelOne SFP-2230 is 1263 nm. This specification ensures optimal performance in applications requiring high precision. The SFP transceiver standard of the product LevelOne SFP-2230 contains FX. This standard allows for efficient and reliable data transmission over short distances. The copper Ethernet wiring of the product LevelOne SFP-2230 contains 100BASE. This type of technology enables fast and reliable network connections, suitable for various environments. The wavelength Tx (max) of the product LevelOne SFP-2230 is 1360 nm. This specification ensures optimal performance for your communication needs. The Rx wavelength (min) of the LevelOne SFP-2230 is 1270 nm. This specification ensures optimal performance in applications requiring high precision. The wavelength Rx (max) of the product LevelOne SFP-2230 is 1600 nm. This feature ensures optimal performance in various applications. The Power Tx (min) of the product LevelOne SFP-2230 is -5 dBmW. This power level ensures optimal performance for your communication needs. The Power Tx (max) of the product LevelOne SFP-2230 is 0 dBmW. This parameter ensures optimal performance in transmissions. The Rx Power (min) of the product LevelOne SFP-2230 is -34 dBmW. This Rx Power ensures optimal performance for effective use. The power Rx (max) of the product LevelOne SFP-2230 is -10 dBmW. This power ensures optimal performance in signal reception. Does the product LevelOne SFP-2230 have Digital Diagnostics Monitoring (DDM)? No. This feature allows for tracking and analyzing digital diagnostics for better performance. The maximum transfer distance of the product LevelOne SFP-2230 is 2000 m. This specification ensures optimal performance over long distances.
Sustainability
The product LevelOne SFP-2230 has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Weight and dimensions
The depth of the product LevelOne SFP-2230 is 12 mm. This dimension allows for optimal integration into your space. The width of the product LevelOne SFP-2230 is 14 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product LevelOne SFP-2230 is 21 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product LevelOne SFP-2230 is 57 mm. This dimension is essential to ensure that the product fits perfectly in your space.
