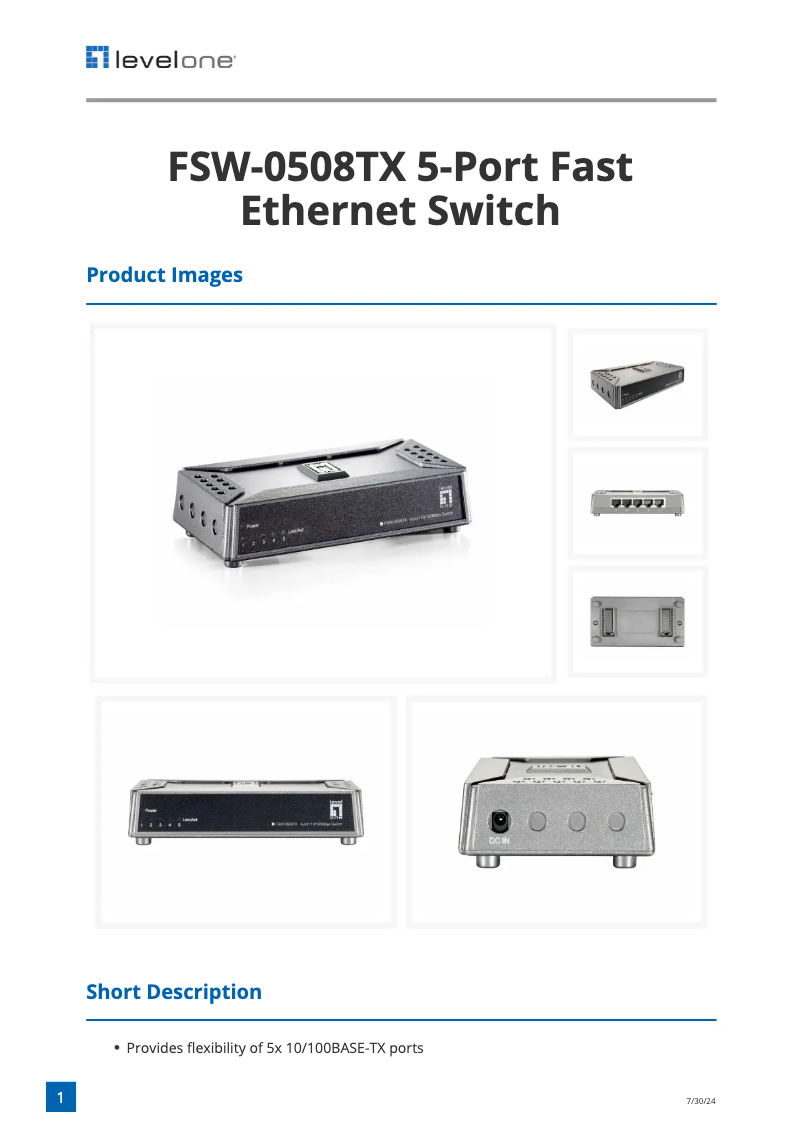

Manuals of product FSW-0508TX
Editorial note
The LevelOne FSW-0508TX switch offers a satisfactory user experience thanks to its Full duplex technology, which allows simultaneous communication and optimizes data exchanges. However, its status as an unmanaged switch limits customization and configuration options for more advanced users. In terms of performance, the switching capacity of 1 Gbit/s and the transfer rate of 148,000 packets per second are adequate for standard use. Nevertheless, these specifications may prove insufficient in environments requiring higher transmission speeds. In terms of connectivity, the 5 RJ-45 Fast Ethernet ports ensure a reliable connection. However, the limited number of ports and the absence of SFP/SFP+ modules restrict flexibility, which could pose problems in more complex or expanding networks. The product's value for money is interesting, reinforced by its FCC, CE, and RoHS certification, which ensures compliance with safety and performance standards. Finally, the modern and functional design of the LevelOne FSW-0508TX is an asset, although the lack of a mounting bracket and non-stackability may complicate its integration into certain spaces. Overall, this product is a valid option for basic networking needs, but it may not meet the requirements of users seeking superior performance and more flexibility.Score details
User experience
The user experience is good thanks to the full duplex communication that optimizes data exchanges, but the fact that the switch is unmanaged limits customization options.
Performance
With a switching capacity of 1 Gbit/s and a transfer rate of 148,000 packets per second, the performance is satisfactory for standard use, but may be insufficient for environments requiring higher speeds.
connectivity
The product has 5 RJ-45 Fast Ethernet ports, ensuring a reliable connection, but the number of ports and the absence of SFP/SFP+ modules limit flexibility for more complex networks.
Value for money
The value for money is interesting, especially since the product is FCC, CE, and RoHS certified, thus ensuring compliance with safety standards.
Design
The design is functional and modern, but the lack of a mounting bracket and the inability to stack may pose integration issues in certain spaces.
Advantages
Simultaneous communication thanks to Full duplex
Fast connections with RJ-45 Fast Ethernet ports
Switching capacity of 1 Gbit/s
Operates from 0 to 40 °C
Complies with FCC, CE, and RoHS standards
Disadvantages
Unmanaged, limited configuration options.
No PoE, additional wiring required.
Maximum speed of only 1 Gbps.
Only 5 ports available.
No SFP/SFP+ modules, limited connectivity.
Technical Specifications FSW-0508TX
General Information
-
ModelFSW-0508TX
-
Brand
-
Category
-
Type
-
SKU1821049
-
MPN1821049
Network
-
Flow control assistanceYes
-
Copper Ethernet cabling technology10BASE-T, 100BASE-TX
-
Support 10GNo
-
Network standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x
-
Flow control assistanceYes
-
Flow control assistanceYes
-
Flow control assistanceYes
Management features
-
Switching bench-
-
Switch typeUnmanaged
Connectivity
-
Quantity of basic switching RJ-45 Ethernet ports5
-
Basic switching RJ-45 Ethernet port typeFast Ethernet (10/100)
-
Number of installed SFP+ modules0
-
Number of installed SFP+ modules0
-
Power connectorDC-in jack
PoE (Power over Ethernet)
-
Ethernet connection, supporting power over this port (PoE)No
Environmental conditions
-
Operating relative humidity (H-H)5 - 90 %
-
Operating temperature0 - 40 °C
-
Temperature out of operation-40 - 70 °C
-
Relative humidity rate (storage)10 - 90 %
Data transmission
-
Switching capacity1 Gbit/s
-
MAC Directory2048 entries
-
Registration-and-reissueYes
-
Packet transfer rate (100 Mbps)148000 pps
-
Packet transfer rate (10 Gbps)14880 pps
Weight and dimensions
-
Width125 mm
-
Depth69 mm
-
Height30 mm
Power
-
Typical electricity consumption2.5 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Output voltage5 V
-
Output current1 A
Design
-
StackableNo
-
Product colorBlack, Grey
-
StackableNo
-
IndicatorsActivity, Link, Power
Logistics data
-
Country of originChina
-
Harmonized System Code85176990
Certificate
-
CertificationFCC
-
CE
-
RoHS
Representation / realization
-
Buffer size48 Ko
Packaging contents
-
Quick Start GuideYes
Packaging information
-
Power adapter includedYes
-
Package weight400 g
-
Package depth100 mm
-
Package height156 mm
-
Package width120 mm
Frequently Asked Questions
What certifications does the LevelOne FSW-0508TX have?
What is the height of the LevelOne FSW-0508TX?
What is the width of the LevelOne FSW-0508TX?
What is the depth of the LevelOne FSW-0508TX?
Is the manual for the LevelOne FSW-0508TX available in French?
Similar products
More product categories from brand LevelOne
More product types from brand LevelOne
Presentation of product FSW-0508TX specifications from brand LevelOne
General Information
The LevelOne FSW-0508TX is an Ethernet switch from the brand LevelOne, known for its commitment to quality and innovation in the field of networking technologies. This model, referenced as FSW-0508TX, is designed to provide optimal performance while ensuring a smooth user experience. The EAN code, which allows for unique product identification, is 4015867109533, 5050914833640, 5711045027499.
Network
The LevelOne FSW-0508TX supports Full duplex functionality, allowing simultaneous communication in both directions, which increases the efficiency of data exchanges. It uses copper Ethernet cabling of type 10BASE-T and 100BASE-TX, ensuring fast and reliable connections suitable for various environments. However, it does not support the 10G standard, which may limit its performance in high-speed configurations. Networking standards such as IEEE 802.3, IEEE 802.3u, and IEEE 802.3x ensure compatibility with many devices. Additionally, it offers Auto MDI/MDI-X and auto-negotiation features, facilitating network configuration and optimizing data exchanges.
Management Features
This switch is unmanaged, meaning it does not allow for advanced customization of network settings. While it provides effective management in basic configurations, it is not suitable for users seeking more advanced control options.
Connectivity
The FSW-0508TX is equipped with 5 RJ-45 Ethernet ports of type Fast Ethernet (10/100), ensuring fast connections for network devices. It does not have SFP or SFP+ modules, thus limiting connectivity expansion options. The power connector is of type DC-in jack, ensuring reliable power supply.
PoE (Power over Ethernet)
This model does not support Power over Ethernet (PoE), which may require additional power solutions for certain connected devices.
Environmental Conditions
The LevelOne FSW-0508TX operates within a relative humidity range of 5 to 90 % and operating temperatures of 0 to 40 °C. It is designed to withstand extreme temperatures, ranging from -40 to 70 °C during storage, thus ensuring its durability in various environments.
Data Transmission
With a switching capacity of 1 Gbit/s and a MAC address table that can hold up to 2048 entries, this switch ensures efficient data transmission. It is also equipped with store-and-forward functionality, allowing for effective data capture and retransmission, with a transfer rate of 148000 pps.
Weight and Dimensions
The product measures 125 mm in width, 69 mm in depth, and 30 mm in height, allowing for easy integration into various workspaces.
Power
The typical power consumption of the FSW-0508TX is 2.5 W. It operates on an AC input voltage of 100 to 240 V and a frequency of 50 to 60 Hz, ensuring compatibility with most electrical systems. The output voltage is 5 V with an output current of 1 A.
Design
The design of the LevelOne FSW-0508TX is simple and functional. It is available in black and gray, offering a modern aesthetic. This model does not have a mounting bracket and is not stackable. Activity, Link, and Power indicators are present to show the device's status.
Logistics Data
Manufactured in China, the product is identified by the harmonized system code 85176990, facilitating its international trade.
Certification
The LevelOne FSW-0508TX is certified FCC, CE, and RoHS, ensuring its compliance with safety and performance standards.
Representation / Realization
It has a buffer of 48 KB, optimizing data processing and improving overall network performance.
Packaging Contents
The product comes with a quick start guide, allowing for easy and fast installation.
Packaging Information
A power adapter is included, allowing for immediate use. The total weight of the package is 400 g, with dimensions of 100 mm in depth, 156 mm in height, and 120 mm in width, ensuring secure transport.
