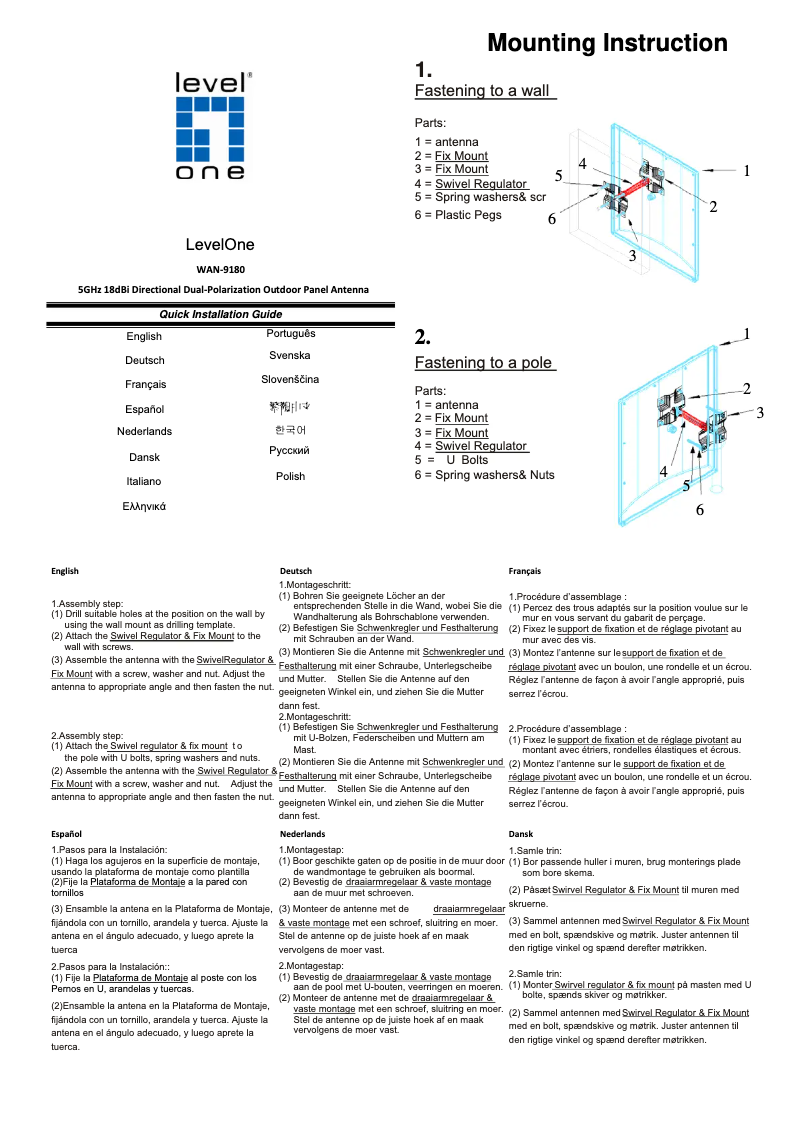

Manual of product WAN-9180
Editorial note
The LevelOne WAN-9180 is a directional antenna that stands out for its impressive performance, particularly due to a gain level of 18 dBi, ensuring excellent reception and transmission of signals. Its robust and waterproof design ensures remarkable durability, even in extreme weather conditions, making it a suitable choice for both indoor and outdoor use. Installation is facilitated by an included mounting kit and a quick installation guide, contributing to a positive user experience. However, some aspects are worth noting. The antenna requires precise alignment to function optimally, which can make its installation tricky in certain environments. Additionally, although the product is compatible with modern network standards such as IEEE 802.11a and IEEE 802.11n, it lacks advanced features, such as smart connectivity, which may disappoint users looking for more modern solutions. The standing wave ratio of 2.2 also indicates slightly lower transmission efficiency compared to some competing models. In terms of value for money, the LevelOne WAN-9180 remains reasonable, although its weight of 435 g may pose mounting issues in extreme weather conditions. Overall, this product is a solid choice for those seeking a reliable antenna, but it is essential to consider its limitations before purchase.Score details
User experience
The ease of installation thanks to the mounting kit and quick installation guide enhances the user experience, although the precise alignment of the antenna may pose challenges.
Performance
The gain level of 18 dBi ensures excellent reception and transmission of signals, guaranteeing optimal performance in various environments.
Design
The robust and waterproof design of the product ensures durability in extreme weather conditions, although its weight may make mounting tricky.
Features
Although the product is compatible with modern network standards, it lacks advanced features like smart connectivity, which may disappoint some users.
Value for money
The value for money is reasonable, but the standing wave ratio of 2.2 could indicate slightly lower transmission efficiency compared to competing models.
Advantages
18 dBi gain for better reception
Compatible with IEEE 802.11a and 802.11n
Robust and weather-resistant design
Easy installation with included mounting kit
Versatile use indoors and outdoors
Disadvantages
Precise alignment needed for optimal performance.
Heavy weight can complicate attachment.
Lack of modern advanced features.
Limited compatibility with older devices.
Slightly lower transmission efficiency.
Technical Specifications WAN-9180
General Information
-
ModelWAN-9180
-
Brand
-
Category
-
Type
-
SKU2023928
-
MPN2023928
Representation / realization
-
Antenna gain level (max)18 dBi
-
Frequency band5.15 - 5.875 GHz
-
Impedance50 Ohm
-
Plan E (3 dB opening angle)15 °
-
Plan E (3 dB opening angle)15 °
-
Network standardsIEEE 802.11a, IEEE 802.11n
Features
-
Antenna typeDirectional antenna
-
Antenna connector typeType-N
-
PolarizationDual-polarization
-
Permissible power10 W
-
UtilityIndoor and outdoor
-
Product colorGray
-
Standing Wave Report2.2
-
AssemblyWall
-
Type of connectorFemale
-
WaterproofYes
-
Extreme wind speed216 km/h
-
Material of the case/bodyAcrylonitrile butadiene styrene (ABS), Aluminum
Weight and dimensions
-
Weight435 g
-
Width256 mm
-
Depth227 mm
-
Height19 mm
Logistics data
-
Country of originTaiwan
-
Harmonized System Code85177100
Environmental conditions
-
Operating temperature-40 - 80 °C
-
Operating relative humidity (H-H)0 - 95 %
Packaging contents
-
Quantity1 piece(s)
-
Assembly kitYes
-
Assembly kitYes
Packaging information
-
Package weight188 g
-
Package depth235 mm
-
Package height47 mm
-
Package width343 mm
Frequently Asked Questions
What is the weight of the LevelOne WAN-9180?
What is the height of the LevelOne WAN-9180?
What is the width of the LevelOne WAN-9180?
What is the depth of the LevelOne WAN-9180?
Is the manual for the LevelOne WAN-9180 available in French?
Similar products
More product categories from brand LevelOne
More product types from brand LevelOne
Presentation of product WAN-9180 specifications from brand LevelOne
General Information
The LevelOne WAN-9180 is a product from the LevelOne brand, which is recognized for its commitment to quality and innovation in the home appliance sector. This model, referenced under the code WAN-9180, is designed to deliver optimal performance, thus ensuring an enhanced user experience. The EAN code, 4015867164907 and 5050914915513, allows for unique identification in distribution systems.
Representation / Implementation
With a maximum gain level of 18 dBi, the antenna of the LevelOne WAN-9180 optimizes the reception and transmission of signals. The frequency band of 5.15 to 5.875 GHz ensures effective communication within this range. The impedance of 50 Ohm guarantees optimal audio quality. The 3 dB opening angles, both in H Plane and E Plane, are 15 °, allowing for precise performance in various applications. This model complies with the network standards IEEE 802.11a and IEEE 802.11n, thus ensuring extensive compatibility with different equipment.
Features
The LevelOne WAN-9180 is equipped with a directional antenna, ideal for maximizing performance in confined spaces. It uses an N type connector, essential for ensuring good reception. Its vertical polarization enhances signal clarity by reducing interference. This model can support an admissible power of 10 W, thus ensuring safe use. It is designed for both indoor and outdoor use, meeting various needs. Its gray color gives it a modern look, while its standing wave ratio of 2.2 allows for evaluating its efficiency. It can be easily mounted on a desk or wall, and its female connector ensures compatibility with various devices. Additionally, the WAN-9180 is waterproof, providing protection against the elements, and can withstand winds of up to 216 km/h. Made of ABS and aluminum, it combines durability and elegance.
Weight and Dimensions
The product weighs 435 g, making it easy to handle and install. Its dimensions are as follows: 256 mm wide, 227 mm deep, and 19 mm high, allowing for optimal integration into various spaces.
Logistical Data
Originating from Taiwan, the LevelOne WAN-9180 is identified by the harmonized code 85177100, which facilitates its tracking in international trade.
Environmental Conditions
This model operates within a temperature range of -40 to 80 °C, ensuring its effectiveness in various environments. It also supports a relative humidity of 0 to 95 %, ensuring optimal operation even in humid conditions.
Packaging Contents
The packaging contains one piece of the LevelOne WAN-9180. A quick installation guide is included to facilitate commissioning, as well as a mounting kit for easy installation.
Packaging Information
The weight of the package is 188 g, ensuring adequate protection during transport. The dimensions of the packaging are as follows: 343 mm wide, 235 mm deep, and 47 mm high, ensuring optimal protection for shipping and storage.
