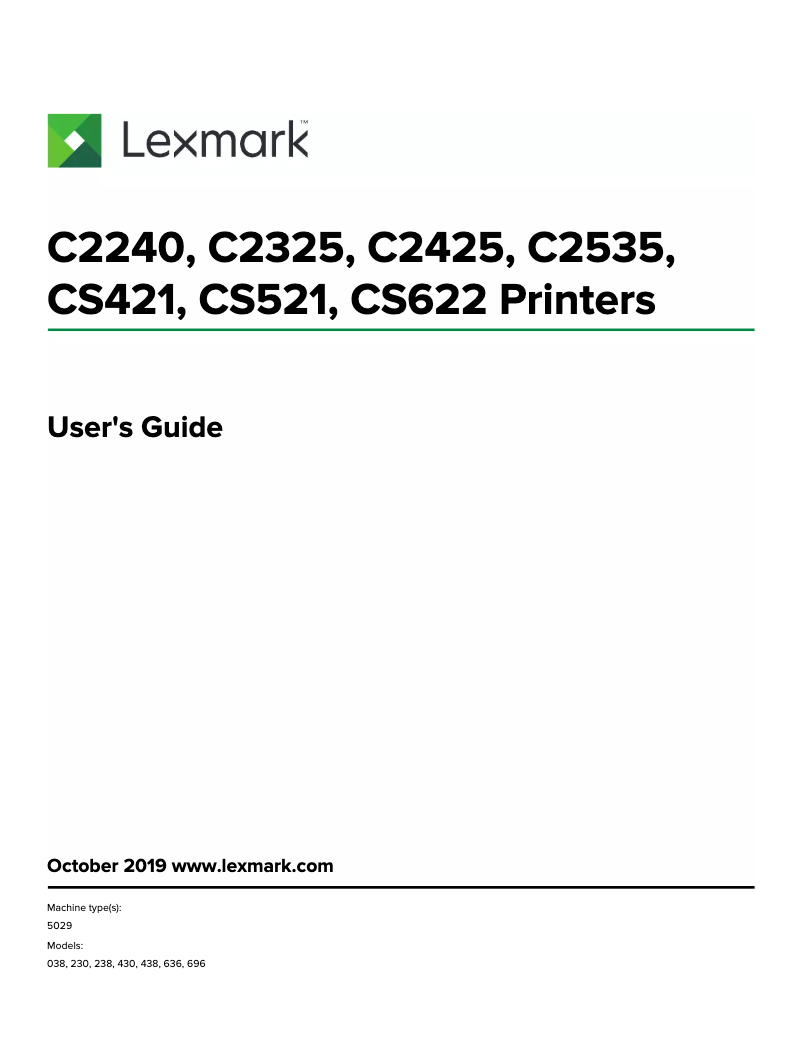

Manual of product CS521dn
Editorial note
The Lexmark CS521dn printer stands out for its fast printing speed of 33 pages per minute, both in color and black. This makes it an ideal choice for demanding work environments. Its print quality is also remarkable, with a maximum resolution of 2400 x 600 DPI, ensuring professional results. The duplex printing feature helps save paper and reduce printing costs, which is a significant advantage. However, some drawbacks deserve to be highlighted. Weighing 21 kg, the installation and handling of the printer can be challenging, especially in tight spaces. Additionally, the lack of Wi-Fi connectivity limits usage flexibility, requiring a wired connection via Ethernet. Although the input capacity is generous at 1450 sheets, the output capacity of only 125 sheets may necessitate frequent interventions during large print jobs. Finally, the cost of the toner cartridges, which requires four separate cartridges, can increase long-term expenses. The writing scores reflect an overall positive user experience, with a score of 80 for user experience and 85 for performance. The modern design of the printer receives a score of 75, but its weight is a limiting factor. In terms of value for money, the score of 70 highlights that while print quality is excellent, operating costs may be a barrier for some users. The features, with a score of 80, emphasize duplex printing and Ethernet connectivity, but the lack of Wi-Fi is an area for improvement. Finally, the score of 75 in terms of ease of use indicates that while the printer is designed to handle large volumes, the output capacity is limited. In summary, the Lexmark CS521dn is a robust and high-performing printer, but it presents challenges in terms of weight, connectivity, and operating costs.Score details
User experience
The user experience is generally positive thanks to an intuitive interface and well-thought-out features, although the weight of 21 kg may make installation difficult.
Performance
The printing speed of 33 pages per minute in color and black is ideal for demanding work environments, but the duplex speed of 16 ppm could be improved.
Design
The design is modern, although the weight of the printer limits its maneuverability.
Value for money
Although the print quality is exceptional, the high cost of ink cartridges can increase long-term expenses.
Features
The duplex printing feature and Ethernet connectivity are advantages, but the lack of Wi-Fi limits usage flexibility.
Usability
The printer is designed to handle large volumes of printing, but the output capacity of only 125 sheets requires frequent interventions.
Advantages
Print speed of 33 pages per minute
Print quality up to 2400 x 600 DPI
Double-sided printing for paper savings
Network connectivity via Ethernet/LAN
Paper capacity of 1450 sheets
Disadvantages
Heavy weight, difficult to handle.
No Wi-Fi, requires wiring.
Output capacity limited to 125 sheets.
High cost of ink cartridges.
Slow duplex printing speed.
Technical Specifications CS521dn
General Information
-
ModelCS521DN
-
Brand
-
Category
-
Type
-
SKU1059875
-
MPN1059875
Print speed
-
Double-sided printingYes
-
Printing technologyLaser
-
Print speed (color, normal quality, A4/US Letter)33 ppm
-
Print speed (color, normal quality, A4/US Letter)33 ppm
-
Duplex printing speed (Black, normal quality, A4/US Letter)16 ppm
-
Duplex printing speed (Black, normal quality, A4/US Letter)16 ppm
-
Copy time for the first page (color, normal)7.5 s
-
Copy time for the first page (color, normal)7.5 s
-
Black print resolution1200 x 1200 DPI
-
Black print resolution1200 x 1200 DPI
-
Maximum resolution2400 x 600 DPI
-
Double-sided printingYes
-
Print margins (top, bottom, right, left)4.2 mm
Design
-
Market position-
-
Product colorBlack, White
-
ScreenLCD
-
Built-in screenYes
-
Screen size2.4 "
-
Built-in screenYes
Paper management
-
Maximum ISO A series paper sizeA4
-
ISO, Format Series A (A0...A9)A4, A5, A6
-
JIS series B format (B0...B9)B5
-
Envelope sizes7 3/4, 9,10, B5, C5
-
Non-ISO print support sizesExecutive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm)
-
Type of paper tray supportCard stock, Envelopes, Labels, Plain paper
Network
-
Ready-to-use networkYes
-
Ready-to-use networkYes
-
Mobile printing technologiesApple AirPrint
-
WifiNo
Connectivity
-
Direct printingYes
-
USB connectorUSB Type-A / USB Type-B
-
Quantity of USB 2.0 Ports2
-
Direct printingYes
Weight and dimensions
-
Width442 mm
-
Depth421 mm
-
Height308 mm
-
Weight21000 g
Packaging information
-
Package width495 mm
-
Package depth595 mm
-
Package height402 mm
-
Package weight23800 g
Input and output capacity
-
Total number of power supply units2
-
Maximum number of feed bins5
-
Total power capacity250 sheets
-
Maximum input capacity1450 sheets
-
Maximum output capacity125 sheets
-
Maximum output capacity125 sheets
Features
-
Service cycle (recommended)1500 - 8500 pages per month
-
Service cycle (Maximum)85000 pages per month
-
Number of print cartridges4
-
Printing colorsBlack, Cyan, Magenta, Yellow
-
Languages of the page descriptionPCL 5c, PCL 6, PDF 1.7, PostScript 3, XML, XPS
Representation / realization
-
Integrated into the processorYes
-
Number of processor cores2
-
Processor frequency1000 MHz
-
Maximum internal memory1024 MB
-
Maximum internal memory1024 MB
Minimum system requirements
-
Support for the Windows operating systemWindows 10
-
Support for the Mac operating systemWindows 7
-
Support for the Linux operating systemWindows 8
-
Support for the server operating systemWindows 8.1
-
Support for other operating systems
-
Mac OS X 10.10 Yosemite
-
Mac OS X 10.11 El Capitan
-
Mac OS X 10.12 Sierra
-
Mac OS X 10.13 High Sierra
-
Mac OS X 10.6 Snow Leopard
-
Mac OS X 10.7 Lion
-
Mac OS X 10.8 Mountain Lion
-
Mac OS X 10.9 Mavericks
-
-
Debian 7.0
-
Debian 8.0
-
Fedora 23
-
Fedora 24
-
Red Hat Enterprise Linux WS 6.0
-
Red Hat Enterprise Linux WS 7.0
-
Ubuntu 16.04
-
openSUSE 13.2
-
openSUSE 42.3
-
-
SUSE Linux Enterprise Server 10
-
SUSE Linux Enterprise Server 11
-
SUSE Linux Enterprise Server 12
-
Windows 2000 Server
-
Windows Server 2012
-
-
IBM AIX 6.1
-
IBM AIX 7.1
-
Solaris 10
-
Solaris 10 SPARC
-
Solaris 11
-
Solaris 11 SPARC
Sustainability
-
Sustainability certificatesENERGY STAR
Power
-
Energy Star, typical electrical consumption (TEC)0.51 kWh/week
-
Average power consumption in Print mode530 W
-
Energy consumption (loan)37 W
-
Electricity consumption (stop)0.2 W
Environmental conditions
-
Operating temperature10 - 32 °C
-
Operating relative humidity (H-H)8 - 80 %
Frequently Asked Questions
What is the weight of the Lexmark CS521dn?
What is the recommended method for removing a paper jam from the printer?
Why is my printer not accepting original cartridges?
Why is the print quality of my documents poor?
What are the differences between a laser printer and an inkjet printer?
Why does my inkjet printer leave black streaks on prints?
What does the acronym DPI mean?
How many cartridges can be installed in the Lexmark CS521dn?
What is the size of the screen on the Lexmark CS521dn?
What is the height of the Lexmark CS521dn?
What is the width of the Lexmark CS521dn?
What is the depth of the Lexmark CS521dn?
Is the manual for the Lexmark CS521dn available in French?
Similar products
More product categories from brand Lexmark
Other Lexmark
More product types from brand Lexmark
Presentation of product CS521dn specifications from brand Lexmark
General Information
The model Lexmark CS521dn, known for its reliability and innovation, belongs to the brand Lexmark, famous in the field of printing devices. This model, identified by the code CS521dn | 42C0060, ensures top performance and an optimized user experience. Its EAN code, 0734646633437, allows for unique identification in distribution systems.
Print Speed
This laser printer offers printing in both colors, black and color, at an impressive speed of 33 pages per minute (ppm) on A4/US Letter format, perfectly suited for a dynamic work environment. Regarding duplex printing, it reaches a speed of 16 ppm for both colors, thus facilitating the optimization of paper resources. The print resolution reaches 1200 x 1200 DPI for sharp and precise results, while the maximum resolution is 2400 x 600 DPI, providing exceptional clarity.
Design
The Lexmark CS521dn features a modern design with a black and white finish. Its 2.4-inch LCD screen allows for intuitive navigation, and its color display enhances the user experience. Designed primarily for professionals, this device incorporates features tailored to specific needs.
Paper Management
This printer is compatible with A4 paper size, as well as several other standard sizes such as A5 and B5. It has a maximum input capacity of 1450 sheets spread across multiple trays, allowing for the management of large print volumes without interruption. The print media support includes various types such as plain paper, labels, and envelopes, thus offering flexibility of use.
Network
The Lexmark CS521dn is equipped with ready-to-use Ethernet/LAN connectivity, facilitating quick and efficient network integration. However, it does not offer Wi-Fi connectivity, which may limit usage flexibility. It also supports mobile printing technologies, allowing for direct printing from portable devices.
Connectivity
This model has type A and B USB ports, with a total of 2 USB 2.0 ports for easy connection to various devices. The direct printing function allows for quick printing from external devices, thus simplifying the printing process.
Weight and Dimensions
The dimensions of the Lexmark CS521dn are 442 mm in width, 421 mm in depth, and 308 mm in height, allowing for easy integration into various office environments. With a weight of 21 kg, this device may require special attention during installation.
Packaging Information
The package containing the Lexmark CS521dn measures 495 mm in width, 595 mm in depth, and 402 mm in height, with a total weight of 23.8 kg, thus providing adequate protection during transport.
Input and Output Capacity
The Lexmark CS521dn has two input trays, with a total input capacity of 250 sheets and a maximum capacity of 1450 sheets. However, the output capacity is limited to 125 sheets, which may require frequent interventions to empty the tray during large print volumes.
Features
The recommended service cycle for the Lexmark CS521dn is 1500 to 8500 pages per month, while the maximum cycle can reach 85000 pages per month. This model uses four print cartridges (black, cyan, magenta, yellow) to ensure optimal print quality. It supports multiple page description languages, including PCL and PostScript, to adapt to various printing needs.
Performance / Execution
The Lexmark CS521dn integrates a 2-core processor running at 1000 MHz, ensuring smooth performance. Its internal memory of 1024 MB allows for efficient data and application processing.
Minimum System Requirements
This model is compatible with several operating systems, including Windows (10, 8, 7), Mac OS (10.6 to 10.13), and various Linux systems, ensuring easy integration into diverse environments.
Durability
The Lexmark CS521dn is ENERGY STAR certified, ensuring that it meets high standards for energy efficiency and environmental sustainability.
Power
Its typical power consumption is 0.51 kWh/week, with a consumption in print mode of 530 W. In standby mode, it consumes 37 W, and 0.2 W when turned off, thus minimizing energy impact.
Environmental Conditions
The Lexmark CS521dn operates efficiently within a temperature range of 10 to 32 °C and can handle a relative humidity of 8 to 80 %, thus adapting to various work environments.
