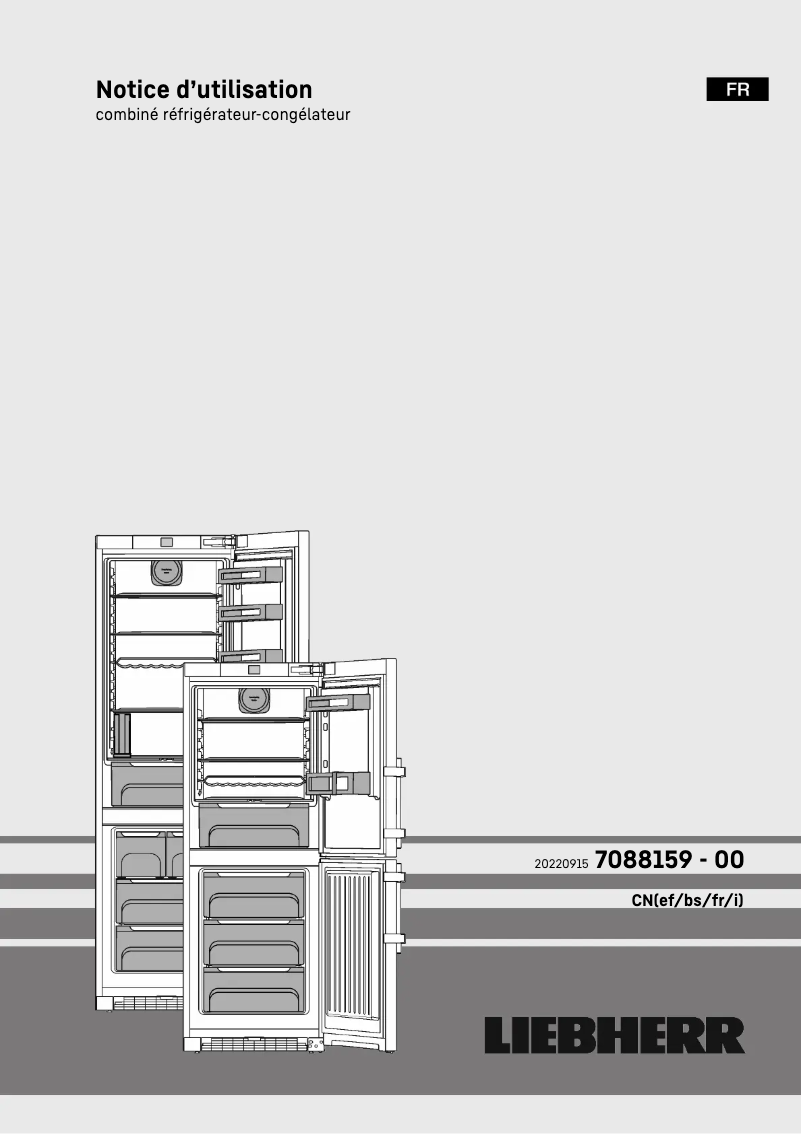

Manual of product CNef 5735
Editorial note
The Liebherr CNef 5735 refrigerator stands out for its high energy efficiency, with an A+++ rating, thus providing savings on electricity bills while being environmentally friendly. Its generous storage capacity of 402 L is ideal for families or cooking enthusiasts, allowing for easy storage of a wide variety of foods and beverages. Additionally, its modern and sleek design, enhanced by an integrated TFT display and tempered glass shelves, combines aesthetics and functionality. However, some drawbacks are worth mentioning. The freezer requires manual defrosting, which can be inconvenient for users looking for a completely frost-free model. Furthermore, the lack of a multi-airflow system could limit the circulation of fresh air, thus impacting food preservation. Finally, the product's weight (80.7 kg) may complicate its installation and movement, especially in tight spaces. In terms of user experience, the product receives a positive score, with a rating of 85, thanks to its intuitive interface and attractive design. Performance is also well-rated with a score of 80, despite the need for manual defrosting. The design is rated at 90, highlighting the elegance of the materials used. However, perceived value is slightly lower, at 75, due to the weight and functional limitations. Overall, the Liebherr CNef 5735 is a solid choice for those seeking a refrigerator that combines performance and aesthetics, although it has a few points to consider.Score details
User experience
The user experience is positive thanks to a modern and elegant design, as well as an intuitive interface with a built-in TFT screen.
Performance
The Liebherr CNef 5735 offers high energy performance with an A+++ rating, although it requires manual defrosting for the freezer.
Design
The design is modern and elegant, with tempered glass shelves that add an aesthetic touch while ensuring practical functionality.
Value for money
The value for money is good considering the practical features like the No Frost system and automatic defrosting, although the weight may complicate installation.
Features
Although the product is feature-rich, the absence of a multi-airflow system may affect the circulation of fresh air.
Robustness
The material of the casing and tempered glass shelves ensures good sturdiness, although the weight of the product may make it difficult to move.
Usability
The use is generally easy, but the manual defrosting of the freezer may be a drawback for some users.
Advantages
Energy class A+++ for electricity savings
Generous capacity of 402 L for storage
Modern design with integrated TFT screen
No Frost system and automatic defrosting
Child safety and open door alarms
Disadvantages
Manual defrosting for the freezer required
Limited air circulation without multi-flow
Heavy weight complicates installation
Minimum temperature of 10 °C insufficient
No quick freeze function
Technical Specifications CNef 5735
General Information
-
ModelCNEF 5735
-
Brand
-
Category
-
Type
-
SKU1177553
-
MPN1177553
Weight and dimensions
-
Width with door open740 mm
-
Width700 mm
-
Depth665 mm
-
Height2010 mm
-
Depth without handle709 mm
-
Depth when the door is open1323 mm
-
Weight80700 g
Design
-
Device placementFree-standing
-
Reversible doorsYes
-
Screen typeTFT
-
Order typeTouchscreen
-
Reversible doorsYes
-
Shelf materialTempered glass
-
Product colorSilver
-
Hinge location of doorRight
-
Material of the case/bodyAluminium, Stainless steel, Steel
-
Reversible doorsYes
Representation / realization
-
Climate classSN-T
-
Sound level38 dB
-
Total net capacity402 L
-
Total gross capacity437 L
-
Minimum operating temperature10 °C
-
Maximum operating temperature32 °C
-
Air filterYes
-
Air filterYes
-
Ice makerNo
Power
-
Energy efficiency class (old)A+++
-
Energy efficiency rangeA+++ to D
-
Annual energy consumption183 kWh
-
Energy consumption0.501 kWh/24h
-
AC input voltage220 - 240 V
-
AC input frequency50 - 60 Hz
-
Current1.4 A
-
Connected charge190 W
Refrigerator
-
Net capacity of the refrigerator296 L
-
Number of removable shelves4
-
Number of vegetable drawers1
-
Number of shelves/bins in the refrigerator6
-
Egg compartmentYes
-
Gross capacity of the refrigerator309 L
-
Refrigerator temperature range1 - 9 °C
-
Egg compartmentYes
-
Egg compartmentYes
-
Type of lampLED
-
Egg compartmentYes
-
Multi-airflow system (refrigerator)No
-
Number of removable shelves4
-
Egg compartmentYes
-
Egg compartmentYes
Freezer
-
Net capacity of the freezer106 L
-
Location of the ice compartmentLow-placed
-
Number of stars (indicates preservation possibilities)4*
-
Autonomy in case of power failure24 h
-
Freezing capacity16 kg/24h
-
Number of shelves/bins in the freezer3
-
Ice cube trayYes
-
Gross capacity of the freezer128 L
-
Freezing temperature (min)-26 °C
-
Ice cube trayYes
-
Ice cube trayYes
-
Quick freeze functionNo
Packaging information
-
Package height2087 mm
-
Package width715 mm
-
Package depth751 mm
-
Package weight85800 g
Ergonomics
-
Caster wheelsYes
-
Caster wheelsYes
-
Caster wheelsYes
-
Caster wheelsYes
Cool zone
-
New compartment areaNo
Frequently Asked Questions
How can I prevent water accumulation on the glass shelves of my refrigerator?
What should I do if my refrigerator emits a bad odor?
What space should be left around my refrigerator?
What does R-410A refer to?
What is the weight of the Liebherr CNef 5735?
What is the height of the Liebherr CNef 5735?
What is the width of the Liebherr CNef 5735?
What is the depth of the Liebherr CNef 5735?
Is the manual for the Liebherr CNef 5735 available in French?
Similar products
More product categories from brand Liebherr
Other Liebherr
More product types from brand Liebherr
Presentation of product CNef 5735 specifications from brand Liebherr
General Information
The Liebherr CNef 5735 is a refrigerator from the renowned brand Liebherr, known for its commitment to quality and innovation in the home appliance sector. This model, identified by the code CNef 5735 | CNEF 5735-20, is designed to provide optimal performance and an enhanced user experience. The associated EAN code, 4016803049937, 4016803049951, allows for easy product identification in distribution systems.
Weight and Dimensions
The Liebherr CNef 5735 features dimensions that facilitate its integration into various spaces. Its width is 700 mm, with a total width of 740 mm when the door is open. The depth measures 665 mm, while the depth without the handle is 709 mm. In terms of height, it reaches 2010 mm. Regarding accessibility, the depth when the door is open is 1323 mm. With a weight of 80.7 kg, this refrigerator is relatively heavy, which may complicate its installation in tight spaces.
Design
The design of the Liebherr CNef 5735 is modern and sleek, incorporating a TFT screen that facilitates interaction with the appliance. The touch control allows for intuitive use. The tempered glass shelves combine aesthetics and robustness, while the silver color adds a contemporary touch. The reversible doors offer installation flexibility, and the bottom-mounted door hinge ensures easy opening and closing. Additionally, a child safety feature contributes to peace of mind in homes with children.
Representation / Realization
This refrigerator is classified in the SN-T climate category, indicating that it can operate efficiently in an ambient temperature range of 10 °C to 32 °C. With a noise level of 38 dB, it operates quietly, without noise disturbances. Its total net capacity of 402 L allows for generous storage of food and beverages, while its gross capacity reaches 437 L. The product is equipped with a vacation function and an air filter, but it does not have an ice maker.
Power
The Liebherr CNef 5735 benefits from excellent energy efficiency, rated A+++. Its annual energy consumption is 183 kWh, with a daily consumption of 0.501 kWh. Compatible with standard electrical systems, it operates on an input voltage of 220 to 240 V and a frequency of 50 to 60 Hz. The required current is 1.4 A, and the connected power reaches 190 W, ensuring reliable performance.
Refrigerator
The net capacity of the refrigerator is 296 L, providing ample space to meet the daily needs of a family. It includes three door compartments and a vegetable drawer, allowing for efficient organization. With six shelves/bins, food management is simplified. The No Frost system prevents frost formation and ensures optimal food preservation. The refrigerator operates within a temperature range of 1 to 9 °C and features LED interior lighting for better visibility.
Freezer
The freezer of the Liebherr CNef 5735 has a net capacity of 106 L, facilitating the storage of frozen foods. It is equipped with three shelves to effectively organize supplies. The ice compartment is located at the top for easy access. The product has a 24-hour autonomy in case of a power outage, and its freezing capacity is 16 kg/24h. Although it has a No Frost system, it requires manual defrosting.
Packaging Information
The packaging dimensions are optimized for transport, with a height of 2087 mm, a width of 715 mm, and a depth of 751 mm. The total weight of the package is 85.8 kg, ensuring adequate protection during transport.
Ergonomics
The Liebherr CNef 5735 is equipped with an error indicator, an open door alarm, and a temperature alarm to ensure safe use. Additionally, caster wheels facilitate the movement of the appliance, making its installation easier.
Fresh Zone
This model does not have a specific compartment for the fresh zone, but it is designed to optimize food preservation.
