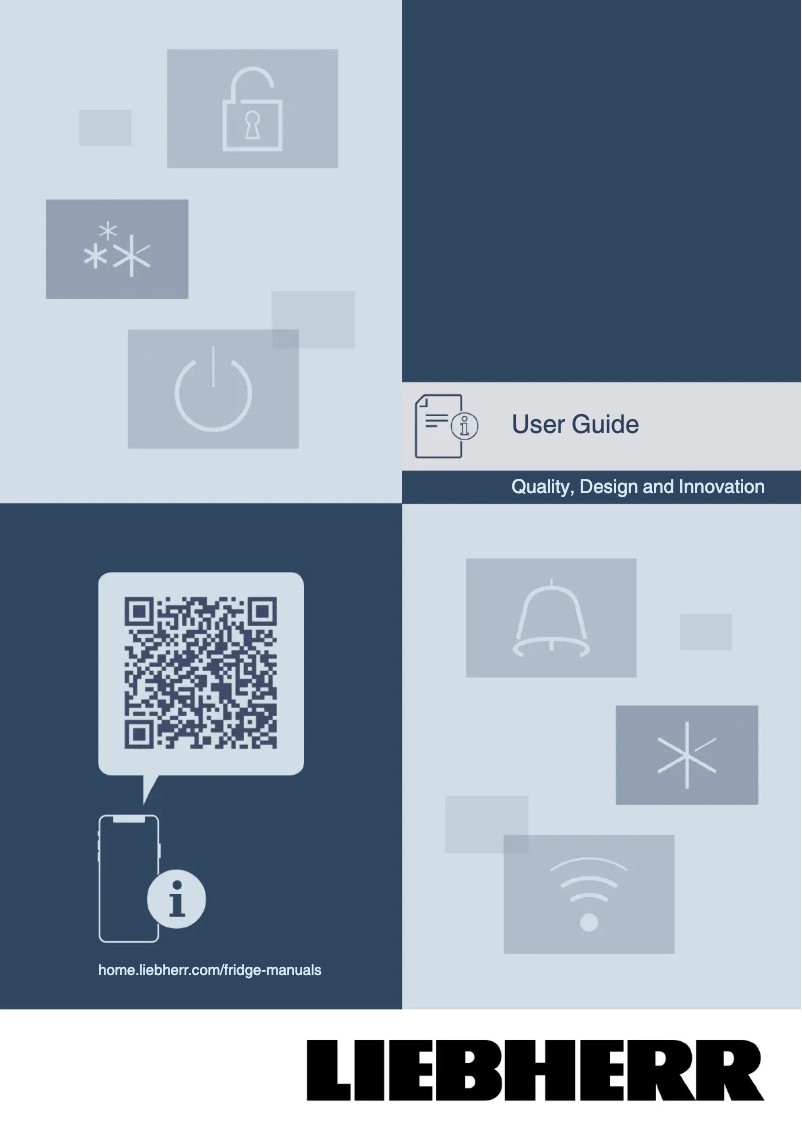

Manual of product CNsdc 5223 Plus
Editorial note
The Liebherr CNsdc 5223 Plus refrigerator stands out with its large storage capacity of 330 L, ideal for families. Its modern stainless steel design, combined with reversible doors, allows it to blend seamlessly into any kitchen. The 115° opening angle facilitates access to food, while the LED interior lighting ensures clear visibility. In terms of performance, the model offers a freezing capacity of 10 kg/24h and a quick freeze function, ensuring food freshness. However, the lack of a No Frost system for the refrigerator may lead to frost buildup, requiring regular manual defrosting. Additionally, the absence of an ice maker and a can holder may disappoint some users. The ergonomics are well thought out, offering features such as child safety and an open door alarm, which add a layer of protection for families. However, the lack of a failure alarm could pose a risk in case of a technical issue. Regarding energy consumption, the Liebherr CNsdc 5223 Plus is rated C with an annual consumption of 161 kWh. Although it is relatively economical, it may not meet the expectations of the most environmentally conscious users. Finally, the choice of robust materials, such as stainless steel and tempered glass, ensures good durability. However, its weight of 72.4 kg may make moving and installation more difficult. In summary, the Liebherr CNsdc 5223 Plus is a quality refrigerator, combining design and performance, but with some limitations to consider.Score details
User experience
The user experience is enhanced by a modern and sleek design, as well as well-thought-out features like child safety and an open door alarm.
Performance
Freezing performance is excellent with a capacity of 10 kg/24h, but the lack of a No Frost system may limit long-term efficiency.
Design
The stainless steel design and reversible doors offer aesthetic integration in all kitchens, with a 115° opening angle for easy access.
Value for money
With an annual energy consumption of 161 kWh, the refrigerator is relatively economical, although it is not ranked among the most efficient models.
Usability
The ergonomics are well thought out, with features like LED lighting that makes accessing food easier, but the lack of an ice maker and a can compartment can be a drawback.
Robustness
The choice of materials such as stainless steel and tempered glass ensures good durability, although the weight of 72.4 kg may make moving it difficult.
Documentation
The user manual is available, but more explanatory documents on optimal operation and maintenance would be beneficial.
Advantages
Large capacity of 330 L
Modern design in stainless steel
Fast freezing for guaranteed freshness
LED interior lighting for visibility
Integrated child safety
Open door alarm
Energy consumption of 161 kWh
Disadvantages
No No Frost system for the refrigerator
No built-in ice maker
Energy efficiency class C, not very economical
No can holder
No built-in failure alarm
Heavy weight, difficult to move
Technical Specifications CNsdc 5223 Plus
General Information
-
ModelCNSDC 5223 PLUS
-
Brand
-
Category
-
Type
-
SKU1563489
-
MPN1563489
Design
-
Device placementFree position
-
Product colorSilver
-
Hinge location of doorRight
-
Recessed handle(s)Yes
-
Door opening angle115 °
-
Order typeTouch
-
Recessed handle(s)Yes
-
Recessed handle(s)Yes
-
Shelf materialGlass
-
Material of the case/bodyStainless steel
-
Recessed handle(s)Yes
-
Material of door balconiesPlastic
-
Recessed handle(s)Yes
Cool zone
-
New compartment areaNo
Freezer
-
Net capacity of the freezer103 L
-
Freezing capacity10 kg/24h
-
Autonomy in case of power failure20 h
-
Number of stars (indicates preservation possibilities)4*
-
Quick freeze functionYes
-
Quick freeze functionYes
-
Freezing temperature (min)-26 °C
-
Quick freeze functionYes
-
Number of shelves/bins in the freezer3
-
Location of the ice compartmentLow-placed
Representation / realization
-
Total net capacity330 L
-
Climate classSN-T
-
Sound emission classB
-
Sound level35 dB
-
Ice makerNo
-
Vacation functionYes
Refrigerator
-
Net capacity of the refrigerator227 L
-
Very cold operating optionYes
-
Type of lampLED
-
Multi-airflow system (refrigerator)No
-
Very cold operating optionYes
-
Multi-airflow system (refrigerator)No
-
Number of shelves/bins in the refrigerator4
-
Refrigerator door compartments3
-
Number of vegetable drawers1
-
Refrigerator door compartments3
-
Very cold operating optionYes
-
Very cold operating optionYes
-
Refrigerator temperature range2 - 9 °C
-
Very cold operating optionYes
Ergonomics
-
Adjustable feetYes
-
Adjustable feetYes
-
Adjustable feetYes
-
Adjustable feetYes
-
Cable length2 m
Weight and dimensions
-
Weight72400 g
-
Height1855 mm
-
Width597 mm
-
Depth675 mm
Packaging information
-
Package weight77500 g
-
Package height1927 mm
-
Package width615 mm
-
Package depth675 mm
Power
-
Energy efficiency classC
-
Energy efficiency rangeA to G
-
Annual energy consumption161 kWh
-
Energy consumption0.441 kWh/24h
-
AC input frequency50 - 60 Hz
-
AC input voltage220 - 240 V
-
Current1.4 A
-
Connected charge183 W
Frequently Asked Questions
How can I prevent water droplets from forming on the glass surfaces of my refrigerator?
What can I do to eliminate bad odors in the refrigerator?
What distance should I maintain around my refrigerator?
What does the term R-410A refer to?
What is the weight of the Liebherr CNsdc 5223 Plus?
What is the height of the Liebherr CNsdc 5223 Plus?
What is the width of the Liebherr CNsdc 5223 Plus?
What is the depth of the Liebherr CNsdc 5223 Plus?
What is the energy rating of the Liebherr CNsdc 5223 Plus?
Is the manual for the Liebherr CNsdc 5223 Plus available in French?
Similar products
More product categories from brand Liebherr
Other Liebherr
More product types from brand Liebherr
Presentation of product CNsdc 5223 Plus specifications from brand Liebherr
General Information
The Liebherr CNsdc 5223 Plus is a refrigerator from the Liebherr brand, known for its innovation and reliability in the home appliance sector. With the CNsdc 5223 Plus model, you benefit from optimal performance and an enhanced user experience. This product is identifiable by its unique EAN code, 4016803087915.
Design
This refrigerator features a built-in design that harmoniously integrates into your kitchen while maintaining a modern aesthetic. Its stainless steel finish and silver color give it an elegant look. The reversible doors offer installation flexibility, while the 115° opening angle facilitates access to the compartments. It is equipped with intuitive touch controls and a built-in display for practical use. The included child safety feature minimizes the risk of accidents, and the tempered glass shelves add a touch of sophistication while being sturdy. Additionally, its recessed handles contribute to a sleek appearance.
Fresh Zone
This model does not have a specific compartment dedicated to the preservation of fresh food, but it is designed to maintain an optimal temperature for all your products.
Freezer
The freezer of the Liebherr CNsdc 5223 Plus has a net capacity of 103 L, ideal for storing a large quantity of frozen foods. Its freezing capacity is 10 kg per 24 hours, ensuring efficient performance for food preservation. In the event of a power outage, its 20-hour autonomy allows for safe storage of frozen foods. With a 4-star rating, it ensures excellent preservation duration. Although it has a quick freeze function, the freezer requires manual defrosting.
Representation / Performance
The total net capacity of the appliance is 330 L, providing ample space for your food and beverages. Rated SN-T, it operates optimally in various climatic conditions. With a noise level of 35 dB, it runs quietly, not disturbing your home ambiance. This model does not include an ice maker, but it offers a vacation function to save energy during your absences.
Refrigerator
The refrigerator offers a net capacity of 227 L, ideal for meeting the daily needs of a family. It is equipped with LED interior lighting, allowing clear visibility of food items. Although it does not have a No Frost system, it features automatic defrosting to reduce ice buildup. With four shelves and a vegetable drawer, it offers optimal organization. Its temperature range of 2 to 9 °C ensures adequate storage of fresh products.
Ergonomics
For practical use, the Liebherr CNsdc 5223 Plus is equipped with an open door alarm and a temperature alarm, ensuring continuous monitoring. Its adjustable feet allow for height adaptation according to your needs, while its 2 m cable offers installation flexibility.
Weight and Dimensions
This refrigerator weighs 72.4 kg, which may make moving it a bit difficult. Its dimensions (height: 1855 mm, width: 597 mm, depth: 675 mm) make it suitable for optimal integration into various spaces.
Packaging Information
The package weight is 77.5 kg, ensuring adequate protection during transport. The packaging dimensions (height: 1927 mm, width: 615 mm, depth: 675 mm) are designed for efficient storage and transport.
Power
This model is rated C in energy efficiency, contributing to energy savings while minimizing its environmental impact. Its annual consumption is 161 kWh, with a daily consumption of 0.441 kWh. It operates on an AC input frequency of 50-60 Hz and a voltage of 220-240 V, ensuring compatibility with standard electrical systems. With a current of 1.4 A and a connected load of 183 W, it guarantees optimal performance.
