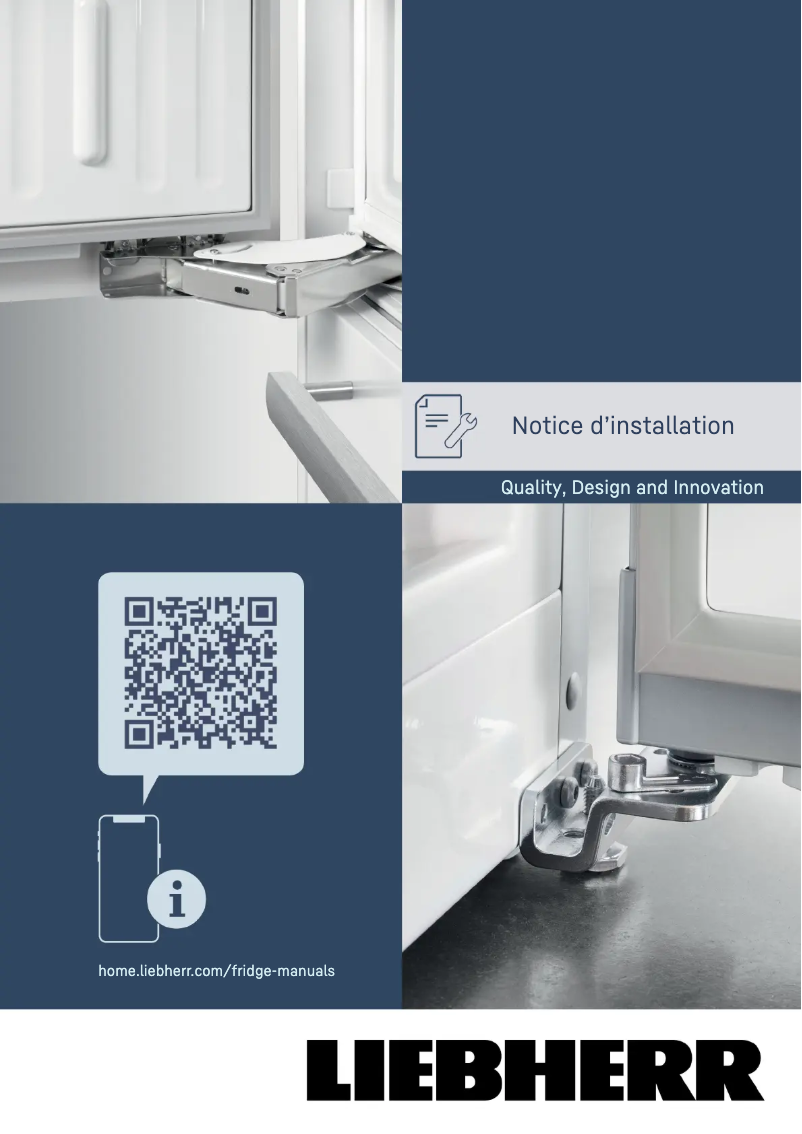

Manuals of product ICBNdi 5123 Plus
Editorial note
The Liebherr ICBNdi 5123 Plus stands out with its modern and integrated design, offering excellent aesthetics that harmoniously fit into your kitchen. With advanced technologies such as BioFresh and a No Frost system in the freezer, this refrigerator ensures optimal food preservation, extending their freshness and nutritional quality. Its adjustable tempered glass shelves also add appreciated flexibility to product storage. However, this model has some drawbacks. Its energy efficiency class D may disappoint users concerned about energy consumption, especially compared to other newer models displaying classes A or B. Additionally, the lack of a No Frost system in the refrigerator requires regular manual defrosting, which can be cumbersome. Although the weight of 63.8 kg ensures robustness, it may complicate the installation and movement of the appliance. In terms of performance, the Liebherr ICBNdi 5123 Plus offers a pleasant user experience, with a score of 85 for user experience and a design rated at 90. The provided documentation, while useful, could benefit from clarifications on certain advanced features. Overall, this refrigerator represents a good choice for those seeking an appliance that combines aesthetics and preservation technologies, despite some limitations in energy efficiency and maintenance.Score details
User experience
The Liebherr ICBNdi 5123 Plus offers a pleasant user experience thanks to its integrated and modern design, facilitating integration into contemporary kitchens.
Performance
Although the refrigerator uses BioFresh technology to extend food freshness, its energy efficiency class D may lead to higher consumption compared to other models.
Design
The modern and integrated design of the Liebherr ICBNdi 5123 Plus is aesthetic and optimized for efficient storage.
Value for money
The price may be justified by the quality and advanced technologies, but the energy class D could disappoint some users concerned about efficiency.
repairability
The absence of a No Frost system in the refrigerator may require regular manual maintenance, which could be burdensome for some users.
Robustness
The steel material and tempered glass shelves ensure adequate robustness and durability, providing good longevity for the product.
Usability
The adjustable shelves offer storage flexibility, but the weight of 63.8 kg may complicate installation and movement.
Features
With its advanced technologies like BioFresh and the No Frost system in the freezer, the Liebherr ICBNdi 5123 Plus meets many food preservation needs.
Support
Although the product comes with a user manual and installation guide, some modern features, such as smart connectivity, are lacking.
Documentation
The available documents (user manual and installation guide) are helpful but could be supplemented with information on advanced features.
Advantages
Integrated and modern design
BioFresh technology for fresh food
Adjustable tempered glass shelves
Low energy consumption (207 kWh/year)
No Frost system for easy maintenance
Disadvantages
Energy efficiency rated D, high consumption.
No No Frost system, manual defrosting required.
Lack of smart connectivity for home automation.
Heavy weight, difficult to install alone.
No can holder compartment available.
Technical Specifications ICBNdi 5123 Plus
General Information
-
ModelICBNDI 5123 PLUS
-
Brand
-
Category
-
Type
-
SKU1951662
-
MPN1951662
Design
-
Device placementIntegrated
-
Product colorNot applicable
-
Adjustable shelvesYes
-
Hinge location of doorRight
-
Adjustable shelvesYes
-
Door opening angle115 °
-
Adjustable shelvesYes
-
Order typeTouch
-
Adjustable shelvesYes
-
Screen positionInside
-
Material of the case/bodySteel
-
Shelf materialGlass
-
Adjustable shelvesYes
-
Material of door balconiesPlastic
Cool zone
-
New compartment areaYes
-
Net capacity of the new compartment area70.9 L
Representation / realization
-
Total net capacity244 L
-
Climate classSN-ST
-
Minimum operating temperature10 °C
-
Maximum operating temperature38 °C
-
Sound emission classB
-
Sound level34 dB
-
Ice makerNo
-
Air filterYes
-
Number of temperature zones3
Power
-
Energy efficiency classD
-
Energy efficiency rangeA to G
-
Annual energy consumption207 kWh
-
Energy Efficiency Index (EEI)80
-
Connected charge183 W
-
AC input voltage220 - 240 V
-
AC input frequency50 - 60 Hz
-
Current1.4 A
-
Energy consumption0.567 kWh/24h
Refrigerator
-
Net capacity of the refrigerator174 L
-
Very cold operating optionYes
-
Type of lampLED
-
Multi-airflow system (refrigerator)No
-
Very cold operating optionYes
-
Multi-airflow system (refrigerator)No
-
Number of shelves/bins in the refrigerator4
-
Number of removable shelves3
-
Refrigerator door compartments2
-
Refrigerator door compartments2
-
Very cold operating optionYes
-
Very cold operating optionYes
-
Very cold operating optionYes
-
Refrigerator temperature range3 - 9 °C
-
Very cold operating optionYes
Freezer
-
Number of shelves/bins in the freezer-
-
Location of the ice compartmentLow-placed
-
Net capacity of the freezer70 L
-
Freezing capacity6 kg/24h
-
Autonomy in case of power failure9 h
-
Number of stars (indicates preservation possibilities)4*
-
Ice cube trayYes
-
Ice cube trayYes
-
Quantity of freezer drawers3
-
Freezing temperature (min)-26 °C
-
Ice cube trayYes
-
Ice cube trayYes
Ergonomics
-
Adjustable feetYes
-
Adjustable feetYes
-
Cable length2.2 m
Weight and dimensions
-
Width559 mm
-
Depth546 mm
-
Height1770 mm
-
Weight63800 g
-
Installation compartment width570 mm
-
Installation compartment depth550 mm
-
The height of the installation compartments (min)1772 mm
-
The height of the installation compartments (max)1788 mm
Packaging information
-
Package width572 mm
-
Package depth622 mm
-
Package height1829 mm
-
Package weight67200 g
Special features
-
Liebherr Technologies (food preservation)BioFresh
-
Bottle Timer
-
DuoCooling
-
FrostSafe
-
NightMode
-
No frost system
-
SoftSystem
-
SuperCool
-
SuperFrost
-
VarioSpace
Frequently Asked Questions
How can I prevent water accumulation on the glass shelves of my refrigerator?
What should I do if my refrigerator emits a bad odor?
How much space should I leave around my refrigerator?
What does R-410A refer to?
What is the weight of the Liebherr ICBNdi 5123 Plus?
What is the height of the Liebherr ICBNdi 5123 Plus?
What is the width of the Liebherr ICBNdi 5123 Plus?
What is the depth of the Liebherr ICBNdi 5123 Plus?
What is the energy rating of the Liebherr ICBNdi 5123 Plus?
Is the manual for the Liebherr ICBNdi 5123 Plus available in French?
Similar products
More product categories from brand Liebherr
Other Liebherr
More product types from brand Liebherr
Presentation of product ICBNdi 5123 Plus specifications from brand Liebherr
General Information
The Liebherr ICBNdi 5123 Plus is a refrigerator from the Liebherr brand, known for its commitment to quality and innovation in the home appliance sector. This model, identified by the code ICBNdi 5123 Plus | 994883151, is designed to deliver optimal performance, thus ensuring a quality user experience. The EAN code for this product is 4016803115014, allowing for easy identification in distribution systems.
Design
The Liebherr ICBNdi 5123 Plus features an integrated design, promoting not only efficient use but also a modern aesthetic within your kitchen. It is possible to add custom panels, providing a unique touch to your interior. The doors, with a hinge located at the bottom, are reversible, allowing for installation flexibility. The 115° opening angle facilitates access to the interior compartments. Additionally, a child safety feature is integrated to prevent accidents. The refrigerator is controlled by a touch system, and a built-in screen on the door allows for easy use. The steel casing and tempered glass shelves ensure both durability and aesthetics, while the adjustable shelves optimize storage space according to your needs. The plastic door balconies provide increased resistance.
Fresh Zone
This model also includes a compartment dedicated to the preservation of fresh food, with a net capacity of 70.9 L, allowing for extended freshness of products.
Technical Specifications
The total net capacity of the Liebherr ICBNdi 5123 Plus is 244 L, offering generous space to store your food and beverages. It operates in a climate class SN-ST, with minimum and maximum operating temperatures of 10 °C and 38 °C, respectively. The noise level of 34 dB is rated in category B, ensuring quiet operation. The product does not have an ice maker, but it is equipped with an air filter and has 3 temperature zones for precise control.
Power and Energy Efficiency
Rated D for energy efficiency, the Liebherr ICBNdi 5123 Plus consumes approximately 207 kWh per year, which is relatively high compared to newer models. It has an Energy Efficiency Index (EEI) of 80 and a connected load of 183 W. Compatible with electrical systems of 220-240 V, it operates at a frequency of 50-60 Hz, with a current of 1.4 A. Its energy consumption is 0.567 kWh/24h.
Refrigerator
The refrigerator offers a net capacity of 174 L, with LED interior lighting for improved visibility. Although it does not feature No Frost technology, it is equipped with an automatic defrost function. With four shelves and three removable shelves, as well as a vegetable drawer, this model allows for optimal organization. The door compartments and a space for eggs and bottles add to its functionality. The temperature range of 3 to 9 °C ensures ideal preservation of your goods.
Freezer
The freezer, located at the top, has a net capacity of 70 L, ideal for storing frozen foods. Its freezing capacity is 6 kg/24h, with a backup time of 9 hours in case of a power outage. Although it is equipped with a No Frost system, defrosting is manual. The freezer includes three drawers, facilitating food organization, and allows for a freezing temperature of up to -26 °C. A quick freeze function and an ice tray complete its features.
Ergonomics
The Liebherr ICBNdi 5123 Plus is designed with an open door alarm, ensuring safe use. The adjustable feet allow for practical height adjustment, and a 2.2 m cord offers installation flexibility.
Dimensions and Weight
With a width of 559 mm, a depth of 546 mm, and a height of 1770 mm, this refrigerator easily fits into various spaces. Its weight of 63.8 kg may require assistance during installation.
Packaging Information
The package dimensions are 572 mm wide, 622 mm deep, and 1829 mm high, with a weight of 67.2 kg, ensuring adequate protection during transport.
Special Features
This model is equipped with several advanced preservation technologies, such as BioFresh, DuoCooling, FrostSafe, NightMode, and SuperCool, ensuring optimal preservation quality for your food.
