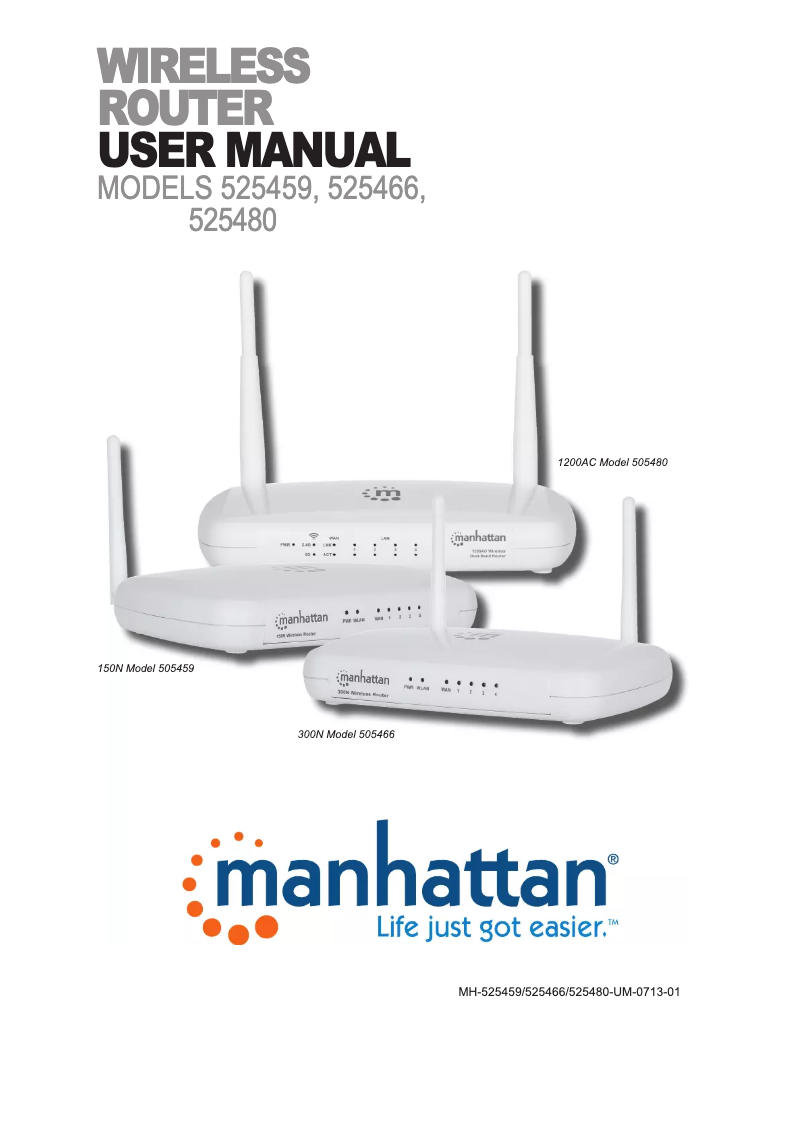

Manual of product 150N
Technical Specifications 150N
General Information
-
Model150N
-
Brand
-
Category
-
Type
-
SKU170335
-
MPN170335
Network
-
Ethernet/LANYes
-
LAN Ethernet: data transfer rate10, 100 Mbit/s
-
Wiring technology10/100Base-T(X)
-
Network standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.3, IEEE 802.3u
-
Type of Ethernet LAN interfaceFast Ethernet
Wireless LAN Features
-
Wifi standards802.11b
-
Modulation802.11g
-
Wi-Fi standardWi-Fi 4 (802.11n)
-
Maximum WLAN data transfer rate16-QAM
-
64-QAM
-
BPSK
-
CCK
-
DBPSK
-
DQPSK
-
DSSS
-
OFDM
-
Wi-Fi 4 (802.11n)
-
150 Mbit/s
Other features
-
WLAN data transfer speed11, 54, 150 Mbit/s
-
Frequency band2.4 GHz
-
Frequency range2.4 - 2.4835 GHz
-
Supported protocolsCSMA/CA, CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP, NAT, DHCP, DNS
-
Frequency band2.4 GHz
-
Input current1 A
-
Mobile network connectionNo
-
Mobile network connectionNo
-
Mobile network connectionNo
Connectivity
-
Number of Ethernet LAN ports (RJ-45)4
-
DC InputYes
Protocols
-
DHCP serverYes
-
DHCP serverYes
Security
-
Translation of IP addresses (NAT, Network address translation)Yes
-
Translation of IP addresses (NAT, Network address translation)Yes
-
Security-supported algorithmWEP, WPA, WPA2
-
Translation of IP addresses (NAT, Network address translation)Yes
-
Translation of IP addresses (NAT, Network address translation)Yes
-
Translation of IP addresses (NAT, Network address translation)Yes
-
Translation of IP addresses (NAT, Network address translation)Yes
Antenna
-
Antenna designExternal
-
Antenna gain level (max)2 dBi
-
Antenna quantity1
Management features
-
Quality of Service (QoS)Yes
-
Quality of Service (QoS)Yes
Features
-
Flash memory2 MB
-
Internal memory16 MB
-
Scalable firmwareYes
Power
-
Power supply2.3 W
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-20 - 60 °C
-
Operating relative humidity (H-H)10 - 90 %
Weight and dimensions
-
Width180 mm
-
Depth129 mm
-
Height35 mm
-
Weight800 g
Design
-
IndicatorsActivity
-
Product colorLink
-
Power
-
White
Packaging contents
-
Power adapter includedYes
-
Cables includedLAN (RJ-45)
Mobile networks
-
4GNo
-
4GNo
WAN Connection
-
Ethernet WANYes
Similar products
More product categories from brand Manhattan
Audio Manhattan
Other Manhattan
Interior Manhattan
Software Manhattan
Phones Manhattan
More product types from brand Manhattan
Presentation of product 150N specifications from brand Manhattan
Generalities
The brand of the product Manhattan 150N is Manhattan. This brand is known for its quality and innovation in the field of household appliances. The product model Manhattan 150N is 150N | 525459. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Manhattan 150N is 766623525459, 0766623525459, 7666235254590. This code allows for the unique identification of the product in the distribution system.
Network
Does the product Manhattan 150N have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The data transfer rate of the product Manhattan 150N is 10, 100 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The network standards of the product Manhattan 150N are IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.3, IEEE 802.3u. These standards ensure optimal compatibility with various equipment and protocols. The wiring technology of the product Manhattan 150N contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The Ethernet LAN interface type of the product Manhattan 150N is Fast Ethernet. This specification ensures a fast and reliable network connection.
Wireless LAN Features
The wifi standard of the product Manhattan 150N contains 802.11b, 802.11g, Wi-Fi 4 (802.11n). This wifi standard ensures a fast and reliable connection for all your devices. The Wi-Fi standard of the product Manhattan 150N is Wi-Fi 4 (802.11n). This standard ensures a fast and reliable wireless connection for your devices. The WLAN data transfer rate (max) of the product Manhattan 150N is 150 Mbit/s. This high rate ensures a fast and smooth connection for all your wireless devices. The modulation of the product Manhattan 150N is 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM. This feature allows for the operation of the product to be adapted according to the specific needs of the user.
Other features
The data transfer speed of the WLAN product Manhattan 150N is 11, 54, 150 Mbit/s. This specification ensures a fast and efficient connection for all your wireless networking needs. The support for the Manhattan 150N product protocols includes CSMA/CA, CSMA/CD, TCP/IP, UDP, ICMP, PPPoE, NTP, NAT, DHCP, DNS. This wide range of protocols ensures optimal compatibility and flexibility for your networking needs. The bandwidth (first) of the product Manhattan 150N is 2.4 GHz. This feature allows for optimizing connectivity and ensuring smooth data transmission. The frequency range of the product Manhattan 150N is 2.4 - 2.4835 GHz. This feature ensures optimal performance in data transmission. The frequency band of the product Manhattan 150N is 2.4 GHz. This feature allows for effective communication within the specified frequency range. The input current of the product Manhattan 150N is 1 A. This input current ensures optimal performance and increased energy efficiency. Does the product Manhattan 150N have a mounting bracket? Non. This feature determines the compatibility and ease of installation of the product. Does the product Manhattan 150N have a mobile network connection? Non. This feature allows you to stay connected to the Internet and communicate easily, wherever you are. Does the product Manhattan 150N have an xDSL connection? Non. This feature indicates that the product does not support this type of connection.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Manhattan 150N is 4. These ports provide a stable and fast network connection for your devices. Does the product Manhattan 150N have a DC Input? Oui. This specification ensures compatibility with DC power supplies.
Protocols
The DHCP client of the product Manhattan 150N is Oui. This client allows for dynamic management of IP addresses, thus facilitating the connection of devices to the network. The DHCP server of the product Manhattan 150N is Oui. This server allows for the dynamic assignment of IP addresses to devices on a network, thus facilitating the management of connections.
Security
Does the product Manhattan 150N have DMZ Support? Oui. This support helps to enhance the security of your network by isolating sensitive areas. Does the product Manhattan 150N have MAC Address Filtering? Oui. This feature allows you to control network access by only allowing devices with specified MAC addresses. The supported security algorithm of the product Manhattan 150N contains WEP, WPA, WPA2. This algorithm ensures optimal protection of your data. Does the product Manhattan 150N have a Firewall? Oui. This device provides essential protection against online threats. Does the product Manhattan 150N have URL Filtering? Oui. This feature allows you to control access to specific websites, thereby enhancing the security of your digital environment. Does the product Manhattan 150N have Filtration? Oui. This feature helps to improve the quality and purity of the product. Does the product Manhattan 150N have IP address translation (NAT, Network address translation)? Oui. This feature allows for masking internal IP addresses and enhancing network security.
Antenna
The number of antennas of the product Manhattan 150N is 1. This product thus offers improved connectivity and better reception. The maximum gain level of the antenna for the product Manhattan 150N is 2 dBi. This gain level helps optimize the reception and transmission of signals. The design of the antenna of the product Manhattan 150N is internal. This design allows for a discreet and efficient integration, thus optimizing performance while preserving the product's aesthetics.
Management features
The Manhattan 150N product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Does the product Manhattan 150N have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Power
The power supply of the product Manhattan 150N is 2.3 W. This power supply ensures optimal performance for all your needs.
Features
Does the Manhattan 150N have scalable firmware? Oui. This feature ensures continuous updates and improvements for optimal performance. The internal memory of the product Manhattan 150N contains 16 Mo. This memory allows for the storage of a large amount of data and applications for smooth and efficient use. The product Manhattan 150N has a flash memory of 2 Mo. This memory provides an ideal storage capacity for your files, photos, and videos.
Environmental conditions
The non-operating temperature of the product Manhattan 150N is -20 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product Manhattan 150N is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Manhattan 150N has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Weight and dimensions
The weight of the product Manhattan 150N is 800 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Manhattan 150N is 129 mm. This dimension allows for optimal integration into your space. The width of the product Manhattan 150N is 180 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Manhattan 150N is 35 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Design
Does the product Manhattan 150N have indicators? Activity, Link, Power. These indicators allow you to visualize the operating status of the device. The color of the product Manhattan 150N is Blanc. This shade gives it a modern and elegant look.
Packaging contents
The included cable of the product Manhattan 150N contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the product Manhattan 150N come with a power adapter? Oui. This allows you to use it immediately without having to purchase a separate adapter.
Mobile networks
Does the Manhattan 150N have 4G? Non. This specification indicates the product's compatibility with fourth-generation mobile networks. Does the Manhattan 150N have 3G? Non. This specification indicates the product's compatibility with third-generation mobile networks.
WAN Connection
Does the product Manhattan 150N have Ethernet WAN? Oui. This feature allows for a fast and reliable network connection, ideal for professional environments.
