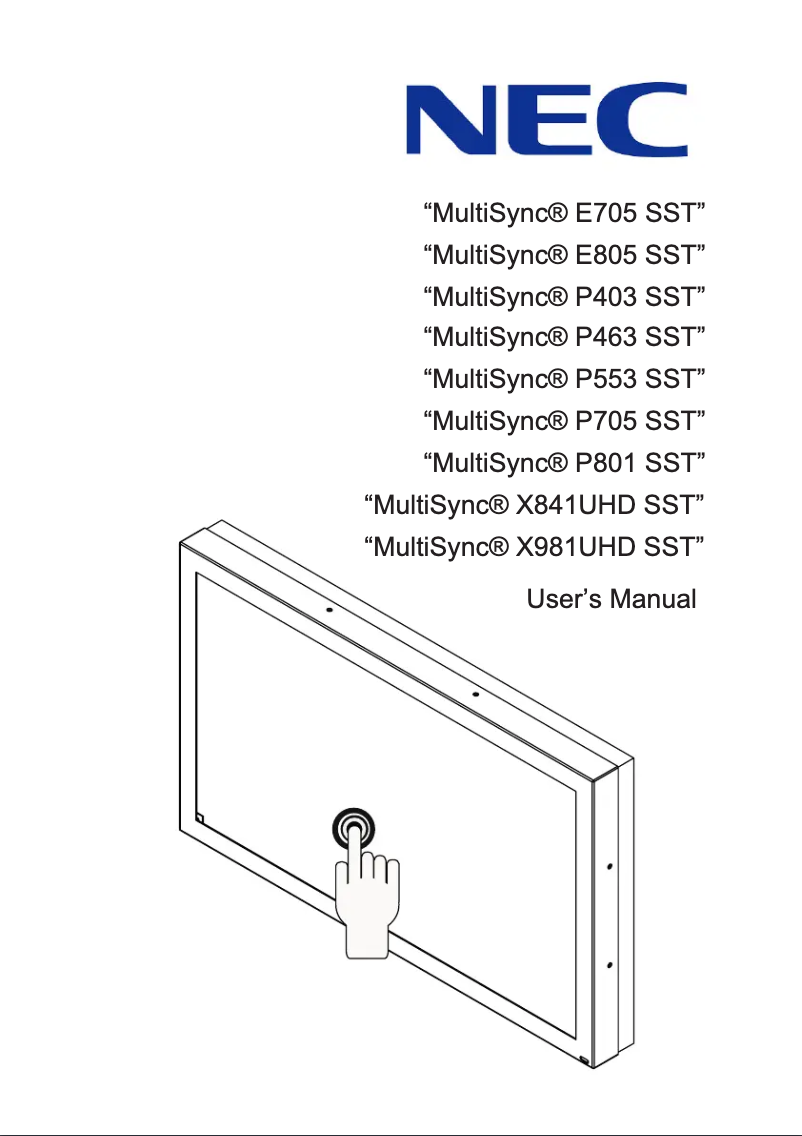

Manual of product E705 SST
Technical Specifications E705 SST
General Information
-
ModelE705 SST
-
Brand
-
Category
-
Type
-
SKU482834
-
MPN482834
Screen
-
Number of colors displayed-
-
Display technologyLED
-
Screen size70 "
-
Screen resolution1920 x 1080 pixels
-
Screen brightness400 cd/m²
-
Type HDFull HD
-
Response time8 ms
-
Contrast ratio4000:1
-
Vertical viewing angle178 °
-
Vertical viewing angle178 °
-
No pixel- mm
-
Active display area (w x h)1658 x 985 mm
-
Screen diagonal (cm)176.6 cm
-
Horizontal scanning domain31.5 - 91.1 kHz
-
Vertical scanning frequency50 - 85 Hz
-
Supported graphic resolutions1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
-
Supported video modes480i, 480p, 576i, 576p, 720p, 1080i, 1080p
-
MultitouchYes
-
Panel life- h
-
LED backlightingEdge-LED
-
Number of simultaneous touchpoints6
-
Type of panelUV2A
-
MultitouchYes
Connectivity
-
RS-232CYes
-
Integrated audio connector (L,R)2
-
LAN Ethernet: data transfer rate100 Mbit/s
-
RS-232CYes
-
Quantity of DisplayPort interfaces1
-
Quantity of DisplayPort interfaces1
-
Quantity of DisplayPort interfaces1
-
Quantity of DisplayPort interfaces1
-
RS-232CYes
-
USB Version2.0
-
Quantity of DisplayPort interfaces1
-
Quantity of DisplayPort interfaces1
-
RS-232CYes
-
Integrated audio connector (L,R)2
Representation / realization
-
Multi-display supported-
-
Integrated TV tunerNo
-
Ambient light sensorYes
-
Ambient light sensorYes
-
Service hours (hours/days)12/7
Computer system
-
Support for the Windows operating systemWindows 7 Enterprise
-
Support for the Mac operating systemWindows 7 Enterprise x64
-
Computer systemWindows 7 Home Basic
-
Windows 7 Home Basic x64
-
Windows 7 Home Premium
-
Windows 7 Home Premium x64
-
Windows 7 Professional
-
Windows 7 Professional x64
-
Windows 7 Starter
-
Windows 7 Starter x64
-
Windows 7 Ultimate x64
-
Windows 8
-
Windows 8 Enterprise
-
Windows 8 Enterprise x64
-
Windows 8 Pro
-
Windows 8 Pro x64
-
Windows 8 x64
-
Windows Vista Business
-
Windows Vista Business x64
-
Windows Vista Enterprise
-
Windows Vista Enterprise x64
-
Windows Vista Home Basic
-
Windows Vista Home Basic x64
-
Windows Vista Home Premium
-
Windows Vista Home Premium x64
-
Windows Vista Ultimate
-
Windows Vista Ultimate x64
-
Windows XP Home
-
Windows XP Home x64
-
Windows XP Professional
-
Windows XP Professional x64
-
Mac OS X 10.0 Cheetah
-
Mac OS X 10.1 Puma
-
Mac OS X 10.10 Yosemite
-
Mac OS X 10.2 Jaguar
-
Mac OS X 10.3 Panther
-
Mac OS X 10.4 Tiger
-
Mac OS X 10.5 Leopard
-
Mac OS X 10.6 Snow Leopard
-
Mac OS X 10.7 Lion
-
Mac OS X 10.8 Mountain Lion
-
Mac OS X 10.9 Mavericks
-
Non
Design
-
Product colorBlack
-
VESA mountYes
-
VESA standard400 x 400 mm
-
Frame width (top)33 mm
-
Frame width (side)41 mm
-
Frame width (top)33 mm
-
Product designDigital signage flat screen
Technical details
-
Sustainability certificatesRoHS
-
ENERGY STAR
Audio
-
Number of built-in speakers2
-
Rated power of RMS20 W
-
Built-in speakersYes
Power
-
Typical electricity consumption158 W
-
Energy consumption (standby mode)0.5 W
Other features
-
Energy efficiency class (old)A
-
User manualYes
-
User manualYes
-
Annual energy consumption231 kWh
Weight and dimensions
-
Width1658 mm
-
Depth106 mm
-
Height985 mm
-
Weight70000 g
Environmental conditions
-
Operating temperature0 - 35 °C
-
Operating relative humidity (H-H)20 - 80 %
Packaging contents
-
Remote control providedYes
-
Cables includedAC, DVI, USB
Certificate
-
CertificationCE
-
RoHS
Logistics data
-
Harmonized System Code85285210
Similar products
More product categories from brand NEC
More product types from brand NEC
Presentation of product E705 SST specifications from brand NEC
Generalities
The product model NEC E705 SST is E705 SST | 60003922. This model ensures optimal performance and an enhanced user experience. The brand of the product NEC E705 SST is NEC. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product NEC E705 SST is 5028695112094, 5028695112155. This code allows for the unique identification of the product in the distribution system.
Representation / realization
Does the product NEC E705 SST have a built-in TV tuner? No. This product does not allow you to receive television channels directly. Does the product NEC E705 SST have HDCP? Oui. This specification ensures the protection of digital content against unauthorized copying. Does the product NEC E705 SST have an ambient light sensor? Oui. This sensor allows for automatic adjustment of lighting based on surrounding light conditions. The multi-display support of the product NEC E705 SST is -. This feature allows you to enhance your visual experience by connecting multiple screens simultaneously. The service hours for the product NEC E705 SST are 12/7. These hours ensure optimal availability to meet your needs at any time.
Connectivity
Does the product NEC E705 SST have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The data transfer rate of the product NEC E705 SST is 100 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. Does the product NEC E705 SST have a DVI Port? Oui. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. The number of HDMI ports on the NEC E705 SST is 2. This detail is essential for determining compatibility with your multimedia devices. The product NEC E705 SST does not have DVI-D ports. This feature may be important depending on your connectivity needs. The VGA (D-Sub) input port of the NEC E705 SST contains 1. This port allows for easy connection with various devices, ensuring high-quality video transmission. The audio output (left, right) of the product NEC E705 SST contains 1. This specification allows for an immersive stereo sound experience. The number of Ethernet LAN (RJ-45) ports of the product NEC E705 SST is 1. These ports provide a stable and fast network connection for your devices. Does the product NEC E705 SST have RS-232 Interface? Oui. This interface allows for standardized serial communication, ideal for many devices. The USB Version of the product NEC E705 SST is 2.0. This USB Version allows for a fast and efficient connection with various devices. The number of USB ports of the product NEC E705 SST is 1. This product allows you to easily connect multiple devices. The number of DisplayPort interfaces of the product NEC E705 SST is 1. This specification allows for optimal connectivity with various devices. Does the product NEC E705 SST have an RS-232C? Oui. This specification ensures standardized connectivity for serial communications. The integrated audio connector (L,R) of the product NEC E705 SST has 2. This connector allows for a high-quality stereo audio connection for an optimal sound experience.
Computer system
Does the product NEC E705 SST support the Mac operating system? Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks. This feature ensures optimal compatibility for Mac users. The computer system of the product NEC E705 SST contains Non. This computer system is designed to provide optimal performance and high reliability. Does the product NEC E705 SST support the Windows operating system? Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience.
Technical details
The product NEC E705 SST has Sustainability Certificates: RoHS, ENERGY STAR. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Audio
The number of built-in speakers of the product NEC E705 SST is 2. These speakers provide immersive audio quality for an optimal listening experience. The RMS rated power of the product NEC E705 SST is 20 W. This specification ensures optimal sound quality for an enriching multimedia experience. Does the product NEC E705 SST have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience.
Design
The color of the product NEC E705 SST is Noir. This shade gives it a modern and elegant look. The width of the frame at the bottom of the product NEC E705 SST is 33 mm. This feature contributes to the stability and aesthetics of the product. The product NEC E705 SST has the VESA Standard 400 x 400 mm. This standard ensures optimal compatibility with wall mounts and articulated arms, thus facilitating the installation and adjustment of your screen. Does the product NEC E705 SST have VESA Mounting? Oui. This feature allows you to easily attach your screen to a wall mount, thereby optimizing space and improving user comfort. The width of the frame (side) of the product NEC E705 SST is 41 mm. This dimension contributes to the strength and overall aesthetics of the product. The width of the frame (at the top) of the product NEC E705 SST is 33 mm. This feature contributes to the aesthetics and robustness of the product. The design of the product NEC E705 SST is a pistol grip drill. This ergonomic design allows for a comfortable grip and optimal control during use.
Screen
The display technology of the product NEC E705 SST is LED. This technology ensures optimal image quality for an immersive visual experience. The brightness of the NEC E705 SST screen is 400 cd/m². This feature ensures optimal visibility even in varying lighting conditions. The screen size of the product NEC E705 SST is 70 ". This dimension allows for an optimal visual experience for all your content. The screen resolution of the product NEC E705 SST is 1920 x 1080 pixels. This feature ensures optimal display quality for a pleasant visual experience. The HD Type of the product NEC E705 SST is Full HD. This HD Type ensures exceptional image quality for an immersive viewing experience. The response time of the product NEC E705 SST is 8 ms. This fast response time ensures a smooth and responsive visual experience. The vertical viewing angle of the NEC E705 SST is 178 °. This angle allows for optimal viewing from different angles, thus providing an enhanced visual experience. The contrast ratio of the product NEC E705 SST is 4000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The horizontal viewing angle of the product NEC E705 SST is 178 °. This angle allows for optimal viewing from different angles, thus providing an immersive and comfortable experience. The pixel pitch of the product NEC E705 SST is - mm. This pixel pitch ensures optimal display quality without distortion. The number of colors displayed for the product NEC E705 SST is -. This detail is essential for appreciating the visual quality of the screen. The active display area of the product NEC E705 SST is 1658 x 985 mm. This dimension allows for an optimal visual experience for all your content. The horizontal scanning range of the product NEC E705 SST is 31.5 - 91.1 kHz. This range allows for excellent display quality and optimal image smoothness. The vertical scanning frequency of the product NEC E705 SST is 50 - 85 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The screen diagonal of the product NEC E705 SST is 176.6 cm. This feature allows for an immersive and high-quality visual experience. The supported graphic resolutions of the product NEC E705 SST are 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1360 x 768 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA). These resolutions provide optimal display quality for your content. The supported video mode of the product NEC E705 SST is 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. This mode allows you to enjoy optimal image quality for your videos. Does the product NEC E705 SST have a touchscreen? Oui. The lifespan of the NEC E705 SST panel is - h. This feature ensures prolonged use and optimal performance. The number of simultaneous touch points of the product NEC E705 SST is 6. This high number allows for smooth and responsive interaction, ideal for multitasking applications. The panel type of the product NEC E705 SST is UV2A. This type of panel offers excellent display quality and vibrant colors. The LED backlighting of the product NEC E705 SST contains Edge-LED. This backlighting ensures optimal brightness for an enhanced visual experience. Does the product NEC E705 SST have a Multitouch? Oui. This feature allows for smooth and intuitive interaction with the screen.
Power
The typical power consumption of the product NEC E705 SST is 158 W. This feature allows for the assessment of the energy efficiency of the device. The energy consumption in standby mode of the product NEC E705 SST is 0.5 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings.
Weight and dimensions
The height of the product NEC E705 SST is 985 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product NEC E705 SST is 106 mm. This dimension allows for optimal integration into your space. The weight of the product NEC E705 SST is 70000 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product NEC E705 SST is 1658 mm. This dimension is essential to ensure optimal integration into your space.
Other features
The energy efficiency class (old) of the product NEC E705 SST is A. This feature indicates the level of energy performance of the product. Does the product NEC E705 SST have a User Manual? Oui. This document provides clear instructions for optimal use of the product. The annual energy consumption of the product NEC E705 SST is 231 kWh. This specification allows you to assess energy efficiency and the impact on your electricity bill. Does the product NEC E705 SST have a protective glass? Oui. This protective glass provides optimal safety against shocks and scratches.
Environmental conditions
The operating temperature of the product NEC E705 SST is 0 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product NEC E705 SST has an operating relative humidity (H-H) of 20 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity.
Certificate
The certification of the product NEC E705 SST contains CE; RoHS. This certification guarantees compliance with the required safety and performance standards.
Packaging contents
The included cable of the product NEC E705 SST contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the product NEC E705 SST come with a remote control? Oui.
Logistics data
The Harmonized System code for the product NEC E705 SST is 85285210. This code allows for the unique identification of goods in international trade.
