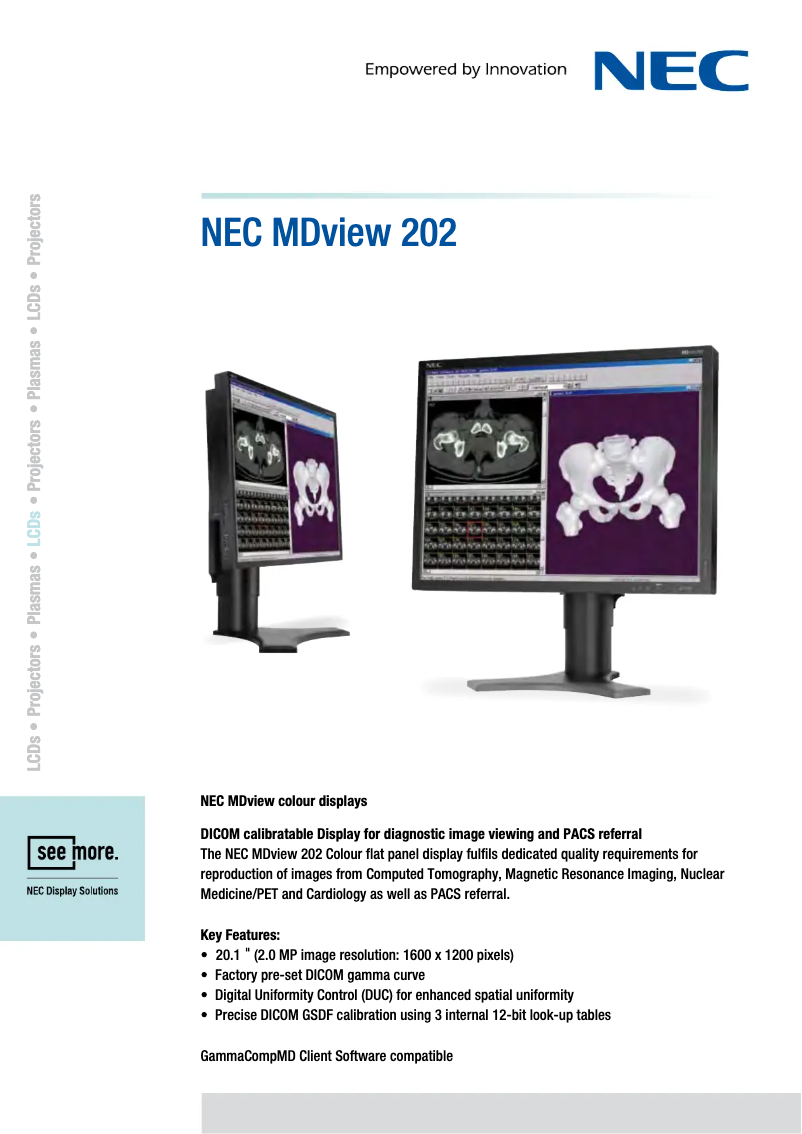

Manual of product MDview 202
Technical Specifications MDview 202
General Information
-
ModelMDVIEW 202
-
Brand
-
Category
-
Type
-
SKU143935
-
MPN143935
Screen
-
Response time16 ms
-
Screen brightness (typical)280 cd/m²
-
Screen size20 "
-
No pixel0.255 x 0.255 mm
-
Horizontal scanning domain31.5 - 91.1 kHz
-
Vertical scanning frequency50 - 85 Hz
-
Vertical viewing angle178 °
-
Vertical viewing angle178 °
-
Contrast ratio700:1
-
Image format4:3
-
Horizontal digital frequency31.5 - 99.4 kHz
-
Screen resolution1200 x 1600 pixels
-
Number of colors displayed16.78 million colors
-
Image format4:3
-
Touch screenNo
Other features
-
Visible region screen HxV408 x 306 mm
-
Power requirements100 - 120V/220 - 240V
-
Integrated TV tunerNo
-
Height adjustment range (in.)5.9 "
-
CertificationCE, TÜV, FCC, CCC, PCBC/B-Mark, PSB, GEEA/Energy label
-
SecurityUL/C-UL, CSA
Connectivity
-
HDCPNo
-
Quantity of DVI-D ports1
-
Quantity of DVI-D ports1
-
Quantity of HDMI ports0
-
Quantity of HDMI ports0
-
Power entry sectorYes
Multimedia
-
Built-in cameraNo
-
Built-in cameraNo
Power
-
Energy consumption (standby mode)1 W
-
Typical electricity consumption50 W
-
Current intensity0.68 A
Design
-
Market position-
-
Product colorBlack
Environmental conditions
-
Operating relative humidity (H-H)30 - 80 %
-
Operating temperature5 - 35 °C
Weight and dimensions
-
Depth (without support)248 mm
-
Height (without support)416 mm
-
Width (without support)439 mm
-
Weight (without support)9700 g
-
Height (support included)566 mm
Ergonomics
-
Plug and PlayYes
-
Plug and PlayYes
-
VESA standard100 x 100 mm
-
Cable lock location typeKensington
-
IndicatorsStandby
Sustainability
-
Sustainability certificatesENERGY STAR
Similar products
More product categories from brand NEC
More product types from brand NEC
Presentation of product MDview 202 specifications from brand NEC
Generalities
The brand of the product NEC MDview 202 is NEC. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product NEC MDview 202 is 5028695104860. This code allows for the unique identification of the product in the distribution system. The product model NEC MDview 202 is MDview 202 | 60001797. This model ensures optimal performance and an enhanced user experience.
Other features
The visible HxV screen area of the NEC MDview 202 product contains 408 x 306 mm. This feature enhances the visual experience by providing a generous display surface. The adjustment range for the height of the product NEC MDview 202 is 5.9 ". This feature allows you to adjust the height according to your needs. The power requirements of the product NEC MDview 202 are 100 - 120V/220 - 240V. These requirements ensure optimal operation of the device. Does the product NEC MDview 202 have a built-in TV tuner? No. This product does not allow you to receive television channels directly. The certification of the product NEC MDview 202 contains CE, TÜV, FCC, CCC, PCBC/B-Mark, PSB, GEEA/Energy label. This certification guarantees compliance with the required safety and performance standards. The safety of the product NEC MDview 202 includes UL/C-UL, CSA. This safety ensures optimal protection against electrical and environmental risks.
Connectivity
Does the product NEC MDview 202 have HDCP? Non. This specification ensures the protection of digital content against unauthorized copying. The number of VGA (D-Sub) ports on the NEC MDview 202 is 1. This port allows for easy connection with various devices and monitors. The number of downstream USB Type A ports of the product NEC MDview 202 is 0. These ports allow for easy and fast connection to various devices. The product NEC MDview 202 does not have DVI-D ports. This feature may be important depending on your connectivity needs. The number of HDMI ports on the NEC MDview 202 is 0. This detail is essential for determining compatibility with your multimedia devices. Does the product NEC MDview 202 have a power input section? Oui. This section ensures a reliable and efficient power supply for the optimal operation of the device.
Multimedia
Does the NEC MDview 202 have a built-in camera? Non. This camera allows you to capture precious moments with ease. Does the product NEC MDview 202 have built-in speakers? Non. These speakers provide an immersive and convenient audio experience.
Power
The typical power consumption of the product NEC MDview 202 is 50 W. This feature allows for the assessment of the energy efficiency of the device. The energy consumption in standby mode of the product NEC MDview 202 is 1 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The current intensity of the product NEC MDview 202 is 0.68 A. This specification indicates the amount of electrical current that the product can handle, thus ensuring its efficiency and safety of use.
Screen
The response time of the product NEC MDview 202 is 16 ms. This fast response time ensures a smooth and responsive visual experience. The screen size of the product NEC MDview 202 is 20 ". This dimension allows for an optimal visual experience for all your content. The typical screen brightness of the product NEC MDview 202 is 280 cd/m². This feature ensures optimal visibility in various lighting conditions. The pixel pitch of the product NEC MDview 202 is 0.255 x 0.255 mm. This pixel pitch ensures optimal display quality without distortion. The horizontal scanning range of the product NEC MDview 202 is 31.5 - 91.1 kHz. This range allows for excellent display quality and optimal image smoothness. The vertical scanning frequency of the product NEC MDview 202 is 50 - 85 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The horizontal viewing angle of the product NEC MDview 202 is 178 °. This angle allows for optimal viewing from different angles, thus providing an immersive and comfortable experience. The vertical viewing angle of the NEC MDview 202 is 178 °. This angle allows for optimal viewing from different angles, thus providing an enhanced visual experience. The contrast ratio of the product NEC MDview 202 is 700:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The image format of the product NEC MDview 202 is 4:3. This format is ideal for an immersive visual experience. The image format of the product NEC MDview 202 is 4:3. This format is ideal for an immersive visual experience. The horizontal digital frequency of the product NEC MDview 202 is 31.5 - 99.4 kHz. This specification ensures optimal performance for your display needs. The screen resolution of the product NEC MDview 202 is 1200 x 1600 pixels. This feature ensures optimal display quality for a pleasant visual experience. The number of colors displayed for the product NEC MDview 202 is 16,78 millions de couleurs. This detail is essential for appreciating the visual quality of the screen. Does the product NEC MDview 202 have a touchscreen? Non.
Environmental conditions
The operating temperature of the product NEC MDview 202 is 5 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product NEC MDview 202 has an operating relative humidity (H-H) of 30 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity.
Design
The market position of the product NEC MDview 202 is -. This product is primarily aimed at professionals, offering features tailored to their specific needs. The color of the product NEC MDview 202 is Noir. This shade gives it a modern and elegant look.
Sustainability
The product NEC MDview 202 has Sustainability Certificates: ENERGY STAR. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Ergonomics
Does the product NEC MDview 202 have a cable lock port? No. This product does not have this security feature. The type of cable lock location for the product NEC MDview 202 is Kensington. This type of lock provides optimal security to protect your device against theft. The product NEC MDview 202 has the VESA Standard 100 x 100 mm. This standard ensures optimal compatibility with wall mounts and articulated arms, thus facilitating the installation and adjustment of your screen. Does the product NEC MDview 202 have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable. Does the product NEC MDview 202 have indicators? Veille. These indicators allow you to visualize the operating status of the device.
Weight and dimensions
The unsupported depth of the product NEC MDview 202 is 248 mm. This dimension is essential to ensure optimal integration into your space. The height of the product NEC MDview 202 is 416 mm. This dimension is essential to ensure the product fits your space. The width of the product NEC MDview 202 is 439 mm. This dimension allows for optimal integration into various spaces. The weight of the product NEC MDview 202 is 9700 g. This weight is essential for assessing the maneuverability and transport of the product. The height (including support) of the product NEC MDview 202 is 566 mm. This dimension is essential to ensure that the product fits perfectly in your space.
