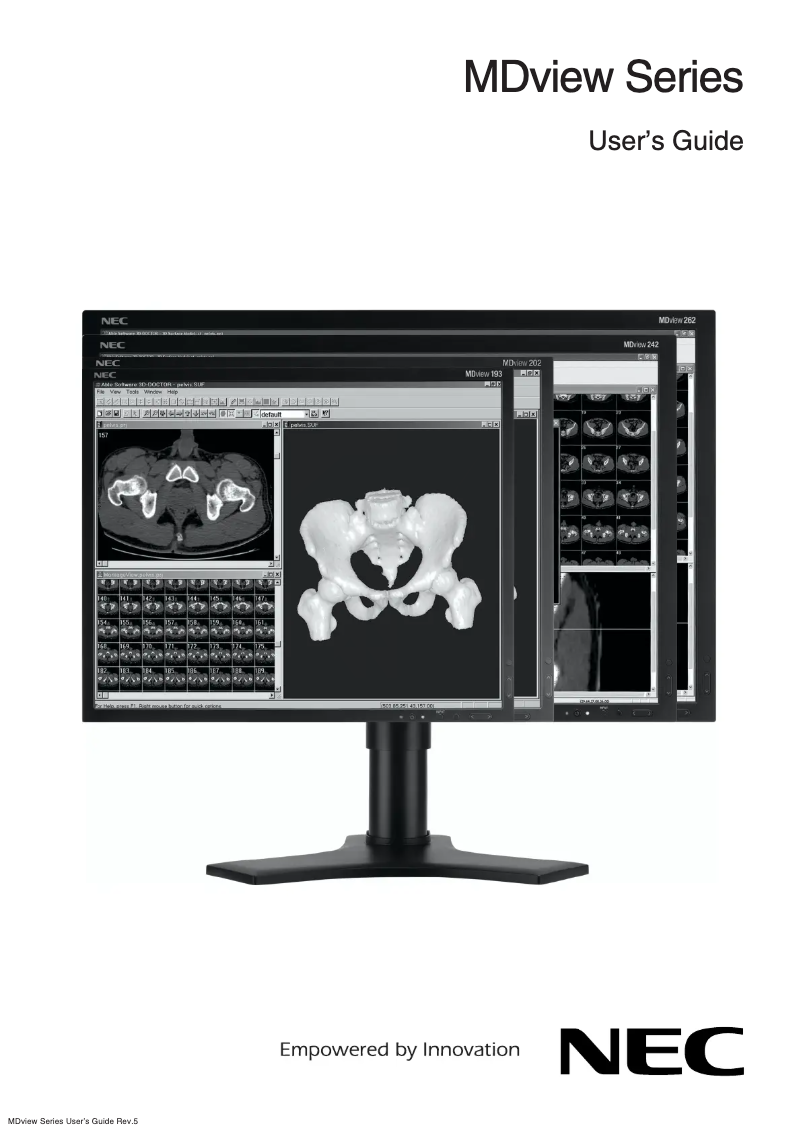

Manuals of product MDview 213
Technical Specifications MDview 213
General Information
-
ModelMDVIEW 213
-
Brand
-
Category
-
Type
-
SKU143937
-
MPN143937
Screen
-
Response time16 ms
-
Screen brightness (typical)300 cd/m²
-
Screen size21.3 "
-
Number of colors displayed16.78 million colors
-
No pixel0.270 x 0.270 mm
-
Horizontal scanning domain31.5 - 91.1 kHz
-
Vertical scanning frequency50 - 85 Hz
-
Vertical viewing angle178 °
-
Vertical viewing angle178 °
-
Contrast ratio1000:1
-
Image format5:4
-
Horizontal digital frequency31.5 - 99.4 kHz
-
Screen resolution1200 x 1600 pixels
-
Image format5:4
-
Touch screenNo
Other features
-
Visible region screen HxV432 x 324 mm
-
Maximum resolution1600 x 1200 pixels
-
Power requirements100 - 120V/220 - 240V
-
Integrated TV tunerNo
-
CertificationCE, FCC, TÜV, CCC, C-tick; GEEA/Energy Label
-
SecurityUL/C-UL, CSA
Connectivity
-
HDCPNo
-
Quantity of DVI-D ports1
-
Quantity of DVI-D ports1
-
Quantity of DVI-D ports1
-
Quantity of HDMI ports0
-
Quantity of HDMI ports0
-
Power entry sectorYes
Multimedia
-
Built-in cameraNo
-
Built-in cameraNo
Power
-
Energy consumption (standby mode)1 W
-
Typical electricity consumption60 W
Design
-
Market position-
-
Product colorBlack
Environmental conditions
-
Operating relative humidity (H-H)30 - 80 %
-
Operating temperature5 - 35 °C
Weight and dimensions
-
Depth (without support)248 mm
-
Height (without support)425 mm
-
Width (without support)465 mm
-
Weight (without support)10700 g
-
Height (support included)575 mm
Ergonomics
-
Plug and PlayYes
-
Plug and PlayYes
-
Inclination angle-5 - 30 °
-
Plug and PlayYes
-
VESA standard100 x 100 mm
-
Cable lock location typeKensington
-
IndicatorsStandby
Sustainability
-
Sustainability certificatesENERGY STAR
Similar products
More product categories from brand NEC
More product types from brand NEC
Presentation of product MDview 213 specifications from brand NEC
Generalities
The brand of the product NEC MDview 213 is NEC. This brand is known for its quality and innovation in the field of household appliances. The product model NEC MDview 213 is MDview 213 | 60002860. This model ensures optimal performance and an enhanced user experience. The EAN code of the product NEC MDview 213 is 5028695107588. This code allows for the unique identification of the product in the distribution system.
Other features
The visible HxV screen area of the NEC MDview 213 product contains 432 x 324 mm. This feature enhances the visual experience by providing a generous display surface. The maximum resolution of the product NEC MDview 213 is 1600 x 1200 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The power requirements of the product NEC MDview 213 are 100 - 120V/220 - 240V. These requirements ensure optimal operation of the device. Does the product NEC MDview 213 have a built-in TV tuner? No. This product does not allow you to receive television channels directly. The certification of the product NEC MDview 213 contains CE, FCC, TÜV, CCC, C-tick; GEEA/Energy Label. This certification guarantees compliance with the required safety and performance standards. The safety of the product NEC MDview 213 includes UL/C-UL, CSA. This safety ensures optimal protection against electrical and environmental risks.
Connectivity
Does the product NEC MDview 213 have HDCP? Non. This specification ensures the protection of digital content against unauthorized copying. The product NEC MDview 213 does not have DVI-D ports. This feature may be important depending on your connectivity needs. The number of VGA (D-Sub) ports on the NEC MDview 213 is 1. This port allows for easy connection with various devices and monitors. The number of DVI-D/DVI-I ports of the product NEC MDview 213 is 1. This feature determines compatibility with various screens and video equipment. The number of downstream USB Type A ports of the product NEC MDview 213 is 0. These ports allow for easy and fast connection to various devices. The number of HDMI ports on the NEC MDview 213 is 0. This detail is essential for determining compatibility with your multimedia devices. Does the product NEC MDview 213 have a power input section? Oui. This section ensures a reliable and efficient power supply for the optimal operation of the device.
Screen
The response time of the product NEC MDview 213 is 16 ms. This fast response time ensures a smooth and responsive visual experience. The screen size of the product NEC MDview 213 is 21.3 ". This dimension allows for an optimal visual experience for all your content. The typical screen brightness of the product NEC MDview 213 is 300 cd/m². This feature ensures optimal visibility in various lighting conditions. The number of colors displayed for the product NEC MDview 213 is 16,78 millions de couleurs. This detail is essential for appreciating the visual quality of the screen. The pixel pitch of the product NEC MDview 213 is 0.270 x 0.270 mm. This pixel pitch ensures optimal display quality without distortion. The horizontal scanning range of the product NEC MDview 213 is 31.5 - 91.1 kHz. This range allows for excellent display quality and optimal image smoothness. The vertical scanning frequency of the product NEC MDview 213 is 50 - 85 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The vertical viewing angle of the NEC MDview 213 is 178 °. This angle allows for optimal viewing from different angles, thus providing an enhanced visual experience. The contrast ratio of the product NEC MDview 213 is 1000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The image format of the product NEC MDview 213 is 5:4. This format is ideal for an immersive visual experience. The image format of the product NEC MDview 213 is 5:4. This format is ideal for an immersive visual experience. The horizontal viewing angle of the product NEC MDview 213 is 178 °. This angle allows for optimal viewing from different angles, thus providing an immersive and comfortable experience. The horizontal digital frequency of the product NEC MDview 213 is 31.5 - 99.4 kHz. This specification ensures optimal performance for your display needs. The screen resolution of the product NEC MDview 213 is 1200 x 1600 pixels. This feature ensures optimal display quality for a pleasant visual experience. Does the product NEC MDview 213 have a touchscreen? Non.
Power
The typical power consumption of the product NEC MDview 213 is 60 W. This feature allows for the assessment of the energy efficiency of the device. The energy consumption in standby mode of the product NEC MDview 213 is 1 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings.
Multimedia
Does the product NEC MDview 213 have built-in speakers? Non. These speakers provide an immersive and convenient audio experience. Does the NEC MDview 213 have a built-in camera? Non. This camera allows you to capture precious moments with ease.
Design
The color of the product NEC MDview 213 is Noir. This shade gives it a modern and elegant look. The market position of the product NEC MDview 213 is -. This product is primarily aimed at professionals, offering features tailored to their specific needs.
Environmental conditions
The product NEC MDview 213 has an operating relative humidity (H-H) of 30 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product NEC MDview 213 is 5 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Weight and dimensions
The height of the product NEC MDview 213 is 425 mm. This dimension is essential to ensure the product fits your space. The weight of the product NEC MDview 213 is 10700 g. This weight is essential for assessing the maneuverability and transport of the product. The unsupported depth of the product NEC MDview 213 is 248 mm. This dimension is essential to ensure optimal integration into your space. The width of the product NEC MDview 213 is 465 mm. This dimension allows for optimal integration into various spaces. The height (including support) of the product NEC MDview 213 is 575 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Sustainability
The product NEC MDview 213 has Sustainability Certificates: ENERGY STAR. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Ergonomics
Does the product NEC MDview 213 have Pivot? Oui. This feature allows for optimal flexibility to adapt to your needs. Does the product NEC MDview 213 have a cable lock port? No. This product does not have this security feature. Does the product NEC MDview 213 have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable. The tilt angle of the product NEC MDview 213 is -5 - 30 °. This angle allows for adjusting the position for optimal comfort. The product NEC MDview 213 has the VESA Standard 100 x 100 mm. This standard ensures optimal compatibility with wall mounts and articulated arms, thus facilitating the installation and adjustment of your screen. The type of cable lock location for the product NEC MDview 213 is Kensington. This type of lock provides optimal security to protect your device against theft. Does the product NEC MDview 213 have indicators? Veille. These indicators allow you to visualize the operating status of the device.
