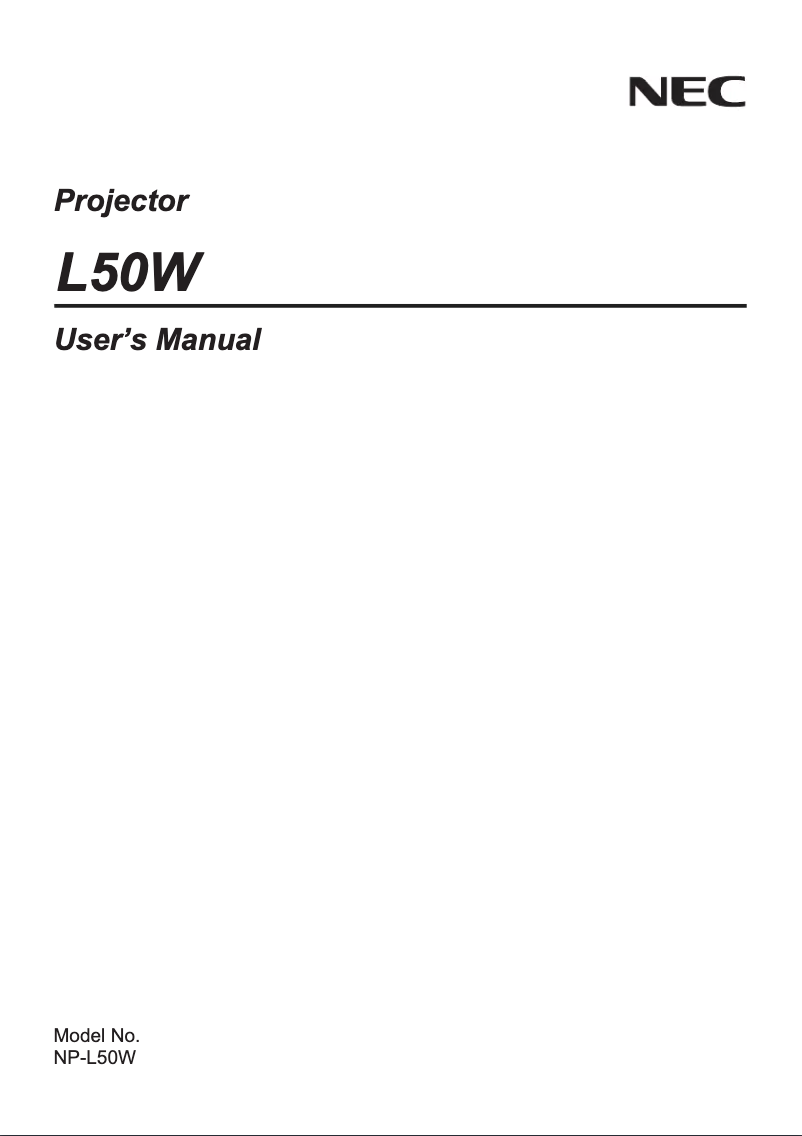

Manual of product L50W LED
Technical Specifications L50W LED
General Information
-
ModelL50W LED
-
Brand
-
Category
-
Type
-
SKU60248
-
MPN60248
Projector
-
Projector brightness500 ANSI lumens
-
Native resolution of the projectorWXGA (1280x800)
-
Compatible screen size17 - 100 "
-
Projection distance0.52 - 3 m
-
Contrast ratio2500:1
-
Correction of the trapezium, vertical-40 - 40 °
-
Vertical scanning frequency50 - 85 Hz
-
Horizontal scanning domain30 - 100 kHz
-
Projection technologyLED
Other features
-
Image format16:10
-
Resolution (maximum analog)1680 x 1050 pixels
-
Resolution (maximum numeric)1920 x 1080 pixels
-
RS-232 port0
-
Dimensions (LxWxH)226 x 174 x 43 mm
-
Connectivity technologyWired
-
Ready-to-use networkNo
Objective system
-
Zoom ratio-
-
TuningManual
-
Focal length13.92 mm
Light source
-
Lifespan of the light source20000 h
-
Quantity of lamps1 lamp(s)
-
Type of light sourceLED
Connectivity
-
S-Video Input-
-
Number of VGA (D-Sub) ports1
-
Integrated audio connector (L,R)0
-
Integrated audio connector (L,R)0
-
Quantity of USB 2.0 Ports2
-
DVI PortNo
-
Power entry sectorYes
-
Number of VGA (D-Sub) ports1
-
Number of VGA (D-Sub) ports1
-
Power entry sectorYes
-
USB connectorUSB Type-A, USB Type-B
Network
-
Number of Ethernet LAN ports (RJ-45)0
-
WifiNo
-
WifiNo
Video
-
Analog signal format systemNTSC
-
Full HDNTSC 4.43
-
Supported graphic resolutionsPAL
-
Supported video modesPAL 60
-
3D CompatibilityPAL M
-
PAL N
-
SECAM
-
Yes
-
720 x 480
-
720 x 576
-
1280 x 960
-
1440 x 1050
-
1024 x 768 (XGA)
-
1152 x 864 (XGA+)
-
1280 x 1024 (SXGA)
-
1280 x 720 (HD 720)
-
1280 x 768 (WXGA)
-
1280 x 800 (WXGA)
-
1366 x 768
-
1440 x 900 (WXGA+)
-
1680 x 1050 (WSXGA+)
-
640 x 480 (VGA)
-
1080i
-
480i
-
480p
-
576i
-
576p
-
720p
-
No
Multimedia
-
Built-in speakersYes
-
Number of built-in speakers1
-
Rated power of RMS2 W
Design
-
Product colorBlack
-
Cable anti-theft lockYes
-
Cable lock location typeKensington
-
Product typeShort throw projector
Power
-
Typical electricity consumption105 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Energy consumption (standby mode)0.5 W
-
Automatic power cut-offYes
Weight and dimensions
-
Weight1200 g
Storage support
-
Built-in memory card readerYes
-
Compatible memory cardsSD
-
Internal storage capacity1 GB
Features
-
Sound level38 dB
-
Sound level (economy mode)32 dB
-
CertificationCE; ErP; TÜV GS; RoHS
Packaging contents
-
Transport caseYes
-
Cables includedVGA
-
Transport caseYes
Similar products
More product categories from brand NEC
More product types from brand NEC
Presentation of product L50W LED specifications from brand NEC
Generalities
The product model NEC L50W LED is L50W LED | 60003191. This model ensures optimal performance and an enhanced user experience. The brand of the product NEC L50W LED is NEC. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product NEC L50W LED is 5028695609334. This code allows for the unique identification of the product in the distribution system.
Objective system
The zoom ratio of the product NEC L50W LED is fixed. This ratio determines the lens's ability to enlarge or reduce the image while maintaining optimal image quality. The focal length of the product NEC L50W LED is 13.92 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The adjustment of the NEC L50W LED is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user.
Projector
The brightness of the product NEC L50W LED is 500 ANSI lumens. This feature ensures a clear and bright projection, even in well-lit environments. The native resolution of the product NEC L50W LED is WXGA (1280x800). This feature ensures optimal image quality for your presentations and entertainment. The projection distance of the product NEC L50W LED is 0.52 - 3 m. This specification allows for optimizing the visual experience based on the available space. The compatible screen size of the product NEC L50W LED is 17 - 100 ". This specification allows the projector to adapt to different screen formats for an optimal viewing experience. The contrast ratio of the product NEC L50W LED is 2500:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The product NEC L50W LED features trapezoidal correction, vertical of -40 - 40 °. This functionality allows for adjusting the projected image for optimal rendering, regardless of the projection angle. The projector NEC L50W LED features a LED projection technology. This technology ensures optimal image quality and an immersive visual experience. The vertical scanning frequency of the product NEC L50W LED is 50 - 85 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The horizontal scanning range of the product NEC L50W LED is 30 - 100 kHz. This range allows for excellent display quality and optimal image smoothness.
Light source
The lifespan of the light source of the product NEC L50W LED is 20000 h. This feature ensures prolonged and efficient use, allowing you to enjoy lasting lighting. The quantity of lamps for the product NEC L50W LED is 1 lampe(s). This product offers an efficient lighting solution tailored to your needs. The type of light source of the product NEC L50W LED is LED. This light source ensures effective illumination tailored to your needs.
Other features
The image format of the product NEC L50W LED is 16:10. This format is ideal for an immersive visual experience. The maximum analog resolution of the product NEC L50W LED is 1680 x 1050 pixels. This feature ensures optimal image quality for an enriching visual experience. The product NEC L50W LED has a maximum resolution of 1920 x 1080 pixels. This feature ensures exceptional image quality for an immersive viewing experience. The RS-232 port of the NEC L50W LED contains 0. This port is essential for ensuring reliable serial communication with other devices. The dimensions (LxWxH) of the product NEC L50W LED are 226 x 174 x 43 mm. These dimensions ensure an optimal fit in your space. The product NEC L50W LED features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The ready-to-use network of the product NEC L50W LED is Non. This network is designed to provide immediate and hassle-free connectivity, thus facilitating access to the Internet as soon as it is activated.
Network
The number of Ethernet LAN (RJ-45) ports of the product NEC L50W LED is 0. These ports provide a stable and fast network connection for your devices. Does the product NEC L50W LED have Ethernet/LAN? Non. This specification determines the network connectivity of the product. The Wifi of the product NEC L50W LED contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices.
Connectivity
The product NEC L50W LED has an S-Video input. This input allows you to connect video devices with enhanced image quality. The product NEC L50W LED has a composite video input. This input allows for easy connection of analog video devices for an optimal viewing experience. The product NEC L50W LED has an input component of the audiovisual device (YPbPr/YCbCr) 0. This specification allows for a high-quality connection for an optimal visual experience. The integrated audio connector (L,R) of the product NEC L50W LED has 0. This connector allows for a high-quality stereo audio connection for an optimal sound experience. The number of USB 2.0 ports on the NEC L50W LED is 2. These ports allow for a fast and efficient connection for your devices. Does the product NEC L50W LED have a DVI Port? Non. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. Does the product NEC L50W LED have a PC audio input? Oui. This feature allows for easy connection of audio devices for an optimal sound experience. The number of VGA (D-Sub) ports on the NEC L50W LED is 1. This port allows for easy connection with various devices and monitors. Does the product NEC L50W LED have a power input section? Oui. This section ensures a reliable and efficient power supply for the optimal operation of the device. The USB connector of the product NEC L50W LED is USB Type-A, USB Type-B. This connector allows for a fast and efficient connection for data transfer and device charging. The number of HDMI ports on the NEC L50W LED is 1. This detail is essential for determining compatibility with your multimedia devices.
Video
The analog signal format system of the product NEC L50W LED contains NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. The supported video mode of the product NEC L50W LED is 1080i, 480i, 480p, 576i, 576p, 720p. This mode allows you to enjoy optimal image quality for your videos. The supported graphic resolutions of the product NEC L50W LED are 720 x 480,720 x 576,1280 x 960,1440 x 1050,1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800 (WXGA),1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+),640 x 480 (VGA). These resolutions provide optimal display quality for your content. Does the product NEC L50W LED have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. Does the product NEC L50W LED have 3D Compatibility? No. This product does not support 3D technology.
Multimedia
Does the product NEC L50W LED have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience. The RMS rated power of the product NEC L50W LED is 2 W. This specification ensures optimal sound quality for an enriching multimedia experience. The number of built-in speakers of the product NEC L50W LED is 1. These speakers provide immersive audio quality for an optimal listening experience.
Design
The color of the product NEC L50W LED is Noir. This shade gives it a modern and elegant look. Does the product NEC L50W LED have a cable lock port? No. This product does not have this security feature. The type of cable lock location for the product NEC L50W LED is Kensington. This type of lock provides optimal security to protect your device against theft. The product type of NEC L50W LED is Projecteur à focale courte. This product is ideal for an immersive and comfortable audio experience.
Weight and dimensions
The weight of the product NEC L50W LED is 1200 g. This weight is ideal for ensuring optimal use and easy handling.
Power
The AC input voltage of the NEC L50W LED is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The typical power consumption of the product NEC L50W LED is 105 W. This feature allows for the assessment of the energy efficiency of the device. The energy consumption in standby mode of the product NEC L50W LED is 0.5 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. Does the product NEC L50W LED have an automatic power cut-off? Oui. This feature ensures increased safety by turning off the device when necessary. The AC input frequency of the product NEC L50W LED is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
Storage support
The internal storage capacity of the product NEC L50W LED is 1 Go. This capacity allows for storing a considerable amount of data, applications, and multimedia files. The product NEC L50W LED has compatible memory cards: SD. These memory cards ensure optimal performance for storing your data. Does the NEC L50W LED have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Features
The noise level of the product NEC L50W LED is 38 dB. This noise level allows for pleasant use without excessive noise disturbances. The certification of the product NEC L50W LED contains CE; ErP; TÜV GS; RoHS. This certification guarantees compliance with the required safety and performance standards. The noise level in eco mode of the product NEC L50W LED is 32 dB. This noise level ensures discreet and pleasant use, ideal for noise-sensitive environments.
Packaging contents
Does the product NEC L50W LED come with a remote control? Oui. Does the product NEC L50W LED come with a carrying case? Oui. This case is designed to protect and transport your product safely. The included cable of the product NEC L50W LED contains a power plug. This cable is essential for ensuring an optimal electrical connection.
