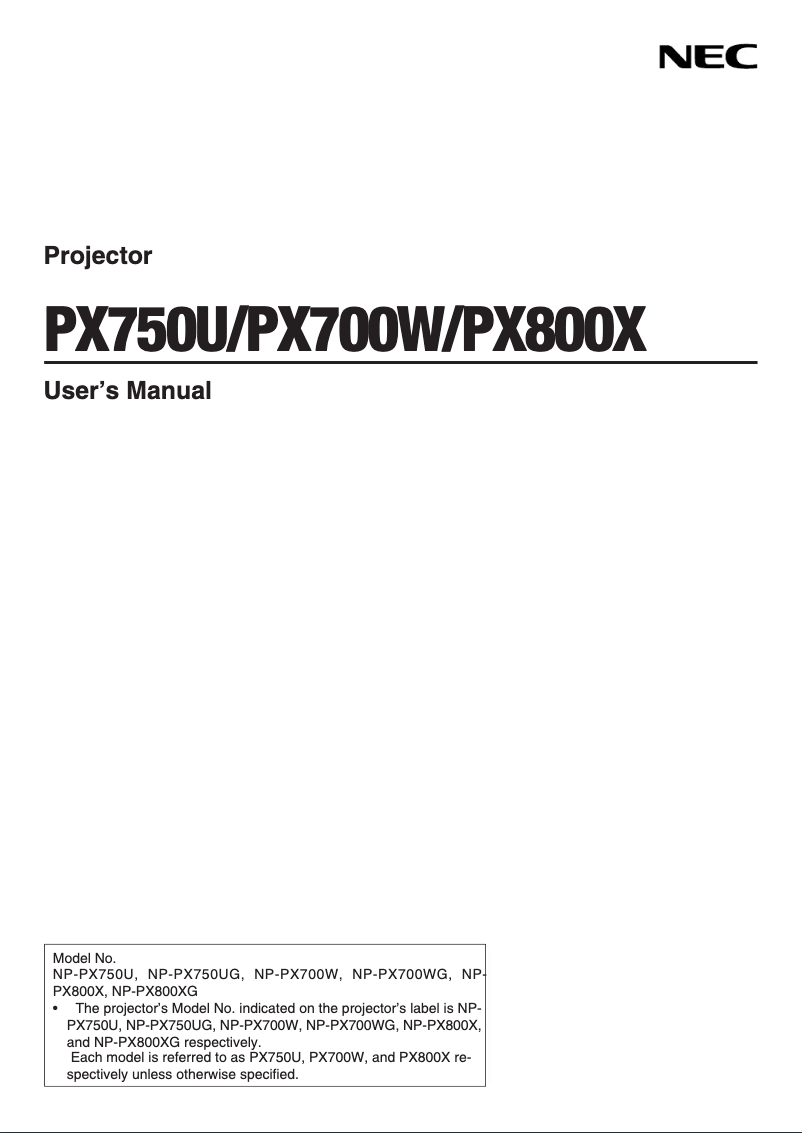

Manual of product NP-PX800X
Technical Specifications NP-PX800X
General Information
-
ModelNP-PX800X
-
Brand
-
Category
-
Type
-
SKU1410996
-
MPN1410996
Projector
-
Image format-
-
Projector brightness8000 ANSI lumens
-
Projection technologyDLP
-
Native resolution of the projectorXGA (1024x768)
-
Compatible screen size50 - 300 "
-
Supported aspect ratios4:3, 5:4, 15:9, 16:9, 16:10
-
Projection distance0.8 - 54.8 m
-
Contrast ratio2100:1
-
Correction of the trapezoid, horizontal- 40 - 40 °
-
Correction of the trapezium, vertical- 30 - 30 °
-
Matrix size0.7 "
-
Vertical scanning frequency48 - 120 Hz
-
Horizontal scanning domain15 - 108 kHz
Objective system
-
Zoom ratio-
-
Focal length26 - 117.4 mm
-
Opening range1.7 - 3.1
-
Horizontal lens shift range-10 - 10 %
-
Vertical target offset range-50 - 50 %
Light source
-
Lifespan of the light source2000 h
-
Power of the lamp400 W
-
Lifespan of the light source (eco mode)2500 h
-
Lamp power (eco mode)320 W
-
Quantity of lamps1 lamp(s)
-
Type of light sourceLamp
Multimedia
-
Built-in speakers-
-
Supported video formatH.264
-
Supported image formatsMPEG2
-
Supported audio formatsMPG
-
Support for text formatsWMV
-
-
BMP
-
GIF
-
JPG
-
PNG
-
-
MP3
-
-
PDF
-
PPT
-
PPTX
Video
-
3D Compatibility-
-
Analog signal format systemNTSC
-
Full HDNTSC 4.43
-
Supported graphic resolutionsPAL
-
Supported video modesPAL 60
-
PAL M
-
PAL N
-
SECAM
-
No
-
1024 x 768 (XGA)
-
1280 x 1024 (SXGA)
-
1400 x 1050 (SXGA+)
-
1600 x 1200 (UXGA)
-
1920 x 1200 (WUXGA)
-
640 x 480 (VGA)
-
800 x 600 (SVGA)
-
1080i
-
1080p
-
480i
-
480p
-
576i
-
576p
-
720p
Screen
-
Built-in screen-
Connectivity
-
Input component of the audiovisual device (YPbPr/YCbCr)-
-
Number of VGA (D-Sub) ports3
-
S-Video Input1
-
S-Video Input1
-
USB connectorUSB Type-A
-
S-Video Input1
-
Number of CardBus PCMCIA Housing(s)0
-
S-Video Input1
-
Serial interface typeRS-232
-
Power entry sectorYes
-
S-Video Input1
-
Type of housing for CardBus PCMCIANo
-
Type of housing for CardBus PCMCIANo
-
Number of CardBus PCMCIA Housing(s)0
-
Power entry sectorYes
-
BNC entry ports5
Network
-
Wifi-
-
Number of Ethernet LAN ports (RJ-45)1
-
Ethernet/LANYes
Other features
-
RS-232 port1
Storage support
-
Built-in memory card readerNo
-
Type of optical disc driveNot included
Features
-
Sound level43 dB
-
Sound level (economy mode)39 dB
-
On-Screen Display (OSD)Yes
-
On-Screen Display (OSD)Yes
-
CertificationUSA: UL60950-1, FCC Part15 Class B, Canada: CSA60950-1, ICES-003 Class B
Design
-
Product colorBlack
-
Product typeProjector for large rooms
-
PositioningOffice
Power
-
Power supplySector
-
Typical electricity consumption1006 W
-
Energy consumption (standby mode)33 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
Weight and dimensions
-
Weight19700 g
-
Width504 mm
-
Depth516 mm
-
Height192 mm
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-10 - 50 °C
-
Operating relative humidity (H-H)20 - 80 %
Packaging contents
-
User manualYes
-
Type of remote controlIR
-
User manualYes
-
User manualYes
-
User manualYes
Similar products
More product categories from brand NEC
More product types from brand NEC
Presentation of product NP-PX800X specifications from brand NEC
Generalities
The brand of the product NEC NP-PX800X is NEC. This brand is known for its quality and innovation in the field of household appliances. The product model NEC NP-PX800X is NP-PX800X | NP-PX800X. This model ensures optimal performance and an enhanced user experience. The EAN code of the product NEC NP-PX800X is 0805736037890. This code allows for the unique identification of the product in the distribution system.
Objective system
The zoom ratio of the product NEC NP-PX800X is fixed. This ratio determines the lens's ability to enlarge or reduce the image while maintaining optimal image quality. The opening amplitude of the product NEC NP-PX800X is 1.7 - 3.1. This amplitude allows for optimal results in various lighting conditions. The focal length of the product NEC NP-PX800X is 26 - 117.4 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The horizontal lens shift range of the NEC NP-PX800X is -10 - 10 %. This specification allows for adjusting the position of the lenses for better visual rendering. The vertical offset range of the NEC NP-PX800X is -50 - 50 %. This specification allows for adjusting the position of the lens for better alignment and optimal use.
Light source
The lifespan of the light source of the product NEC NP-PX800X is 2000 h. This feature ensures prolonged and efficient use, allowing you to enjoy lasting lighting. The power of the lamp (economy mode) of the product NEC NP-PX800X is 320 W. This specification ensures optimal energy efficiency while providing quality lighting. The power of the lamp of the product NEC NP-PX800X is 400 W. This power ensures optimal lighting for your needs. The lifespan of the light source (eco mode) of the product NEC NP-PX800X is 2500 h. This longevity ensures prolonged and economical use. The quantity of lamps for the product NEC NP-PX800X is 1 lampe(s). This product offers an efficient lighting solution tailored to your needs. The type of light source of the product NEC NP-PX800X is Lampe. This light source ensures effective illumination tailored to your needs.
Projector
The brightness of the product NEC NP-PX800X is 8000 ANSI lumens. This feature ensures a clear and bright projection, even in well-lit environments. The compatible screen size of the product NEC NP-PX800X is 50 - 300 ". This specification allows the projector to adapt to different screen formats for an optimal viewing experience. The projector NEC NP-PX800X features a DLP projection technology. This technology ensures optimal image quality and an immersive visual experience. The native resolution of the product NEC NP-PX800X is XGA (1024x768). This feature ensures optimal image quality for your presentations and entertainment. The image format of the product NEC NP-PX800X is -. This format is ideal for an immersive visual experience. The aspect ratio of the product NEC NP-PX800X supports 4:3, 5:4, 15:9, 16:9, 16:10. This aspect ratio allows for display flexibility suited to different content. The projection distance of the product NEC NP-PX800X is 0.8 - 54.8 m. This specification allows for optimizing the visual experience based on the available space. The contrast ratio of the product NEC NP-PX800X is 2100:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The correction of the trapezoid, horizontal, of the product NEC NP-PX800X is - 40 - 40 °. This feature allows for adjusting the projected image for better accuracy and optimal rendering. The product NEC NP-PX800X features trapezoidal correction, vertical of - 30 - 30 °. This functionality allows for adjusting the projected image for optimal rendering, regardless of the projection angle. The matrix size of the product NEC NP-PX800X is 0.7 ". This specification is essential to ensure optimal image quality. The vertical scanning frequency of the product NEC NP-PX800X is 48 - 120 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The horizontal scanning range of the product NEC NP-PX800X is 15 - 108 kHz. This range allows for excellent display quality and optimal image smoothness.
Screen
The NEC NP-PX800X has a built-in screen. This screen provides an immersive and convenient visual experience, making it easier to use the device.
Multimedia
The supported video format of the product NEC NP-PX800X contains H.264, MPEG2, MPG, WMV. This format allows for smooth and high-quality playback of your multimedia content. The product NEC NP-PX800X supports text formats, including PDF, PPT, PPTX. This feature allows for optimal flexibility when scanning documents. The supported audio formats of the product NEC NP-PX800X are MP3. These formats ensure optimal compatibility for an enriching listening experience. The supported image format of the product NEC NP-PX800X is BMP, GIF, JPG, PNG. This format ensures optimal image quality for your visual needs. Does the product NEC NP-PX800X have built-in speakers? -. These speakers provide an immersive and convenient audio experience.
Video
The analog signal format system of the product NEC NP-PX800X contains NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. Does the product NEC NP-PX800X have Full HD? Non. This feature ensures exceptional image quality for an immersive viewing experience. Does the product NEC NP-PX800X have 3D Compatibility? No. This product does not support 3D technology. The supported graphic resolutions of the product NEC NP-PX800X are 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA), 640 x 480 (VGA), 800 x 600 (SVGA). These resolutions provide optimal display quality for your content. The supported video mode of the product NEC NP-PX800X is 1080i, 1080p, 480i, 480p, 576i, 576p, 720p. This mode allows you to enjoy optimal image quality for your videos.
Other features
The RS-232 port of the NEC NP-PX800X contains 1. This port is essential for ensuring reliable serial communication with other devices.
Network
The number of Ethernet LAN (RJ-45) ports of the product NEC NP-PX800X is 1. These ports provide a stable and fast network connection for your devices. The Wifi of the product NEC NP-PX800X contains -. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product NEC NP-PX800X have Ethernet/LAN? Oui. This specification determines the network connectivity of the product.
Storage support
Does the NEC NP-PX800X have a built-in memory card reader? Non. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The type of optical disc drive of the product NEC NP-PX800X is Non inclus. This drive allows for efficient reading of optical discs.
Features
The noise level in eco mode of the product NEC NP-PX800X is 39 dB. This noise level ensures discreet and pleasant use, ideal for noise-sensitive environments. The noise level of the product NEC NP-PX800X is 43 dB. This noise level allows for pleasant use without excessive noise disturbances. Does the product NEC NP-PX800X have an on-screen display (OSD)? Oui. This display allows for intuitive navigation through the product settings. Does the product NEC NP-PX800X have HDCP? Oui. This specification ensures the protection of digital content against unauthorized copying. The certification of the product NEC NP-PX800X contains USA: UL60950-1, FCC Part15 Class B, Canada: CSA60950-1, ICES-003 Class B. This certification guarantees compliance with the required safety and performance standards.
Connectivity
The number of VGA (D-Sub) ports on the NEC NP-PX800X is 3. This port allows for easy connection with various devices and monitors. The USB connector of the product NEC NP-PX800X is USB Type-A. This connector allows for a fast and efficient connection for data transfer and device charging. The number of USB 2.0 ports on the NEC NP-PX800X is 1. These ports allow for a fast and efficient connection for your devices. The number of HDMI ports on the NEC NP-PX800X is 1. This detail is essential for determining compatibility with your multimedia devices. The product NEC NP-PX800X has a composite video input. This input allows for easy connection of analog video devices for an optimal viewing experience. The integrated audio connector (L,R) of the product NEC NP-PX800X has 0. This connector allows for a high-quality stereo audio connection for an optimal sound experience. The number of DisplayPort interfaces of the product NEC NP-PX800X is 1. This specification allows for optimal connectivity with various devices. The serial interface type of the product NEC NP-PX800X is RS-232. This type of interface allows for effective communication between different devices. The progressive scan yield of the product NEC NP-PX800X is Oui. This yield allows for optimal image quality, providing smoother and more detailed videos. The product NEC NP-PX800X has an S-Video input. This input allows you to connect video devices with enhanced image quality. The product NEC NP-PX800X has an input component of the audiovisual device (YPbPr/YCbCr) -. This specification allows for a high-quality connection for an optimal visual experience. Does the product NEC NP-PX800X have a DVI Port? Non. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. Does the product NEC NP-PX800X have a CardBus PCMCIA slot type? Non. This type of slot is essential to ensure compatibility with expansion cards. The number of CardBus PCMCIA slots for the product NEC NP-PX800X is 0. This slot allows you to add expansion cards to enhance your device's connectivity. Does the product NEC NP-PX800X have a power input section? Oui. This section ensures a reliable and efficient power supply for the optimal operation of the device. The BNC input port of the NEC NP-PX800X contains 5. This port allows for a reliable and quality connection for your equipment.
Design
The product type of NEC NP-PX800X is Projecteur pour grandes salles. This product is ideal for an immersive and comfortable audio experience. The color of the product NEC NP-PX800X is Noir. This shade gives it a modern and elegant look. The positioning of the product NEC NP-PX800X is Bureau. This positioning allows for optimizing its use and ensuring an optimal user experience.
Power
The power supply of the product NEC NP-PX800X is Secteur. This power supply ensures optimal autonomy for prolonged use. The typical power consumption of the product NEC NP-PX800X is 1006 W. This feature allows for the assessment of the energy efficiency of the device. The energy consumption in standby mode of the product NEC NP-PX800X is 33 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The AC input voltage of the NEC NP-PX800X is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product NEC NP-PX800X is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
Environmental conditions
The operating temperature of the product NEC NP-PX800X is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product NEC NP-PX800X has an operating relative humidity (H-H) of 20 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product NEC NP-PX800X is -10 - 50 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Weight and dimensions
The weight of the product NEC NP-PX800X is 19700 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product NEC NP-PX800X is 504 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product NEC NP-PX800X is 516 mm. This dimension allows for optimal integration into your space. The height of the product NEC NP-PX800X is 192 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Packaging contents
Does the product NEC NP-PX800X come with a remote control? Oui. Does the product NEC NP-PX800X have a Quick Start Guide? Yes. This guide allows you to quickly and easily start using the product. The remote control of the product NEC NP-PX800X is wireless. This feature provides great freedom of movement and makes it easy to use. Does the product NEC NP-PX800X come with batteries? Oui. This allows you to enjoy your purchase immediately without having to worry about sourcing batteries. Does the product NEC NP-PX800X have a User Manual? Oui. This document provides clear instructions for optimal use of the product.
