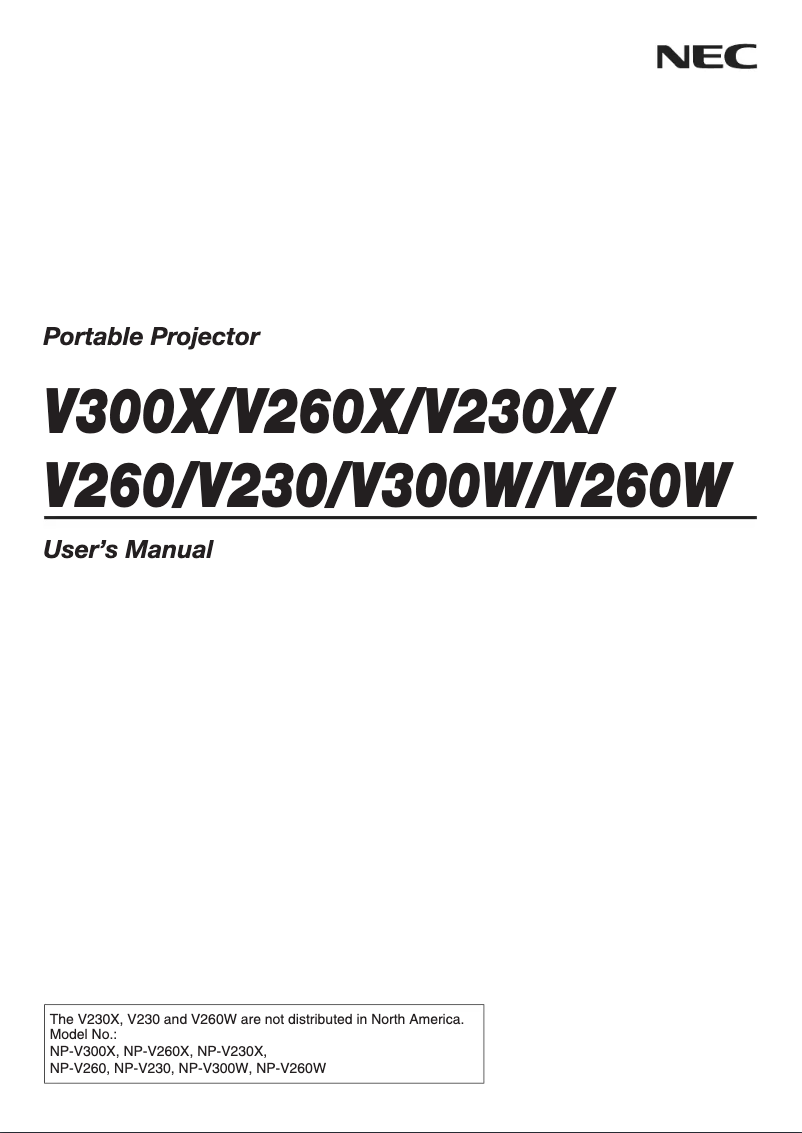

Manual of product NP-V300W
Technical Specifications NP-V300W
General Information
-
ModelNP-V300W
-
Brand
-
Category
-
Type
-
SKU1410999
-
MPN1410999
Projector
-
Projector brightness3000 ANSI lumens
-
Projection technologyDLP
-
Native resolution of the projectorWXGA (1280x800)
-
Compatible screen size33 - 300 "
-
Projection distance1.2 - 12 m
-
Contrast ratio2000:1
-
Correction of the trapezium, vertical-40 - 40 °
-
Matrix size0.55 "
-
Vertical scanning frequency50 - 120 Hz
-
Horizontal scanning domain15 - 100 kHz
Other features
-
Image format-
-
Resolution (maximum analog)1600 x 1200 pixels
-
Audio input2
-
RS-232 port1
-
Dimensions (LxWxH)310 x 95 x 247 mm
-
Connectivity technologyWired
Objective system
-
Projection ratio1.95 - 2.15:1
-
Zoom ratio1.1:1
-
TuningManual
-
Focal length21.83 - 24 mm
Light source
-
Lifespan of the light source3000 h
-
Power of the lamp225 W
-
Lifespan of the light source (eco mode)5000 h
-
Quantity of lamps1 lamp(s)
-
Type of light sourceLamp
Connectivity
-
Quantity of HDMI ports1
-
Quantity of HDMI ports1
-
Quantity of DisplayPort interfaces0
-
Quantity of HDMI ports1
-
Quantity of DisplayPort interfaces0
-
Type of housing for CardBus PCMCIANo
-
Quantity of HDMI ports1
-
Number of VGA (D-Sub) ports3
-
Type of housing for CardBus PCMCIANo
-
Power entry sectorYes
-
Quantity of DisplayPort interfaces0
-
Serial interface typeRS-232
Network
-
Number of Ethernet LAN ports (RJ-45)1
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
Video
-
Analog signal format systemNTSC 4.43
-
Full HDPAL
-
3D CompatibilityPAL 60
-
Supported graphic resolutionsPAL M
-
Supported video modesPAL N
-
3D CompatibilitySECAM
-
3D CompatibilityNo
-
Yes
-
1024 x 768 (XGA)
-
1280 x 1024 (SXGA)
-
1280 x 800 (WXGA)
-
1400 x 1050 (SXGA+)
-
1440 x 900 (WXGA+)
-
1600 x 1200 (UXGA)
-
800 x 600 (SVGA)
-
1080i
-
1080p
-
480i
-
480p
-
576i
-
576p
-
720p
-
Yes
-
Yes
Multimedia
-
Built-in speakersYes
-
Number of built-in speakers1
-
Rated power of RMS7 W
Design
-
Product colorBlack
-
Cable anti-theft lockYes
-
Cable lock location typeKensington
-
Market positionLaptop
Power
-
Typical electricity consumption278 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Energy consumption (standby mode)4 W
Weight and dimensions
-
Weight2500 g
-
Width310 mm
-
Depth95 mm
-
Height247 mm
Storage support
-
Built-in memory card readerNo
-
Type of optical disc driveNot included
Features
-
Sound level37 dB
-
Sound level (economy mode)33 dB
-
CertificationUSA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM
Environmental conditions
-
Operating relative humidity (H-H)20 - 80 %
-
Temperature out of operation-20 - 50 °C
-
Operating temperature5 - 40 °C
Packaging contents
-
Batteries includedYes
-
Batteries includedYes
Similar products
More product categories from brand NEC
More product types from brand NEC
Presentation of product NP-V300W specifications from brand NEC
Generalities
The brand of the product NEC NP-V300W is NEC. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product NEC NP-V300W is 0230494867449, 0805736036626, 8057360366262. This code allows for the unique identification of the product in the distribution system. The product model NEC NP-V300W is NP-V300W | NP-V300W. This model ensures optimal performance and an enhanced user experience.
Objective system
The projection ratio of the product NEC NP-V300W is 1.95 - 2.15:1. This ratio determines the distance at which the projected image will be displayed relative to the screen size. The focal length of the product NEC NP-V300W is 21.83 - 24 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The zoom ratio of the product NEC NP-V300W is fixed. This ratio determines the lens's ability to enlarge or reduce the image while maintaining optimal image quality. The adjustment of the NEC NP-V300W is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user.
Other features
The image format of the product NEC NP-V300W is -. This format is ideal for an immersive visual experience. The RS-232 port of the NEC NP-V300W contains 1. This port is essential for ensuring reliable serial communication with other devices. The maximum analog resolution of the product NEC NP-V300W is 1600 x 1200 pixels. This feature ensures optimal image quality for an enriching visual experience. The product NEC NP-V300W has an audio input. This feature allows you to connect various audio devices for an enhanced sound experience. The dimensions (LxWxH) of the product NEC NP-V300W are 310 x 95 x 247 mm. These dimensions ensure an optimal fit in your space. The product NEC NP-V300W features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Projector
The brightness of the product NEC NP-V300W is 3000 ANSI lumens. This feature ensures a clear and bright projection, even in well-lit environments. The native resolution of the product NEC NP-V300W is WXGA (1280x800). This feature ensures optimal image quality for your presentations and entertainment. The projector NEC NP-V300W features a DLP projection technology. This technology ensures optimal image quality and an immersive visual experience. The compatible screen size of the product NEC NP-V300W is 33 - 300 ". This specification allows the projector to adapt to different screen formats for an optimal viewing experience. The projection distance of the product NEC NP-V300W is 1.2 - 12 m. This specification allows for optimizing the visual experience based on the available space. The contrast ratio of the product NEC NP-V300W is 2000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The vertical scanning frequency of the product NEC NP-V300W is 50 - 120 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The horizontal scanning range of the product NEC NP-V300W is 15 - 100 kHz. This range allows for excellent display quality and optimal image smoothness. The product NEC NP-V300W features trapezoidal correction, vertical of -40 - 40 °. This functionality allows for adjusting the projected image for optimal rendering, regardless of the projection angle. The matrix size of the product NEC NP-V300W is 0.55 ". This specification is essential to ensure optimal image quality.
Light source
The power of the lamp of the product NEC NP-V300W is 225 W. This power ensures optimal lighting for your needs. The lifespan of the light source of the product NEC NP-V300W is 3000 h. This feature ensures prolonged and efficient use, allowing you to enjoy lasting lighting. The quantity of lamps for the product NEC NP-V300W is 1 lampe(s). This product offers an efficient lighting solution tailored to your needs. The lifespan of the light source (eco mode) of the product NEC NP-V300W is 5000 h. This longevity ensures prolonged and economical use. The type of light source of the product NEC NP-V300W is Lampe. This light source ensures effective illumination tailored to your needs.
Network
The number of Ethernet LAN (RJ-45) ports of the product NEC NP-V300W is 1. These ports provide a stable and fast network connection for your devices. The Wifi of the product NEC NP-V300W contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product NEC NP-V300W have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the NEC NP-V300W have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices.
Multimedia
Does the product NEC NP-V300W have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience. The number of built-in speakers of the product NEC NP-V300W is 1. These speakers provide immersive audio quality for an optimal listening experience. The RMS rated power of the product NEC NP-V300W is 7 W. This specification ensures optimal sound quality for an enriching multimedia experience.
Design
The type of cable lock location for the product NEC NP-V300W is Kensington. This type of lock provides optimal security to protect your device against theft. Does the product NEC NP-V300W have a cable lock port? No. This product does not have this security feature. The color of the product NEC NP-V300W is Noir. This shade gives it a modern and elegant look. The market position of the product NEC NP-V300W is Portable. This product is primarily aimed at professionals, offering features tailored to their specific needs.
Connectivity
The product NEC NP-V300W has an S-Video input. This input allows you to connect video devices with enhanced image quality. The integrated audio connector (L,R) of the product NEC NP-V300W has 1. This connector allows for a high-quality stereo audio connection for an optimal sound experience. The product NEC NP-V300W has a composite video input. This input allows for easy connection of analog video devices for an optimal viewing experience. The product NEC NP-V300W has an input component of the audiovisual device (YPbPr/YCbCr) 0. This specification allows for a high-quality connection for an optimal visual experience. The number of USB 2.0 ports on the NEC NP-V300W is 0. These ports allow for a fast and efficient connection for your devices. Does the product NEC NP-V300W have a CardBus PCMCIA slot type? Non. This type of slot is essential to ensure compatibility with expansion cards. The number of HDMI ports on the NEC NP-V300W is 1. This detail is essential for determining compatibility with your multimedia devices. Does the product NEC NP-V300W have a DVI Port? Non. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. The number of VGA (D-Sub) ports on the NEC NP-V300W is 3. This port allows for easy connection with various devices and monitors. Does the product NEC NP-V300W have a power input section? Oui. This section ensures a reliable and efficient power supply for the optimal operation of the device. The number of DisplayPort interfaces of the product NEC NP-V300W is 0. This specification allows for optimal connectivity with various devices. The serial interface type of the product NEC NP-V300W is RS-232. This type of interface allows for effective communication between different devices.
Video
The analog signal format system of the product NEC NP-V300W contains NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. The supported graphic resolutions of the product NEC NP-V300W are 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 800 x 600 (SVGA). These resolutions provide optimal display quality for your content. Does the product NEC NP-V300W have Full HD? Non. This feature ensures exceptional image quality for an immersive viewing experience. Is the NEC NP-V300W product HD-Ready? Oui. This feature indicates whether the device can display an HD resolution, which is essential for an optimal viewing experience. The supported video mode of the product NEC NP-V300W is 1080i, 1080p, 480i, 480p, 576i, 576p, 720p. This mode allows you to enjoy optimal image quality for your videos. Is the product NEC NP-V300W 3D Ready? Oui. This feature allows for an immersive and captivating visual experience. Does the product NEC NP-V300W have 3D Compatibility? No. This product does not support 3D technology.
Power
The AC input frequency of the product NEC NP-V300W is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The typical power consumption of the product NEC NP-V300W is 278 W. This feature allows for the assessment of the energy efficiency of the device. The AC input voltage of the NEC NP-V300W is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The energy consumption in standby mode of the product NEC NP-V300W is 4 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings.
Weight and dimensions
The depth of the product NEC NP-V300W is 95 mm. This dimension allows for optimal integration into your space. The width of the product NEC NP-V300W is 310 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product NEC NP-V300W is 2500 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product NEC NP-V300W is 247 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Features
The noise level of the product NEC NP-V300W is 37 dB. This noise level allows for pleasant use without excessive noise disturbances. The certification of the product NEC NP-V300W contains USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM. This certification guarantees compliance with the required safety and performance standards. The noise level in eco mode of the product NEC NP-V300W is 33 dB. This noise level ensures discreet and pleasant use, ideal for noise-sensitive environments.
Storage support
Does the NEC NP-V300W have a built-in memory card reader? Non. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The type of optical disc drive of the product NEC NP-V300W is Non inclus. This drive allows for efficient reading of optical discs.
Environmental conditions
The product NEC NP-V300W has an operating relative humidity (H-H) of 20 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product NEC NP-V300W is 5 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product NEC NP-V300W is -20 - 50 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Packaging contents
Does the product NEC NP-V300W come with batteries? Oui. This allows you to enjoy your purchase immediately without having to worry about sourcing batteries. Does the product NEC NP-V300W come with a remote control? Oui.
