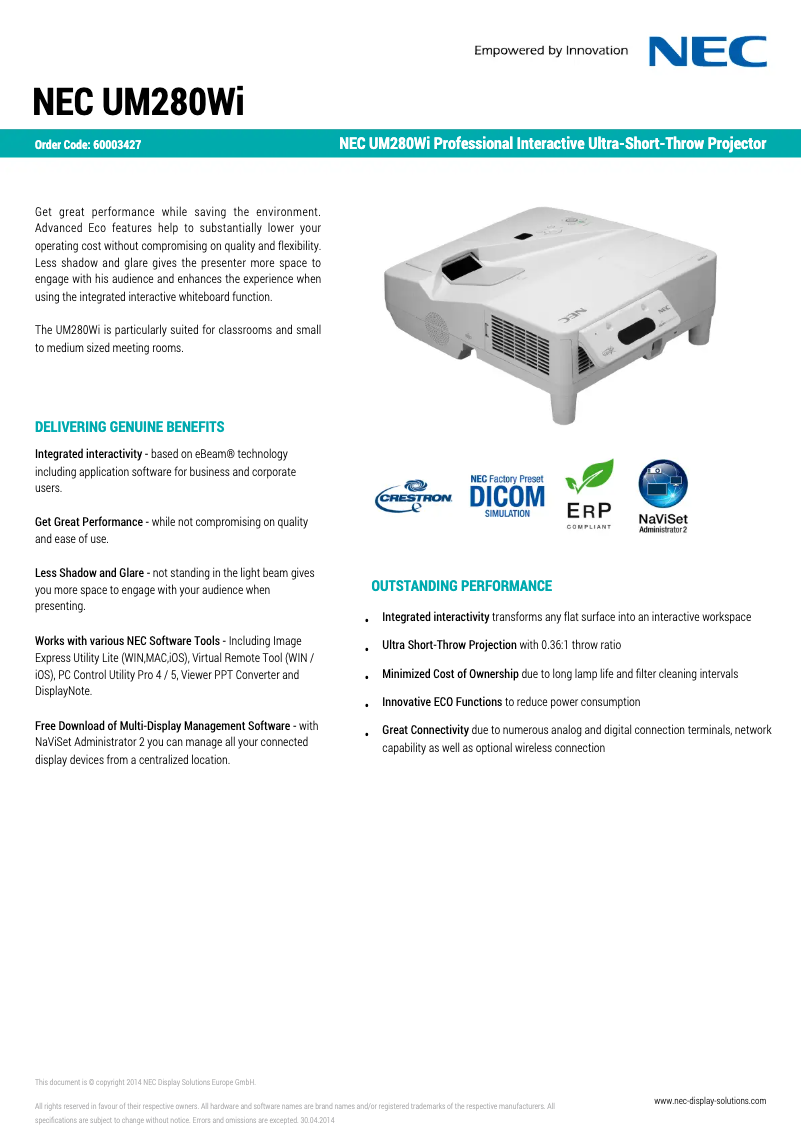

Manuals of product UM280Wi
Technical Specifications UM280Wi
General Information
-
ModelUM280WI
-
Brand
-
Category
-
Type
-
SKU162847
-
MPN162847
Projector
-
Color light output2800 ANSI lumens
-
Projection technology3LCD
-
Native resolution of the projectorWXGA (1280x800)
-
Compatible screen size60 - 100 "
-
Supported aspect ratios16:10
-
Supported aspect ratios16:10
-
Projection distance0.11 - 0.51 m
-
Contrast ratio3000:1
-
Projector brightness (eco mode)1680 ANSI lumens
-
Matrix size0.59 "
-
Matrix type3-panels (p-Si TFT active)
-
Color light output2800 ANSI lumens
-
Color light output2800 ANSI lumens
-
Vertical scanning frequency50 - 120 Hz
-
Horizontal scanning domain15 - 100 kHz
Objective system
-
Zoom ratio1.4:1
-
Zoom capacityYes
-
TuningManual
-
Focal length- mm
Light source
-
Lifespan of the light source5000 h
-
Power of the lamp170 W
-
Lifespan of the light source (eco mode)8000 h
-
Lamp power (eco mode)140 W
-
Quantity of lamps1 lamp(s)
-
Type of light sourceLamp
Video
-
Analog signal format systemNTSC
-
3D CompatibilityNTSC 3.58
-
3D CompatibilityNTSC 4.43
-
Supported graphic resolutionsPAL
-
Supported video modesPAL 60
-
PAL M
-
PAL N
-
SECAM
-
No
-
No
-
720 x 480
-
720 x 576
-
832 x 624
-
1600 x 900
-
1024 x 768 (XGA)
-
1152 x 864 (XGA+)
-
1280 x 1024 (SXGA)
-
1280 x 720 (HD 720)
-
1280 x 768 (WXGA)
-
1280 x 800 (WXGA)
-
1360 x 768 (WXGA)
-
1366 x 768
-
1400 x 1050 (SXGA+)
-
1440 x 900 (WXGA+)
-
1600 x 1200 (UXGA)
-
1680 x 1050 (WSXGA+)
-
1920 x 1080 (HD 1080)
-
1920 x 1200 (WUXGA)
-
640 x 480 (VGA)
-
800 x 600 (SVGA)
-
1080i
-
480i
-
480p
-
576i
-
576p
-
720p
Connectivity
-
Quantity of HDMI ports2
-
Quantity of HDMI ports2
-
Quantity of USB 2.0 Ports3
-
USB connectorUSB Type-A, USB Type-B
-
Input component of the audiovisual device (YPbPr/YCbCr)0
-
S-Video Input1
-
S-Video Input1
-
S-Video Input1
-
Input component of the audiovisual device (YPbPr/YCbCr)0
-
DVI PortNo
-
Power entry sectorYes
-
Serial interface typeRS-232
Network
-
Wifi-
-
Number of Ethernet LAN ports (RJ-45)1
-
Ethernet/LANYes
Other features
-
RS-232 port1
Storage support
-
Built-in memory card readerNo
Features
-
HDCP-
-
Sound level (economy mode)28 dB
-
Sound level (economy mode)28 dB
-
CertificationCE; TÜV GS; Gost-R
Multimedia
-
Built-in speakersYes
-
Number of built-in speakers1
-
Rated power of RMS16 W
Design
-
Product colorWhite
-
Product typeUltra short throw projector
-
PositioningDesk
Screen
-
Built-in screenNo
Power
-
Power supplySector
-
Typical electricity consumption235 W
-
Energy consumption (standby mode)0.4 W
-
Energy consumption (eco mode)212 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
Environmental conditions
-
Operating temperature5 - 40 °C
-
Temperature out of operation-20 - 60 °C
-
Relative humidity rate (storage)20 - 80 %
-
Relative humidity rate (storage)20 - 80 %
Technical details
-
Sustainability certificatesRoHS
Weight and dimensions
-
Width378 mm
-
Depth428 mm
-
Height112 mm
-
Weight5600 g
Packaging contents
-
Lift hooks includedYes
-
Cables includedAC, VGA
-
Lift hooks includedYes
-
Lift hooks includedYes
-
Lift hooks includedYes
Similar products
More product categories from brand NEC
More product types from brand NEC
Presentation of product UM280Wi specifications from brand NEC
Generalities
The brand of the product NEC UM280Wi is NEC. This brand is known for its quality and innovation in the field of household appliances. The product model NEC UM280Wi is UM280Wi | 60003780. This model ensures optimal performance and an enhanced user experience. The EAN code of the product NEC UM280Wi is 5028695610002, 5028695610101, 5028695611146, 4053162595743. This code allows for the unique identification of the product in the distribution system.
Objective system
The focal length of the product NEC UM280Wi is - mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The zoom ratio of the product NEC UM280Wi is fixed. This ratio determines the lens's ability to enlarge or reduce the image while maintaining optimal image quality. Does the product NEC UM280Wi have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The adjustment of the NEC UM280Wi is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user.
Light source
The power of the lamp (economy mode) of the product NEC UM280Wi is 140 W. This specification ensures optimal energy efficiency while providing quality lighting. The lifespan of the light source of the product NEC UM280Wi is 5000 h. This feature ensures prolonged and efficient use, allowing you to enjoy lasting lighting. The lifespan of the light source (eco mode) of the product NEC UM280Wi is 8000 h. This longevity ensures prolonged and economical use. The power of the lamp of the product NEC UM280Wi is 170 W. This power ensures optimal lighting for your needs. The quantity of lamps for the product NEC UM280Wi is 1 lampe(s). This product offers an efficient lighting solution tailored to your needs. The type of light source of the product NEC UM280Wi is Lampe. This light source ensures effective illumination tailored to your needs.
Network
The number of Ethernet LAN (RJ-45) ports of the product NEC UM280Wi is 1. These ports provide a stable and fast network connection for your devices. Does the product NEC UM280Wi have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product NEC UM280Wi contains -. This Wifi allows for a fast and reliable wireless connection for all your devices.
Projector
The brightness of the product NEC UM280Wi is 2800 ANSI lumens. This feature ensures a clear and bright projection, even in well-lit environments. The native resolution of the product NEC UM280Wi is WXGA (1280x800). This feature ensures optimal image quality for your presentations and entertainment. The projector NEC UM280Wi features a 3LCD projection technology. This technology ensures optimal image quality and an immersive visual experience. The compatible screen size of the product NEC UM280Wi is 60 - 100 ". This specification allows the projector to adapt to different screen formats for an optimal viewing experience. The image format of the product NEC UM280Wi is 16:10. This format is ideal for an immersive visual experience. The aspect ratio of the product NEC UM280Wi supports 16:10. This aspect ratio allows for display flexibility suited to different content. The NEC UM280Wi projector has a brightness of 3200 ANSI lumens in eco mode. This performance allows for clear and bright images, even in low-light environments. The matrix size of the product NEC UM280Wi is 0.59 ". This specification is essential to ensure optimal image quality. The projection distance of the product NEC UM280Wi is 0.11 - 0.51 m. This specification allows for optimizing the visual experience based on the available space. The contrast ratio of the product NEC UM280Wi is 3000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The matrix type of the product NEC UM280Wi is 3-panneaux (p-Si TFT active). This type of matrix is essential to ensure optimal image quality and impressive visual performance. The projector NEC UM280Wi has a white light output of 2800 ANSI lumens. This specification ensures optimal brightness for your presentations and projections. The NEC UM280Wi projector has a light output of color 2800 ANSI lumens. This feature ensures optimal brightness for vibrant and dynamic projections. The vertical scanning frequency of the product NEC UM280Wi is 50 - 120 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The horizontal scanning range of the product NEC UM280Wi is 15 - 100 kHz. This range allows for excellent display quality and optimal image smoothness.
Video
The analog signal format system of the product NEC UM280Wi contains NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. Does the product NEC UM280Wi have Full HD? Non. This feature ensures exceptional image quality for an immersive viewing experience. The supported graphic resolutions of the product NEC UM280Wi are 720 x 480,720 x 576,832 x 624,1600 x 900,1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800 (WXGA),1360 x 768 (WXGA),1366 x 768,1400 x 1050 (SXGA+),1440 x 900 (WXGA+),1600 x 1200 (UXGA),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),640 x 480 (VGA),800 x 600 (SVGA). These resolutions provide optimal display quality for your content. Does the product NEC UM280Wi have 3D Compatibility? No. This product does not support 3D technology. The supported video mode of the product NEC UM280Wi is 1080i, 480i, 480p, 576i, 576p, 720p. This mode allows you to enjoy optimal image quality for your videos.
Other features
The RS-232 port of the NEC UM280Wi contains 1. This port is essential for ensuring reliable serial communication with other devices.
Storage support
Does the NEC UM280Wi have a built-in memory card reader? Non. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Connectivity
The number of VGA (D-Sub) ports on the NEC UM280Wi is 2. This port allows for easy connection with various devices and monitors. The number of USB 2.0 ports on the NEC UM280Wi is 3. These ports allow for a fast and efficient connection for your devices. The USB connector of the product NEC UM280Wi is USB Type-A, USB Type-B. This connector allows for a fast and efficient connection for data transfer and device charging. The number of HDMI ports on the NEC UM280Wi is 2. This detail is essential for determining compatibility with your multimedia devices. The product NEC UM280Wi has a composite video input. This input allows for easy connection of analog video devices for an optimal viewing experience. The integrated audio connector (L,R) of the product NEC UM280Wi has 1. This connector allows for a high-quality stereo audio connection for an optimal sound experience. The product NEC UM280Wi has an input component of the audiovisual device (YPbPr/YCbCr) 0. This specification allows for a high-quality connection for an optimal visual experience. Does the product NEC UM280Wi have a DVI Port? Non. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. The audio output (left, right) of the product NEC UM280Wi contains 1. This specification allows for an immersive stereo sound experience. The product NEC UM280Wi has an S-Video input. This input allows you to connect video devices with enhanced image quality. Does the product NEC UM280Wi have a power input section? Oui. This section ensures a reliable and efficient power supply for the optimal operation of the device. The serial interface type of the product NEC UM280Wi is RS-232. This type of interface allows for effective communication between different devices.
Multimedia
The RMS rated power of the product NEC UM280Wi is 16 W. This specification ensures optimal sound quality for an enriching multimedia experience. The number of built-in speakers of the product NEC UM280Wi is 1. These speakers provide immersive audio quality for an optimal listening experience. Does the product NEC UM280Wi have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience.
Features
The noise level in eco mode of the product NEC UM280Wi is 28 dB. This noise level ensures discreet and pleasant use, ideal for noise-sensitive environments. Does the product NEC UM280Wi have HDCP? -. This specification ensures the protection of digital content against unauthorized copying. The noise level of the product NEC UM280Wi is 28 dB. This noise level allows for pleasant use without excessive noise disturbances. The certification of the product NEC UM280Wi contains CE; TÜV GS; Gost-R. This certification guarantees compliance with the required safety and performance standards.
Design
The color of the product NEC UM280Wi is Blanc. This shade gives it a modern and elegant look. The product type of NEC UM280Wi is Projecteur à focale ultra courte. This product is ideal for an immersive and comfortable audio experience. The positioning of the product NEC UM280Wi is Bureau. This positioning allows for optimizing its use and ensuring an optimal user experience.
Screen
The NEC UM280Wi has a built-in screen. This screen provides an immersive and convenient visual experience, making it easier to use the device.
Environmental conditions
The operating temperature of the product NEC UM280Wi is 5 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product NEC UM280Wi is -20 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The relative humidity (storage) rate of the product NEC UM280Wi is 20 - 80 %. This rate ensures optimal conditions for the preservation and durability of the product. The product NEC UM280Wi has an operating relative humidity (H-H) of 20 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity.
Power
The power supply of the product NEC UM280Wi is Secteur. This power supply ensures optimal autonomy for prolonged use. The energy consumption in economy mode of the product NEC UM280Wi is 212 W. This feature significantly reduces electrical consumption while maintaining optimal performance. The energy consumption in standby mode of the product NEC UM280Wi is 0.4 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The typical power consumption of the product NEC UM280Wi is 235 W. This feature allows for the assessment of the energy efficiency of the device. The AC input voltage of the NEC UM280Wi is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product NEC UM280Wi is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
Weight and dimensions
The height of the product NEC UM280Wi is 112 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product NEC UM280Wi is 428 mm. This dimension allows for optimal integration into your space. The width of the product NEC UM280Wi is 378 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product NEC UM280Wi is 5600 g. This weight is ideal for ensuring optimal use and easy handling.
Technical details
The product NEC UM280Wi has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Packaging contents
Does the product NEC UM280Wi have a User Manual? Oui. This document provides clear instructions for optimal use of the product. Does the product NEC UM280Wi have a Quick Start Guide? Yes. This guide allows you to quickly and easily start using the product. The included cable of the product NEC UM280Wi contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the product NEC UM280Wi come with a remote control? Oui. Does the product NEC UM280Wi come with included lift hooks? Oui. These hooks make it easier to use and store the product.
