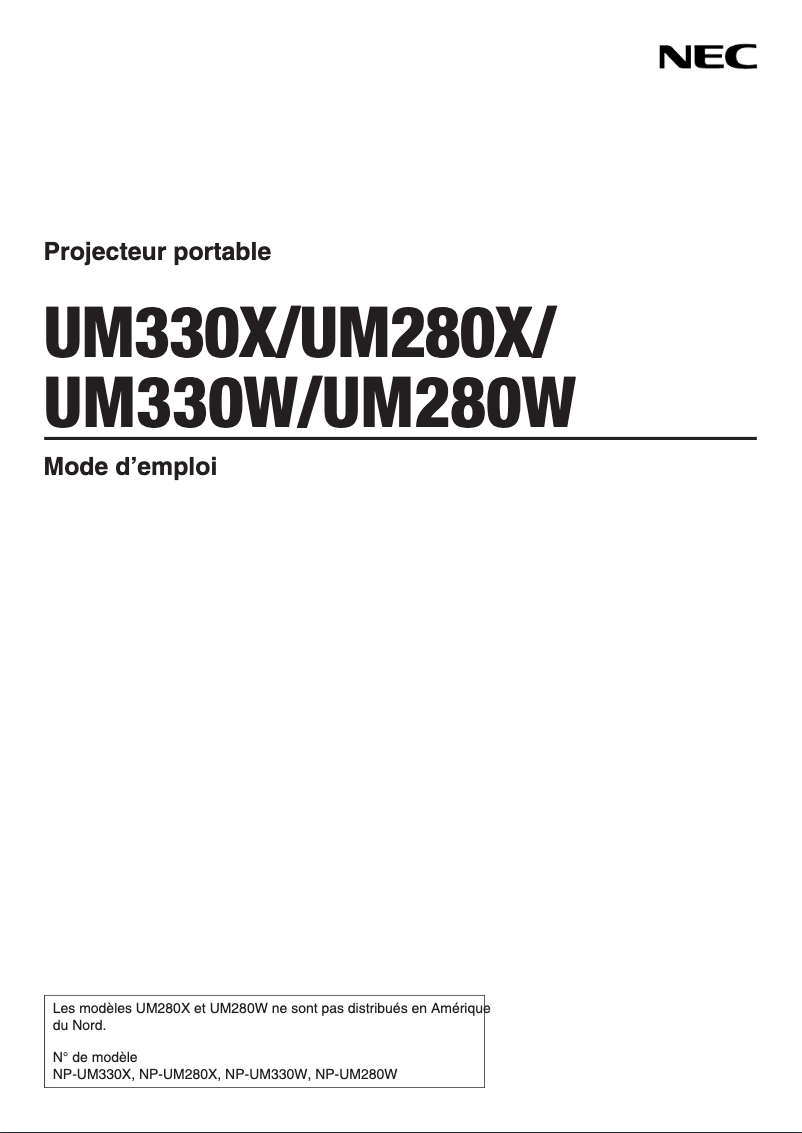

Manual of product UM280X
Technical Specifications UM280X
General Information
-
ModelUM280X
-
Brand
-
Category
-
Type
-
SKU162843
-
MPN162843
Projector
-
Projector brightness2800 ANSI lumens
-
Projection technologyLCD
-
Native resolution of the projectorXGA (1024x768)
-
Compatible screen size60 - 100 "
-
Projection distance0.6 - 1.1 m
-
Contrast ratio3000:1
-
Vertical scanning frequency50 - 120 Hz
-
Horizontal scanning domain15 - 100 kHz
Other features
-
Image format4:3
-
RS-232 port1
Light source
-
Lifespan of the light source5000 h
-
Power of the lamp170 W
-
Lifespan of the light source (eco mode)8000 h
-
Lamp power (eco mode)140 W
-
Type of light sourceLamp
Objective system
-
TuningManual
-
Focal length- mm
-
Zoom ratio1.4:1
Video
-
3D Compatibility-
-
Analog signal format systemNTSC
-
Full HDNTSC 3.58
-
Supported graphic resolutionsNTSC 4.43
-
Supported video modesPAL
-
PAL 60
-
PAL M
-
PAL N
-
SECAM
-
Yes
-
720 x 480
-
720 x 576
-
832 x 624
-
1152 x 870
-
1280 x 960
-
1600 x 900
-
1152 x 864 (XGA+)
-
1280 x 1024 (SXGA)
-
1280 x 720 (HD 720)
-
1280 x 768 (WXGA)
-
1280 x 800 (WXGA)
-
1360 x 768 (WXGA)
-
1366 x 768
-
1400 x 1050 (SXGA+)
-
1440 x 900 (WXGA+)
-
1600 x 1200 (UXGA)
-
1680 x 1050 (WSXGA+)
-
1920 x 1080 (HD 1080)
-
640 x 480 (VGA)
-
800 x 600 (SVGA)
-
1080i
-
480i
-
480p
-
576i
-
576p
-
720p
Multimedia
-
Built-in speakersYes
-
Number of built-in speakers1
-
Rated power of RMS16 W
Screen
-
Built-in screenYes
-
ScreenLCD
-
Screen size0.63 "
Connectivity
-
Composite video input-
-
Input component of the audiovisual device (YPbPr/YCbCr)-
-
Quantity of HDMI ports2
-
Quantity of HDMI ports2
-
Quantity of USB 2.0 Ports3
-
USB connectorUSB Type-A, USB Type-B
-
S-Video Input1
-
S-Video Input1
-
S-Video Input1
-
DVI PortNo
-
Serial interface typeRS-232
Network
-
Number of Ethernet LAN ports (RJ-45)1
-
Ethernet/LANYes
-
WifiNo
Storage support
-
Built-in memory card readerNo
Features
-
HDCP-
-
Sound level (economy mode)28 dB
-
Sound level (economy mode)28 dB
-
CertificationCE; TÜV GS; TCO; Gost-R
Design
-
Product colorWhite
-
Product typeUltra short throw projector
Power
-
Power supplySector
-
Typical electricity consumption235 W
-
Energy consumption (standby mode)0.4 W
-
Energy consumption (eco mode)212 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
Weight and dimensions
-
Weight5200 g
-
Width378 mm
-
Depth428 mm
-
Height112 mm
Environmental conditions
-
Relative humidity rate (storage)20 - 80 %
-
Temperature out of operation-10 - 50 °C
-
Operating temperature5 - 40 °C
-
Relative humidity rate (storage)20 - 80 %
Packaging contents
-
Quick Start GuideYes
-
Cables includedAC, VGA
-
Quick Start GuideYes
-
Quick Start GuideYes
Technical details
-
Sustainability certificatesRoHS
Similar products
More product categories from brand NEC
More product types from brand NEC
Presentation of product UM280X specifications from brand NEC
Other features
The image format of the product NEC UM280X is 4:3. This format is ideal for an immersive visual experience. The RS-232 port of the NEC UM280X contains 1. This port is essential for ensuring reliable serial communication with other devices.
Generalities
The brand of the product NEC UM280X is NEC. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product NEC UM280X is 5028695609877, 5028695609914. This code allows for the unique identification of the product in the distribution system. The product model NEC UM280X is UM280X | 60003391. This model ensures optimal performance and an enhanced user experience.
Light source
The lifespan of the light source of the product NEC UM280X is 5000 h. This feature ensures prolonged and efficient use, allowing you to enjoy lasting lighting. The power of the lamp (economy mode) of the product NEC UM280X is 140 W. This specification ensures optimal energy efficiency while providing quality lighting. The lifespan of the light source (eco mode) of the product NEC UM280X is 8000 h. This longevity ensures prolonged and economical use. The power of the lamp of the product NEC UM280X is 170 W. This power ensures optimal lighting for your needs. The type of light source of the product NEC UM280X is Lampe. This light source ensures effective illumination tailored to your needs.
Projector
The native resolution of the product NEC UM280X is XGA (1024x768). This feature ensures optimal image quality for your presentations and entertainment. The projector NEC UM280X features a LCD projection technology. This technology ensures optimal image quality and an immersive visual experience. The brightness of the product NEC UM280X is 2800 ANSI lumens. This feature ensures a clear and bright projection, even in well-lit environments. The compatible screen size of the product NEC UM280X is 60 - 100 ". This specification allows the projector to adapt to different screen formats for an optimal viewing experience. The projection distance of the product NEC UM280X is 0.6 - 1.1 m. This specification allows for optimizing the visual experience based on the available space. The contrast ratio of the product NEC UM280X is 3000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The vertical scanning frequency of the product NEC UM280X is 50 - 120 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The horizontal scanning range of the product NEC UM280X is 15 - 100 kHz. This range allows for excellent display quality and optimal image smoothness.
Objective system
The adjustment of the NEC UM280X is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The focal length of the product NEC UM280X is - mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The zoom ratio of the product NEC UM280X is fixed. This ratio determines the lens's ability to enlarge or reduce the image while maintaining optimal image quality.
Screen
The NEC UM280X has a built-in screen. This screen provides an immersive and convenient visual experience, making it easier to use the device. The screen size of the product NEC UM280X is 0.63 ". This dimension allows for an optimal visual experience for all your content. The NEC UM280X screen contains LCD. This screen offers exceptional image quality for an immersive visual experience.
Multimedia
Does the product NEC UM280X have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience. The number of built-in speakers of the product NEC UM280X is 1. These speakers provide immersive audio quality for an optimal listening experience. The RMS rated power of the product NEC UM280X is 16 W. This specification ensures optimal sound quality for an enriching multimedia experience.
Video
The analog signal format system of the product NEC UM280X contains NTSC, NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. Does the product NEC UM280X have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. The supported graphic resolutions of the product NEC UM280X are 720 x 480,720 x 576,832 x 624,1152 x 870,1280 x 960,1600 x 900,1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800 (WXGA),1360 x 768 (WXGA),1366 x 768,1400 x 1050 (SXGA+),1440 x 900 (WXGA+),1600 x 1200 (UXGA),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),640 x 480 (VGA),800 x 600 (SVGA). These resolutions provide optimal display quality for your content. Does the product NEC UM280X have 3D Compatibility? No. This product does not support 3D technology. The supported video mode of the product NEC UM280X is 1080i, 480i, 480p, 576i, 576p, 720p. This mode allows you to enjoy optimal image quality for your videos.
Storage support
Does the NEC UM280X have a built-in memory card reader? Non. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Network
The number of Ethernet LAN (RJ-45) ports of the product NEC UM280X is 1. These ports provide a stable and fast network connection for your devices. The Wifi of the product NEC UM280X contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product NEC UM280X have Ethernet/LAN? Oui. This specification determines the network connectivity of the product.
Features
The noise level of the product NEC UM280X is 28 dB. This noise level allows for pleasant use without excessive noise disturbances. The noise level in eco mode of the product NEC UM280X is 28 dB. This noise level ensures discreet and pleasant use, ideal for noise-sensitive environments. The certification of the product NEC UM280X contains CE; TÜV GS; TCO ; Gost-R. This certification guarantees compliance with the required safety and performance standards. Does the product NEC UM280X have HDCP? -. This specification ensures the protection of digital content against unauthorized copying.
Design
The product type of NEC UM280X is Projecteur à focale ultra courte. This product is ideal for an immersive and comfortable audio experience. The color of the product NEC UM280X is Blanc. This shade gives it a modern and elegant look.
Connectivity
The number of VGA (D-Sub) ports on the NEC UM280X is 2. This port allows for easy connection with various devices and monitors. The USB connector of the product NEC UM280X is USB Type-A, USB Type-B. This connector allows for a fast and efficient connection for data transfer and device charging. The number of HDMI ports on the NEC UM280X is 2. This detail is essential for determining compatibility with your multimedia devices. The number of USB 2.0 ports on the NEC UM280X is 3. These ports allow for a fast and efficient connection for your devices. The product NEC UM280X has a composite video input. This input allows for easy connection of analog video devices for an optimal viewing experience. The integrated audio connector (L,R) of the product NEC UM280X has 1. This connector allows for a high-quality stereo audio connection for an optimal sound experience. The product NEC UM280X has an input component of the audiovisual device (YPbPr/YCbCr) -. This specification allows for a high-quality connection for an optimal visual experience. Does the product NEC UM280X have a DVI Port? Non. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. The headphone output of the NEC UM280X is %. This output allows for easy connection of headphones or a headset for an optimal audio experience. The product NEC UM280X has an S-Video input. This input allows you to connect video devices with enhanced image quality. The serial interface type of the product NEC UM280X is RS-232. This type of interface allows for effective communication between different devices.
Power
The typical power consumption of the product NEC UM280X is 235 W. This feature allows for the assessment of the energy efficiency of the device. The power supply of the product NEC UM280X is Secteur. This power supply ensures optimal autonomy for prolonged use. The energy consumption in economy mode of the product NEC UM280X is 212 W. This feature significantly reduces electrical consumption while maintaining optimal performance. The energy consumption in standby mode of the product NEC UM280X is 0.4 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The AC input voltage of the NEC UM280X is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product NEC UM280X is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
Environmental conditions
The relative humidity (storage) rate of the product NEC UM280X is 20 - 80 %. This rate ensures optimal conditions for the preservation and durability of the product. The operating temperature of the product NEC UM280X is 5 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product NEC UM280X is -10 - 50 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The product NEC UM280X has an operating relative humidity (H-H) of 20 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity.
Weight and dimensions
The depth of the product NEC UM280X is 428 mm. This dimension allows for optimal integration into your space. The width of the product NEC UM280X is 378 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product NEC UM280X is 5200 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product NEC UM280X is 112 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Technical details
The product NEC UM280X has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Packaging contents
Does the product NEC UM280X come with a remote control? Oui. The included cable of the product NEC UM280X contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the product NEC UM280X come with included lift hooks? Oui. These hooks make it easier to use and store the product. Does the product NEC UM280X have a Quick Start Guide? Yes. This guide allows you to quickly and easily start using the product.
