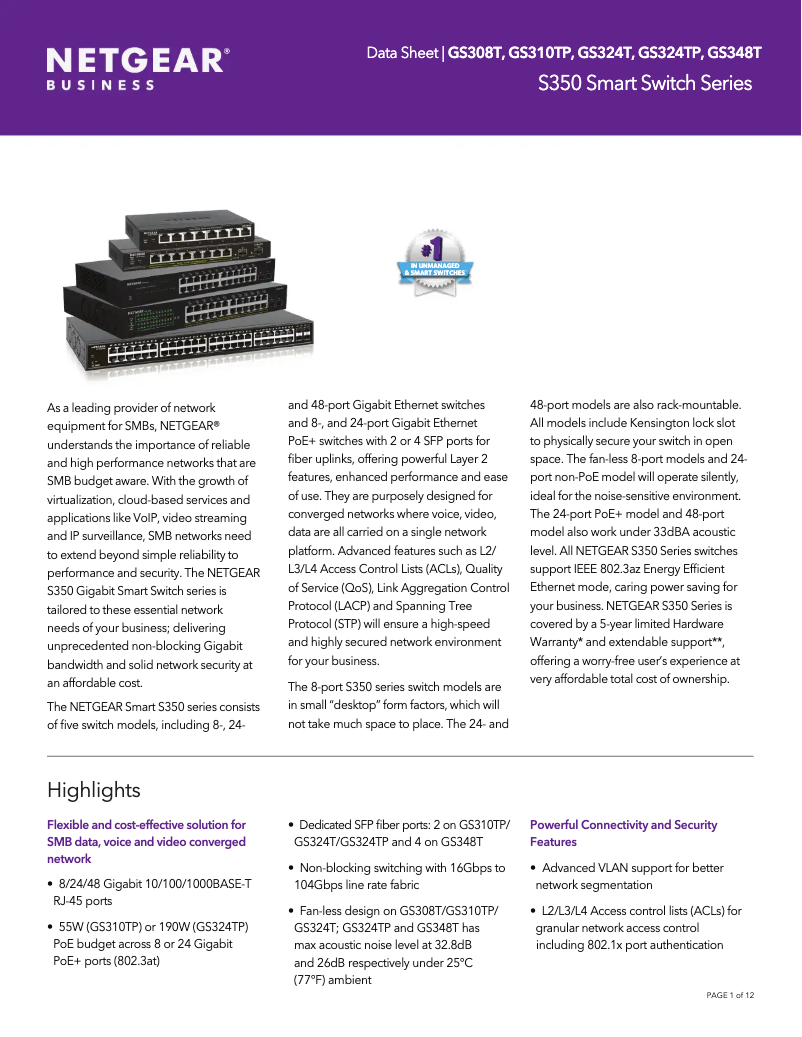

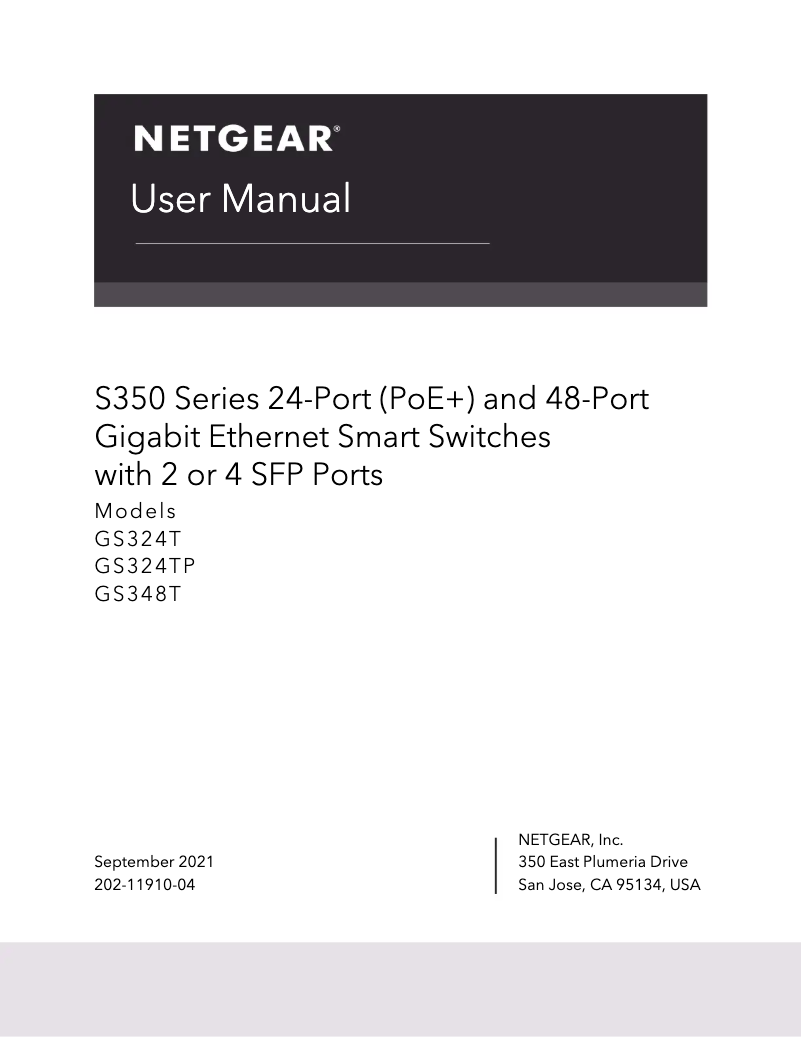

Manuals of product GS324TP
Editorial note
The Netgear GS324TP stands out for its solid performance and advanced network management, thanks to its managed switch type. With a high switching capacity of 52 Gbit/s, it ensures fast data transmission while providing efficient connectivity via 24 RJ-45 Ethernet ports and support for Power over Ethernet (PoE+). This facilitates powering connected devices, a significant advantage for modern installations. Additionally, robust security features, such as access control lists (ACL) and IGMP filtering, ensure secure traffic management. However, the product has some drawbacks. The lack of 10G support may limit its use in environments requiring high data transfer speeds. Furthermore, the non-stackable design and absence of a mounting bracket can pose integration challenges in tight spaces. In terms of cost, it may be considered high compared to unmanaged alternatives, especially for users with less complex needs. Regarding user experience, it is generally positive due to the comprehensive documentation provided, including a user manual, installation guide, and technical sheet, making it easier to get started with the product. However, the noise level of 32.8 dB could be perceived as bothersome in very quiet work environments. In summary, the Netgear GS324TP is a wise choice for those seeking a high-performing and secure managed switch, but it may not be suitable for everyone, particularly due to certain limitations in integration and cost.Score details
User experience
The user experience is generally positive due to advanced network management and practical features, although the lack of a mounting grid may pose integration issues.
Performance
Performance is excellent with a high switching capacity of 52 Gbit/s, but the lack of 10G support may limit its use in high-speed environments.
Design
The design is functional, but the lack of mounting options and the non-stackable design may pose installation challenges in tight spaces.
Value for money
The cost may be high compared to unmanaged alternatives, which may not be justified for users with less complex needs.
Robustness
The product is robust with strong security features like ACLs and IGMP filtering, ensuring secure network traffic management.
Usability
Usage is simplified by effective connectivity with 24 RJ-45 Ethernet ports and PoE+ support, although the noise level of 32.8 dB may be bothersome in very quiet environments.
Support
The documentation is comprehensive with a user manual, installation guide, and technical sheet, making it easier to get started with the product.
Advantages
Advanced network management
24 RJ-45 Ethernet ports with PoE+
Enhanced security with ACL and IGMP filtering
Switching capacity of 52 Gbit/s
Operates quietly at 32.8 dB
Disadvantages
No 10G support, limited performance.
No mounting, difficult in tight spaces.
High cost for simple users.
Annoying noise level in quiet environments.
Insufficient PoE budget for multiple devices.
Technical Specifications GS324TP
General Information
-
ModelGS324TP
-
Brand
-
Category
-
Type
-
SKU1522121
-
MPN1522121
Management features
-
Switch typeManaged
-
ARP InspectionYes
-
ARP InspectionYes
Connectivity
-
Number of installed SFP modules-
-
Number of installed SFP+ modules-
-
Quantity of basic switching RJ-45 Ethernet ports24
-
Power connectorAC input
-
Quantity of SFP module slots2
Network
-
Support 10G-
-
Network standardsIEEE 802.1D
-
VLAN SupportIEEE 802.1Q
-
VLAN SupportIEEE 802.1ab
-
VLAN SupportIEEE 802.1p
-
VLAN SupportIEEE 802.1s
-
VLAN SupportIEEE 802.1w
-
VLAN SupportIEEE 802.1x
-
VLAN SupportIEEE 802.3at
-
VLAN SupportIEEE 802.3az
-
VLAN SupportIEEE 802.3x
-
Virtual LAN functionsYes
-
Number of VLANsYes
-
Yes
-
Yes
-
Yes
-
Yes
-
Yes
-
Yes
-
Yes
-
Port-based VLAN
-
Private VLAN
-
Voice VLAN
-
256
Data transmission
-
MAC Directory16000 entries
-
Switching capacity52 Gbit/s
-
Support for jumbo framesYes
-
Support for jumbo framesYes
Security
-
DHCP FunctionsDHCP client
-
Loop protectionYes
-
Loop protectionYes
-
Loop protectionYes
Design
-
Stackable-
-
Assembly gridNo
-
Product colorBlack
-
IndicatorsYes
-
Number of fans2 fan(s)
Representation / realization
-
Sound level32.8 dB
-
Scalable firmwareYes
Power
-
Power supply included-
-
AC input voltage100 - 240 V
-
Input current5 A
-
AC input frequency50 - 60 Hz
-
Consumption (max)229.9 W
PoE (Power over Ethernet)
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Quantity of Power Over Ethernet plus (PoE+) ports24
-
Total Power over Ethernet (PoE) Budget190 W
Environmental conditions
-
Operating temperature0 - 45 °C
Weight and dimensions
-
Width330 mm
-
Depth206 mm
-
Height43 mm
-
Weight2690 g
Packaging contents
-
Cables includedSector
Frequently Asked Questions
What is the weight of the Netgear GS324TP model?
What is the height of the Netgear GS324TP model?
What is the width of the Netgear GS324TP model?
What is the depth of the Netgear GS324TP model?
Is the user manual for the Netgear GS324TP available in French?
Similar products
More product categories from brand Netgear
More product types from brand Netgear
Presentation of product GS324TP specifications from brand Netgear
General Information
The Netgear GS324TP is a managed switch from the brand Netgear, known for its innovation and reliability in the field of networking technologies. This model, referenced as GS324TP | GS324TP-100NAS, is designed to provide an optimized user experience through high performance. The EAN code, 0606449135602, allows for precise identification of the product in distribution systems.
Management Features
This managed switch offers advanced network management, allowing for precise control of resources. It includes features such as Quality of Service (QoS) to ensure smooth traffic management and ARP Inspection for effective monitoring of network processes.
Connectivity
The Netgear GS324TP is equipped with 24 RJ-45 Ethernet ports, ensuring fast and reliable connectivity. It also includes 2 SFP module slots, providing additional flexibility for network connections. The power connector, of type AC input socket, ensures efficient power supply to the device.
Network
This switch complies with several network standards such as IEEE 802.1D, IEEE 802.1Q, and more, ensuring broad compatibility with various equipment. Although it does not support the 10G standard, it offers features like port mirroring, Full duplex, and Link aggregation to optimize performance. VLAN management is also integrated, allowing for up to 256 VLANs for better network segmentation.
Data Transmission
With a MAC address table of 16,000 entries and a switching capacity of 52 Gbit/s, the GS324TP ensures fast and efficient data transmission. It also supports jumbo frames, facilitating the transfer of large data volumes.
Security
This model integrates advanced security features such as access control lists (ACL) and IGMP snooping, which enhance network traffic management and strengthen security. Additionally, loop protection ensures safe and optimal usage.
Design
The Netgear GS324TP features a modern design in black, with 2 fans for effective airflow. Although it is not stackable and does not have a mounting bracket, it is equipped with indicators to visualize the operational status.
Representation / Implementation
With a noise level of 32.8 dB, this switch operates discreetly, making it suitable for quiet work environments. It is also equipped with upgradable firmware to allow for regular updates.
Power
The GS324TP operates on an input voltage of 100 - 240 V with an input current of 5 A. Its maximum consumption is 229.9 W, which allows for assessing its energy efficiency.
PoE (Power over Ethernet)
This switch supports Power over Ethernet (PoE), with 24 PoE+ ports allowing for efficient powering of connected devices. The total PoE budget of 190 W facilitates powering multiple devices.
Environmental Conditions
The Netgear GS324TP operates within a temperature range of 0 to 45 °C, making it suitable for various usage environments.
Weight and Dimensions
The dimensions of the GS324TP are 330 mm in width, 206 mm in depth, and 43 mm in height, with a weight of 2690 g, facilitating its integration into different spaces.
Packaging Contents
The product includes a power cable, essential for ensuring an adequate electrical connection.
