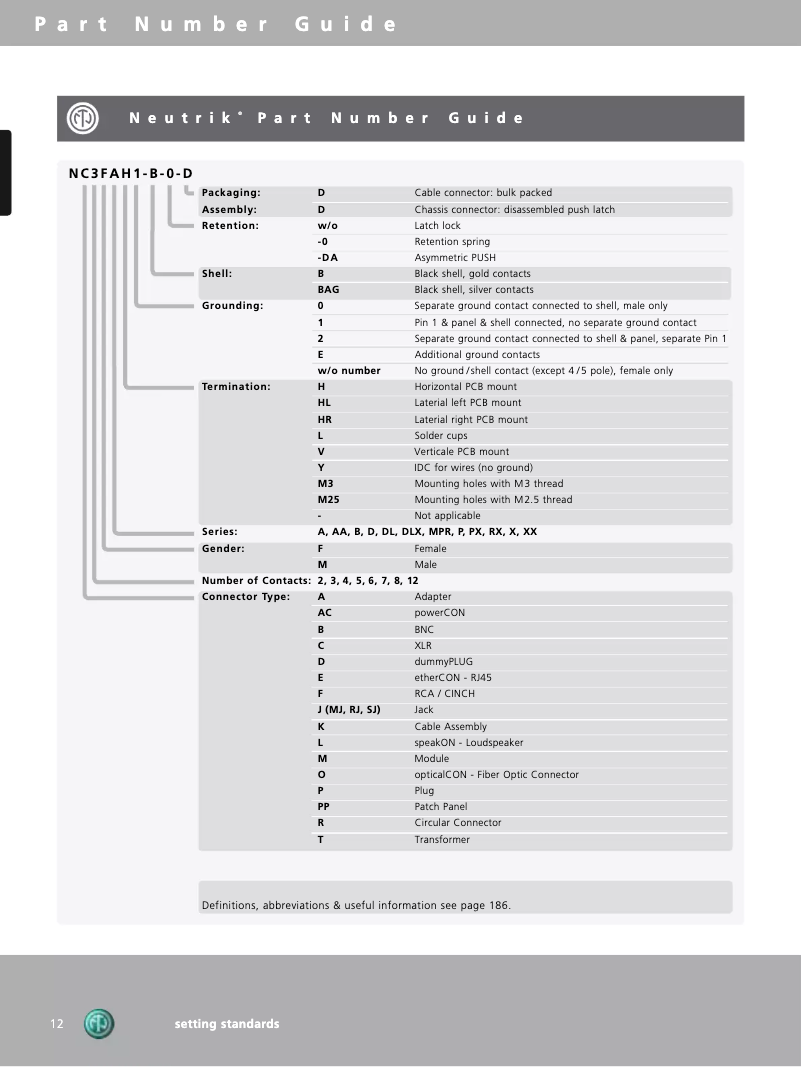

Manual of product NC4FXX-BAG
Editorial note
The Neutrik NC4FXX-BAG is a product that stands out for its robustness and durability. Made of zinc and featuring a black chrome shield, it effectively resists shocks and scratches, thus providing reliable performance for daily use. Its optimal connectivity, thanks to a composite connector, ensures a positive user experience, although the insertion and withdrawal force of 20 N may pose challenges for some users. In terms of performance, this model stands out with a contact resistance of only 3 mΩ and a dielectric strength of 1500 V, making it a solid choice for electronic applications. However, its limited moisture resistance (IP40) may render it vulnerable in very humid environments, which is a drawback to consider. The product also has a wide operating temperature range of -30 to 80 °C, ideal for various environments, but it may not be sufficient in specific industrial applications requiring extreme conditions. Additionally, the fact that it is sold individually may lead to extra costs for those looking to acquire multiple units for projects, thus limiting its value for money. In summary, the Neutrik NC4FXX-BAG is a robust and high-performing product, but its limitations in moisture resistance and packaging may make it less suitable for certain specific uses.Score details
User experience
The user experience is generally positive due to optimal connectivity and reliable performance, although the insertion and withdrawal force may pose difficulties for some users.
Performance
The product offers proven performance with a contact resistance of 3 mΩ and a dielectric strength of 1500 V, ensuring reliable connectivity in electronic applications.
durability
Made of zinc with black chrome shielding, the Neutrik NC4FXX-BAG is resistant to shocks and scratches, ensuring optimal durability and robustness for daily use.
Features
The wide temperature range of -30 to 80 °C is an asset, but may not be sufficient in specific industrial applications requiring extreme temperatures.
Value for money
The product is sold individually, which may lead to additional costs for users wishing to purchase multiple units for projects, thus reducing its value for money.
Robustness
Although the product is robust, its limited moisture resistance (IP40) may make it vulnerable in very humid environments or exposed to splashes.
Advantages
Reliable connectivity for various devices
Robust and shock-resistant
Operation from -30 to 80 °C
Contact resistance of 3 mΩ
Lifespan of 1000 cycles
Disadvantages
Limited moisture resistance (IP40)
High insertion force of 20 N
Weight and dimensions not compatible
Extreme temperatures not suitable
Sale by the unit only
Technical Specifications NC4FXX-BAG
General Information
-
ModelNC4FXX-BAG
-
Brand
-
Category
-
Type
-
SKU1714469
-
MPN1714469
Features
-
Connector(s)XLR
-
Product colorBlack
-
AWG wire sizes16
-
Contacts of the plating connectorSilver/Nickel
-
International Protection Code (IP)IP40
-
Heart size1.5 mm²
-
Contact resistance3 mΩ
-
Electric force1500 V
-
Capacitance between the contacts7 pF
-
Lifespan (cycles)1000
-
Tension50 V
-
Current10 A
-
Locking element materialZinc
-
Withdrawal force20 N (1 kilogram-force = 9.81 Newton)
-
Withdrawal force20 N (1 kilogram-force = 9.81 Newton)
-
Locking element materialZinc
-
Hull armorBlack chrome
Packaging information
-
Quantity1 piece(s)
Environmental conditions
-
Operating temperature-30 - 80 °C
Weight and dimensions
-
Outer diameter8 mm
Frequently Asked Questions
Is the manual for the Neutrik NC4FXX-BAG available in French?
Similar products
More product categories from brand Neutrik
More product types from brand Neutrik
Presentation of product NC4FXX-BAG specifications from brand Neutrik
General Information
The Neutrik NC4FXX-BAG is a product from the renowned brand Neutrik, known for its commitment to quality and innovation in the field of audio and video connectors. This model, designated by the code NC4FXX-BAG, is designed to meet the varied needs of users, ensuring reliable performance and an optimized user experience. The EAN code 7613187000133 serves to uniquely identify this product in the distribution system.
Features
The Neutrik NC4FXX-BAG stands out with its composite connector, providing excellent connectivity for a wide range of applications. Its black finish gives it a modern aesthetic, while the AWG wire size of 16 ensures compatibility with various wiring. The contacts of the connector are plated with Silver/Nickel, ensuring a reliable and durable connection.
In terms of protection, the product has an IP40 rating, indicating protection against solid bodies, although it has limited resistance to moisture. The core section is 1.5 mm², optimizing performance. With a contact resistance of 3 mΩ and a dielectric strength of 1500 V, this product ensures robust and reliable connectivity for electronic applications. Its capacitance is measured at 7 pF, contributing to its overall performance.
Designed to last, the Neutrik NC4FXX-BAG has a lifetime in cycles of 1000, ensuring prolonged use. It operates at a maximum voltage of 50 V and a current of 10 A, thus ensuring safe usage. The body made of zinc and the black chrome shielding enhance its durability against shocks and scratches. The insertion and withdrawal force is 20 N, providing a solid connection although this may make handling a bit more difficult in some cases.
Packaging Information
The Neutrik NC4FXX-BAG is sold individually, allowing users to order exactly what they need, although this may incur additional costs for those wishing to acquire multiple units.
Environmental Conditions
This product is designed to operate within a temperature range of -30 to 80 °C, making it suitable for various usage environments.
Weight and Dimensions
The outer diameter of the Neutrik NC4FXX-BAG is 8 mm, ensuring optimal compatibility with other equipment and connectors.
