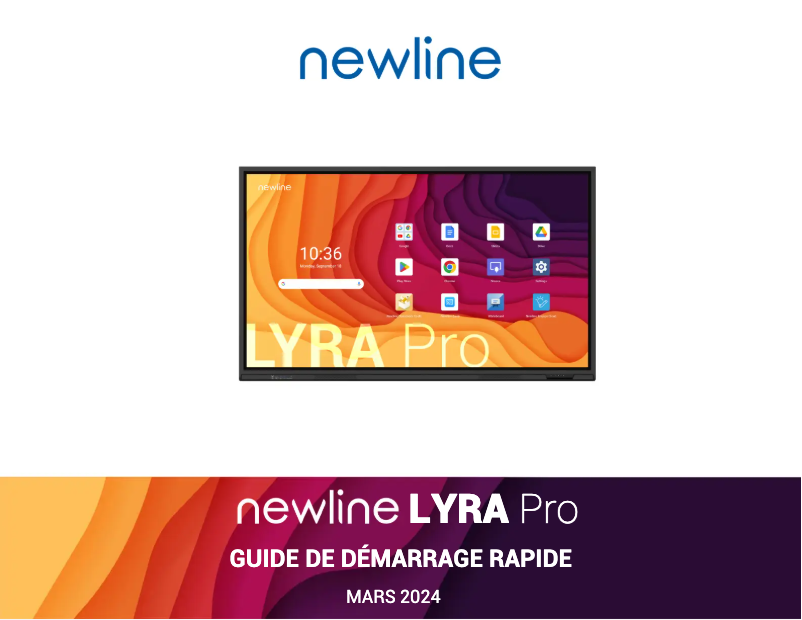

Manuals of product TT-8623QA
Editorial note
The Newline TT-8623QA is an impressive 86-inch display, offering a 4K Ultra HD resolution and a contrast ratio of 5000:1, ensuring exceptional image quality. With its advanced touch technology, it allows for smooth interaction thanks to a precision of 1 mm and support for up to 40 simultaneous touch points, making the user experience very satisfying. Its connectivity is also a strong point, with Bluetooth 5.2, Wi-Fi 6, and multiple HDMI ports, facilitating connection to various devices. However, the product's weight, at 65 kg, can complicate its installation and movement, especially in tight spaces. Although the screen is bright with 450 cd/m², it may not be sufficient in very well-lit environments, which would affect visibility. Additionally, its power consumption, reaching 128 W during normal use, could be a drawback for those looking to reduce their energy footprint, even though the standby mode consumes only 0.5 W. Regarding design, the product is ergonomic and allows for wall mounting, which enhances the aesthetics of the environment while optimizing space. However, the Android 13 operating system, while intuitive, may not offer the robustness of other systems, limiting certain features or application compatibilities. Finally, the lack of Type A USB ports could pose connectivity issues for users needing to connect multiple peripherals. In summary, the Newline TT-8623QA stands out for its image quality and connectivity, but users should consider its weight, power consumption, and possible limitations of its operating system.Score details
User experience
The user experience is very satisfactory thanks to the advanced touch technology offering 1 mm precision and up to 40 simultaneous touch points, ensuring a smooth and responsive interaction.
Performance
The performance is generally good with a 4K Ultra HD resolution and a contrast ratio of 5000:1, but this can lead to higher power consumption, reaching 128 W during normal use.
Battery life
The power consumption reaches 128 W, which can be a drawback for those looking to reduce their energy footprint, although the standby mode consumes only 0.5 W.
Design
The design is ergonomic and allows for wall mounting, which enhances the aesthetics of the environment while saving space.
Value for money
Although the product offers excellent image quality and many features, its weight of 65 kg can make installation difficult, which could affect the perception of its value.
connectivity
The connectivity is very versatile with Bluetooth 5.2, Wi-Fi 6, and multiple HDMI ports, making it easy to connect with various devices and networks.
Usability
The Android 13 operating system is intuitive, but it may not be as robust as other systems, limiting certain features or app compatibilities.
Advantages
86-inch screen, 4K Ultra HD resolution
Precise touch technology, 40 touch points
Bluetooth 5.2 connectivity, Wi-Fi 6, HDMI ports
Anti-glare screen, brightness 450 cd/m²
Ergonomic design, wall mountable
Disadvantages
Heavyweight, difficult installation
Insufficient brightness in bright environments
High power consumption at 128 W
Android 13 limited in features
No Type A USB ports
Technical Specifications TT-8623QA
General Information
-
ModelTT-8623QA
-
Brand
-
Category
-
Type
-
SKU1946281
-
MPN1946281
Screen
-
Contrast ratio5000:1
-
Vertical viewing angle178 °
-
Vertical viewing angle178 °
-
Screen size86 "
-
Screen brightness450 cd/m²
-
Response time5 ms
-
Screen resolution3840 x 2160 pixels
-
Workspace1895 x 1066 mm
-
Palm interferenceYes
-
Hardness of the mines7H
-
Palm interferenceYes
-
Tactile precision1 mm
-
Touch technologyMultiple pressures
-
LED backlightingDirect LED
-
Palm interferenceYes
-
Number of simultaneous touchpoints40
-
Image format16:9
-
Type HD4K Ultra HD
-
Surface materialTempered glass
-
Number of colors displayed1.07 billion colors
-
Spread rate5 %
-
Palm interferenceYes
Weight and dimensions
-
Weight65000 g
-
Height1191 mm
-
Width1981 mm
-
Depth123 mm
Power
-
Typical electricity consumption128 W
-
Energy consumption (standby mode)0.5 W
Ergonomics
-
Mean time between failures50000 h
-
VESA mountYes
-
Product colorBlack
-
VESA standard600 x 400 mm
-
VESA mountYes
Network
-
Bluetooth model5.2
-
WifiYes
-
WifiYes
-
WifiYes
-
Wi-Fi standardWi-Fi 6 (802.11ax)
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
Audio
-
Speaker power20 W
-
Number of built-in speakers2
-
Built-in speakersYes
Connectivity
-
Quantity of USB Type C ports1
-
Number of Ethernet LAN ports (RJ-45)2
-
S/PDIF output portYes
-
Quantity of USB Type C ports1
-
HDMI version2.0
-
Quantity of USB Type C ports1
-
DisplayPort version1.2
-
Quantity of Type B USB 2.0 Touch ports4
-
Quantity of USB Type C ports1
-
Quantity of USB Type C ports1
-
Quantity of HDMI output ports3
-
Quantity of Type B USB 2.0 Touch ports4
Computer system
-
Installed operating systemAndroid 13
-
Number of processor cores8
-
Integrated into the processorYes
-
RAM capacity8 GB
-
The architecture of the processorARM Cortex A73 + ARM Cortex A53
-
Type of RAMDDR4
Projector
-
Built into the projectorNo
Packaging contents
-
Number of styluses2
Frequently Asked Questions
What is the weight of the Newline TT-8623QA?
What is the size of the screen of the Newline TT-8623QA?
What is the height of the Newline TT-8623QA?
What is the resolution of the screen of the Newline TT-8623QA?
What is the width of the Newline TT-8623QA?
What is the depth of the Newline TT-8623QA?
Is the manual for the Newline TT-8623QA available in French?
Similar products
More product categories from brand Newline
Presentation of product TT-8623QA specifications from brand Newline
General Information
The Newline TT-8623QA is a product from the Newline brand, known for its commitment to innovation and quality in the home appliance sector. This model, referenced as TT-8623QA, is designed to deliver optimal performance and an enhanced user experience. The EAN code 0850046374241 allows for precise identification of the product in distribution systems.
Screen
Featuring an 86-inch screen, the Newline TT-8623QA displays a resolution of 3840 x 2160 pixels, ensuring exceptional image quality. With a contrast ratio of 5000:1, images are sharper and colors more vibrant, contributing to an immersive visual experience. The viewing angles of 178° both horizontally and vertically ensure comfortable viewing from various angles. The brightness of 450 cd/m² allows for optimal visibility even in bright environments, while the fast response time of 5 ms ensures smooth display.
The Newline TT-8623QA is also equipped with a responsive touchscreen, capable of detecting 40 simultaneous touch points with an accuracy of 1 mm. Ergonomically, its anti-glare screen improves visibility even in direct sunlight, and its tempered glass material offers appreciable durability.
Weight and Dimensions
The weight of the Newline TT-8623QA is 65 kg, which can pose challenges during installation. Its dimensions are as follows: a height of 1191 mm, a width of 1981 mm, and a depth of 123 mm, allowing for easy integration into various spaces.
Power
In terms of energy efficiency, the typical power consumption is 128 W, while the standby mode consumes only 0.5 W, thus contributing to energy savings.
Ergonomics
The Newline TT-8623QA boasts an average time between failures of 50,000 hours, demonstrating its reliability. It is designed for wall mounting, optimizing space while adding an aesthetic touch to your environment. Its black color gives it a modern look, and it complies with the VESA 600 x 400 mm standard for easy installation.
Network
To ensure effective connectivity, the model is equipped with Bluetooth 5.2, Wi-Fi 6 (802.11ax), and several Ethernet ports. This allows for fast and reliable connections to various devices and networks.
Audio
The Newline TT-8623QA integrates two speakers with a power of 20 W, providing immersive sound quality for an enjoyable listening experience.
Connectivity
This model features a variety of ports, including 3 HDMI ports, 1 DisplayPort 1.2 port, and 1 USB Type-C port, facilitating connection with multiple peripherals. It also includes an S/PDIF port for high-quality digital audio output.
Computer System
Running on Android 13, the operating system provides a smooth user experience. With an integrated 8-core processor and 8 GB of RAM, this model efficiently handles multitasking. The ARM Cortex A73 + A53 architecture optimizes performance for a wide range of applications.
Projector
The Newline TT-8623QA is equipped with a built-in projector, offering an all-in-one solution for your projection needs.
Packaging Contents
The product comes with 2 styluses, ensuring optimal use of the touchscreen.
