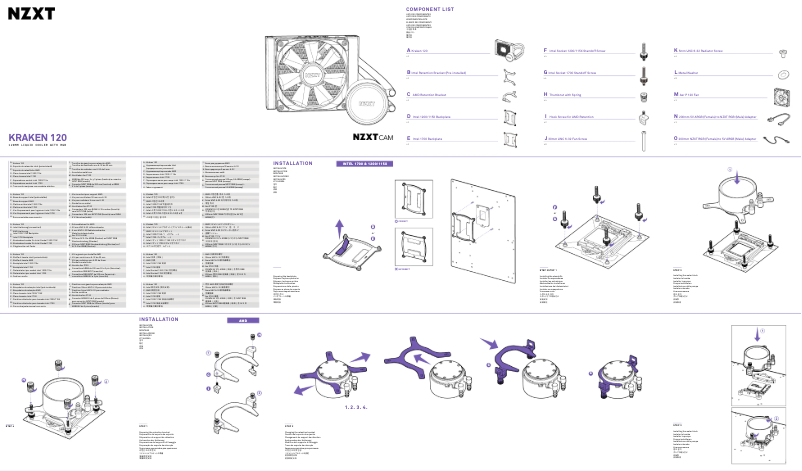

Manual of product Kraken 120
Editorial note
The NZXT Kraken 120 stands out for its modern and sleek design, highlighted by multicolored lighting that allows you to customize the ambiance of your space. Its copper and aluminum construction ensures excellent thermal conductivity, guaranteeing optimal performance and increased durability. Additionally, the fan has low energy consumption, contributing to prolonged use while reducing the impact on your electricity bill. However, some drawbacks are worth mentioning. Limited compatibility with certain processors may restrict its use for specific configurations, and the absence of pulse width modulation (PWM) may affect noise management and fan performance. Although the maximum noise level of 36 dB is reasonable, it may be perceived as too high in noise-sensitive environments. Finally, while the black design is modern, it may not suit all interior styles. In terms of user performance, the model scores high, particularly for user experience and usage duration due to its low energy consumption. Nevertheless, improvements could be made regarding noise management and compatibility with a wider range of processors. Overall, the NZXT Kraken 120 is a good choice for those seeking effective and aesthetic cooling, while keeping certain limitations in mind.Score details
User experience
The user experience is very satisfactory thanks to the modern and elegant design, as well as the multicolored lighting that allows for ambiance customization.
Performance
Performance is optimal due to the thermal conductivity of copper and aluminum materials, although the 3550 RPM pump may raise concerns about long-term durability.
Battery life
The low energy consumption of the fan contributes to prolonged use while minimizing the impact on the electricity bill.
Design
The black design is modern, but may not suit all interior styles. The multicolored lighting is an additional asset.
Features
Although compatibility with various processor sockets is a strong point, the lack of pulse width modulation (PWM) limits the effectiveness of noise management.
Robustness
The materials used ensure durability, but limited compatibility with certain processors may restrict its use in specific configurations.
Usability
Installation is easy due to extensive compatibility, but the maximum noise level of 36 dB may be perceived as too high in quiet environments.
Advantages
Excellent thermal conductivity in copper and aluminum
Modern design with customizable lighting
Silent operation at 21 dB
Compatibility with various processor sockets
Low power consumption of the fan
Disadvantages
Limited compatibility with certain processors
No pulse width modulation
Maximum noise level of 36 dB
Black design not suitable for all styles
Pump at 3550 RPM, uncertain durability
Technical Specifications Kraken 120
General Information
-
ModelKRAKEN 120
-
Brand
-
Category
-
Type
-
SKU1503986
-
MPN1503986
Design
-
Water block materialCopper/Plastic
-
Number of fans1 fan(s)
-
Fan connector4 pins
-
Radiator materialAluminum
-
Product colorBlack
-
Illumination indicatorYes
-
Color of the lightingMulti
Representation / realization
-
Engine speed pump4200 rpm
-
Fan diameter120 mm
-
The fan speed (min)500 rpm
-
The fan speed (max)2000 rpm
-
Minimum air flow18.28 cfm
-
Maximum draft73.11 cfm
-
Support for processor socketsLGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
-
Fan noise level (min)21 dB
-
Fan noise level (max)36 dB
-
Mean time to failure of fan (MTTF)60000 h
-
Minimum air pressure0.18 mmH2O
-
Maximum air pressure2.93 mmH2O
-
Fan bearing technologyFluid Dynamic Bearing (FDB)
-
Appropriate locationProcessor
-
Support for pulse width modulationYes
-
TypeAll-in-one liquid cooler
Power
-
Fan tension12 V
-
Current pump340 mA
-
Fan tension12 V
-
Fan current0.32 A
-
Fan consumption3.84 W
Weight and dimensions
-
Width of the radiator120 mm
-
Radiator depth152 mm
-
Height of the radiator32 mm
-
Length of the tube400 mm
-
Depth of the exchanger66 mm
-
Depth of the exchanger66 mm
-
Height of the exchanger43 mm
-
Fan dimensions (l x w x h)120 x 120 x 26 mm
Other features
-
Tube materialRubber
-
Country of originTaiwan
Logistics data
-
Harmonized System Code84733080
Frequently Asked Questions
How can I prevent condensation buildup on the glass surfaces of my refrigerator?
What should I do if my refrigerator emits a bad odor?
What distance should I leave around my refrigerator?
What does R-410A represent?
Is the NZXT Kraken 120 manual available in French?
Similar products
More product categories from brand NZXT
More product types from brand NZXT
Presentation of product Kraken 120 specifications from brand NZXT
General Information
The NZXT Kraken 120 is a liquid cooling system from the brand NZXT, known for its innovation and quality in the cooling device sector. This model, identified by the number RL-KR120-B1, is designed to provide optimal cooling performance, thereby enhancing the user experience. The EAN code, 0815671019400 and 5060301696529, allows for precise identification in distribution systems.
Design
The design of the Kraken 120 stands out with its cooling block made of copper and plastic, ensuring effective thermal conductivity and superior durability. Equipped with a 120 mm fan, this model promotes optimal airflow. The radiator made of aluminum also enhances its heat dissipation capabilities. Its black finish gives it a modern aesthetic, while a multicolor illumination indicator allows for personalizing the ambiance of your space.
Performance / Execution
The pump motor operates at a speed of 3550 RPM, ensuring effective cooling. The fan, with speeds ranging from 500 to 2000 RPM, is designed to adapt to different performance needs. With a minimum airflow of 18.28 cfm and a maximum of 73.11 cfm, it ensures effective suction. The system is compatible with a wide range of processor sockets, making it easy to integrate into various systems. In terms of noise, it operates at a minimal level of 21 dB, remaining quiet even under full load.
Power
The Kraken 120 operates at a voltage of 12 V for the pump and fan, with a power consumption of only 3.84 W, promoting energy-efficient use. These specifications ensure optimal performance while reducing the impact on the electricity bill.
Weight and Dimensions
The dimensions of the radiator include a width of 120 mm, a depth of 152 mm, and a height of 32 mm, allowing for easy installation in various environments. The tube measures 400 mm, providing the necessary flexibility for optimal configuration.
Other Features
The rubber tubes give the whole unit increased robustness and durability, ensuring prolonged use. Originating from Taiwan, this product benefits from a reputation for quality and authenticity.
Logistical Data
The harmonized system code for the NZXT Kraken 120 is 84733080, facilitating its identification in international trade.
