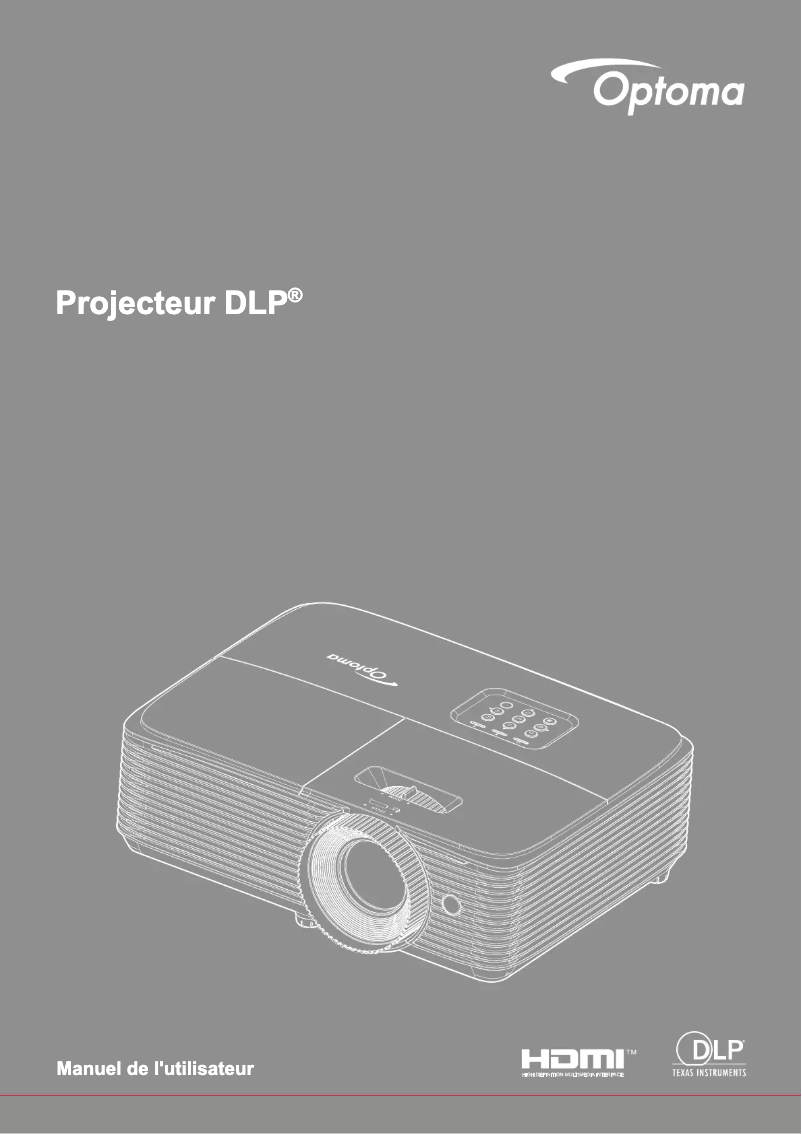

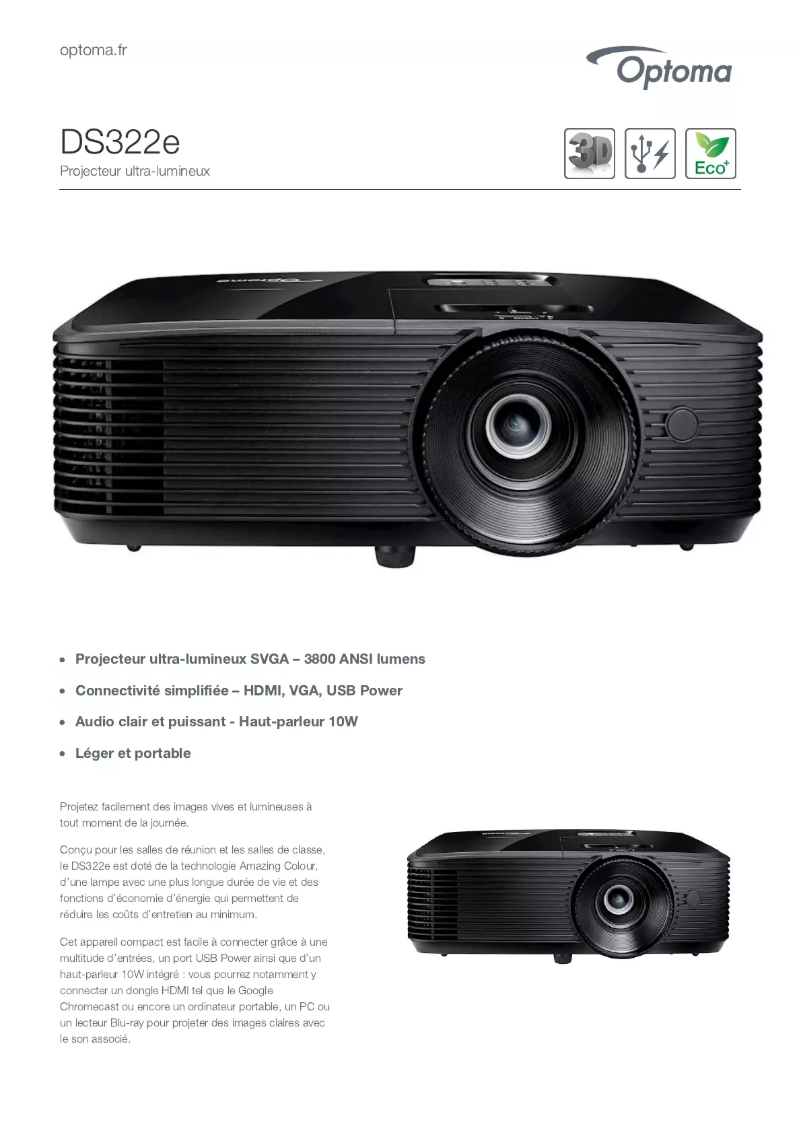

Manuals of product DS322e
Technical Specifications DS322e
General Information
-
ModelDS322E
-
Brand
-
Category
-
Type
-
SKU1358441
-
MPN1358441
Projector
-
Projector brightness3800 ANSI lumens
-
Projection technologyDLP
-
Native resolution of the projectorSVGA (800x600)
-
Contrast ratio22000:1
-
Image format4:3
-
Supported aspect ratios4:3, 16:9
-
Compatible screen size27.78 - 304.4 "
-
Projection distance1 - 12 m
-
Uniformity75 %
-
Horizontal scanning domain15.38 - 91.15 kHz
-
Vertical scanning frequency50 - 85 Hz
-
Correction of the trapezium, vertical-40 - 40 °
Light source
-
Type of light sourceLamp
-
Lifespan of the light source6000 h
-
Lifespan of the light source (eco mode)10000 h
-
Power of the lamp203 W
-
Quantity of lamps1 lamp(s)
Objective system
-
Zoom typeManual
-
Focal length21.85 - 24 mm
-
Zoom capacityYes
-
Zoom typeManual
-
Zoom ratio1.1:1
-
Shift115 %
-
Projection ratio1.94:1 ~ 2.16:1
Power
-
Power supplySector
-
Typical electricity consumption187 W
-
Consumption (max)225 W
-
Energy consumption (standby mode)0.5 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
Screen
-
Built-in screenNo
Video
-
Analog signal format systemNTSC
-
3D CompatibilityNTSC 3.58
-
Full HDNTSC 4.43
-
Supported 3D formatsNTSC J
-
Supported graphic resolutionsNTSC M
-
Supported video modesPAL
-
PAL 4.43
-
PAL B
-
PAL D
-
PAL G
-
PAL H
-
PAL I
-
PAL M
-
PAL N
-
SECAM
-
SECAM 4.25/4.4
-
SECAM B
-
SECAM D
-
SECAM G
-
SECAM K
-
SECAM K1
-
SECAM L
-
Yes
-
No
-
Frame packing
-
Side by side
-
Top and bottom
-
640 x 480 (VGA)
-
800 x 600 (SVGA)
-
1024 x 768 (XGA)
-
1280 x 1024 (SXGA)
-
1280 x 720 (HD 720)
-
1280 x 800 (WXGA)
-
1600 x 1200 (UXGA)
-
1920 x 1080 (HD 1080)
-
480i
-
480p
-
576i
-
576p
-
720p
-
1080i
-
1080p
Connectivity
-
High-Definition Mobile Interface (MHL, Mobile High-Definition Link)-
-
Number of VGA (D-Sub) ports2
-
Quantity of USB 2.0 Ports1
-
Type of HDMI connectorFull size
-
HDMI version1.4a
-
Quantity of USB 2.0 Ports1
-
Integrated audio connector (L,R)0
-
DVI PortNo
-
Integrated audio connector (L,R)0
-
Quantity of USB 2.0 Ports1
-
Integrated audio connector (L,R)0
-
Power entry sectorYes
-
Power entry sectorYes
-
Serial interface typeRS-232
-
Power entry sectorYes
-
Power entry sectorYes
Network
-
WifiNo
-
WifiNo
-
WifiNo
Weight and dimensions
-
Weight3000 g
-
Width316 mm
-
Depth244 mm
-
Height108 mm
-
Package weight4400 g
Packaging contents
-
Batteries includedYes
-
Cables includedSector
-
Batteries includedYes
-
Batteries includedYes
Storage support
-
Built-in memory card readerNo
Features
-
InteractiveNo
-
Sound level27 dB
-
Password protectionYes
-
Number of OSD languages25
-
Multilingual display on screenARA, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, IND, ITA, JPN, NOR, POL, POR, RUM, RUS, SWE, TUR, VIE
-
Password protectionYes
Environmental conditions
-
Operating temperature5 - 40 °C
-
Operating relative humidity (H-H)0 - 85 %
-
Operating altitude0 - 3000 m
Design
-
Product typeStandard focal projector
-
Market positionPresentation
-
Product colorBlack
-
Cable anti-theft lockYes
-
Cable lock location typeKensington
-
PositioningDesktop, Ceiling
Multimedia
-
Built-in speakersYes
-
Rated power of RMS10 W
-
Number of built-in speakers1
Similar products
More product categories from brand Optoma
More product types from brand Optoma
Presentation of product DS322e specifications from brand Optoma
Light source
The type of light source of the product Optoma DS322e is Lampe. This light source ensures effective illumination tailored to your needs. The lifespan of the light source (eco mode) of the product Optoma DS322e is 10000 h. This longevity ensures prolonged and economical use. The lifespan of the light source of the product Optoma DS322e is 6000 h. This feature ensures prolonged and efficient use, allowing you to enjoy lasting lighting. The power of the lamp of the product Optoma DS322e is 203 W. This power ensures optimal lighting for your needs. The quantity of lamps for the product Optoma DS322e is 1 lampe(s). This product offers an efficient lighting solution tailored to your needs.
Generalities
The brand of the product Optoma DS322e is Optoma. This brand is known for its quality and innovation in the field of household appliances. The product model Optoma DS322e is DS322e | E9PX7D103EZ3. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Optoma DS322e is 5055387664913. This code allows for the unique identification of the product in the distribution system.
Projector
The brightness of the product Optoma DS322e is 3800 ANSI lumens. This feature ensures a clear and bright projection, even in well-lit environments. The contrast ratio of the product Optoma DS322e is 22000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The native resolution of the product Optoma DS322e is SVGA (800x600). This feature ensures optimal image quality for your presentations and entertainment. The projector Optoma DS322e features a DLP projection technology. This technology ensures optimal image quality and an immersive visual experience. The image format of the product Optoma DS322e is 4:3. This format is ideal for an immersive visual experience. The aspect ratio of the product Optoma DS322e supports 4:3, 16:9. This aspect ratio allows for display flexibility suited to different content. The compatible screen size of the product Optoma DS322e is 27.78 - 304.4 ". This specification allows the projector to adapt to different screen formats for an optimal viewing experience. The projection distance of the product Optoma DS322e is 1 - 12 m. This specification allows for optimizing the visual experience based on the available space. The uniformity of the product Optoma DS322e is 75 %. This uniformity ensures a homogeneous distribution of light, thus providing an optimal visual experience. The horizontal scanning range of the product Optoma DS322e is 15.38 - 91.15 kHz. This range allows for excellent display quality and optimal image smoothness. The vertical scanning frequency of the product Optoma DS322e is 50 - 85 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The product Optoma DS322e features trapezoidal correction, vertical of -40 - 40 °. This functionality allows for adjusting the projected image for optimal rendering, regardless of the projection angle.
Objective system
Does the product Optoma DS322e have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The focal length of the product Optoma DS322e is 21.85 - 24 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The adjustment of the Optoma DS322e is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The zoom type of the product Optoma DS322e is Manuel. This type of zoom allows for precise and customized handling to suit your photographic needs. The zoom ratio of the product Optoma DS322e is fixed. This ratio determines the lens's ability to enlarge or reduce the image while maintaining optimal image quality. The offset of the product Optoma DS322e is 115 %. This offset helps to optimize the performance and accuracy of the objective. The projection ratio of the product Optoma DS322e is 1.94:1 ~ 2.16:1. This ratio determines the distance at which the projected image will be displayed relative to the screen size.
Power
The typical power consumption of the product Optoma DS322e is 187 W. This feature allows for the assessment of the energy efficiency of the device. The power supply of the product Optoma DS322e is Secteur. This power supply ensures optimal autonomy for prolonged use. The maximum consumption of the product Optoma DS322e is 225 W. This specification allows for the assessment of the energy efficiency of the device. The energy consumption in standby mode of the product Optoma DS322e is 0.5 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The AC input voltage of the Optoma DS322e is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Optoma DS322e is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
Screen
The Optoma DS322e has a built-in screen. This screen provides an immersive and convenient visual experience, making it easier to use the device.
Video
The supported 3D format of the product Optoma DS322e includes Frame Sequential, Side by side, Top and bottom. These formats provide an immersive and varied visual experience. Does the product Optoma DS322e have Full HD? Non. This feature ensures exceptional image quality for an immersive viewing experience. Does the product Optoma DS322e have 3D Compatibility? No. This product does not support 3D technology. The analog signal format system of the product Optoma DS322e contains NTSC, NTSC 3.58, NTSC 4.43, NTSC J, NTSC M, PAL, PAL 4.43, PAL B, PAL D, PAL G, PAL H, PAL I, PAL M, PAL N, SECAM, SECAM 4.25/4.4, SECAM B, SECAM D, SECAM G, SECAM K, SECAM K1, SECAM L. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. The supported graphic resolutions of the product Optoma DS322e are 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The supported video mode of the product Optoma DS322e is 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. This mode allows you to enjoy optimal image quality for your videos.
Network
Is the product Optoma DS322e a Smart TV? No. This television does not have smart features to access apps or the Internet. The Wifi of the product Optoma DS322e contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Optoma DS322e have Ethernet/LAN? Non. This specification determines the network connectivity of the product.
Connectivity
The HDMI connector type of the product Optoma DS322e is Pleine taille. This connector allows for an optimal connection for your multimedia devices. The number of VGA (D-Sub) ports on the Optoma DS322e is 2. This port allows for easy connection with various devices and monitors. The number of HDMI ports on the Optoma DS322e is 1. This detail is essential for determining compatibility with your multimedia devices. The product Optoma DS322e has an HDMI Version 1.4a. This specification ensures optimal connectivity for your multimedia devices. The product Optoma DS322e has a composite video input. This input allows for easy connection of analog video devices for an optimal viewing experience. The product Optoma DS322e has an input component of the audiovisual device (YPbPr/YCbCr) 0. This specification allows for a high-quality connection for an optimal visual experience. Does the product Optoma DS322e have a DVI Port? Non. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. The product Optoma DS322e has an S-Video input. This input allows you to connect video devices with enhanced image quality. The number of USB 2.0 ports on the Optoma DS322e is 1. These ports allow for a fast and efficient connection for your devices. The integrated audio connector (L,R) of the product Optoma DS322e has 0. This connector allows for a high-quality stereo audio connection for an optimal sound experience. Does the product Optoma DS322e have a PC audio input? Oui. This feature allows for easy connection of audio devices for an optimal sound experience. Does the Optoma DS322e have a PC audio output? Oui. This feature allows you to easily connect your PC to speakers or headphones for an optimal sound experience. The serial interface type of the product Optoma DS322e is RS-232. This type of interface allows for effective communication between different devices. Does the product Optoma DS322e have a built-in PC Connector (D-Sub)? Oui. This connector ensures a reliable and standardized connection for your devices. Does the product Optoma DS322e have a high-definition mobile interface (MHL, Mobile High-Definition Link)? -. This specification allows for easy connection of mobile devices to high-definition screens for an optimal viewing experience. Does the product Optoma DS322e have a power input section? Oui. This section ensures a reliable and efficient power supply for the optimal operation of the device.
Packaging contents
Does the product Optoma DS322e come with a remote control? Oui. Does the product Optoma DS322e come with batteries? Oui. This allows you to enjoy your purchase immediately without having to worry about sourcing batteries. The included cable of the product Optoma DS322e contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the product Optoma DS322e have a User Manual? Oui. This document provides clear instructions for optimal use of the product.
Storage support
Does the Optoma DS322e have a built-in memory card reader? Non. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Weight and dimensions
The weight of the product Optoma DS322e is 3000 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Optoma DS322e is 108 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Optoma DS322e is 244 mm. This dimension allows for optimal integration into your space. The width of the product Optoma DS322e is 316 mm. This dimension is essential to ensure optimal integration into your space. The weight of the Optoma DS322e package is 4400 g. This weight ensures optimal protection during transport and delivery.
Environmental conditions
The operating temperature of the product Optoma DS322e is 5 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The operating altitude of the product Optoma DS322e is 0 - 3000 m. This specification ensures optimal performance across a wide range of altitudes. The product Optoma DS322e has an operating relative humidity (H-H) of 0 - 85 %. This specification ensures optimal operation in a wide range of ambient humidity.
Features
Is the product Optoma DS322e Interactive? No. This product does not offer interactivity. The number of OSD languages of the product Optoma DS322e is 25. This feature allows for easy use in multiple languages, making the product accessible to a wide audience. Does the product Optoma DS322e have an on-screen display (OSD)? Oui. This display allows for intuitive navigation through the product settings. The noise level of the product Optoma DS322e is 27 dB. This noise level allows for pleasant use without excessive noise disturbances. The multilingual display on the Optoma DS322e screen contains ARA, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, IND, ITA, JPN, NOR, POL, POR, RUM, RUS, SWE, TUR, VIE. This system allows users to easily navigate in multiple languages, making the experience more accessible and user-friendly. Does the product Optoma DS322e have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access.
Design
The product type of Optoma DS322e is Projecteur à focale standard. This product is ideal for an immersive and comfortable audio experience. Does the product Optoma DS322e have a cable lock port? No. This product does not have this security feature. The color of the product Optoma DS322e is Noir. This shade gives it a modern and elegant look. The market position of the product Optoma DS322e is Présentation. This product is primarily aimed at professionals, offering features tailored to their specific needs. The type of cable lock location for the product Optoma DS322e is Kensington. This type of lock provides optimal security to protect your device against theft. The positioning of the product Optoma DS322e is Desktop, Ceiling. This positioning allows for optimizing its use and ensuring an optimal user experience.
Multimedia
The number of built-in speakers of the product Optoma DS322e is 1. These speakers provide immersive audio quality for an optimal listening experience. The RMS rated power of the product Optoma DS322e is 10 W. This specification ensures optimal sound quality for an enriching multimedia experience. Does the product Optoma DS322e have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience.
