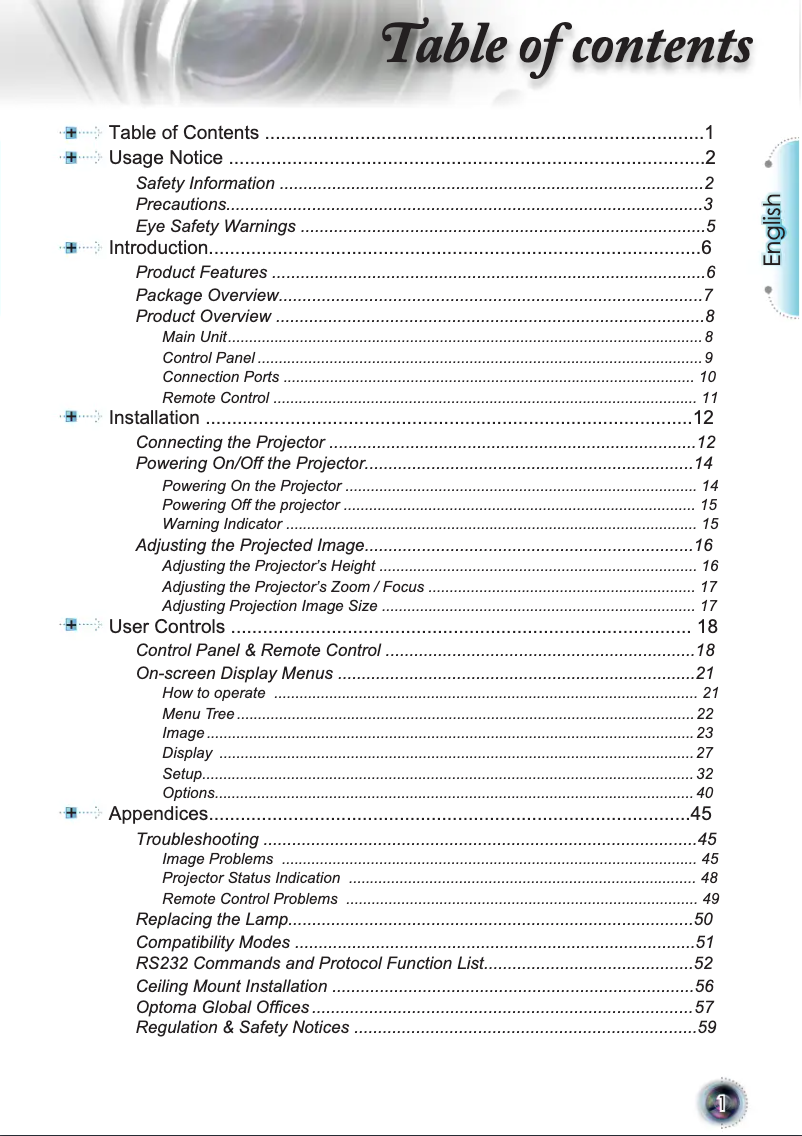

Manual of product TX1080
Technical Specifications TX1080
General Information
-
ModelTX1080
-
Brand
-
Category
-
Type
-
SKU146559
-
MPN146559
Projector
-
Projector brightness3600 ANSI lumens
-
Projection technologyDLP
-
Projection distance1.2 - 12 m
-
Number of colors1.073 billion colors
-
Uniformity85 %
-
Correction of the trapezium, vertical10 °
-
Compatible screen size24.4 - 292.9 "
-
Vertical scanning frequency24 - 100 Hz
-
Horizontal scanning domain15 - 100 kHz
Other features
-
Image format16:9
-
Lens focal lengthF2.6 - 2.89
-
Audio input3
-
RS-232 port1
-
Connectivity technologyWired
-
RS-232 port1
-
CompatibilityWUXGA, HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA, VESA, PC / Macintosh
-
Dimensions (LxWxH)411 x 311 x 116 mm
-
Power requirements100 - 240V, 50 - 60Hz
Objective system
-
Projection ratio1.85 - 2.22:1
-
Zoom ratio1.2:1
-
Focal length39.12 - 46.91 mm
-
TuningManual
Light source
-
Lifespan of the light source3000 h
-
Power of the lamp300 W
-
Type of lampUHP
-
Type of light sourceLamp
Video
-
Full HDYes
-
Analog signal format systemNTSC, PAL, SECAM
Multimedia
-
Number of built-in speakers2
-
Built-in speakersYes
-
Rated power of RMS4 W
-
Integrated TV tunerNo
Connectivity
-
Input component of the audiovisual device (YPbPr/YCbCr)-
-
Integrated audio connector (L,R)-
-
Quantity of HDMI ports1
-
Quantity of HDMI ports1
-
Quantity of HDMI ports1
-
DVI PortYes
-
Quantity of HDMI ports1
-
Number of VGA (D-Sub) ports3
-
Serial interface typeRS-232
Network
-
Number of Ethernet LAN ports (RJ-45)1
-
Ethernet/LANYes
-
WifiNo
Packaging contents
-
Remote control providedYes
-
Type of remote controlIR
Weight and dimensions
-
Weight4700 g
Power
-
Typical electricity consumption400 W
-
Energy consumption (standby mode)14 W
Environmental conditions
-
Operating temperature5 - 35 °C
Storage support
-
Built-in memory card readerNo
Features
-
Sound level30 dB
Design
-
Cable anti-theft lockYes
-
Cable lock location typeKensington
-
PositioningCeiling
Screen
-
Screen size0.95
Similar products
More product categories from brand Optoma
More product types from brand Optoma
Presentation of product TX1080 specifications from brand Optoma
Objective system
The projection ratio of the product Optoma TX1080 is 1.85 - 2.22:1. This ratio determines the distance at which the projected image will be displayed relative to the screen size. The adjustment of the Optoma TX1080 is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The focal length of the product Optoma TX1080 is 39.12 - 46.91 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The zoom ratio of the product Optoma TX1080 is fixed. This ratio determines the lens's ability to enlarge or reduce the image while maintaining optimal image quality.
Generalities
The brand of the product Optoma TX1080 is Optoma. This brand is known for its quality and innovation in the field of household appliances. The product model Optoma TX1080 is TX1080 | TX1080. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Optoma TX1080 is 796435111465, 0796435111465. This code allows for the unique identification of the product in the distribution system.
Light source
The lifespan of the light source of the product Optoma TX1080 is 3000 h. This feature ensures prolonged and efficient use, allowing you to enjoy lasting lighting. The type of lamp of the product Optoma TX1080 is UHP. This lamp offers intense brightness and excellent lighting quality. The type of light source of the product Optoma TX1080 is Lampe. This light source ensures effective illumination tailored to your needs. The power of the lamp of the product Optoma TX1080 is 300 W. This power ensures optimal lighting for your needs.
Projector
The brightness of the product Optoma TX1080 is 3600 ANSI lumens. This feature ensures a clear and bright projection, even in well-lit environments. The projection distance of the product Optoma TX1080 is 1.2 - 12 m. This specification allows for optimizing the visual experience based on the available space. The number of colors of the product Optoma TX1080 is 1,073 milliards de couleurs. This wide range of colors allows for the creation of varied and immersive atmospheres. The projector Optoma TX1080 features a DLP projection technology. This technology ensures optimal image quality and an immersive visual experience. The uniformity of the product Optoma TX1080 is 85 %. This uniformity ensures a homogeneous distribution of light, thus providing an optimal visual experience. The product Optoma TX1080 features trapezoidal correction, vertical of 10 °. This functionality allows for adjusting the projected image for optimal rendering, regardless of the projection angle. The compatible screen size of the product Optoma TX1080 is 24.4 - 292.9 ". This specification allows the projector to adapt to different screen formats for an optimal viewing experience. The vertical scanning frequency of the product Optoma TX1080 is 24 - 100 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The horizontal scanning range of the product Optoma TX1080 is 15 - 100 kHz. This range allows for excellent display quality and optimal image smoothness.
Video
The analog signal format system of the product Optoma TX1080 contains NTSC, PAL, SECAM. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. Does the product Optoma TX1080 have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience.
Other features
The image format of the product Optoma TX1080 is 16:9. This format is ideal for an immersive visual experience. The product Optoma TX1080 has an audio input. This feature allows you to connect various audio devices for an enhanced sound experience. The product Optoma TX1080 has an audio output of 1. This feature allows for easy connection to audio devices for an optimal sound experience. The focal length of the Optoma TX1080 lens is F2.6 - 2.89. This feature allows for images with a depth of field suited to your photographic needs. The product Optoma TX1080 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The RS-232 port of the Optoma TX1080 contains 1. This port is essential for ensuring reliable serial communication with other devices. The power requirements of the product Optoma TX1080 are 100 - 240V, 50 - 60Hz. These requirements ensure optimal operation of the device. The compatibility of the product Optoma TX1080 is WUXGA, HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA, VESA, PC / Macintosh. This product is designed to work with a variety of devices, ensuring optimal use. The dimensions (LxWxH) of the product Optoma TX1080 are 411 x 311 x 116 mm. These dimensions ensure an optimal fit in your space.
Multimedia
The number of built-in speakers of the product Optoma TX1080 is 2. These speakers provide immersive audio quality for an optimal listening experience. Does the product Optoma TX1080 have a built-in TV tuner? No. This product does not allow you to receive television channels directly. Does the product Optoma TX1080 have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience. The RMS rated power of the product Optoma TX1080 is 4 W. This specification ensures optimal sound quality for an enriching multimedia experience.
Network
Does the product Optoma TX1080 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The number of Ethernet LAN (RJ-45) ports of the product Optoma TX1080 is 1. These ports provide a stable and fast network connection for your devices. The Wifi of the product Optoma TX1080 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices.
Packaging contents
The remote control of the product Optoma TX1080 is wireless. This feature provides great freedom of movement and makes it easy to use. Does the product Optoma TX1080 come with a remote control? Oui.
Connectivity
The product Optoma TX1080 has an S-Video input. This input allows you to connect video devices with enhanced image quality. The product Optoma TX1080 has an input component of the audiovisual device (YPbPr/YCbCr) -. This specification allows for a high-quality connection for an optimal visual experience. The integrated audio connector (L,R) of the product Optoma TX1080 has -. This connector allows for a high-quality stereo audio connection for an optimal sound experience. The product Optoma TX1080 has a composite video input. This input allows for easy connection of analog video devices for an optimal viewing experience. The number of USB 2.0 ports on the Optoma TX1080 is 1. These ports allow for a fast and efficient connection for your devices. Does the product Optoma TX1080 have a DVI Port? Oui. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. The number of HDMI ports on the Optoma TX1080 is 1. This detail is essential for determining compatibility with your multimedia devices. The serial interface type of the product Optoma TX1080 is RS-232. This type of interface allows for effective communication between different devices. The number of VGA (D-Sub) ports on the Optoma TX1080 is 3. This port allows for easy connection with various devices and monitors.
Environmental conditions
The operating temperature of the product Optoma TX1080 is 5 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Power
The typical power consumption of the product Optoma TX1080 is 400 W. This feature allows for the assessment of the energy efficiency of the device. The energy consumption in standby mode of the product Optoma TX1080 is 14 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings.
Weight and dimensions
The weight of the product Optoma TX1080 is 4700 g. This weight is ideal for ensuring optimal use and easy handling.
Features
The noise level of the product Optoma TX1080 is 30 dB. This noise level allows for pleasant use without excessive noise disturbances.
Storage support
Does the Optoma TX1080 have a built-in memory card reader? Non. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Screen
The screen size of the product Optoma TX1080 is 0.95 ". This dimension allows for an optimal visual experience for all your content.
Design
Does the product Optoma TX1080 have a cable lock port? No. This product does not have this security feature. The positioning of the product Optoma TX1080 is Plafond. This positioning allows for optimizing its use and ensuring an optimal user experience. The type of cable lock location for the product Optoma TX1080 is Kensington. This type of lock provides optimal security to protect your device against theft.
