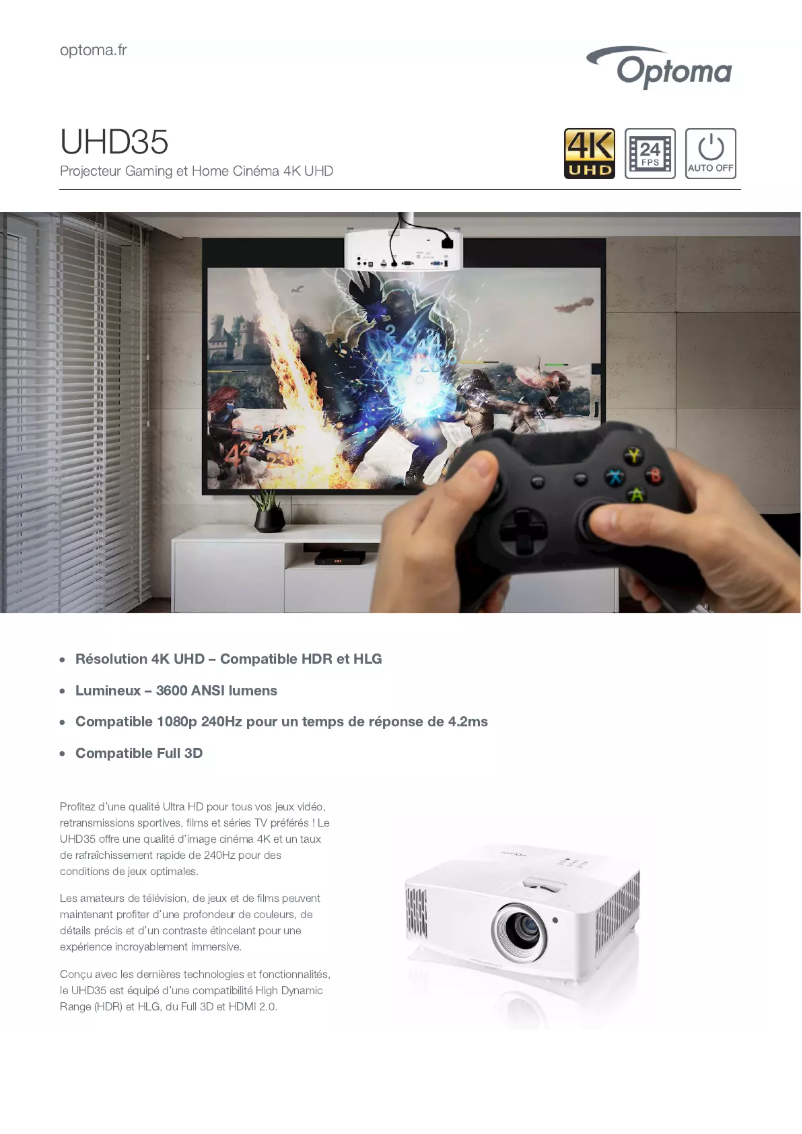

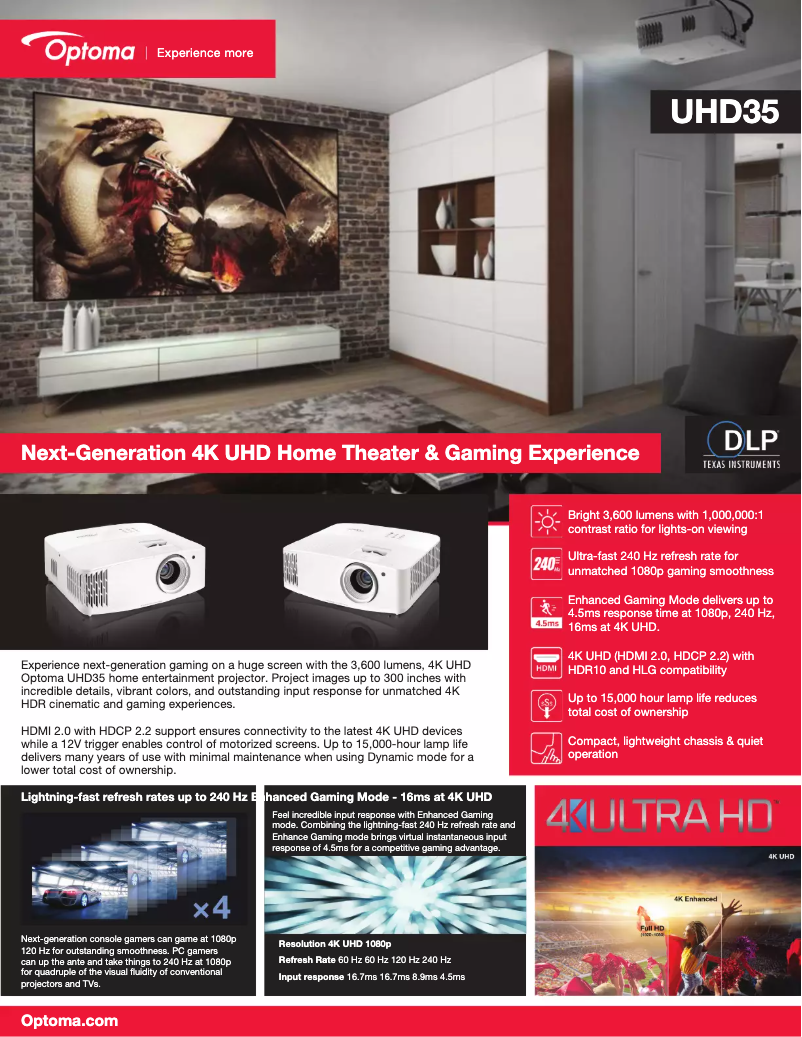

Manuals of product UHD35
Technical Specifications UHD35
General Information
-
ModelUHD35
-
Brand
-
Category
-
Type
-
SKU1348440
-
MPN1348440
Projector
-
Projector brightness3600 ANSI lumens
-
Projection technologyDLP
-
Native resolution of the projector2160p (3840x2160)
-
Contrast ratio1000000:1
-
Image format16:9
-
Supported aspect ratios4:3
-
Correction of the trapezium, vertical-40 - 40 °
-
Correction of the trapezium, vertical-40 - 40 °
-
Horizontal scanning domain31 - 135 kHz
-
Vertical scanning frequency24 - 120 Hz
-
Uniformity80 %
-
Projection distance1.21 - 9.9 m
-
Compatible screen size33 - 300 "
Light source
-
Type of light sourceLamp
-
Power of the lamp240 W
-
Lifespan of the light source4000 h
-
Lifespan of the light source (eco mode)10000 h
-
Quantity of lamps1 lamp(s)
Objective system
-
Projection ratio1.5:1 ~ 1.66:1
-
Zoom capacityYes
-
Zoom ratio1.1:1
-
Zoom typeManual
-
Focal length15.84 - 17.42 mm
-
Shift105 %
Features
-
Interactive-
-
Sound level26 dB
-
HDR supportYes
-
HDR supportYes
-
Multilingual display on screenCHI (SIMPL), DEU, ENG, ESP, FRE, ITA, JPN, POR, RUS
-
Number of OSD languages10
-
HDR supportYes
-
HDR technology (high dynamic range)Hybrid Log-Gamma (HLG)
-
Predefined modesGame
Video
-
Supported graphic resolutions640 x 480 (VGA)
-
Supported video modes800 x 600 (SVGA)
-
3D Compatibility1024 x 768 (XGA)
-
Full HD1280 x 1024 (SXGA)
-
1280 x 768 (WXGA)
-
1280 x 800 (WXGA)
-
1600 x 1200 (UXGA)
-
1920 x 1080 (HD 1080)
-
1920 x 1200 (WUXGA)
-
3840 x 2160
-
480i
-
480p
-
576i
-
576p
-
720p
-
1080i
-
1080p
-
2160p
-
Yes
-
No
Design
-
Cable anti-theft lockYes
-
Cable lock location typeKensington
-
Market positionHome cinema
-
Product typeStandard focal projector
-
Product colorWhite
-
PositioningOffice
Screen
-
Built-in screenNo
Storage support
-
Built-in memory card reader-
Environmental conditions
-
Operating temperature5 - 40 °C
-
Operating altitude0 - 3000 m
Packaging contents
-
User manualYes
-
Type of remote controlIR
-
User manualYes
-
User manualYes
-
Cables includedSector
Multimedia
-
Built-in speakersYes
-
Rated power of RMS10 W
-
Number of built-in speakers1
Power
-
Power supplySector
-
AC input voltage100 - 240 V
-
AC input frequency50 / 60 Hz
-
Consumption (max)305 W
-
Energy consumption (standby mode)0.5 W
Weight and dimensions
-
Weight3900 g
-
Package weight5100 g
-
Width315 mm
-
Depth270 mm
-
Height118 mm
-
Package width380 mm
-
Package depth165 mm
-
Package height400 mm
Network
-
Wifi-
-
Ethernet/LANNo
-
Ethernet/LANNo
Connectivity
-
High-Definition Mobile Interface (MHL, Mobile High-Definition Link)-
-
Integrated audio connector (L,R)-
-
HDMI version2.0
-
Quantity of HDMI ports2
-
Headset output1
-
DVI PortNo
-
S-Video Input0
-
S-Video Input0
-
S-Video Input0
-
Headset output1
-
Headset output1
-
Serial interface typeRS-232
-
S/PDIF output portYes
-
S/PDIF output portYes
-
S/PDIF output portYes
Logistics data
-
Harmonized System Code85286200
Similar products
More product categories from brand Optoma
More product types from brand Optoma
Presentation of product UHD35 specifications from brand Optoma
Generalities
The brand of the product Optoma UHD35 is Optoma. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Optoma UHD35 is 5055387665019. This code allows for the unique identification of the product in the distribution system. The product model Optoma UHD35 is UHD35 | E9PV7GL02EZ2. This model ensures optimal performance and an enhanced user experience.
Light source
The power of the lamp of the product Optoma UHD35 is 240 W. This power ensures optimal lighting for your needs. The lifespan of the light source (eco mode) of the product Optoma UHD35 is 10000 h. This longevity ensures prolonged and economical use. The lifespan of the light source of the product Optoma UHD35 is 4000 h. This feature ensures prolonged and efficient use, allowing you to enjoy lasting lighting. The type of light source of the product Optoma UHD35 is Lampe. This light source ensures effective illumination tailored to your needs. The quantity of lamps for the product Optoma UHD35 is 1 lampe(s). This product offers an efficient lighting solution tailored to your needs.
Objective system
The projection ratio of the product Optoma UHD35 is 1.5:1 ~ 1.66:1. This ratio determines the distance at which the projected image will be displayed relative to the screen size. Does the product Optoma UHD35 have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The zoom type of the product Optoma UHD35 is Manuel. This type of zoom allows for precise and customized handling to suit your photographic needs. The zoom ratio of the product Optoma UHD35 is fixed. This ratio determines the lens's ability to enlarge or reduce the image while maintaining optimal image quality. The focal length of the product Optoma UHD35 is 15.84 - 17.42 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The offset of the product Optoma UHD35 is 105 %. This offset helps to optimize the performance and accuracy of the objective.
Projector
The brightness of the product Optoma UHD35 is 3600 ANSI lumens. This feature ensures a clear and bright projection, even in well-lit environments. The contrast ratio of the product Optoma UHD35 is 1000000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The native resolution of the product Optoma UHD35 is 2160p (3840x2160). This feature ensures optimal image quality for your presentations and entertainment. The projector Optoma UHD35 features a DLP projection technology. This technology ensures optimal image quality and an immersive visual experience. The image format of the product Optoma UHD35 is 16:9. This format is ideal for an immersive visual experience. The aspect ratio of the product Optoma UHD35 supports 4:3. This aspect ratio allows for display flexibility suited to different content. The correction of the trapezoid, horizontal, of the product Optoma UHD35 is -40 - 40 °. This feature allows for adjusting the projected image for better accuracy and optimal rendering. The product Optoma UHD35 features trapezoidal correction, vertical of -40 - 40 °. This functionality allows for adjusting the projected image for optimal rendering, regardless of the projection angle. The horizontal scanning range of the product Optoma UHD35 is 31 - 135 kHz. This range allows for excellent display quality and optimal image smoothness. The vertical scanning frequency of the product Optoma UHD35 is 24 - 120 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The uniformity of the product Optoma UHD35 is 80 %. This uniformity ensures a homogeneous distribution of light, thus providing an optimal visual experience. The compatible screen size of the product Optoma UHD35 is 33 - 300 ". This specification allows the projector to adapt to different screen formats for an optimal viewing experience. The projection distance of the product Optoma UHD35 is 1.21 - 9.9 m. This specification allows for optimizing the visual experience based on the available space.
Video
The supported graphic resolutions of the product Optoma UHD35 are 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160. These resolutions provide optimal display quality for your content. The supported video mode of the product Optoma UHD35 is 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p. This mode allows you to enjoy optimal image quality for your videos. Does the product Optoma UHD35 have 3D Compatibility? No. This product does not support 3D technology. Does the product Optoma UHD35 have Full HD? Non. This feature ensures exceptional image quality for an immersive viewing experience.
Features
The noise level of the product Optoma UHD35 is 26 dB. This noise level allows for pleasant use without excessive noise disturbances. Is the product Optoma UHD35 Interactive? No. This product does not offer interactivity. Does the product Optoma UHD35 have an on-screen display (OSD)? Oui. This display allows for intuitive navigation through the product settings. Does the product Optoma UHD35 have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. The multilingual display on the Optoma UHD35 screen contains CHI (SIMPL), DEU, ENG, ESP, FRE, ITA, JPN, POR, RUS. This system allows users to easily navigate in multiple languages, making the experience more accessible and user-friendly. The number of OSD languages of the product Optoma UHD35 is 10. This feature allows for easy use in multiple languages, making the product accessible to a wide audience. Does the Optoma UHD35 support HDR? No. This feature is not available on this model. The product Optoma UHD35 features HDR technology (high dynamic range) Hybrid Log-Gamma (HLG). This technology allows for images with richer contrasts and more vibrant colors, thus providing an enhanced visual experience. The predefined modes of the product Optoma UHD35 are Jeu. These modes allow for optimizing the display according to the desired use, whether for cinema, gaming, presentations, or standard use.
Screen
The Optoma UHD35 has a built-in screen. This screen provides an immersive and convenient visual experience, making it easier to use the device.
Design
The product type of Optoma UHD35 is Projecteur à focale standard. This product is ideal for an immersive and comfortable audio experience. Does the product Optoma UHD35 have a cable lock port? No. This product does not have this security feature. The type of cable lock location for the product Optoma UHD35 is Kensington. This type of lock provides optimal security to protect your device against theft. The market position of the product Optoma UHD35 is Home cinema. This product is primarily aimed at professionals, offering features tailored to their specific needs. The color of the product Optoma UHD35 is Blanc. This shade gives it a modern and elegant look. The positioning of the product Optoma UHD35 is Bureau. This positioning allows for optimizing its use and ensuring an optimal user experience.
Storage support
Does the Optoma UHD35 have a built-in memory card reader? -. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Environmental conditions
The operating temperature of the product Optoma UHD35 is 5 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The operating altitude of the product Optoma UHD35 is 0 - 3000 m. This specification ensures optimal performance across a wide range of altitudes.
Packaging contents
Does the product Optoma UHD35 come with a remote control? Oui. Does the product Optoma UHD35 have a User Manual? Oui. This document provides clear instructions for optimal use of the product. Does the product Optoma UHD35 come with batteries? Oui. This allows you to enjoy your purchase immediately without having to worry about sourcing batteries. The remote control of the product Optoma UHD35 is wireless. This feature provides great freedom of movement and makes it easy to use. The included cable of the product Optoma UHD35 contains a power plug. This cable is essential for ensuring an optimal electrical connection.
Multimedia
The RMS rated power of the product Optoma UHD35 is 10 W. This specification ensures optimal sound quality for an enriching multimedia experience. Does the product Optoma UHD35 have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience. The number of built-in speakers of the product Optoma UHD35 is 1. These speakers provide immersive audio quality for an optimal listening experience.
Network
Is the product Optoma UHD35 a Smart TV? No. This television does not have smart features to access apps or the Internet. The Wifi of the product Optoma UHD35 contains -. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Optoma UHD35 have Ethernet/LAN? Non. This specification determines the network connectivity of the product.
Power
The power supply of the product Optoma UHD35 is Secteur. This power supply ensures optimal autonomy for prolonged use. The AC input frequency of the product Optoma UHD35 is 50 / 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The maximum consumption of the product Optoma UHD35 is 305 W. This specification allows for the assessment of the energy efficiency of the device. The AC input voltage of the Optoma UHD35 is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The energy consumption in standby mode of the product Optoma UHD35 is 0.5 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings.
Weight and dimensions
The weight of the Optoma UHD35 package is 5100 g. This weight ensures optimal protection during transport and delivery. The weight of the product Optoma UHD35 is 3900 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product Optoma UHD35 is 315 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Optoma UHD35 is 270 mm. This dimension allows for optimal integration into your space. The height of the product Optoma UHD35 is 118 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the package of the product Optoma UHD35 is 380 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Optoma UHD35 is 165 mm. This dimension is essential to ensure proper packaging and secure transport. The height of the package of the product Optoma UHD35 is 400 mm. This dimension is essential to ensure optimal transport and storage.
Logistics data
The Harmonized System code for the product Optoma UHD35 is 85286200. This code allows for the unique identification of goods in international trade.
Connectivity
The number of VGA (D-Sub) ports on the Optoma UHD35 is 1. This port allows for easy connection with various devices and monitors. Does the product Optoma UHD35 have a high-definition mobile interface (MHL, Mobile High-Definition Link)? -. This specification allows for easy connection of mobile devices to high-definition screens for an optimal viewing experience. The product Optoma UHD35 has an HDMI Version 2.0. This specification ensures optimal connectivity for your multimedia devices. The number of HDMI ports on the Optoma UHD35 is 2. This detail is essential for determining compatibility with your multimedia devices. Does the product Optoma UHD35 have a DVI Port? Non. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. The product Optoma UHD35 has an input component of the audiovisual device (YPbPr/YCbCr) 0. This specification allows for a high-quality connection for an optimal visual experience. The product Optoma UHD35 has a composite video input. This input allows for easy connection of analog video devices for an optimal viewing experience. The product Optoma UHD35 has an S-Video input. This input allows you to connect video devices with enhanced image quality. The number of USB 2.0 ports on the Optoma UHD35 is 1. These ports allow for a fast and efficient connection for your devices. The integrated audio connector (L,R) of the product Optoma UHD35 has -. This connector allows for a high-quality stereo audio connection for an optimal sound experience. Does the product Optoma UHD35 have a PC audio input? Oui. This feature allows for easy connection of audio devices for an optimal sound experience. The headphone output of the Optoma UHD35 is %. This output allows for easy connection of headphones or a headset for an optimal audio experience. The serial interface type of the product Optoma UHD35 is RS-232. This type of interface allows for effective communication between different devices. Does the product Optoma UHD35 have a power input section? Oui. This section ensures a reliable and efficient power supply for the optimal operation of the device. Does the product Optoma UHD35 have an S/PDIF output port? Oui. This feature allows for a high-quality digital audio connection.
