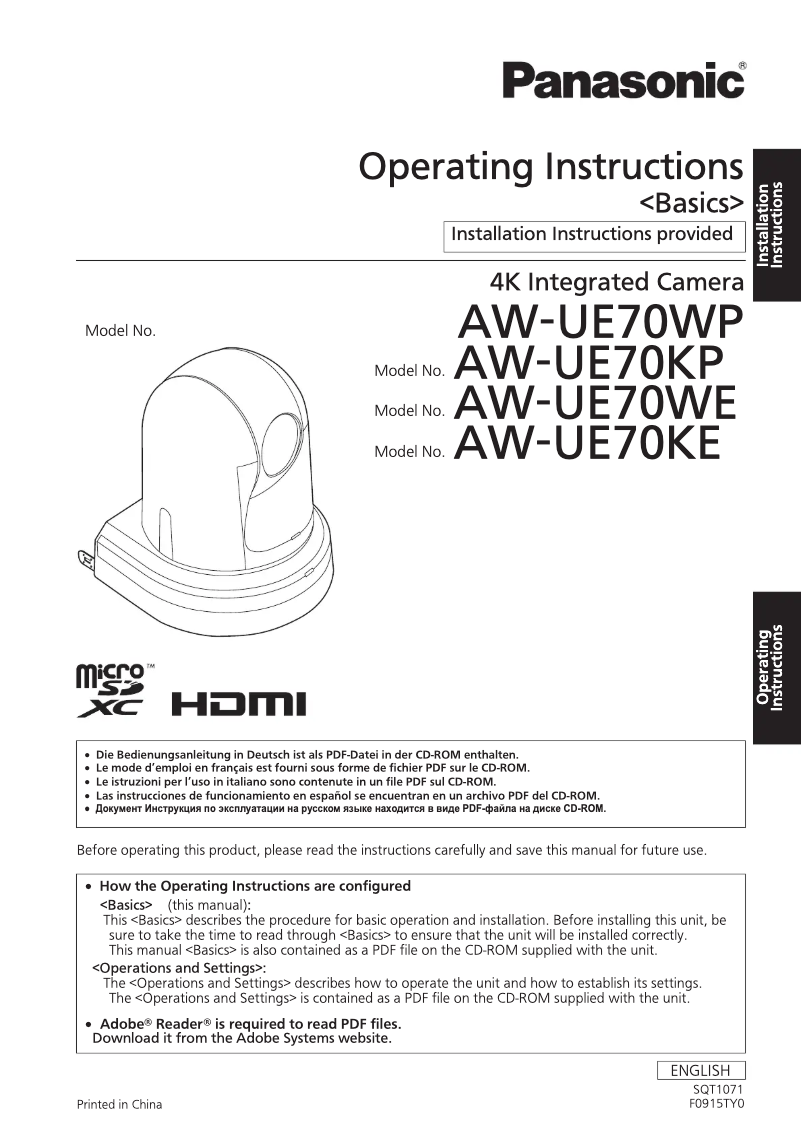

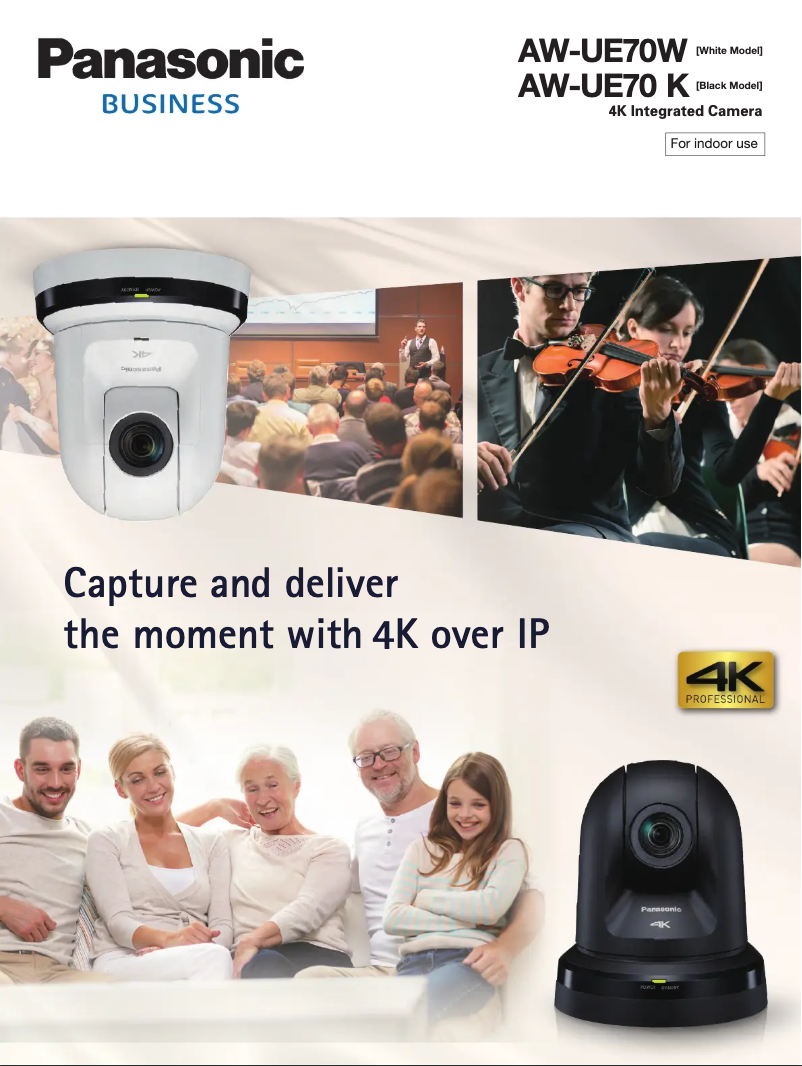

Manuals of product AW-UE70
Editorial note
The Panasonic AW-UE70 is a high-quality camera, offering a maximum resolution of 3840 x 2160 pixels, ensuring sharp and detailed images. Its 20x optical zoom and 12x digital zoom allow for capturing distant subjects with great clarity. Additionally, the PTZ (pan, tilt, zoom) control is precise and smooth, making angle adjustments easy for dynamic shots. The flexible design of the device, with options for vertical installation and ceiling or wall mounting, allows for seamless integration into various environments. However, the Panasonic AW-UE70 has some drawbacks. The lack of Wi-Fi connectivity limits wireless options, which may be a drawback for some users. Furthermore, the device does not have a built-in hard drive, necessitating the use of external memory cards for storage, adding an extra step to the recording process. The absence of a microphone jack may also restrict professional-quality audio recording possibilities. Finally, the weight of 1500 g can make installation more challenging, especially in situations where lightness is essential. In terms of scores, the user experience is rated positively (80) due to ease of control. Performance is excellent (85) with remarkable image quality. The design is well-rated (75) for its flexibility, while features receive a moderate score (70) due to the lack of Wi-Fi. The value for money is also rated at 70, due to the need for external memory cards. Finally, ease of use is rated at 65, as manual focusing can pose challenges for novice users. In summary, the Panasonic AW-UE70 is an excellent choice for those seeking superior image quality and a flexible design, but users will need to consider its limitations in terms of connectivity and storage.Score details
User experience
The user experience is positive thanks to precise and smooth PTZ control, making it easy to adjust the viewing angle for dynamic shots.
Performance
Performance is excellent with exceptional image quality due to a maximum resolution of 3840 x 2160 pixels, providing detailed images for high-quality photos and videos.
Design
The design is flexible with the possibility of vertical installation and ceiling or wall mounting, allowing for easy integration into various spaces.
Features
The product has interesting features like day/night mode and robust network connectivity, but the lack of Wi-Fi limits wireless connectivity options.
Value for money
Although the product offers quality features, the need for external memory cards for storage may be seen as a disadvantage by some users.
Usability
Manual focus can be a barrier for novice users, who might prefer automatic focus to ease their shooting experience.
Robustness
The weight of 1500 g can make installation and handling more difficult, especially in situations where lightness and portability are essential.
Advantages
4K resolution, precise details
20x optical zoom, distant capture
Flexible installation, varied mounting
Smooth and precise PTZ control
Day/night mode, optimal performance
Ethernet connectivity, efficient communication
Disadvantages
No built-in Wi-Fi connectivity
No hard drive, external storage required
No jack input for microphone
Weight of 1500 g, difficult to handle
Manual focus, not automatic
Technical Specifications AW-UE70
General Information
-
ModelAW-UE70
-
Brand
-
Category
-
Type
-
SKU1329671
-
MPN1329671
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor
-
Connectivity technologyWired
-
Day/Night ModeYes
-
Day/Night ModeYes
Objective system
-
Optical zoom20 x
-
Digital zoom12 x
-
Zoom capacityYes
-
Number of lenses1
-
Maximum number of openings3.6
-
Minimum opening amount1.8
-
Focal length4.08 - 81.6 mm
-
Minimum focusing distance0.1 m
-
TuningMotorized/manual
Camera
-
Field of view of the lens, horizontal65.1 °
-
Angle of view of the lens, vertical39.5 °
-
Angle of view of the lens, diagonal72.4 °
-
Minimum illumination0.35 lux
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Camera shutter typeElectronic
-
Camera shutter speed1/60 - 1/2000; 1/30 - 1/2000, 1/50 - 1/2000, 1/25 - 1/2000; 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000, 1/120 s
-
White balanceATW, Auto, Manual
-
Panoramic-175 - 175 °
-
Inclination angle-30 - 90 °
-
Panoramic speed90 °/sec
-
Panoramic speed90 °/sec
-
Pan tilt preset speed300 °/sec
Power
-
Power supply typeDC, PoE
-
Output CC in volts12
-
Output CC in amperes1.3 A
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-20 - 50 °C
-
Operating relative humidity (H-H)20 - 90 %
Weight and dimensions
-
Weight1500 g
-
Width160 mm
-
Depth179 mm
-
Height186 mm
-
Cable length1.5 m
Design
-
FormatDome
-
Mounting typeCeiling/wall
-
Product colorWhite
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash)
Network
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
-
Network standardsIEEE 802.3at
-
Supported network protocolsTCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, DHCPv6, DNS, NTP, ICMPv6(MLD), RTSPoverTCP, RTSPoverHTTP, SSL(TLS)
-
Streaming methodMulticast, Unicast
Connectivity
-
USB portYes
-
RS-232 port1
-
RS-232 port1
-
RS-232 port1
-
RS-232 port1
-
RS-232 port1
-
USB portYes
Image sensor
-
Number of sensors1
-
Optical sensor size1/2.3 "
-
Sensor typeMOS
Night vision
-
Night vision-
Video
-
Total megapixels- MP
-
Maximum resolution3840 x 2160 pixels
-
Supported video modes720p, 1080i, 1080p, 2160p
-
Noise reductionYes
-
Visual compression formatsH.264, M-JPEG, MP4, MPEG4
-
Supported graphic resolutions640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
-
Number of images per second30 fps
-
Noise reductionYes
-
Noise reductionYes
Packaging contents
-
Number of cameras1
-
Assembly kitYes
Audio
-
Supported audio formatsPCM
Management features
-
Web-based managementYes
Frequently Asked Questions
What is the weight of the Panasonic AW-UE70?
What is the height of the Panasonic AW-UE70?
What is the width of the Panasonic AW-UE70?
What is the depth of the Panasonic AW-UE70?
Is the manual for the Panasonic AW-UE70 available in French?
Similar products
More product categories from brand Panasonic
Home appliances Panasonic
Phones Panasonic
Audio Panasonic
Camera and photography Panasonic
Personal care Panasonic
Other Panasonic
Tools Panasonic
Interior Panasonic
More product types from brand Panasonic
Presentation of product AW-UE70 specifications from brand Panasonic
General Information
The Panasonic AW-UE70 is a camera from the Panasonic brand, known for its innovation and quality in the electronics sector. This model, AW-UE70 | AW-UE70WEJ, stands out for its high performance and an optimized user experience.
Design and Installation
Designed in the form of an island, the Panasonic AW-UE70 offers an aesthetic and functional solution, ideal for seamless integration into various environments. Its design allows for vertical installation, maximizing space utilization. The device is equipped with wired connectivity, facilitating its use without the constraints of wireless systems. Additionally, the PTZ (pan, tilt, zoom) control allows for precise adjustments, while the day/night mode adapts the lighting according to needs, ensuring quality images at any time.
Lens System
The Panasonic AW-UE70 features a 20x optical zoom and a 12x digital zoom, allowing for the capture of distant details with great clarity. With a single lens, this model offers a maximum aperture of f/3.6 and a minimum aperture of f/1.8, ensuring optimal performance even in low-light conditions. Its focal length of 4.08 to 81.6 mm provides great flexibility in image composition, while the manual focus gives the user increased control.
Camera Features
Offering a field of view of 65.1° horizontally and 39.5° vertically, the Panasonic AW-UE70 is ideal for panoramic shots and dynamic compositions. Its diagonal viewing angle reaches 72.4°, ensuring an immersive experience. The minimum illumination of 0.35 lux allows for effective operation in low-light conditions. The shutter speed ranges from 1/60 to 1/10000 s, providing versatile options for image capture. The white balance offers several settings, allowing for accurate color reproduction.
Power Supply and Environmental Conditions
The Panasonic AW-UE70 is powered via a DC source or PoE, ensuring stable and efficient use. It operates in an ambient temperature of 0 to 40 °C, with the ability to withstand temperatures ranging from -20 to 50 °C when not in operation. Its operating humidity range of 20 to 90 % ensures reliability in various environments.
Dimensions and Design
Weighing 1500 g, the Panasonic AW-UE70 has dimensions of 160 mm in width, 179 mm in depth, and 186 mm in height, facilitating its integration into various spaces. Its bar design and modern white color add a touch of elegance to any environment.
Connectivity and Network
This model features an Ethernet/LAN port but does not support Wi-Fi or Bluetooth. It is compatible with various network protocols such as TCP/IP and UDP/IP, ensuring effective communication. Although there is no built-in hard drive, the Panasonic AW-UE70 is equipped with a MicroSD-compatible memory card reader, providing a convenient external storage solution.
Video and Audio
The Panasonic AW-UE70 supports video resolutions of up to 3840 x 2160 pixels and is capable of streaming in multiple modes, including 720p and 1080p. Its built-in image stabilizer ensures sharp videos, even in motion. Regarding audio, it supports the PCM format, providing a quality listening experience.
Management and Accessories
With a web-based management interface, the Panasonic AW-UE70 allows for easy remote data administration. The packaging includes a mounting kit, facilitating its installation.
