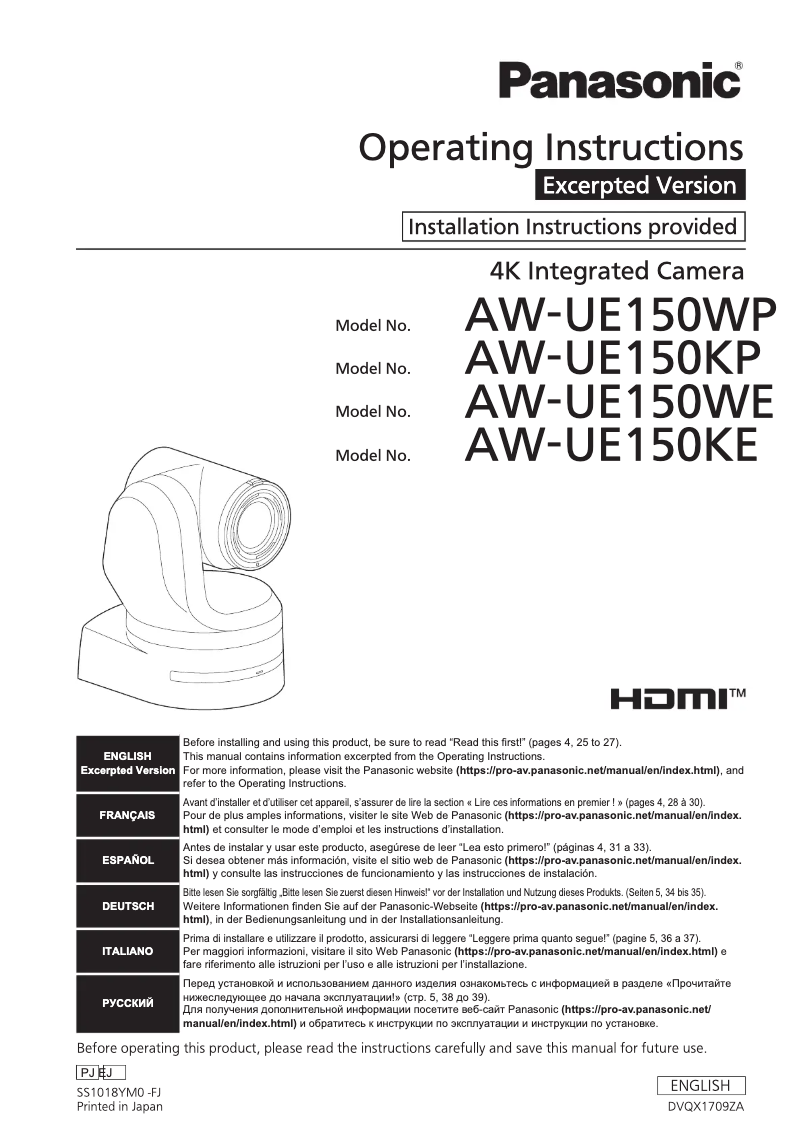

Manual of product AW-UE150WE
Technical Specifications AW-UE150WE
General Information
-
ModelAW-UE150WE
-
Brand
-
Category
-
Type
-
SKU1729443
-
MPN1729443
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor
-
Connectivity technologyWired
-
PTZ ControlYes
Design
-
FormatTerminal
-
Mounting typeCeiling/wall
-
Product colorWhite
Camera
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Minimum illumination2 lux
-
Field of view of the lens, horizontal75.1 °
-
Angle of view of the lens, vertical46.7 °
-
Angle of view of the lens, diagonal82.8 °
-
Inclination angle-30 - 210 °
-
Panoramic speed180 °/sec
-
Panoramic-175 - 175 °
-
Panoramic speed180 °/sec
-
White balanceATW, Auto, Manual
-
Camera shutter typeElectronic
-
Camera shutter speed1/24, 1/25, 1/30, 1/48, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 s
Image sensor
-
Sensor typeMOS
-
Number of sensors1
Objective system
-
Number of lenses1
-
Auto focusYes
-
Optical zoom20 x
-
Digital zoom10 x
-
Auto focusYes
-
TuningMotorized/manual
-
Maximum number of openings4.5
-
Minimum opening amount2.8
-
Focal length8.8 - 176 mm
-
Minimum focusing distance0.1 m
Night vision
-
Night visionYes
Video
-
Maximum resolution3840 x 2160 pixels
-
Total megapixels- MP
-
Visual compression formatsH.264, H.265, M-JPEG
-
Supported graphic resolutions320 x 180, 640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
-
Supported video modes720p, 1080p, 2160p
-
Number of images per second60 fps
-
Video broadcastingYes
Audio
-
Supported audio formatsAAC
-
Sampling frequency48 kHz
-
Signal-to-noise ratio report60 dB
Network
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
-
Network standardsIEEE 802.3bt
-
Supported network protocolsIPv4, IPv6, TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP
-
Streaming methodMulticast, Unicast
Storage support
-
Integrated hard driveNo
Connectivity
-
Quantity of HDMI ports1
-
Quantity of HDMI ports1
-
BNC output ports3
-
DC InputYes
-
Quantity of HDMI ports1
-
DC InputYes
Management features
-
Web-based managementYes
Power
-
Power supply typeDC, PoE
-
Output CC in volts12
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-20 - 50 °C
Minimum system requirements
-
Support for the Windows operating systemWindows 10
-
Support for the Mac operating systemWindows 7
-
Supported mobile systemMac OS X 10.11 El Capitan
-
Mac OS X 10.12 Sierra
-
Mac OS X 10.13 High Sierra
-
iOS 11.0
Weight and dimensions
-
Width213 mm
-
Depth219 mm
-
Height267 mm
-
Weight4200 g
Packaging contents
-
Number of cameras1
Similar products
More product categories from brand Panasonic
Home appliances Panasonic
Phones Panasonic
Audio Panasonic
Camera and photography Panasonic
Personal care Panasonic
Other Panasonic
Tools Panasonic
Interior Panasonic
More product types from brand Panasonic
Presentation of product AW-UE150WE specifications from brand Panasonic
Generalities
The brand of the product Panasonic AW-UE150WE is Panasonic. This brand is known for its quality and innovation in the field of household appliances. The product model Panasonic AW-UE150WE is AW-UE150WE | AW-UE150WEJ8. This model ensures optimal performance and an enhanced user experience.
Representation / realization
The type of product Panasonic AW-UE150WE is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The PTZ control of the product Panasonic AW-UE150WE is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The design of the product Panasonic AW-UE150WE supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Panasonic AW-UE150WE features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Design
The format of the product Panasonic AW-UE150WE is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Panasonic AW-UE150WE is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Panasonic AW-UE150WE is Blanc. This shade gives it a modern and elegant look.
Night vision
Does the product Panasonic AW-UE150WE have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Image sensor
The sensor type of the product Panasonic AW-UE150WE is MOS. This type of sensor ensures optimal image quality for your needs. The number of sensors of the product Panasonic AW-UE150WE is 1. This number of sensors allows for precise and efficient image detection.
Camera
Does the product Panasonic AW-UE150WE have a camera pan command? No. This feature is not available on this model. The field of view of the Panasonic AW-UE150WE lens is 75.1 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The minimum illumination of the product Panasonic AW-UE150WE is 2 lux. This feature ensures optimal performance even in low light conditions. The tilt command of the Panasonic AW-UE150WE camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The vertical field of view of the product Panasonic AW-UE150WE is 46.7 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Panasonic AW-UE150WE is 82.8 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The tilt angle of the product Panasonic AW-UE150WE is -30 - 210 °. This angle allows for adjusting the position for optimal comfort. The tilt speed of the product Panasonic AW-UE150WE is 180 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The panoramic view of the product Panasonic AW-UE150WE is -175 - 175 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The panning speed of the product Panasonic AW-UE150WE is 180 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The white balance of the product Panasonic AW-UE150WE consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The type of shutter of the camera of the product Panasonic AW-UE150WE is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The shutter speed of the camera of the product Panasonic AW-UE150WE is 1/24, 1/25, 1/30, 1/48, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 s. This feature allows capturing sharp images even in low light conditions.
Objective system
The number of lenses in the product Panasonic AW-UE150WE is 1. This number determines the quality and versatility of the lens. Does the product Panasonic AW-UE150WE have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The optical zoom of the product Panasonic AW-UE150WE is 20 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The digital zoom of the product Panasonic AW-UE150WE is 10 x. This zoom allows for capturing precise details even from a distance. Does the Panasonic AW-UE150WE have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The adjustment of the Panasonic AW-UE150WE is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The focal length of the product Panasonic AW-UE150WE is 8.8 - 176 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The minimum focusing distance of the product Panasonic AW-UE150WE is 0.1 m. This feature allows for sharp images even at relatively far distances. The maximum number of openings for the product Panasonic AW-UE150WE is 4.5. This feature allows for optimal use and increased flexibility. The minimum opening number of the product Panasonic AW-UE150WE is 2.8. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions.
Audio
The supported audio formats of the product Panasonic AW-UE150WE are AAC. These formats ensure optimal compatibility for an enriching listening experience. The sampling frequency of the product Panasonic AW-UE150WE is 48 kHz. This feature ensures optimal sound quality for your recordings. The signal-to-noise ratio of the product Panasonic AW-UE150WE is 60 dB. This high ratio ensures exceptional audio quality, allowing for clear and precise listening without unwanted interference.
Video
The maximum resolution of the product Panasonic AW-UE150WE is 3840 x 2160 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product Panasonic AW-UE150WE has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos. The total megapixels of the product Panasonic AW-UE150WE is - MP. This total ensures exceptional image quality for your photos. The supported graphic resolutions of the product Panasonic AW-UE150WE are 320 x 180,640 x 360,1280 x 720 (HD 720),1920 x 1080 (HD 1080),3840 x 2160. These resolutions provide optimal display quality for your content. The supported video mode of the product Panasonic AW-UE150WE is 720p, 1080p, 2160p. This mode allows you to enjoy optimal image quality for your videos. The number of frames per second of the product Panasonic AW-UE150WE is 60 ips. This specification ensures optimal smoothness when playing videos. Does the product Panasonic AW-UE150WE have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience.
Storage support
Does the Panasonic AW-UE150WE have a built-in hard drive? No. This feature means that the product does not have internal storage.
Network
Does the product Panasonic AW-UE150WE have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The network standards of the product Panasonic AW-UE150WE are IEEE 802.3bt. These standards ensure optimal compatibility with various equipment and protocols. Does the Panasonic AW-UE150WE have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Wifi of the product Panasonic AW-UE150WE contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The supported network protocols of the product Panasonic AW-UE150WE are IPv4, IPv6, TCP / IP, UDP / IP, HTTP, HTTPS, RTSP, RTP / RTCP, DHCP, DNS, DDNS, NTP, UPnP, IGMP, ICMP, ARP, RTMP. These protocols ensure efficient and reliable communication for your networking needs. The streaming method of the product Panasonic AW-UE150WE is Multicast, Unicast. This method allows for efficient data transmission to multiple users simultaneously.
Management features
The Panasonic AW-UE150WE product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Power
The type of power source for the product Panasonic AW-UE150WE is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The product Panasonic AW-UE150WE has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices.
Connectivity
Does the product Panasonic AW-UE150WE have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The number of Ethernet LAN (RJ-45) ports of the product Panasonic AW-UE150WE is 1. These ports provide a stable and fast network connection for your devices. The product Panasonic AW-UE150WE has 1 BNC output port. This port allows for an easy and reliable connection for various video equipment. The RS-422 port of the Panasonic AW-UE150WE contains 1. This port allows for reliable serial communication over long distances. The number of HDMI ports on the Panasonic AW-UE150WE is 1. This detail is essential for determining compatibility with your multimedia devices. Does the product Panasonic AW-UE150WE have a DC Input? Oui. This specification ensures compatibility with DC power supplies.
Minimum system requirements
Does the product Panasonic AW-UE150WE support the Mac operating system? Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra. This feature ensures optimal compatibility for Mac users. Does the product Panasonic AW-UE150WE support the Windows operating system? Windows 10, Windows 7. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience. The supported mobile system of the product Panasonic AW-UE150WE contains iOS 11.0. This system allows for smooth usage on major mobile platforms.
Environmental conditions
The operating temperature of the product Panasonic AW-UE150WE is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The non-operating temperature of the product Panasonic AW-UE150WE is -20 - 50 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Packaging contents
The number of cameras of the product Panasonic AW-UE150WE is 1. This product is equipped with a camera that allows capturing high-quality images.
Weight and dimensions
The width of the product Panasonic AW-UE150WE is 213 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Panasonic AW-UE150WE is 4200 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Panasonic AW-UE150WE is 219 mm. This dimension allows for optimal integration into your space. The height of the product Panasonic AW-UE150WE is 267 mm. This dimension is essential to ensure that the product fits perfectly in your space.
