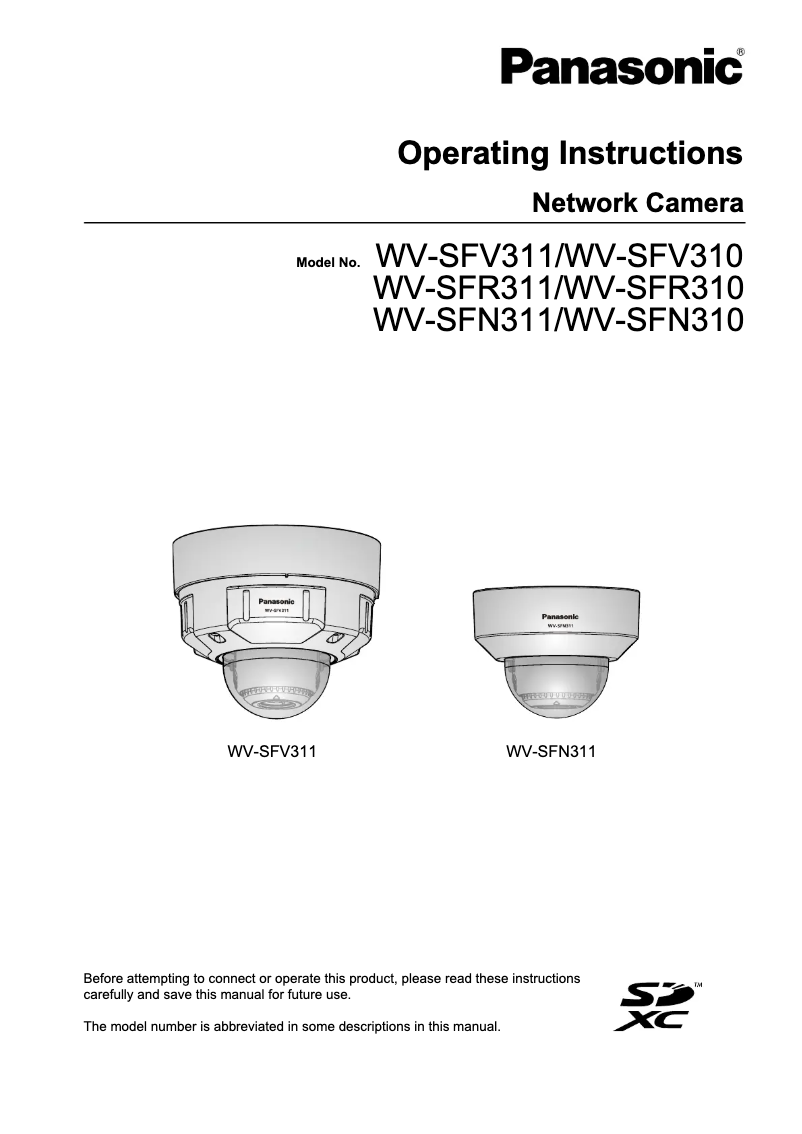

Manual of product WV-SFR311
Technical Specifications WV-SFR311
General Information
-
ModelWV-SFR311
-
Brand
-
Category
-
Type
-
SKU1407430
-
MPN1407430
Representation / realization
-
Type-
-
Entry/exit alarmYes
-
Supported installationInterior
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Connectivity technologyWired
Design
-
FormatDome
-
Product colorWhite
-
Mounting typeCeiling
-
Material of the case/bodyAluminum
Video
-
Maximum resolution1280 x 960 pixels
-
Supported video formatH.264, M-JPEG
-
Supported graphic resolutions1280 x 960, 1280 x 720 (HD 720)
-
Supported video modes720p
-
Analog signal format systemNTSC, PAL
-
Number of images per second30 fps
-
Total megapixels1.3 MP
Camera
-
Minimum illumination0.04 lux
-
Field of view of the lens, horizontal99.3 °
-
Angle of view of the lens, vertical54.2 °
-
Inclination angle-225 - 120 °
-
White balanceATW, Auto
-
Camera shutter typeElectronic
-
Camera shutter speed1/10000 s
Image sensor
-
Progressive scanYes
-
Sensor typeMOS
-
Optical sensor size1/3
Objective system
-
Zoom capacityYes
-
Optical zoom3.6 x
-
Digital zoom4 x
-
Focal length2.8 - 10 mm
-
Focusing Area, normal0.3 m
Security
-
HTTPS encryptionYes
-
HTTPS encryptionYes
Storage support
-
Integrated hard drive-
-
Built-in memory card readerYes
-
Compatible memory cardsSD, SDHC, SDXC
-
Maximum memory card size64 GB
Night vision
-
Night visionYes
-
Type of LEDIR
Network
-
Wifi-
-
Ethernet/LANYes
-
Wiring technology10/100Base-T(X)
-
Supported network protocolsTCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP
Connectivity
-
Headset output1
-
InterfaceRJ-45
-
Headset output1
-
DC InputYes
Audio
-
Built-in microphone-
-
Supported audio formatsLC-AAC
-
Audio system2-way
Weight and dimensions
-
Diameter129.5 mm
-
Diameter129.5 mm
-
Height102.5 mm
-
Diameter129.5 mm
-
Weight660 g
Power
-
Ethernet connection, supporting power over this port (PoE)Yes
-
AC input frequency50 - 60 Hz
-
Typical electricity consumption5.8 W
-
Electricity consumption120 mA
-
Output CC in volts+12V, +12V2
-
Power supply typePoE
Environmental conditions
-
Operating temperature-10 - 50 °C
-
Operating relative humidity (H-H)20 - 90 %
Minimum system requirements
-
Support for the Windows operating systemYes
-
Supported mobile systemAndroid
Packaging contents
-
User GuideYes
-
User GuideYes
Similar products
More product categories from brand Panasonic
Home appliances Panasonic
Phones Panasonic
Audio Panasonic
Camera and photography Panasonic
Personal care Panasonic
Other Panasonic
Tools Panasonic
Interior Panasonic
More product types from brand Panasonic
Presentation of product WV-SFR311 specifications from brand Panasonic
Generalities
The EAN code of the product Panasonic WV-SFR311 is 4549077157300, 4010869243612, 0885170196537. This code allows for the unique identification of the product in the distribution system. The product model Panasonic WV-SFR311 is WV-SFR311 | WV-SFR311. This model ensures optimal performance and an enhanced user experience. The brand of the product Panasonic WV-SFR311 is Panasonic. This brand is known for its quality and innovation in the field of household appliances.
Video
The maximum resolution of the product Panasonic WV-SFR311 is 1280 x 960 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Panasonic WV-SFR311 are 1280 x 960,1280 x 720 (HD 720). These resolutions provide optimal display quality for your content. The supported video format of the product Panasonic WV-SFR311 contains H.264, M-JPEG. This format allows for smooth and high-quality playback of your multimedia content. The supported video mode of the product Panasonic WV-SFR311 is 720p. This mode allows you to enjoy optimal image quality for your videos. The analog signal format system of the product Panasonic WV-SFR311 contains NTSC, PAL. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. The number of frames per second of the product Panasonic WV-SFR311 is 30 ips. This specification ensures optimal smoothness when playing videos. The total megapixels of the product Panasonic WV-SFR311 is 1.3 MP. This total ensures exceptional image quality for your photos.
Representation / realization
The type of product Panasonic WV-SFR311 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Panasonic WV-SFR311 have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The design of the product Panasonic WV-SFR311 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The PTZ control of the product Panasonic WV-SFR311 is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. Does the product Panasonic WV-SFR311 have an entry/end Alarm? Oui. This feature effectively secures access to your space. The product Panasonic WV-SFR311 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Design
The format of the product Panasonic WV-SFR311 is a bar. This format allows for practical and efficient use in various contexts. The material of the product case Panasonic WV-SFR311 is Aluminium. This material ensures both durability and elegance. The mounting type of the product Panasonic WV-SFR311 is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Panasonic WV-SFR311 is Blanc. This shade gives it a modern and elegant look.
Image sensor
Does the product Panasonic WV-SFR311 have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Panasonic WV-SFR311 is 1/3 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product Panasonic WV-SFR311 is MOS. This type of sensor ensures optimal image quality for your needs.
Objective system
Does the product Panasonic WV-SFR311 have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The digital zoom of the product Panasonic WV-SFR311 is 4 x. This zoom allows for capturing precise details even from a distance. The optical zoom of the product Panasonic WV-SFR311 is 3.6 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The focal length of the product Panasonic WV-SFR311 is 2.8 - 10 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The normal focus area of the product Panasonic WV-SFR311 is 0.3 m. This specification ensures optimal accuracy for your needs.
Security
Does the product Panasonic WV-SFR311 have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product Panasonic WV-SFR311 have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site.
Camera
The vertical field of view of the product Panasonic WV-SFR311 is 54.2 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The tilt angle of the product Panasonic WV-SFR311 is -225 - 120 °. This angle allows for adjusting the position for optimal comfort. The minimum illumination of the product Panasonic WV-SFR311 is 0.04 lux. This feature ensures optimal performance even in low light conditions. The field of view of the Panasonic WV-SFR311 lens is 99.3 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The white balance of the product Panasonic WV-SFR311 consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The type of shutter of the camera of the product Panasonic WV-SFR311 is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The shutter speed of the camera of the product Panasonic WV-SFR311 is 1/10000 s. This feature allows capturing sharp images even in low light conditions.
Storage support
Does the Panasonic WV-SFR311 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Panasonic WV-SFR311 have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Panasonic WV-SFR311 has compatible memory cards: SD, SDHC, SDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Panasonic WV-SFR311 is 64 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Night vision
Does the product Panasonic WV-SFR311 have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Panasonic WV-SFR311 is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Connectivity
The product Panasonic WV-SFR311 has an Interface RJ-45. This interface allows for easy and quick connection with various devices. The number of Ethernet LAN (RJ-45) ports of the product Panasonic WV-SFR311 is 1. These ports provide a stable and fast network connection for your devices. Does the product Panasonic WV-SFR311 have a DC Input? Oui. This specification ensures compatibility with DC power supplies. The headphone output of the Panasonic WV-SFR311 is %. This output allows for easy connection of headphones or a headset for an optimal audio experience.
Network
Does the product Panasonic WV-SFR311 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Panasonic WV-SFR311 contains -. This Wifi allows for a fast and reliable wireless connection for all your devices. The wiring technology of the product Panasonic WV-SFR311 contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The supported network protocols of the product Panasonic WV-SFR311 are TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP. These protocols ensure efficient and reliable communication for your networking needs.
Audio
The audio system of the product Panasonic WV-SFR311 is stereo. This audio system provides an immersive and high-quality sound experience. The supported audio formats of the product Panasonic WV-SFR311 are LC-AAC. These formats ensure optimal compatibility for an enriching listening experience. Does the product Panasonic WV-SFR311 have a built-in Microphone? -. This microphone allows for clear and precise audio capture, ideal for calls and recordings.
Weight and dimensions
The width of the product Panasonic WV-SFR311 is 129.5 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Panasonic WV-SFR311 is 129.5 mm. This dimension allows for optimal integration into your space. The diameter of the product Panasonic WV-SFR311 is 129.5 mm. This diameter allows for optimal use and fits perfectly with your needs. The height of the product Panasonic WV-SFR311 is 102.5 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Panasonic WV-SFR311 is 660 g. This weight is ideal for ensuring optimal use and easy handling.
Environmental conditions
The operating temperature of the product Panasonic WV-SFR311 is -10 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Panasonic WV-SFR311 has an operating relative humidity (H-H) of 20 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Minimum system requirements
Does the product Panasonic WV-SFR311 support the Windows operating system? Oui. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience. The supported mobile system of the product Panasonic WV-SFR311 contains Android. This system allows for smooth usage on major mobile platforms.
Packaging contents
Does the product Panasonic WV-SFR311 have a User Manual? Oui. This document provides clear instructions for optimal use of the product. Does the product Panasonic WV-SFR311 have a User Guide? Oui. This guide will allow you to fully enjoy all the features of the product.
Power
Does the Panasonic WV-SFR311 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The typical power consumption of the product Panasonic WV-SFR311 is 5.8 W. This feature allows for the assessment of the energy efficiency of the device. The electrical consumption of the product Panasonic WV-SFR311 is 120 mA. This consumption ensures optimal operation while guaranteeing energy efficiency. The AC input frequency of the product Panasonic WV-SFR311 is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The product Panasonic WV-SFR311 has a DC output in volts of +12V, +12V2. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product Panasonic WV-SFR311 is PoE. This type of power supply ensures optimal performance and efficient use of the device.
