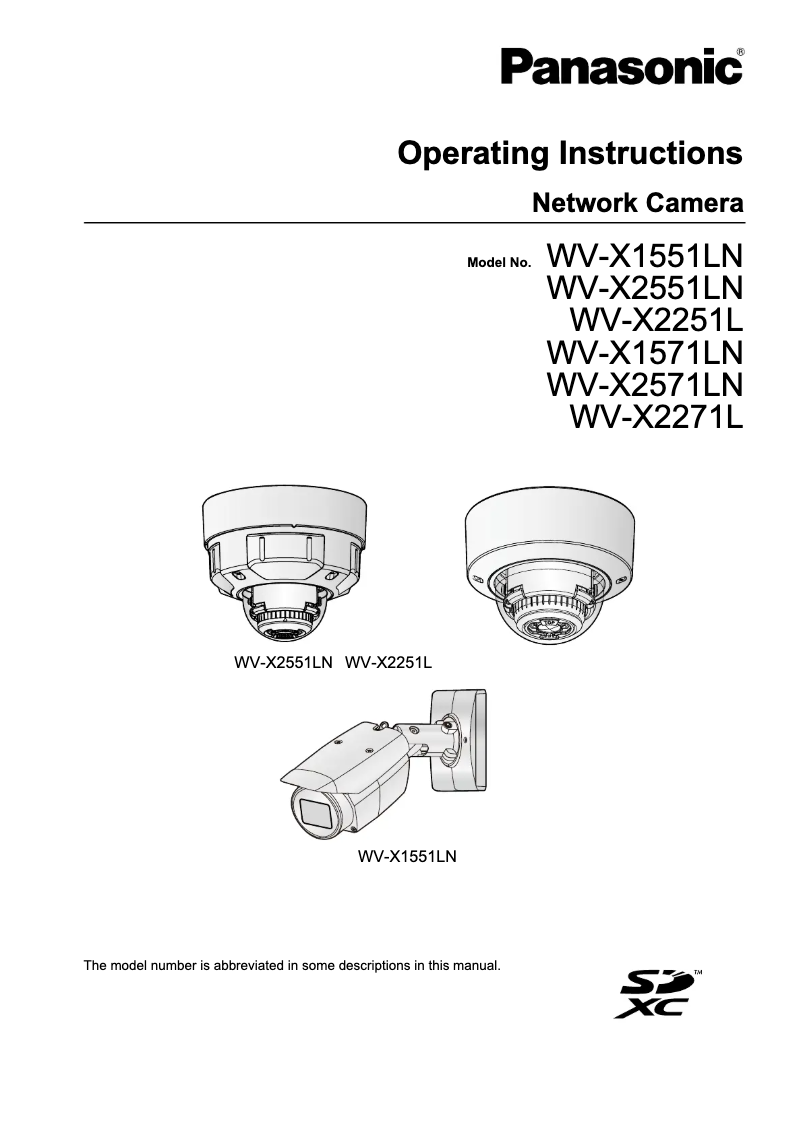

Manual of product WV-X2551LN
Technical Specifications WV-X2551LN
General Information
-
ModelWV-X2551LN
-
Brand
-
Category
-
Type
-
SKU1297645
-
MPN1297645
Representation / realization
-
Supported installationOutdoor
-
CertificationUL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
-
Languages taken into accountFCC (15 A), ICES003 A, EN55032 B, EN55024
-
Number of languagesDEU, ENG, ESP, FRE, ITA, JPN, POR, RUS
-
Entry/exit alarm9
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
TypeYes
-
Connectivity technologyIP security camera
-
Wired
Weight and dimensions
-
Diameter164 mm
-
Height139 mm
-
Weight1600 g
Design
-
International Protection Code (IP)IP66
-
Protection functionsShock resistant, Vandal proof
-
Mounting typeCeiling/wall
-
FormatDome
-
Product colorWhite
-
Material of the case/bodyAluminum
Environmental conditions
-
Operating temperature-40 - 60 °C
-
Operating relative humidity (H-H)10 - 100 %
Objective system
-
Detection distance (wide)207.42 m
-
Identification distance (wide)20.74 m
-
Identification distance (tele)4.89 m
-
Detection distance (tele)48.87 m
-
Observation distance (wide)82.97 m
-
Observation distance (tele)19.55 m
-
Recognition distance (wide)41.48 m
-
Recognition distance (tele)9.77 m
-
Minimum focusing distance0.3 m
-
Focal length2.9 - 9 mm
-
Maximum number of openings1.3
-
TuningMotorized
-
Number of lenses1
-
Auto focusYes
-
Optical zoom3.1 x
-
Digital zoom4 x
-
Auto focusYes
Audio
-
Voice codecsG.711
-
G.726
Video
-
Noise reductionYes
-
Noise reductionYes
-
Binary rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
-
Image quality adjustmentBrightness
-
Noise reductionYes
-
Number of images per second30 fps
-
Maximum resolution3072 x 1728 pixels
-
Total megapixels5 MP
-
Supported graphic resolutions320 x 180, 640 x 360, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3072 x 1728
-
Visual compression formatsH.264, H.265
Packaging contents
-
Number of cameras1
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
Power
-
Power supply typeDC, PoE
-
Consumption (max)11.8 W
-
Energy consumption (Power over Ethernet (PoE))12.5 W
-
Output CC in volts12
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.8
Camera
-
Camera shutter speed1/30 - 1/10000, 1/25 - 1/10000 s
-
White balanceATW, AWC
-
Panoramic-180 - 180 °
-
Inclination angle-30 - 85 °
-
Field of view of the lens, horizontal103 °
-
Angle of view of the lens, vertical55 °
-
Minimum illumination0 lux
-
Camera tilt controlYes
-
Camera tilt controlYes
Security
-
Motion detector (video)Yes
-
Motion detector (video)Yes
Connectivity
-
Microphone jack inputYes
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
Storage support
-
Maximum memory card size256 GB
-
Compatible memory cardsSD, SDHC, SDXC
-
Integrated hard driveNo
-
Built-in memory card readerYes
Network
-
Streaming methodMulticast
-
Number of usersUnicast
-
Ethernet/LAN14 user(s)
-
BluetoothYes
-
BluetoothNo
-
Type of Ethernet interfaceNo
-
Network standardsFast Ethernet
-
Supported network protocolsIEEE 802.1x, IEEE 802.3af
-
TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ
Similar products
More product categories from brand Panasonic
Home appliances Panasonic
Phones Panasonic
Audio Panasonic
Camera and photography Panasonic
Personal care Panasonic
Other Panasonic
Tools Panasonic
Interior Panasonic
More product types from brand Panasonic
Presentation of product WV-X2551LN specifications from brand Panasonic
Generalities
The brand of the product Panasonic WV-X2551LN is Panasonic. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Panasonic WV-X2551LN is 4010869301855. This code allows for the unique identification of the product in the distribution system. The product model Panasonic WV-X2551LN is WV-X2551LN | WV-X2551LN. This model ensures optimal performance and an enhanced user experience.
Weight and dimensions
The diameter of the product Panasonic WV-X2551LN is 164 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Panasonic WV-X2551LN is 1600 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Panasonic WV-X2551LN is 139 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Design
The International Protection Code (IP) for product Panasonic WV-X2551LN contains IP66. This code indicates the level of protection against solid objects and moisture. The product Panasonic WV-X2551LN has Shock resistant, Vandal proof protection features. These characteristics ensure reliable use in various environmental conditions. The format of the product Panasonic WV-X2551LN is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Panasonic WV-X2551LN is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Panasonic WV-X2551LN is Blanc. This shade gives it a modern and elegant look. The material of the product case Panasonic WV-X2551LN is Aluminium. This material ensures both durability and elegance.
Environmental conditions
The product Panasonic WV-X2551LN has an operating relative humidity (H-H) of 10 - 100 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Panasonic WV-X2551LN is -40 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Representation / realization
The design of the product Panasonic WV-X2551LN supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The number of languages of the product Panasonic WV-X2551LN is 9. This product offers an enriching multilingual experience. The languages considered for the product Panasonic WV-X2551LN are DEU, ENG, ESP, FRE, ITA, JPN, POR, RUS. This product thus caters to a wide international audience. The certification of the product Panasonic WV-X2551LN contains UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1\nFCC (15 A), ICES003 A, EN55032 B, EN55024. This certification guarantees compliance with the required safety and performance standards. Does the product Panasonic WV-X2551LN have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Panasonic WV-X2551LN have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The product Panasonic WV-X2551LN features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Panasonic WV-X2551LN have an entry/end Alarm? Oui. This feature effectively secures access to your space. The type of product Panasonic WV-X2551LN is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior.
Audio
The voice codec of the Panasonic WV-X2551LN product contains G.711, G.726. This voice codec ensures optimal audio quality for your communications.
Packaging contents
The number of cameras of the product Panasonic WV-X2551LN is 1. This product is equipped with a camera that allows capturing high-quality images.
Night vision
Does the product Panasonic WV-X2551LN have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Panasonic WV-X2551LN is 30 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Panasonic WV-X2551LN is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Video
Does the product Panasonic WV-X2551LN have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Panasonic WV-X2551LN have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. The binary bitrate control of the product Panasonic WV-X2551LN contains Constant Bit Rate (CBR)/Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes. The image quality setting of the product Panasonic WV-X2551LN contains Luminosité. This setting allows for optimizing the display for an enhanced visual experience. Does the product Panasonic WV-X2551LN have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The number of frames per second of the product Panasonic WV-X2551LN is 30 ips. This specification ensures optimal smoothness when playing videos. The maximum resolution of the product Panasonic WV-X2551LN is 3072 x 1728 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Panasonic WV-X2551LN are 320 x 180,640 x 360,1280 x 720 (HD 720),1920 x 1080 (HD 1080),2560 x 1440,3072 x 1728. These resolutions provide optimal display quality for your content. The product Panasonic WV-X2551LN has visual compression formats: H.264, H.265. These formats ensure optimal image quality for your videos. The total megapixels of the product Panasonic WV-X2551LN is 5 MP. This total ensures exceptional image quality for your photos.
Objective system
The identification distance (wide) of the product Panasonic WV-X2551LN is 20.74 m. This specification ensures optimal performance for applications requiring long-range recognition. The detection distance (wide) of the product Panasonic WV-X2551LN is 207.42 m. This feature allows for effective identification over a wide area, ensuring optimal performance. The identification (tele) distance of the product Panasonic WV-X2551LN is 4.89 m. This specification allows for determining the remote identification range, essential for optimal use. The detection distance (tele) of the product Panasonic WV-X2551LN is 48.87 m. This specification ensures optimal performance for your remote detection needs. The observation distance (wide) of the product Panasonic WV-X2551LN is 82.97 m. This feature allows for an extended and clear view over long distances. The recognition (tele) distance of the product Panasonic WV-X2551LN is 9.77 m. This specification allows for assessing the effective range of the lens in terms of detecting subjects at a distance. The observation (tele) distance of the product Panasonic WV-X2551LN is 19.55 m. This specification allows for an appreciation of the lens's range for distant shots. The recognition distance (wide) of the product Panasonic WV-X2551LN is 41.48 m. This feature allows for effective identification over long distances. The minimum focusing distance of the product Panasonic WV-X2551LN is 0.3 m. This feature allows for sharp images even at relatively far distances. The focal length of the product Panasonic WV-X2551LN is 2.9 - 9 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The maximum number of openings for the product Panasonic WV-X2551LN is 1.3. This feature allows for optimal use and increased flexibility. The adjustment of the Panasonic WV-X2551LN is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The number of lenses in the product Panasonic WV-X2551LN is 1. This number determines the quality and versatility of the lens. Does the product Panasonic WV-X2551LN have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The optical zoom of the product Panasonic WV-X2551LN is 3.1 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The digital zoom of the product Panasonic WV-X2551LN is 4 x. This zoom allows for capturing precise details even from a distance. Does the Panasonic WV-X2551LN have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus.
Power
The type of power source for the product Panasonic WV-X2551LN is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The product Panasonic WV-X2551LN has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Panasonic WV-X2551LN is 11.8 W. This specification allows for the assessment of the energy efficiency of the device. The energy consumption of the product Panasonic WV-X2551LN is 12.5 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed.
Security
Does the product Panasonic WV-X2551LN have Privacy Protection? Oui. This feature ensures the security of your personal data and enhances your trust in using the product. Does the product Panasonic WV-X2551LN have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections.
Image sensor
The number of sensors of the product Panasonic WV-X2551LN is 1. This number of sensors allows for precise and efficient image detection. The optical sensor size of the product Panasonic WV-X2551LN is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product Panasonic WV-X2551LN is CMOS. This type of sensor ensures optimal image quality for your needs.
Connectivity
The output component of the product Panasonic WV-X2551LN contains 1. This specification ensures optimal connectivity for efficient use. Does the product Panasonic WV-X2551LN have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The number of Ethernet LAN (RJ-45) ports of the product Panasonic WV-X2551LN is 1. These ports provide a stable and fast network connection for your devices.
Camera
The white balance of the product Panasonic WV-X2551LN consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The panoramic view of the product Panasonic WV-X2551LN is -180 - 180 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product Panasonic WV-X2551LN is -30 - 85 °. This angle allows for adjusting the position for optimal comfort. The shutter speed of the camera of the product Panasonic WV-X2551LN is 1/30 - 1/10000, 1/25 - 1/10000 s. This feature allows capturing sharp images even in low light conditions. The field of view of the Panasonic WV-X2551LN lens is 103 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Panasonic WV-X2551LN is 55 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The minimum illumination of the product Panasonic WV-X2551LN is 0 lux. This feature ensures optimal performance even in low light conditions. Does the product Panasonic WV-X2551LN have a camera pan command? No. This feature is not available on this model. The tilt command of the Panasonic WV-X2551LN camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives.
Storage support
Does the Panasonic WV-X2551LN have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Panasonic WV-X2551LN have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Panasonic WV-X2551LN has compatible memory cards: SD, SDHC, SDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Panasonic WV-X2551LN is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Network
Does the product Panasonic WV-X2551LN have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The number of users of the product Panasonic WV-X2551LN is 14 utilisateur(s). This product is ideal for several people. The streaming method of the product Panasonic WV-X2551LN is Multicast, Unicast. This method allows for efficient data transmission to multiple users simultaneously. The Wifi of the product Panasonic WV-X2551LN contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Panasonic WV-X2551LN have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Ethernet interface type of the product Panasonic WV-X2551LN is Fast Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product Panasonic WV-X2551LN are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Panasonic WV-X2551LN are TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ. These protocols ensure efficient and reliable communication for your networking needs.
