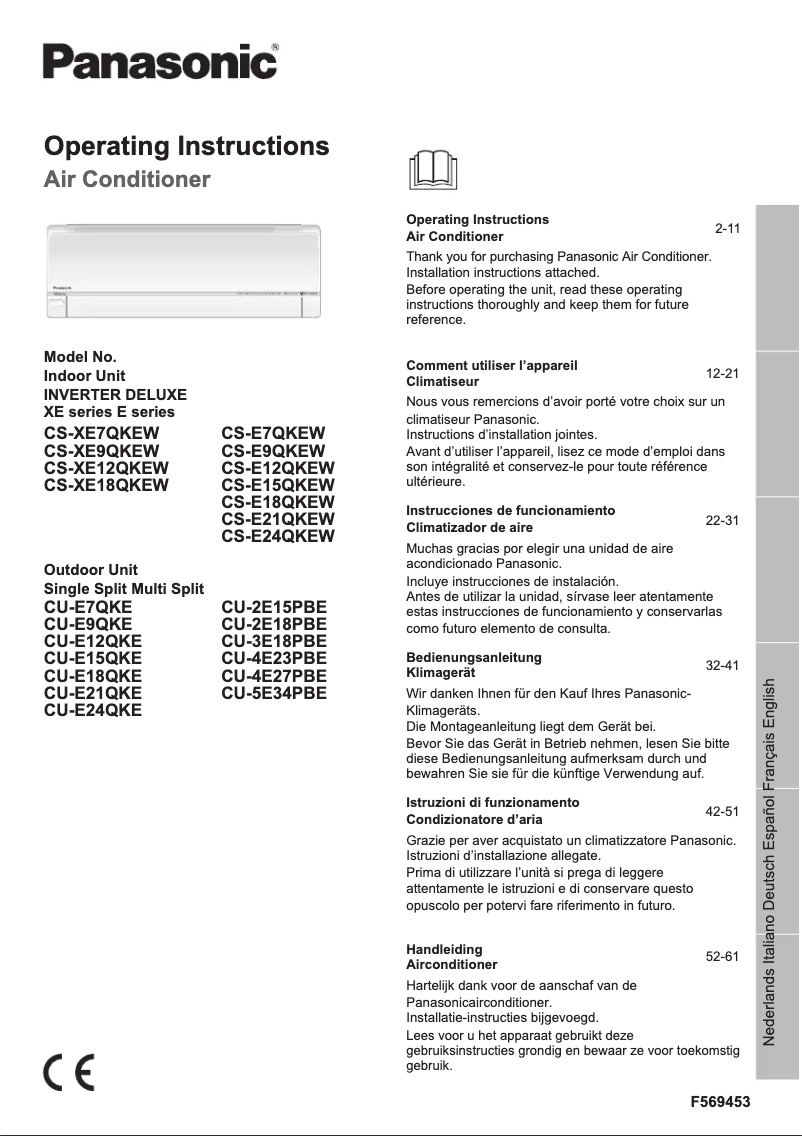

Manual of product CS-E12QKEW
Editorial note
The Panasonic CS-E12QKEW is a wall-mounted air conditioner that stands out for its high energy efficiency, with an A++ rating for both cooling and heating. Its cooling capacity of up to 4000 W and heating capacity of 6000 W ensure pleasant thermal comfort throughout the year. Additionally, the included remote control makes remote operation easy, while the timer function allows for effective management of usage time. However, some aspects may pose problems. The noise level of 58 dB may be considered high, which could disturb some people, especially at night. The lack of features such as an ionizer or a multi-split system limits the options for adapting to users' specific needs. Furthermore, although the product is rated A++ for energy efficiency, its annual heating consumption (933 kWh) could lead to significant energy costs. The dehumidification capacity of 2 l/h may also prove insufficient in particularly humid environments, thus affecting indoor comfort. Regarding design, the air conditioner features a modern white aesthetic, harmoniously fitting into various interior styles. While the user manual is helpful, access to additional online resources could enhance support. In summary, the Panasonic CS-E12QKEW is a solid choice for those seeking an efficient and stylish air conditioner, although some potential drawbacks should be considered.Score details
User experience
The user experience is generally positive thanks to the included remote control, which allows for convenient remote operation, and the timer function for effective time management.
Performance
The cooling and heating performance is excellent, with capacities of up to 4000 W and 6000 W respectively, ensuring pleasant thermal comfort throughout the year.
Design
The modern and stylish wall design in white easily integrates into various interior styles while optimizing space.
Value for money
Although the product is rated A++ for energy efficiency, the annual energy consumption for heating (933 kWh) can lead to significant energy costs.
Usability
The noise level of 58 dB can be considered high, which may disturb some people, especially at night.
Features
The lack of features such as an ionizer or a multi-split system may limit usage options and adaptation to specific user needs.
Robustness
The dehumidification capacity of 2 l/h may not be sufficient for particularly humid spaces, affecting indoor comfort.
Support
The available user manual is helpful, but additional online resources could enhance support.
Documentation
The 64-page document provides comprehensive information, but an interactive digital version would be a plus.
Advantages
Energy efficiency A++ for energy savings.
Cooling up to 4000 W, heating 6000 W.
Remote control for easy remote operation.
Sleek wall design, fits any interior.
Timer for programming according to your needs.
Quiet operation at 58 dB.
Disadvantages
High noise level at 58 dB."
No ionizer or multi-split system."
High annual energy consumption (933 kWh)."
Insufficient dehumidification for humid spaces."
Pipe length limited to 15 m.
Technical Specifications CS-E12QKEW
General Information
-
ModelCS-E12QKEW
-
Brand
-
Category
-
Type
-
SKU1158649
-
MPN1158649
Features
-
TypeIndoor air conditioning unit
-
IonizerNo
-
Product colorWhite
-
Air conditioning functionsCooling, Dehumidifying, Heating
-
Remote-controlledYes
-
IonizerNo
-
Seasonal performance rating (cooling) (SEER)7.6
-
Seasonal efficiency rate (heating) (SCOP) (average of a heating season)4.8
-
Cooling capacity in watts (nominal)3500 W
-
Cooling capacity in Watts (min)850 W
-
Heating capacity in watts (nominal) (average of a heating season)4000 W
-
Heating capacity in watts (nominal) (average of a heating season)4000 W
-
Heating capacity in Watts (min)800 W
-
Heating capacity in Watts (max)6000 W
-
Cooling capacity (min)2900 BTU/h
-
Cooling capacity (max)13650 BTU/h
-
Remote-controlledYes
-
Medium refrigerationR410A
-
Remote-controlledYes
-
Pipe length (max)15 m
-
Dehumidification capacity2 l/h
Power
-
Energy efficiency class (heating) (average of a heating season)A++
-
Energy efficiency class (heating) (average of a heating season)A++
-
Hourly energy consumption (cooling)0.835 kWh
-
Hourly energy consumption (heating)0.840 kWh
-
Annual energy consumption (cooling)161 kWh
-
Annual energy consumption (heating) (average of a heating season)933 kWh
-
AC input voltage230 V
-
Current16 A
Indoor unit
-
Type of indoor unitWall-mounted
-
Noise level of the indoor unit (high speed)58 dB
-
Air cooling (indoor unit)804 m³/h
-
Air heating (indoor unit)822 m³/h
-
Quantity interior units1
-
Width of the inner unit870 mm
-
Depth of the indoor unit255 mm
-
Height of the indoor unit295 mm
-
Weight of the indoor unit10000 g
Frequently Asked Questions
What does the acronym BTU stand for?
What is R-410A?
How often should I clean the filters of my Panasonic air conditioner?
What is the energy rating of the Panasonic CS-E12QKEW?
How can I adjust the temperature on my Panasonic CS-E12QKEW air conditioner?
How do I change the fan speed on my Panasonic CS-E12QKEW air conditioner?
What is the effect of the 'Dry' mode on my Panasonic CS-E12QKEW air conditioner?
How do I set a timer on my Panasonic CS-E12QKEW air conditioner?
Is it possible to activate the energy-saving mode on my Panasonic CS-E12QKEW air conditioner?
Does the Panasonic CS-E12QKEW feature inverter technology?
Does the Panasonic CS-E12QKEW have an ionizer?
What is the seasonal performance coefficient for cooling of the Panasonic CS-E12QKEW?
What is the nominal heating power of the Panasonic CS-E12QKEW?
What is the maximum cooling capacity of the Panasonic CS-E12QKEW?
Is the manual for the Panasonic CS-E12QKEW available in French?
Similar products
More product categories from brand Panasonic
Home appliances Panasonic
Phones Panasonic
Audio Panasonic
Camera and photography Panasonic
Personal care Panasonic
Other Panasonic
Tools Panasonic
Interior Panasonic
More product types from brand Panasonic
Presentation of product CS-E12QKEW specifications from brand Panasonic
General Information
The Panasonic CS-E12QKEW is an air conditioner from the Panasonic brand, renowned for its innovation and the quality of its household appliances. This model is designed to provide reliable performance and a pleasant user experience. The associated EAN code, 5025232769872, allows for precise identification in distribution systems.
Features
This air conditioner adopts a wall-mounted design, combining functionality and aesthetics to harmoniously integrate into various interiors. The white color of the unit gives it a modern and elegant appearance. It is capable of cooling and heating, ensuring optimal comfort throughout the year. Thanks to its inverter technology, the CS-E12QKEW optimizes energy conversion for improved performance.
With a seasonal efficiency rating of 7.6 for cooling (SEER) and a rate of 4.8 for heating (SCOP), this unit demonstrates notable energy efficiency. Its nominal cooling capacity reaches 3500 W, with ranges varying from 850 W to 4000 W, while the nominal heating capacity is 4000 W, ranging from 800 W to 6000 W. The system also has a dehumidification capacity of 2 l/h, contributing to a healthy indoor environment.
Furthermore, the CS-E12QKEW is equipped with a remote control for convenient remote operation. Its maximum pipe length of 15 m offers installation flexibility. It operates with a refrigerant R410A, ensuring optimal cooling efficiency.
Power
This model is rated A++ in both cooling and heating categories, ensuring high performance while minimizing energy consumption. The hourly consumption is 0.835 kWh in cooling mode and 0.840 kWh in heating mode. Over a year, the consumption amounts to 161 kWh for cooling and 933 kWh for heating, allowing for an accurate assessment of the unit's energy efficiency. It operates with an input voltage of 230 V and a current of 16 A, ensuring safe use.
Indoor Unit
The type of indoor unit is wall-mounted, facilitating installation suitable for different spaces. The operating noise level is 58 dB, ensuring acceptable acoustic comfort. The indoor unit ensures efficient air circulation with a flow rate of 804 m³/h for cooling and 822 m³/h for heating, thus contributing to a pleasant indoor environment. The dimensions of the unit are optimized for easy integration: 870 mm in width, 255 mm in depth, and 295 mm in height. Weighing 10 kg, the installation of the unit is simplified.
