Air conditioning Panasonic CS-XZ20VKEW

Panasonic
Home appliances
Air conditioning

The Panasonic CS-XZ20VKEW is an innovative air conditioning system from the Panasonic brand, known for its high-quality household appliances. This model, with its island design, combines aesthetics and functionality to optimize your indoor space.

Equipped with both cooling and heating capabilities, the Panasonic CS-XZ20VKEW ensures optimal comfort throughout the year. With a cooling capacity of up to 2400 W and a maximum heating capacity of 4000 W, this unit easily adapts to varying climatic conditions, operating efficiently within a temperature range of -10 to 43 °C for cooling and -15 to 24 °C for heating.

Its inverter technology optimizes energy consumption, resulting in an energy efficiency class of A++ for cooling and A++ in heating mode. Additionally, the seasonal efficiency ratio (SCOP) of 4.7 ensures energy savings during the heating seasons.

The product design includes a wall-mounted indoor unit and an outdoor unit, with a noise level of only 19 dB for the indoor unit, ensuring quiet operation. The Panasonic CS-XZ20VKEW is also equipped with a Wi-Fi connection for easy and convenient control via your mobile devices.

In summary, the Panasonic CS-XZ20VKEW is a high-performance air conditioning solution, combining thermal comfort, energy efficiency, and modern design, ideal for creating a pleasant indoor environment throughout the year.

Manual of product CS-XZ20VKEW

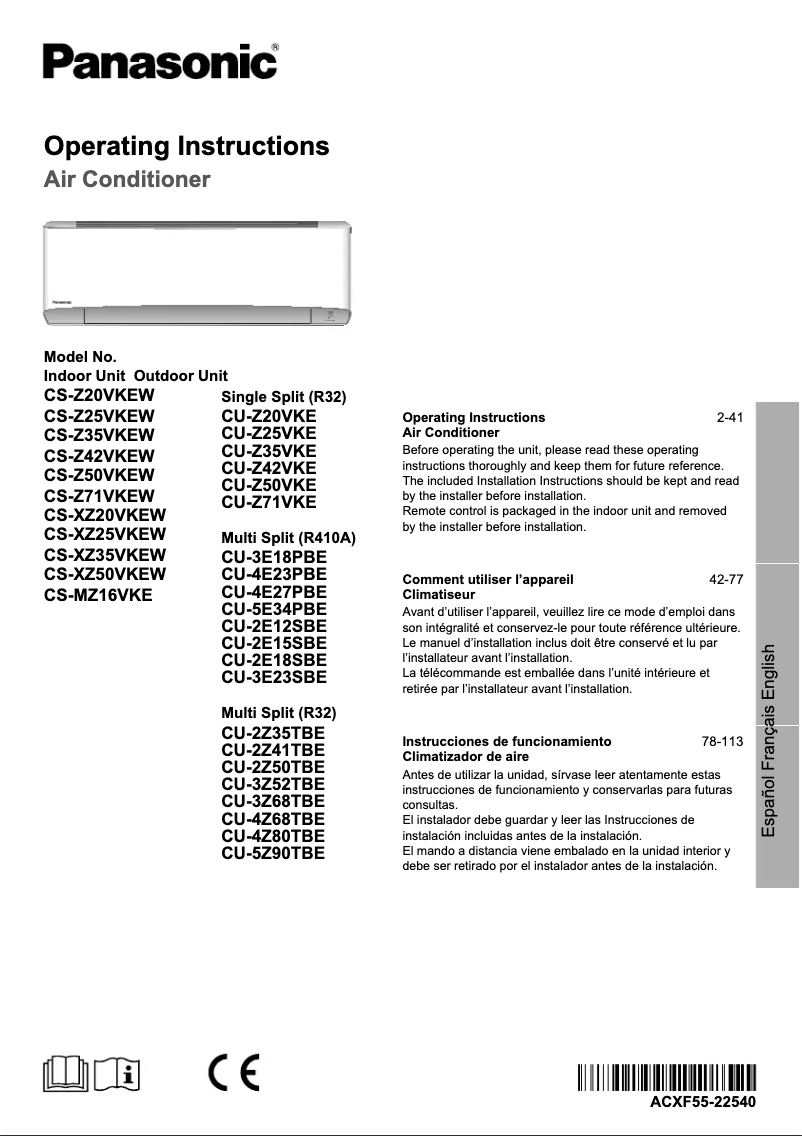

First page image of the manual for CS-XZ20VKEW

User Manual
116 pages
View manual
7 10

Editorial note

The Panasonic CS-XZ20VKEW air conditioner stands out for its modern and elegant design in silver color, allowing it to blend harmoniously into various interior decors. Its use is facilitated by intuitive features, and it offers optimal comfort throughout the year thanks to its efficient heating and cooling capabilities. Additionally, it incorporates inverter technology that optimizes energy consumption, thus contributing to savings on electricity bills. However, some drawbacks are worth noting. The absence of the Multi split feature limits its use to a single space, which can be problematic for larger homes or offices. Furthermore, the lack of an ionizer may be seen as a disadvantage for those seeking additional air purification. The seasonal efficiency ratio (SCOP) for heating is missing, complicating the assessment of energy efficiency during the winter season. Although the noise level of the indoor unit is relatively low at 19 dB, the outdoor unit reaches 46 dB, which could be disturbing in quiet residential environments. Finally, its operating temperature range for heating, limited to -15 to 24 °C, may not be sufficient in regions with harsh winters. Overall, the Panasonic CS-XZ20VKEW offers good value for money, but its limitations in terms of features and performance in extreme conditions may influence users' choices. The provided user manual is comprehensive and contains clear instructions, making it easier to get accustomed to the product.

Score details

User experience

The user experience is enhanced by a modern and sleek silver design, easily fitting into various interior decors.

Performance

The heating and cooling features ensure optimal comfort, although the seasonal efficiency ratio (SCOP) for heating is missing, complicating the assessment of energy efficiency.

Design

The design is modern and elegant, which is a major asset for integration into indoor spaces.

Value for money

The product offers good value for its price, but the absence of certain features like Multi split and the ionizer can be a drawback.

Usability

Usability is facilitated by intuitive features, although the operation of the outdoor unit can be disturbing with a noise level of 46 dB.

Features

Although the product has useful features like dehumidification capacity, the lack of an ionizer and Multi split functionality limits its appeal.

Support

The user manual is provided and contains clear instructions for optimal use.

Documentation

The available document is comprehensive with 116 pages, offering detailed information about the product.

Advantages

Modern and elegant design in silver

Heating and cooling all year round

Energy optimization through converter technology

Silent operation at 19 dB

Dehumidification of 1.3 l/h for comfort

Disadvantages

No Multi split feature available.

Absence of ionizer for air purification.

Heating SCOP not specified.

Noisy outdoor unit at 46 dB.

Heating range limited to -15 °C.

Technical Specifications CS-XZ20VKEW

General Information

Features

  • Seasonal efficiency rate (heating) (SCOP) (warmest heating season)
    -
  • Seasonal efficiency class (heating) (heating season)
    -
  • Type
    Sharing system
  • Ionizer
    No
  • Product color
    Money
  • Air conditioning functions
    Cooling, Dehumidifying, Heating
  • Converter technology
    Yes
  • Ionizer
    No
  • Operating temperature (cooling) (T-T)
    -10 - 43 °C
  • Operating temperature (heating) (T-T)
    -15 - 24 °C
  • Medium refrigeration
    R32
  • Average refrigeration weight
    700 g
  • Pipe length (min)
    3 m
  • Pipe length (max)
    15 m
  • Gas pipe diameter
    12.7 mm
  • Liquid pipe diameter
    6.35 mm
  • Dehumidification capacity
    1.3 l/h
  • Heating capacity in Watts (min)
    700 W
  • Heating capacity in Watts (max)
    4000 W
  • Heating capacity in watts (nominal) (warmest heating season)
    - W
  • Heating capacity in watts (nominal) (warmest heating season)
    - W
  • Seasonal performance rating (heating) (SCOP)
    4.7
  • Cooling capacity in watts (nominal)
    2050 W
  • Cooling capacity in Watts (min)
    750 W
  • Cooling capacity in Watts (max)
    2400 W
  • Heating capacity in watts (nominal) (average of a heating season)
    2800 W
  • Seasonal performance rating (cooling) (SEER)
    7.5
  • Seasonal performance rating (heating) (SCOP)
    4.7

Power

  • Energy efficiency class (heating) (SCOP) (warmer heating season)
    -
  • Energy efficiency class (heating) (heating season)
    -
  • Energy efficiency range
    A+++ to D
  • Hourly energy consumption (heating)
    - kWh
  • Hourly energy consumption (heating)
    - kWh
  • AC input voltage
    230 V
  • AC input frequency
    50 Hz
  • Energy efficiency class (heating) (average of a heating season)
    A++
  • Energy efficiency class (heating) (average of a heating season)
    A++
  • Hourly energy consumption (heating)
    - kWh
  • Hourly energy consumption (heating)
    - kWh
  • Design load (heating) (cold heating season)
    - kW
  • Design load (heating) (cold heating season)
    - kW
  • Nominal load (cooling)
    2.05 kW
  • Nominal load (heating) (average heating season)
    2.8 kW
  • Annual energy consumption (cooling)
    98 kWh
  • Annual energy consumption (heating) (average of a heating season)
    626 kWh

Packaging contents

  • User manual
    Yes
  • User manual
    Yes

Outdoor unit

  • Noise level of the outdoor unit
    46 dB
  • Quantity outdoor units
    1
  • Width of the outdoor unit
    780 mm
  • Depth of the outdoor unit
    289 mm
  • Height of the outdoor unit
    542 mm
  • Weight of the outdoor unit
    27000 g
  • Air cooling (outdoor unit)
    1614 m³/h
  • Air heating (outdoor unit)
    1446 m³/h

Indoor unit

  • Type of indoor unit
    Wall mounting
  • Quantity interior units
    1
  • Width of the inner unit
    919 mm
  • Depth of the indoor unit
    194 mm
  • Height of the indoor unit
    295 mm
  • Weight of the indoor unit
    9000 g
  • Air cooling (indoor unit)
    594 m³/h
  • Air heating (indoor unit)
    642 m³/h
  • Noise level of the indoor unit (low speed)
    19 dB
  • Noise level of the indoor unit (high speed)
    37 dB

Network

  • Wifi
    Yes

Frequently Asked Questions

What is the BTU?
The BTU, or British Thermal Unit, is a unit used to measure cooling capacity.
What does R-410A represent?
R-410A is a type of refrigerant used in devices capable of cooling down to zero degrees Celsius.
How often should I clean the filters of my Panasonic air conditioner?
To ensure good air quality, it is recommended to clean the filters of your Panasonic air conditioner at least four times a year.
What is the energy rating of the Panasonic CS-XZ20VKEW?
The Panasonic CS-XZ20VKEW is rated A++ in terms of energy efficiency.
Does the Panasonic CS-XZ20VKEW have inverter technology?
Yes, the Panasonic CS-XZ20VKEW is equipped with inverter technology, allowing it to adjust the compressor speed according to cooling or heating needs, thus providing superior energy efficiency and better temperature control compared to non-inverter models.
What is the energy efficiency of the Panasonic CS-XZ20VKEW?
The Panasonic CS-XZ20VKEW is rated on an energy efficiency scale from A+++ to D, indicating that it is very energy-efficient, allowing for a significant reduction in electricity consumption compared to less efficient models.
Does the Panasonic CS-XZ20VKEW come with an ionizer?
No, the Panasonic CS-XZ20VKEW does not include an ionizer function. Although an ionizer can improve air quality by removing particles and allergens, its absence does not compromise performance, as this model still offers effective cooling, dehumidification, and heating capabilities.
Can I use a remote control to operate the Panasonic CS-XZ20VKEW?
Yes, the Panasonic CS-XZ20VKEW comes with a remote control, allowing users to easily adjust its settings from a distance for convenient use.
What is the noise level of the outdoor unit of the Panasonic CS-XZ20VKEW?
The outdoor unit of the Panasonic CS-XZ20VKEW operates at a noise level of 46 dB, which is relatively low and contributes to quiet operation for better comfort.
What should I do if I cannot register the Panasonic CS-XZ20VKEW air conditioner on the app?
If you are having trouble registering the Panasonic CS-XZ20VKEW air conditioner on the app, follow these steps: 1. Check the compatibility of your smartphone's operating system with the 'Panasonic Comfort Cloud' app. 2. Ensure that the air conditioner and router are properly connected, that the LAN signal reaches the unit, and that the MAC address and dual-band signal settings are correct. 3. To register another air conditioner, configure the additional settings after registering the first unit. 4. To add a new user to control the network adapter, create a new Panasonic ID and follow the setup process. 5. If the wireless signal is interrupted, check its strength and reset the unit if necessary. These steps are based on the manual of the Panasonic CS-XZ20VKEW.
What should I do if the Panasonic Comfort Cloud app does not connect to the air conditioner?
If the Panasonic Comfort Cloud app fails to connect to the Panasonic CS-XZ20VKEW air conditioner, try the following steps: 1. Check the compatibility of your smartphone's operating system with the app. 2. Check the connection between the air conditioner and the router. 3. To register another air conditioner, follow the setup steps after the first unit. 4. To add a new user, create a new Panasonic ID and follow the process. 5. If the wireless signal is weak, check its strength and reset the unit if needed. These steps are taken from the manual of the Panasonic CS-XZ20VKEW.
Why is the weekly timer not working on my Panasonic CS-XZ20VKEW air conditioner?
If the weekly timer on your Panasonic CS-XZ20VKEW air conditioner is not working, check the following: 1. Ensure that the time and date are correctly set on the remote control. 2. Check that the timer is properly programmed. 3. Make sure the timer operation is enabled. 4. Verify that the air conditioner is in a mode compatible with the timer. 5. If the problem persists, try resetting the device. These tips are based on information from the manual of the Panasonic CS-XZ20VKEW.
How can I troubleshoot if the silent mode is not working properly on my Panasonic CS-XZ20VKEW air conditioner?
To troubleshoot an issue with the silent mode of your Panasonic CS-XZ20VKEW air conditioner, try the following steps: 1. Check that the silent mode is activated on the remote control. 2. Ensure that the fan speed is set to minimum. 3. Check the installation and leveling of the unit. 4. Clean or replace the air filters. 5. Ensure there are no obstructions around the air intake and exhaust. These steps are based on the manual of the Panasonic CS-XZ20VKEW.
What should I do if I cannot find the user manual in the Panasonic Comfort Cloud app?
If you are unable to locate the user manual in the Panasonic Comfort Cloud app for the Panasonic CS-XZ20VKEW air conditioner, follow these steps: 1. Open the app and go to the menu tab. 2. Look for an option related to 'Documentation' or 'Manuals'. 3. If you cannot find this option, you can visit the Panasonic website to download the user manual using your air conditioner's model number. These steps are general and may vary depending on the version of the app.
How can I troubleshoot issues if the biocide product of my Panasonic CS-XZ20VKEW air conditioner is not working properly?
For issues with the biocide product of your Panasonic CS-XZ20VKEW air conditioner, you can follow these steps: 1. Check that the device is installed and maintained properly. 2. Ensure that the biocide function is activated. 3. Confirm that the air conditioner is operating in the appropriate mode for the biocide product. 4. If the problem persists, contact customer service for assistance. These recommendations are based on the manual of the Panasonic CS-XZ20VKEW.
Is the manual for the Panasonic CS-XZ20VKEW available in French?
Yes, the manual for the Panasonic CS-XZ20VKEW is available in French.
