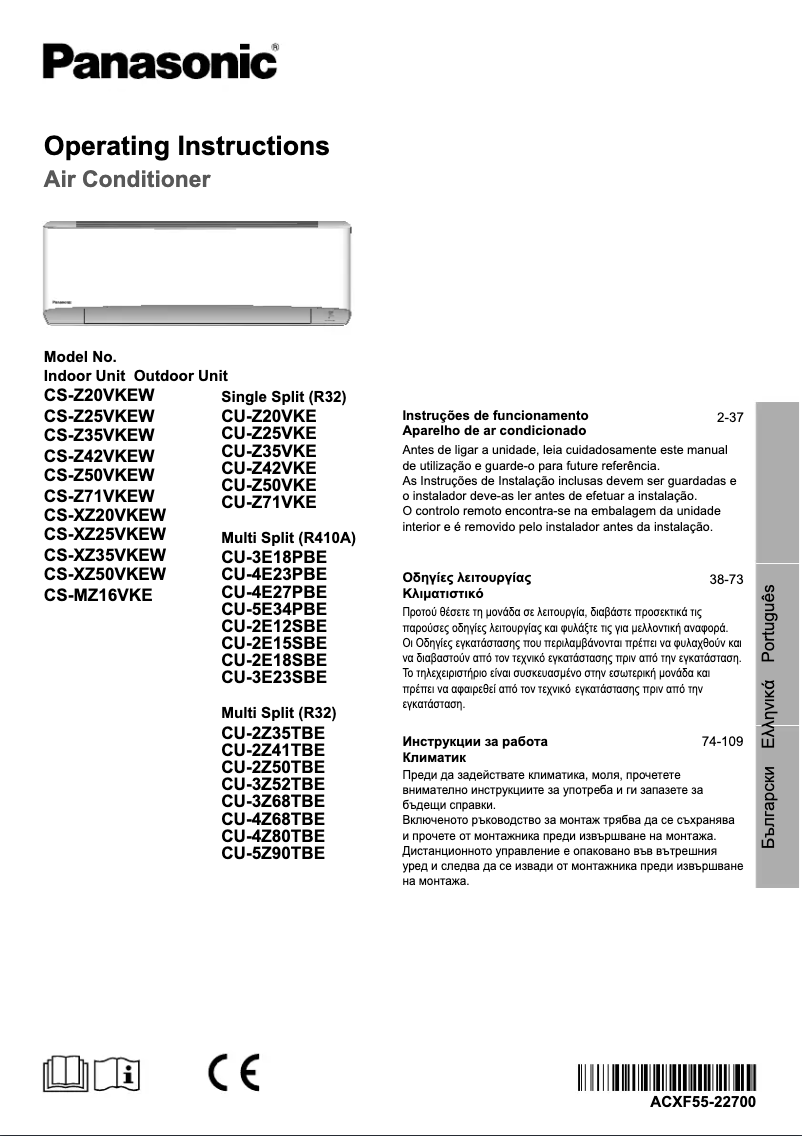

Manual of product CS-XZ50VKEW
Editorial note
The Panasonic CS-XZ50VKEW is an air conditioner that stands out for its remarkable energy efficiency, displaying an A++ rating. This allows users to save on their energy bills while maintaining pleasant thermal comfort, regardless of the climate. Additionally, its versatility is a major asset, offering both cooling and heating functions, making it suitable for year-round use. Its modern and aesthetic design, with a silver finish, allows the Panasonic CS-XZ50VKEW to blend harmoniously into various interiors. Installation is facilitated by a maximum pipe length of 20 meters, providing appreciated flexibility. However, it is important to note that this installation requires the intervention of a professional, which may incur additional costs. Nevertheless, some drawbacks deserve to be highlighted. The outdoor unit can reach a noise level of 47 dB, which could be disturbing in quiet environments, even though the indoor unit remains discreet at 30 dB. Furthermore, the absence of features such as Multi split and the ionizer may limit its use for those seeking air purification or needing multiple units for the same space. Finally, the heating capacity in cold periods is not specified, leaving doubts about its effectiveness in extreme winter conditions. In summary, the Panasonic CS-XZ50VKEW is a solid choice for those looking for a high-performance and aesthetic air conditioner, but it is essential to consider its limitations before making a purchase decision.Score details
Value for money
Optimal energy efficiency with an A++ rating allows for savings on energy bills while ensuring thermal comfort.
Features
The versatility of operation, thanks to cooling and heating functions, offers comfort throughout the year, adapting to different climatic conditions.
Design
The modern and aesthetic design with a silver finish allows the Panasonic CS-XZ50VKEW to easily blend into various interiors.
Usability
The flexible installation with a maximum pipe length of 20 m offers great adaptability but requires professional installation, which may incur additional costs.
Robustness
Although the indoor unit is quiet (30 dB), the outdoor unit can reach 47 dB, which could disturb some users in quiet environments.
Support
The absence of Multi split functionality and an ionizer may be a disadvantage for some users, limiting its use in spaces requiring multiple units and additional air purification.
Documentation
The product comes with a clear user manual, although the heating capacity in cold periods is not specified, raising doubts about its effectiveness in extreme winter conditions.
Advantages
A++ energy efficiency for energy savings
Cooling and heating function all year round
Modern design that fits into various interiors
Flexible installation up to 20 m of pipe
Silent operation at 30 dB indoors
Wi-Fi connectivity for remote management
Disadvantages
No multi-split feature available.
Absence of ionizer for air purification.
Noisy outdoor unit at 47 dB.
Professional installation required and expensive.
Heating capacity in winter not specified.
Technical Specifications CS-XZ50VKEW
General Information
-
ModelCS-XZ50VKEW
-
Brand
-
Category
-
Type
-
SKU1158772
-
MPN1158772
Features
-
Seasonal efficiency rate (heating) (SCOP) (warmest heating season)-
-
Seasonal efficiency class (heating) (heating season)-
-
TypeSharing system
-
IonizerNo
-
Product colorMoney
-
Cooling capacity in watts (nominal)5000 W
-
Air conditioning functionsCooling, Dehumidifying, Heating
-
Converter technologyYes
-
IonizerNo
-
Seasonal performance rating (cooling) (SEER)7.9
-
Seasonal efficiency rate (heating) (SCOP) (average of a heating season)4.7
-
Seasonal efficiency rate (heating) (SCOP) (average of a heating season)4.7
-
Heating capacity in Watts (min)980 W
-
Cooling capacity in Watts (max)6000 W
-
Heating capacity in watts (nominal) (coldest heating season)- W
-
Heating capacity in watts (nominal) (average of a heating season)5800 W
-
Heating capacity in watts (nominal) (coldest heating season)- W
-
Heating capacity in Watts (min)980 W
-
Heating capacity in Watts (max)8000 W
-
Medium refrigerationR32
-
Average refrigeration weight1150 g
-
Gas pipe diameter12.7 mm
-
Liquid pipe diameter6.35 mm
-
Pipe length (max)20 m
-
Dehumidification capacity2.8 l/h
-
Operating temperature (cooling) (T-T)-10 - 43 °C
-
Operating temperature (heating) (T-T)-15 - 24 °C
-
Pipe length (min)3 m
Power
-
Energy efficiency class (heating) (SCOP) (warmer heating season)-
-
Energy efficiency class (heating) (heating season)-
-
Annual energy consumption (cooling)222 kWh
-
Hourly energy consumption (heating)- kWh
-
Annual energy consumption (heating) (average of a heating season)1251 kWh
-
Hourly energy consumption (heating)- kWh
-
AC input voltage230 V
-
AC input frequency50 Hz
-
Nominal load (cooling)5 kW
-
Design load (heating) (cold heating season)- kW
-
Nominal load (heating) (average heating season)5.8 kW
-
Design load (heating) (cold heating season)- kW
-
Energy efficiency class (heating) (average of a heating season)A++
-
Energy efficiency class (heating) (average of a heating season)A++
-
Hourly energy consumption (heating)- kWh
-
Hourly energy consumption (heating)- kWh
-
Energy efficiency rangeA+++ to D
Indoor unit
-
Type of indoor unitWall mounting
-
Noise level of the indoor unit (low speed)30 dB
-
Noise level of the indoor unit (high speed)44 dB
-
Air cooling (indoor unit)1146 m³/h
-
Air heating (indoor unit)1230 m³/h
-
Quantity interior units1
-
Width of the inner unit1120 mm
-
Depth of the indoor unit236 mm
-
Height of the indoor unit302 mm
-
Weight of the indoor unit12000 g
Outdoor unit
-
Noise level of the outdoor unit47 dB
-
Air cooling (outdoor unit)2388 m³/h
-
Air heating (outdoor unit)2214 m³/h
-
Quantity outdoor units1
-
Width of the outdoor unit875 mm
-
Depth of the outdoor unit320 mm
-
Height of the outdoor unit695 mm
-
Weight of the outdoor unit42000 g
Packaging contents
-
User manualYes
-
User manualYes
Network
-
WifiYes
Frequently Asked Questions
What is the BTU?
What does R-410A represent?
How often should I clean the filters of my Panasonic air conditioner?
What is the energy rating of the Panasonic CS-XZ50VKEW?
Is the manual for the Panasonic CS-XZ50VKEW available in French?
Similar products
More product categories from brand Panasonic
Home appliances Panasonic
Phones Panasonic
Audio Panasonic
Camera and photography Panasonic
Personal care Panasonic
Other Panasonic
Tools Panasonic
Interior Panasonic
More product types from brand Panasonic
Presentation of product CS-XZ50VKEW specifications from brand Panasonic
General Information
The Panasonic CS-XZ50VKEW is an air conditioner from the Panasonic brand, known for its commitment to quality and innovation in the home appliance sector. This model, identified by the reference CS-XZ50VKEW | KIT-XZ50-VKE, promises high-level performance and an enhanced user experience. The EAN code 4010869355636 uniquely identifies this product in the distribution system.
Features
This air conditioner stands out with its island design, combining functionality and aesthetics to optimize your indoor space. Its silver color gives it a modern appearance. With a nominal cooling capacity of 5000 W, the CS-XZ50VKEW ensures optimal thermal comfort. This model integrates cooling and heating functions, guaranteeing well-being throughout the year. It is equipped with inverter technology, which increases its energy efficiency.
In terms of efficiency, it has a seasonal cooling efficiency ratio (SEER) of 7.9 and a seasonal heating efficiency ratio (SCOP) of 4.7, promising savings on your energy bills. Its cooling capacity ranges from 980 W to 6000 W, while its heating capacity is 5800 W. The product uses the refrigerant R32, which is recognized for its environmental efficiency.
The CS-XZ50VKEW offers installation flexibility with a maximum pipe length of 20 m and a dehumidification capacity of 2.8 l/h, contributing to maintaining a healthy indoor environment. It operates within a temperature range of -10 to 43 °C in cooling mode and -15 to 24 °C in heating mode.
Power
In terms of energy consumption, this model has an annual consumption of 222 kWh in cooling mode and 1251 kWh in heating mode during a typical season. It operates with an input voltage of 230 V and a frequency of 50 Hz, ensuring compatibility with standard electrical systems. Its energy efficiency class is rated A++, highlighting its low impact in terms of energy consumption.
Indoor Unit
The indoor unit is wall-mounted, offering adaptable installation for various spaces. Its noise level is 30 dB during normal operation, ensuring a quiet and pleasant environment. With an air flow rate of 1146 m³/h for cooling and 1230 m³/h for heating, it ensures effective air circulation. The dimensions of the indoor unit are 1120 mm wide, 236 mm deep, and 302 mm high, with a weight of 12 kg, facilitating its installation.
Outdoor Unit
The outdoor unit, on the other hand, has a noise level of 47 dB, allowing for discreet use in a residential setting. It offers an air flow rate of 2388 m³/h for cooling and 2214 m³/h for heating. Its dimensions are 875 mm wide, 320 mm deep, and 695 mm high, with a weight of 42 kg, ensuring robustness and stability during installation.
Packaging Contents
The Panasonic CS-XZ50VKEW comes with a remote control for convenient remote management, as well as a user manual detailing instructions for optimal use.
Network
The air conditioner is also equipped with Wi-Fi connectivity, allowing for effective wireless management from your connected devices.
