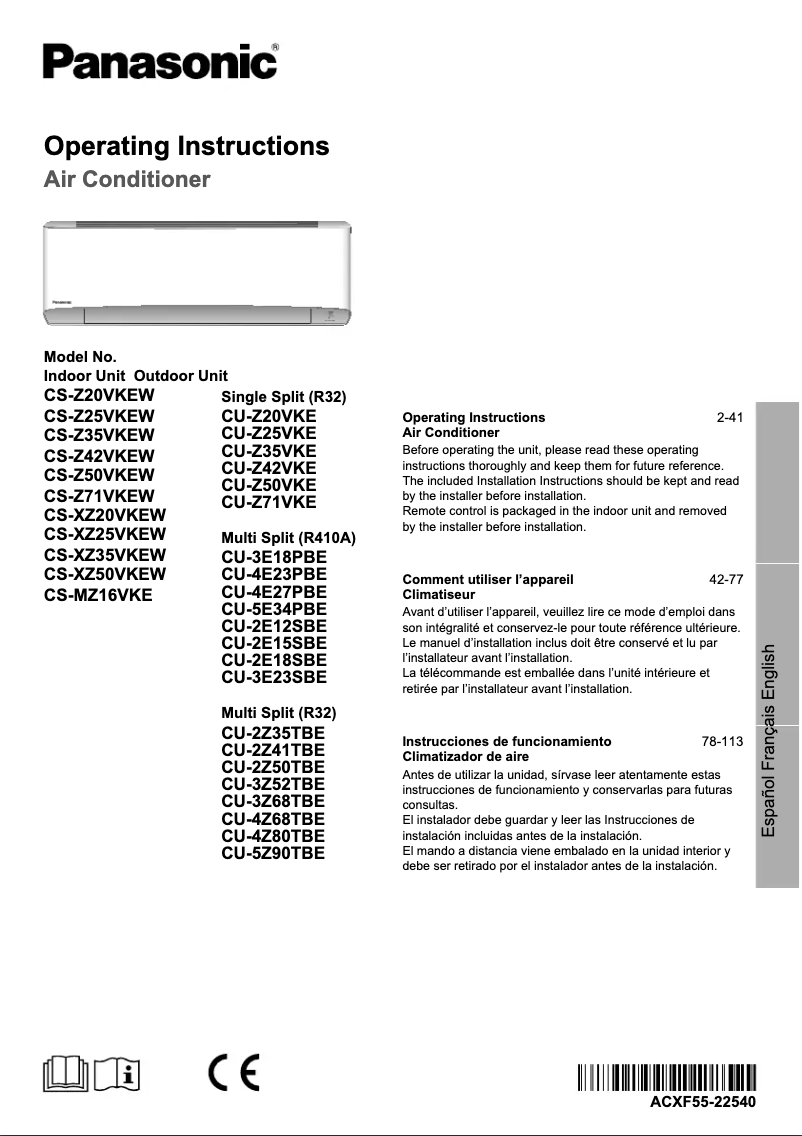

Manual of product CS-Z71VKEW
Editorial note
The Panasonic CS-Z71VKEW air conditioner stands out for its solid performance and modern design. With its cooling and heating functions, it provides optimal comfort throughout the year. The integrated inverter technology also helps optimize energy consumption, resulting in savings on electricity bills. However, this model has some limitations. The absence of the Multi split feature may restrict its use in larger spaces or with specific configurations. Additionally, the lack of an ionizer may disappoint those looking to improve indoor air quality, as this feature helps reduce allergens and pollutants. The dehumidification capacity of 4.1 l/h may also prove insufficient in very humid environments. Regarding noise, the indoor unit operates quietly at 30 dB, while the outdoor unit emits a noise of 54 dB, which could be problematic for neighbors. Finally, the weight of the outdoor unit, at 50 kg, ensures robustness, but this may make installation more complex and require structural reinforcements. Overall, the Panasonic CS-Z71VKEW is an attractive choice for those seeking an efficient and aesthetically pleasing air conditioner, while keeping in mind its few drawbacks.Score details
User experience
The user experience is very satisfactory thanks to effective cooling and heating features, ensuring comfort throughout the year.
Performance
The performance is solid with integrated inverter technology that optimizes energy consumption, although the lack of a Multi split function limits its use in larger spaces.
Design
The modern and aesthetic design with a white finish blends harmoniously into various interior decors, adding a contemporary touch.
Battery life
Although the energy features are optimized, the dehumidification capacity of only 4.1 l/h may not be sufficient in very humid environments.
Robustness
The weight of the outdoor unit at 50,000 g ensures robustness, but this may complicate installation and require structural reinforcements.
Usability
The noise level of the indoor unit is low (30 dB), providing discreet operation, while the outdoor unit at 54 dB may be disturbing to neighbors.
Advantages
Comfort all year round: heating and cooling.
Energy efficiency with inverter technology.
Modern design and white aesthetic.
Quiet operation, noise level of 30 dB.
Wide temperature range for various conditions.
Disadvantages
No Multi split feature.
Absence of air ionizer.
Insufficient dehumidification (4.1 l/h).
Noisy outdoor unit (54 dB).
High weight (50000 g) complicates installation.
Technical Specifications CS-Z71VKEW
General Information
-
ModelCS-Z71VKEW
-
Brand
-
Category
-
Type
-
SKU1204999
-
MPN1204999
Features
-
Seasonal efficiency rate (heating) (SCOP) (warmest heating season)-
-
Seasonal efficiency class (heating) (heating season)-
-
TypeSharing system
-
IonizerNo
-
Product colorWhite
-
Air conditioning functionsCooling, Dehumidifying, Heating
-
Converter technologyYes
-
IonizerNo
-
Operating temperature (cooling) (T-T)-10 - 43 °C
-
Operating temperature (heating) (T-T)-15 - 24 °C
-
Medium refrigerationR32
-
Pipe length (min)3 m
-
Pipe length (max)30 m
-
Average refrigeration weight1370 g
-
Gas pipe diameter12.7 mm
-
Liquid pipe diameter6.35 mm
-
Dehumidification capacity4.1 l/h
-
Cooling capacity in Watts (min)980 W
-
Heating capacity in Watts (max)10200 W
-
Heating capacity in watts (nominal) (warmest heating season)- W
-
Heating capacity in watts (nominal) (warmest heating season)- W
-
Seasonal performance rating (heating) (SCOP)4.2
-
Cooling capacity in watts (nominal)7100 W
-
Cooling capacity in Watts (min)980 W
-
Cooling capacity in Watts (max)8500 W
-
Heating capacity in watts (nominal) (average of a heating season)8600 W
-
Seasonal performance rating (cooling) (SEER)6.5
-
Seasonal performance rating (heating) (SCOP)4.2
Power
-
Energy efficiency class (heating) (SCOP) (warmer heating season)-
-
Energy efficiency class (heating) (heating season)-
-
Energy efficiency rangeA+++ to D
-
Hourly energy consumption (heating)- kWh
-
Hourly energy consumption (heating)- kWh
-
AC input voltage230 V
-
AC input frequency50 Hz
-
Energy efficiency class (cooling)A++
-
Energy efficiency class (heating) (average of a heating season)A+
-
Hourly energy consumption (heating)- kWh
-
Hourly energy consumption (heating)- kWh
-
Design load (heating) (cold heating season)- kW
-
Design load (heating) (cold heating season)- kW
-
Nominal load (cooling)7.1 kW
-
Nominal load (heating) (average heating season)8.6 kW
-
Annual energy consumption (cooling)382 kWh
-
Annual energy consumption (heating) (average of a heating season)1833 kWh
Packaging contents
-
User manualYes
-
User manualYes
Outdoor unit
-
Noise level of the outdoor unit54 dB
-
Quantity outdoor units1
-
Weight of the outdoor unit50000 g
-
Width of the outdoor unit875 mm
-
Depth of the outdoor unit320 mm
-
Height of the outdoor unit695 mm
-
Air cooling (outdoor unit)2682 m³/h
-
Air heating (outdoor unit)2748 m³/h
Indoor unit
-
Type of indoor unitWall mounting
-
Quantity interior units1
-
Width of the inner unit1120 mm
-
Depth of the indoor unit236 mm
-
Height of the indoor unit302 mm
-
Weight of the indoor unit13000 g
-
Air cooling (indoor unit)1188 m³/h
-
Air heating (indoor unit)1290 m³/h
-
Noise level of the indoor unit (low speed)30 dB
-
Noise level of the indoor unit (high speed)47 dB
Network
-
WifiYes
Frequently Asked Questions
What is BTU?
What does R-410A represent?
How often should I clean the filters of my Panasonic air conditioner?
What is the energy rating of the Panasonic CS-Z71VKEW?
Is the manual for the Panasonic CS-Z71VKEW available in French?
Similar products
More product categories from brand Panasonic
Home appliances Panasonic
Phones Panasonic
Audio Panasonic
Camera and photography Panasonic
Personal care Panasonic
Other Panasonic
Tools Panasonic
Interior Panasonic
More product types from brand Panasonic
Presentation of product CS-Z71VKEW specifications from brand Panasonic
General Information
The model Panasonic CS-Z71VKEW, offered by the brand renowned for its innovation and quality in the field of household appliances, is designed to deliver remarkable performance. This air conditioning system is registered under the EAN code 4010869355698, facilitating its identification in the market.
Features
This island type air conditioner features a design that is both functional and aesthetic, ideal for optimizing indoor space. Although it does not have the Multi split functionality, it is available in white, adding a modern touch to your environment. The cooling and heating capacities of the unit ensure optimal comfort throughout the year, with an operating temperature range of -10 to 43 °C for cooling and -15 to 24 °C for heating.
Incorporating inverter technology, this model optimizes energy consumption, thus ensuring efficient performance. However, it is not equipped with an ionizer, which may not meet the expectations of users concerned about air quality. Its dehumidification capacity is 4.1 l/h, which may be insufficient in very humid environments.
The air conditioner operates with a refrigerant R32, contributing to its efficiency. The pipe dimensions are optimized to ensure flexible installation, with a minimum length of 3 m and a maximum of 30 m. The weight of the outdoor unit is 50 kg, which may make its installation more complex.
Power
The Panasonic CS-Z71VKEW stands out with its energy efficiency range from A+++ to D, promoting savings on your energy bills. The energy efficiency class in heating mode is rated A+ and A++ in cooling mode, thus ensuring optimal performance. Its heating capacity varies between 980 W and 10200 W, while its cooling capacity ranges between 7100 W and 8500 W.
The seasonal efficiency ratio in cooling mode (SEER) is 6.5 and in heating mode (SCOP) is 4.2, which reflects its efficiency throughout the season.
Packaging Contents
The Panasonic CS-Z71VKEW comes with a remote control for convenient operation and a user manual providing instructions for proper installation and operation.
Outdoor Unit
The outdoor unit of the air conditioner has a noise level of 54 dB, allowing for relatively discreet operation. The width of the unit is 875 mm, with a depth of 320 mm and a height of 695 mm. Its air cooling capacity is 2682 m³/h, while the heating capacity is 2748 m³/h.
Indoor Unit
Designed for wall mounting, the indoor unit measures 1120 mm wide, 236 mm deep, and 302 mm high. Weighing 13 kg, it ensures easy installation. Its noise level is 30 dB in cooling mode and 47 dB in heating mode, ensuring acoustic comfort in your living space.
Network
The Panasonic CS-Z71VKEW is equipped with a wifi connection, allowing for quick and reliable interconnection with your wireless devices.
