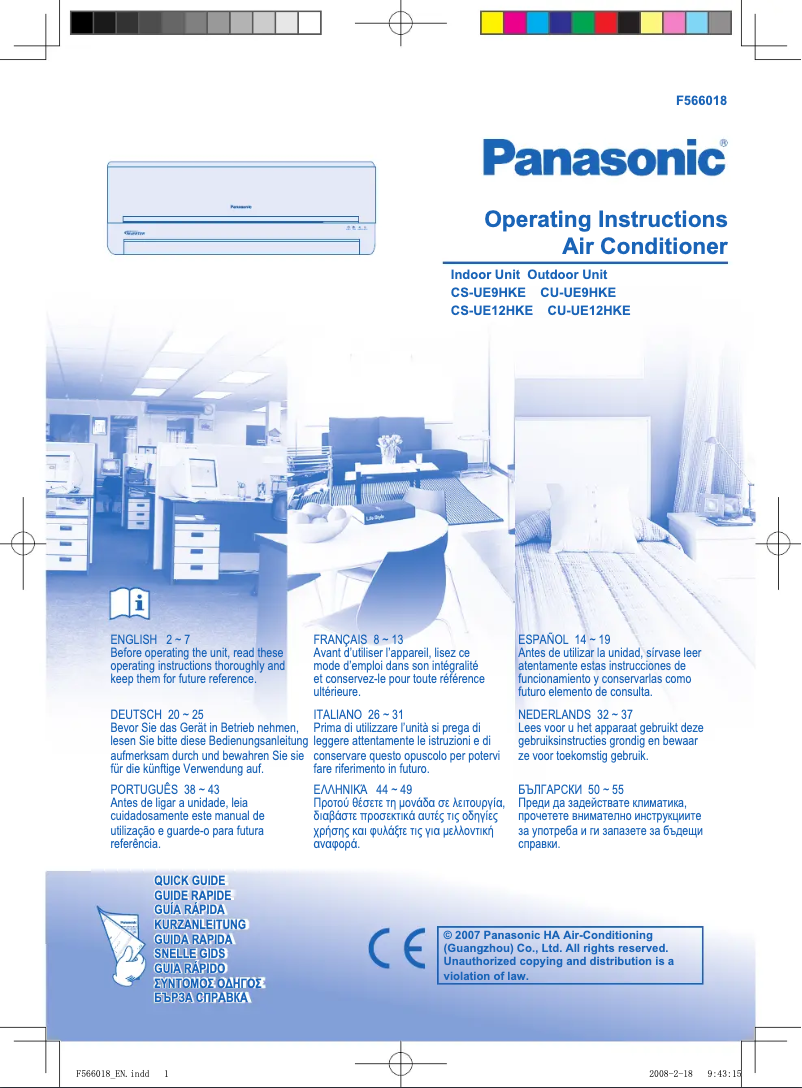

Manual of product CU-UE9HKE
Editorial note
The Panasonic CU-UE9HKE stands out for its high energy efficiency, providing optimal cooling and heating performance, with maximum capacities of 8870 BTU/h and 11250 BTU/h respectively. Its robust and compact design of the outdoor unit facilitates installation in various spaces, while its dehumidification function ensures a healthy indoor environment by eliminating excess moisture. Additionally, the noise level of the indoor unit at 47 dB guarantees discreet operation, which is an asset for residential environments. However, some drawbacks must be considered. The absence of an indoor unit in the packaging requires an additional purchase, which can increase the initial cost. Furthermore, the weight of the outdoor unit, at 28 kg, may complicate its installation, potentially requiring the assistance of several people. The noise level of 60 dB from the outdoor unit can also be disturbing, especially if placed near windows. Moreover, while dehumidification is effective, it may not be sufficient for very humid spaces, necessitating additional solutions. In terms of rating, the product receives positive scores in several categories, including performance (85) and robustness (90), highlighting its reliability and efficiency. However, areas such as value for money (70) and documentation (70) could be improved to provide an even better user experience. In summary, the Panasonic CU-UE9HKE is a solid choice for those seeking a high-performing and efficient air conditioning solution, provided that installation aspects and additional costs are taken into account.Score details
User experience
The user experience is generally positive thanks to well-thought-out features, but the absence of an indoor unit can complicate usage.
Performance
The cooling and heating performance is excellent, with maximum capacities of 8870 BTU/h and 11250 BTU/h, respectively.
Design
The design of the outdoor unit is robust and compact, making it easy to install in various spaces.
Value for money
Although energy efficiency is high, the cost of an additional indoor unit can increase the initial budget.
Robustness
The weight of the outdoor unit at 28 kg ensures optimal robustness and stability during installation.
Usability
The noise level of 47 dB ensures discreet operation, but the noise from the outdoor unit at 60 dB can be disturbing.
Features
The dehumidification features and energy efficiency add considerable value, although additional solutions may be necessary in very humid spaces.
Support
The 12-page user manual provides useful information, but more accessible technical support would be a plus.
Documentation
The documentation is present, but it could be improved to include more detailed maintenance tips.
Advantages
Energy efficiency for optimal comfort.
Compact design for easy installation.
Dehumidification of 1.5 l/h.
Silent operation at 47 dB.
Cooling capacity of 8870 BTU/h.
Heating capacity of 11250 BTU/h.
Disadvantages
Heavy outdoor unit, difficult installation.
Indoor unit not included, purchase necessary.
Noise level of 60 dB, disturbing.
Insufficient dehumidification for humid spaces.
High electricity consumption, increased bill.
Requires regular maintenance, additional costs.
Technical Specifications CU-UE9HKE
General Information
-
ModelCU-UE9HKE
-
Brand
-
Category
-
Type
-
SKU1094717
-
MPN1094717
Outdoor unit
-
Weight of the outdoor unit28000 g
-
Dimensions of the outdoor unit (LxWxH)780 x 289 x 540 mm
-
Quantity outdoor units1
-
Noise level of the outdoor unit60 dB
Features
-
TypeAir conditioning outdoor unit
-
Cooling capacity (max)8870 BTU/h
-
Heating capacity (max)11250 BTU/h
-
Cooling capacity in Watts (max)2600 W
-
Heating capacity in Watts (max)3300 W
-
Medium refrigerationR410A
-
Pipe length (max)15 m
-
Energy efficiency of the cooling system3.25
-
Energy efficiency of the heating system3.79
-
Type of compressorRotary
-
Dehumidification capacity1.5 l/h
-
Air conditioning functionscooling, heating
-
Built-in screenNo
Indoor unit
-
Quantity interior units0
Sound emission
-
Sound level (fast speed)47 dB
Power
-
Typical electricity consumption750 W
Frequently Asked Questions
What is BTU?
What does R-410A represent?
How often should I clean the filters of my Panasonic air conditioner?
Is the manual for the Panasonic CU-UE9HKE available in French?
Similar products
More product categories from brand Panasonic
Home appliances Panasonic
Phones Panasonic
Audio Panasonic
Camera and photography Panasonic
Personal care Panasonic
Other Panasonic
Tools Panasonic
Interior Panasonic
More product types from brand Panasonic
Presentation of product CU-UE9HKE specifications from brand Panasonic
General Information
The Panasonic CU-UE9HKE is an air conditioner from the renowned brand Panasonic, known for its innovation and reliability in the field of household appliances. This model, CU-UE9HKE, is designed to provide optimal cooling performance while ensuring a pleasant user experience.
Outdoor Unit
Weighing 28 kg, the outdoor unit of the Panasonic CU-UE9HKE ensures exemplary robustness and stability during installation. Its dimensions of 780 x 289 x 540 mm facilitate integration into various spaces. The device consists of a single outdoor unit, and its noise level of 60 dB guarantees relatively discreet operation, suitable for residential environments.
Features
This island-type air conditioner offers an aesthetic and practical solution to optimize your space. It provides a maximum cooling capacity of 8870 BTU/h, as well as an optimal heating capacity reaching 11250 BTU/h. In terms of power, it delivers 2600 W for cooling and 3300 W for heating. The CU-UE9HKE uses the refrigerant R410A, ensuring cooling efficiency. Its maximum pipe length of 15 m allows for flexible installation. In terms of energy efficiency, it displays a coefficient of performance of 3.25 for cooling and 3.79 for heating, contributing to savings on energy bills. Additionally, the device's rotary compressor is designed to optimize performance and energy efficiency. The dehumidification capacity of 1.5 l/h helps maintain a healthy indoor environment. The air conditioning system includes cooling and heating functions, ensuring comfort throughout the year. Finally, the unit is equipped with a built-in display for easier use.
Indoor Unit
It is important to note that the Panasonic CU-UE9HKE does not include indoor units in its packaging, which may require an additional purchase to fully benefit from its features.
Sound Emission
The noise level of the device is 47 dB, allowing for pleasant use without being too intrusive.
Power
The typical power consumption of the Panasonic CU-UE9HKE is 750 W, which allows for assessing its energy efficiency.
