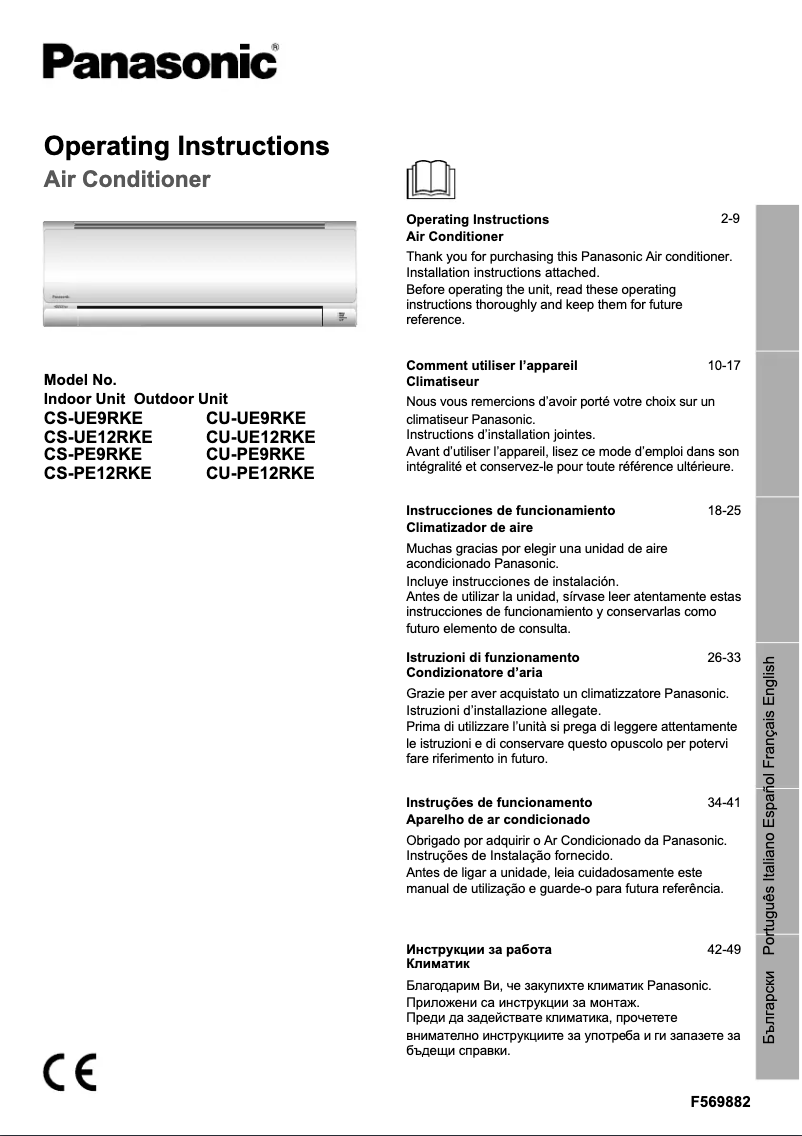

Manual of product CU-UE9RKE
Editorial note
The Panasonic CU-UE9RKE is an air conditioner that stands out for its high energy efficiency, displaying a seasonal energy efficiency ratio (SEER) of 5.6 for cooling and an energy efficiency class A for heating. These features allow for savings on energy bills while preserving the environment. Additionally, this model offers cooling and heating functions, ensuring optimal comfort throughout the year, whether in summer or winter. Its modern and aesthetic design, with a white finish, integrates harmoniously into various types of interiors. However, some drawbacks must be taken into account. The product does not have the Multi split functionality, which limits its use for multiple rooms with a single outdoor unit. The absence of an ionizer may also affect air quality, especially for those seeking air purification. The noise level of 48 dB from the outdoor unit could be perceived as bothersome in residential environments, particularly at night. Furthermore, the dehumidification capacity of 1.5 l/h may not be sufficient for very humid spaces. In terms of performance, the user experience is generally positive thanks to intuitive features, but the lack of an energy efficiency class for certain heating conditions may raise doubts. The product comes with a comprehensive user manual, providing good documentation, although some technical details are lacking. In summary, the Panasonic CU-UE9RKE is a solid choice for those looking for an efficient and aesthetically pleasing air conditioner, but it is important to consider its limitations before purchase.Score details
User experience
The user experience is generally positive thanks to a modern and aesthetic design, as well as intuitive features for thermal comfort.
Performance
The performance is solid with a seasonal efficiency ratio (SEER) of 5.6 for cooling, but the lack of an efficiency class for certain heating conditions may raise doubts.
Design
The design is very modern with a white finish that harmoniously integrates into various interiors.
Value for money
The product offers good energy efficiency for its price, but the absence of certain features like Multi split and an ionizer may limit its appeal.
Usability
The usage is generally easy, but the dehumidification capacity of 1.5 l/h may not be sufficient for very humid spaces.
Robustness
The product seems robust with solid technical specifications, but its noise level of 48 dB could be a drawback for noise-sensitive users.
Support
The product comes with a 52-page user manual, which is helpful for users seeking assistance.
Documentation
The available documentation is comprehensive, although some technical aspects lack detail, particularly regarding energy efficiency in extreme conditions.
Advantages
High energy efficiency, guaranteed savings.
Cooling and heating functions included.
Modern design that fits all interiors.
Effective dehumidification, healthy environment.
Silent operation, ideal for tranquility.
Disadvantages
No Multi split function available
Absence of ionizer for air quality
High external noise of 48 dB
No energy class for heating
Insufficient dehumidification for damp spaces
Technical Specifications CU-UE9RKE
General Information
-
ModelCU-UE9RKE
-
Brand
-
Category
-
Type
-
SKU1094916
-
MPN1094916
Features
-
Multi split-
-
Seasonal performance rating (heating) (SCOP)-
-
Seasonal efficiency rate (heating) (SCOP) (warmest heating season)-
-
Seasonal efficiency class (heating) (heating season)-
-
TypeSharing system
-
Product colorWhite
-
Air conditioning functionsCooling, Heating
-
Converter technologyYes
-
IonizerNo
-
Seasonal performance rating (cooling) (SEER)5.6
-
Seasonal efficiency rate (heating) (SCOP) (average of a heating season)3.8
-
Energy efficiency of the cooling system3.47
-
Energy efficiency of the heating system3.84
-
Cooling capacity in watts (nominal)2500 W
-
Cooling capacity in Watts (min)850 W
-
Cooling capacity in Watts (max)3000 W
-
Heating capacity in watts (nominal) (coldest heating season)- W
-
Heating capacity in watts (nominal) (average of a heating season)3300 W
-
Heating capacity in watts (nominal) (coldest heating season)- W
-
Heating capacity in Watts (min)800 W
-
Heating capacity in Watts (max)4100 W
-
Pipe length (max)15 m
-
Dehumidification capacity1.5 l/h
-
Operating temperature (cooling) (T-T)5 - 43 °C
-
Operating temperature (heating) (T-T)-10 - 24 °C
Network
-
Wifi-
Power
-
Energy efficiency class (heating) (SCOP) (warmer heating season)-
-
Energy efficiency class (heating) (heating season)-
-
Energy efficiency class (cooling)A+
-
Energy efficiency class (heating) (average of a heating season)A
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Annual energy consumption (cooling)156 kWh
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Annual energy consumption (heating) (average of a heating season)700 kWh
-
Annual energy consumption (heating) (coldest heating season)- kWh
-
Electricity Consumption (cooling) (min)250 W
-
Electricity Consumption (cooling) (max)1020 W
-
Electricity Consumption (heating) (min)195 W
-
Electricity Consumption (heating) (max)1180 W
-
AC input voltage230 V
-
Current16 A
-
Nominal load (cooling)2.5 kW
-
Design load (heating) (cold heating season)- kW
-
Nominal load (heating) (average heating season)1.9 kW
-
Design load (heating) (cold heating season)- kW
Indoor unit
-
Noise level of the indoor unit (high speed)- dB
Outdoor unit
-
Noise level of the outdoor unit48 dB
-
Air cooling (outdoor unit)1926 m³/h
-
Air heating (outdoor unit)1872 m³/h
-
Quantity outdoor units1
-
Width of the outdoor unit780 mm
-
Depth of the outdoor unit289 mm
-
Height of the outdoor unit542 mm
-
Weight of the outdoor unit31000 g
Frequently Asked Questions
What does the acronym BTU stand for?
What is R-410A?
How often should I clean the filters of my Panasonic air conditioner?
What is the energy rating of the Panasonic CU-UE9RKE?
Is the user manual for the Panasonic CU-UE9RKE available in French?
Similar products
More product categories from brand Panasonic
Home appliances Panasonic
Phones Panasonic
Audio Panasonic
Camera and photography Panasonic
Personal care Panasonic
Other Panasonic
Tools Panasonic
Interior Panasonic
More product types from brand Panasonic
Presentation of product CU-UE9RKE specifications from brand Panasonic
General Information
The Panasonic CU-UE9RKE is an air conditioner from the renowned brand Panasonic, known for the excellence of its household appliances. This model, CU-UE9RKE, is designed to deliver exceptional performance and an optimized user experience.
Features
This island type air conditioner features a design that is both functional and aesthetic, allowing for harmonious integration into your interior. Although it does not have the Multi split functionality, it stands out with its elegant white color, giving it a modern look.
The Panasonic CU-UE9RKE is equipped with cooling and heating functions, ensuring constant comfort throughout the year. Thanks to its inverter technology, it optimizes energy consumption, thus providing enhanced performance.
With a seasonal efficiency ratio (SEER) of 5.6 for cooling, this unit ranks among the most energy-efficient models. Additionally, its seasonal efficiency ratio (SCOP) for heating reaches 3.8, ensuring both efficiency and savings on your energy bills.
The nominal cooling capacity is 2500 W, with an operating range from 850 W to 3000 W. Regarding heating, it offers a nominal capacity of 3300 W for an average heating season, ranging from 800 W to 4100 W for the varied needs of your space.
Its dehumidification capacity of 1.5 l/h helps maintain a healthy environment by removing excess moisture. The air conditioner operates efficiently within a temperature range of 5 to 43 °C for cooling and -10 to 24 °C for heating.
Network
The Panasonic CU-UE9RKE does not have built-in Wi-Fi functionality, but it remains compatible with a wide range of control devices.
Power
This model benefits from an energy efficiency class A+ for cooling, ensuring optimal energy use. In heating mode, it is rated A, providing thermal comfort while keeping your energy costs in check.
The annual energy consumption for cooling is 156 kWh, while for heating, it is 700 kWh, indicating efficient energy performance over time.
The electrical consumption in cooling mode is 250 W, reaching a maximum of 1020 W. In heating mode, the consumption is 195 W, with a maximum of 1180 W.
The air conditioner operates on an input voltage of 230 V and requires a current of 16 A, ensuring safe and efficient use.
Indoor Unit
The noise level of the indoor unit is optimized to ensure quiet operation, although exact specifications are not provided.
Outdoor Unit
Regarding the outdoor unit, the noise level is 48 dB, providing discreet operation, ideal for residential environments. The air circulation capacity for cooling is 1926 m³/h, while for heating, it reaches 1872 m³/h.
The dimensions of the outdoor unit are as follows: width of 780 mm, depth of 289 mm, and height of 542 mm, with a total weight of 31 kg, ensuring robustness and stability during installation.
