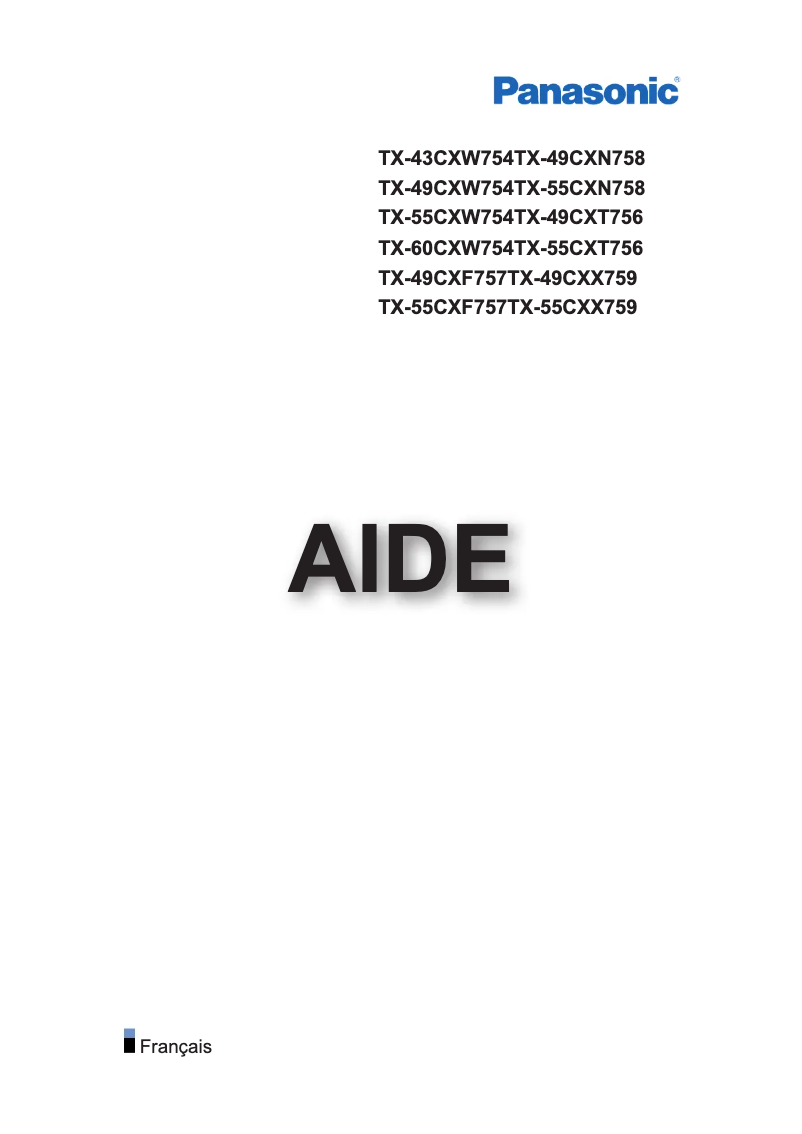

Manual of product TX-43CXW754
Editorial note
The Panasonic TX-43CXW754 stands out for its exceptional image quality, thanks to its 4K Ultra HD resolution (3840 x 2160 pixels) that offers an immersive visual experience. The LED backlighting technology combined with a refresh rate of 1000 Hz ensures smooth images and enhanced contrast, with deep blacks and bright whites. Its versatile connectivity, with three HDMI ports and two USB ports, makes it easy to connect to various multimedia devices, while the ambient light sensor automatically adjusts the screen brightness for optimal viewing comfort. However, this model also has some drawbacks. The lack of Smart TV features limits access to online streaming applications and services, except for Netflix. Additionally, while the energy consumption is reasonable, it is rated B, which is not optimal compared to newer models. Finally, the relatively high weight of 16 kg can complicate transport and installation for a single person. Overall, the Panasonic TX-43CXW754 is a television that offers excellent visual performance and good connectivity, but may disappoint those looking for modern features and superior energy efficiency.Score details
User experience
The exceptional image quality thanks to the 4K Ultra HD resolution (3840 x 2160 pixels) offers an immersive visual experience, although the lack of Smart TV features limits access to certain applications.
Performance
The LED backlighting technology and 1000 Hz BMR ensure smooth images and improved contrast, but the backlighting does not specify advanced technology like local dimming.
Value for money
The versatile connectivity with three HDMI ports and two USB ports makes it easy to connect to various devices, but the energy consumption is rated B, which is not optimal compared to newer models.
Design
The ambient light sensor automatically adjusts the screen brightness, enhancing visual comfort, but the relatively high weight of 16 kg can make transport and installation more difficult.
Advantages
4K Ultra HD immersive image
LED backlighting and 1000 Hz BMR
Compatible with streaming services
Three HDMI ports and two USB ports
Automatic brightness adjustment
Disadvantages
No Smart TV features, except for Netflix.
Lack of 3D compatibility.
LED backlighting without local dimming.
Energy class B, less competitive.
Weight of 16 kg, difficult to transport.
Technical Specifications TX-43CXW754
General Information
-
ModelTX-43CXW754
-
Brand
-
Category
-
Type
-
SKU1202427
-
MPN1202427
Screen
-
LED backlighting-
-
Screen size43 "
-
Type HD
-
Screen resolution4K Ultra HD
-
Screen brightness
-
Response time3840 x 2160 pixels
-
Vertical viewing angle
-
Vertical viewing angle- cd/m²
-
Interpolation movement technology
-
Screen diagonal (cm)- ms
-
Screen shape
-
Marketing name of the dynamic contrast ratio178 °
-
Image format
-
178 °
-
-
BMR 1000 Hz
-
-
108 cm
-
-
Flat
-
-
Brilliant Contrast
-
-
16:9
Other features
-
Certified DLNA (Digital Living New-York Alliance)Yes
-
Certified DLNA (Digital Living New-York Alliance)Yes
-
Certified DLNA (Digital Living New-York Alliance)Yes
-
Certified DLNA (Digital Living New-York Alliance)Yes
-
Annual energy consumption120 kWh
-
Energy efficiency class (old)B
-
Built-in cameraNo
-
Quantity of DisplayPort interfaces0
-
Supported streaming services networkNetflix
-
Certified DLNA (Digital Living New-York Alliance)Yes
TV Tuner
-
Analog signal format system-
-
Tuner typeAnalog and digital
-
Digital signal system formatDVB-C, DVB-S2, DVB-T, DVB-T2
-
Number of tuners2 tuner(s)
Smart TV / smart TV
-
Internet TVYes
-
Internet TVYes
-
Video appsNetflix
Audio
-
Number of speakers2
-
Rated power of RMS20 W
-
Sound modesMusic, Standard
-
Audio systemVR Audio True Surround
-
Integrated audio decodersDolby Digital, Dolby Digital Plus
Connectivity
-
Common Interface (CI)-
-
Quantity of HDMI ports3
-
High-Definition Mobile Interface (MHL, Mobile High-Definition Link)No
-
Audio Return Channel (ARC)Yes
-
High-Definition Mobile Interface (MHL, Mobile High-Definition Link)No
-
S-Video Input0
-
Quantity of USB 2.0 Ports2
-
Headset output1
-
Headset output1
-
Headset output1
-
Headset output1
-
Headset output1
-
Audio Return Channel (ARC)Yes
-
S-Video Input0
-
Consumer Electronics Control (CEC)VIERA Link
-
Headset output1
-
Audio Return Channel (ARC)Yes
-
Compatible memory cardsSD
-
Audio Return Channel (ARC)Yes
-
High-Definition Mobile Interface (MHL, Mobile High-Definition Link)No
Network
-
BluetoothYes
-
BluetoothYes
-
BluetoothYes
-
Supported browsersFirefox
-
MiracastNo
Management features
-
Picture-in-Picture (PIP)Yes
-
Picture-in-Picture (PIP)Yes
-
Number of OSD languages27
-
Picture-in-Picture (PIP)Yes
-
Multilingual display on screenBUL, CRO, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, TUR
Representation / realization
-
Backlight dimming technologyLocal Dimming
-
Game ModeYes
-
Supported video format3GPP, AVCHD, FLV, MKV, TS, VOB, VRO, WMV
-
Supported audio formatsAAC, FLAC, MP3, WAV, WMA
-
Supported image formatsJPG, MPO
-
Teletext1500 pages
-
DVD playerNo
-
Game ModeYes
-
Game ModeYes
-
Number of processor cores4
-
DVD playerNo
Design
-
Built-in power button-
-
Product colorBlack, Metallic
-
VESA mountYes
-
VESA mountYes
Power
-
Energy consumption (standby mode)0.5 W
-
Typical electricity consumption86 W
-
AC input voltage220 - 240 V
-
AC input frequency50 - 60 Hz
Weight and dimensions
-
Device width (support included)969 mm
-
Depth (without support)46 mm
-
Height (without support)567 mm
-
Weight (without support)14000 g
-
Device width (support included)969 mm
-
Depth (support included)179 mm
-
Height (support included)601 mm
-
Weight (with support)16000 g
Packaging information
-
Package width1359 mm
-
Package depth115 mm
-
Package height660 mm
-
Package weight19000 g
-
Camera - includedNo
Frequently Asked Questions
What is the recommended viewing distance for my Panasonic television?
What should I do if my television is no longer receiving a signal?
What are the dimensions of my television screen?
What does the acronym HDMI stand for?
Is it possible to connect devices from different brands via Bluetooth?
What is the screen size of the Panasonic TX-43CXW754?
What is the resolution of the screen of the Panasonic TX-43CXW754?
Is the manual for the Panasonic TX-43CXW754 available in French?
Similar products
More product categories from brand Panasonic
Home appliances Panasonic
Phones Panasonic
Audio Panasonic
Camera and photography Panasonic
Personal care Panasonic
Other Panasonic
Tools Panasonic
Interior Panasonic
More product types from brand Panasonic
Presentation of product TX-43CXW754 specifications from brand Panasonic
General Information
The Panasonic TX-43CXW754 television is a well-known model from the Panasonic brand, famous for its commitment to quality and innovation in the home appliance sector. This model, identified by the EAN code 5025232812424, ensures superior performance and an enhanced user experience.
Screen
The screen of the Panasonic TX-43CXW754 measures 43 inches, offering an ideal size for optimal visual immersion. With a 4K Ultra HD resolution of 3840 x 2160 pixels, it guarantees exceptional image quality. The screen brightness, although unspecified, allows for excellent visibility in various lighting conditions. The horizontal and vertical viewing angle is 178°, ensuring a comfortable view from different angles. The BMR 1000 Hz motion interpolation technology contributes to remarkable image fluidity, while the dynamic contrast, named Brilliant Contrast, promises deep blacks and bright whites. The 16:9 aspect ratio is ideal for multimedia content.
Other Features
The Panasonic TX-43CXW754 does not support 3D, but it is equipped with built-in speakers for a convenient audio experience. The photo-to-photo and text-to-text features enhance interaction with content. In terms of energy, its annual consumption is 120 kWh, with an energy efficiency class B, which can be improved compared to recent models. It is DLNA certified, ensuring compatibility with other multimedia devices, and supports Netflix for easy access to a variety of audiovisual content.
TV Tuner
This model has an analog and digital tuner, compatible with DVB-C, DVB-S2, DVB-T, and DVB-T2 formats, allowing it to receive multiple channels simultaneously thanks to its two tuners.
Audio
The Panasonic TX-43CXW754 features two speakers providing 20 W RMS power, ensuring a quality sound experience. It offers sound modes such as Music and Standard, as well as a stereo audio system with integrated Dolby Digital and Dolby Digital Plus decoders for immersive sound.
Connectivity
This television offers three HDMI ports and two USB 2.0 ports, facilitating connection to various devices. It also includes a SCART port, a digital optical audio output, and a component input (YPbPr/YCbCr). In terms of network connectivity, it is equipped with an Ethernet port and supports Wi-Fi, while also offering Bluetooth compatibility.
Network
The Panasonic TX-43CXW754 allows for efficient network connection thanks to its built-in Wi-Fi and Ethernet port, ensuring smooth navigation on compatible services.
Management Features
This model is equipped with an electronic program guide and an on-screen display (OSD) in 27 languages, making it user-friendly. The picture-in-picture (PIP) feature allows for multiple images to be displayed simultaneously, enriching the visual experience.
Design
The design of the Panasonic TX-43CXW754 is modern, with a metallic black finish. It is compatible with VESA mounting, making wall installation easy to optimize space.
Power
The energy consumption in standby mode is 0.5 W, while the typical power consumption is 86 W. This model operates on an AC input voltage of 220-240 V and a frequency of 50-60 Hz, ensuring compatibility with standard electrical systems.
Weight and Dimensions
The dimensions of the Panasonic TX-43CXW754 are 969 mm in width, 46 mm in depth (without stand), and 567 mm in height. Weighing 14 kg, it is recommended to handle it with care, especially during installation.
Packaging Information
The package of the Panasonic TX-43CXW754 measures 1359 mm in width, 115 mm in depth, and 660 mm in height, with a total weight of 19 kg, ensuring adequate protection during transport.
