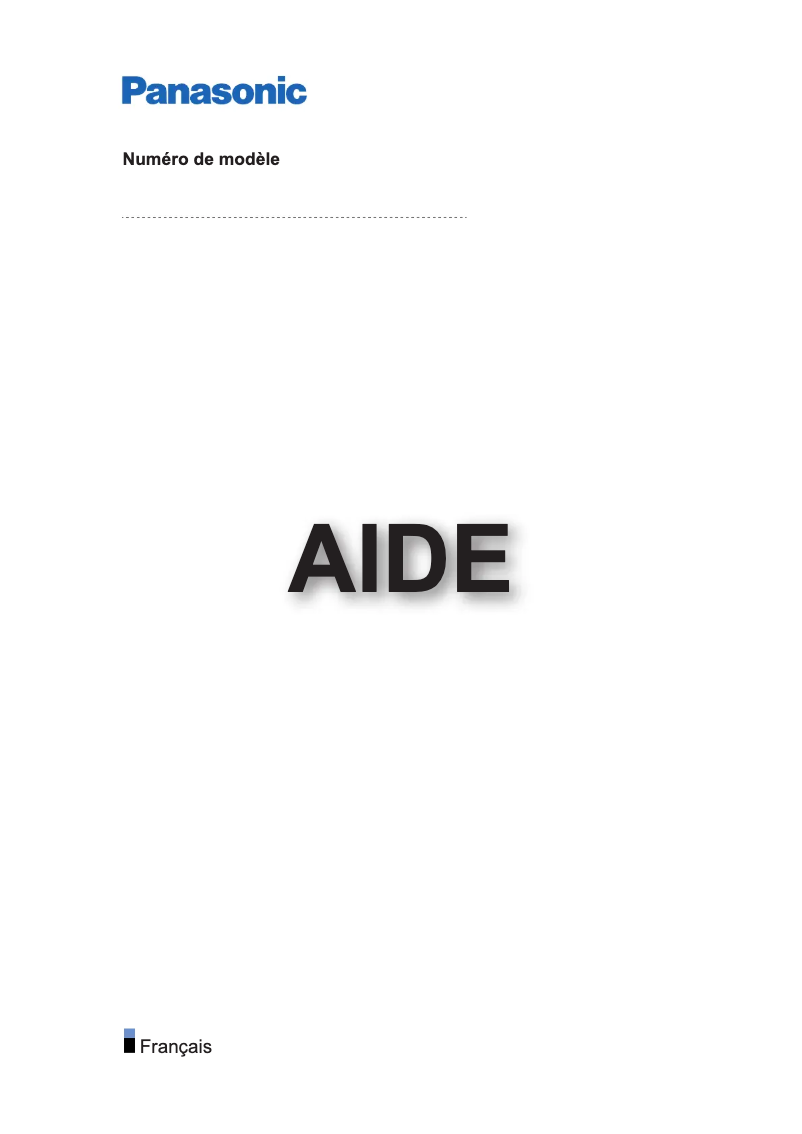

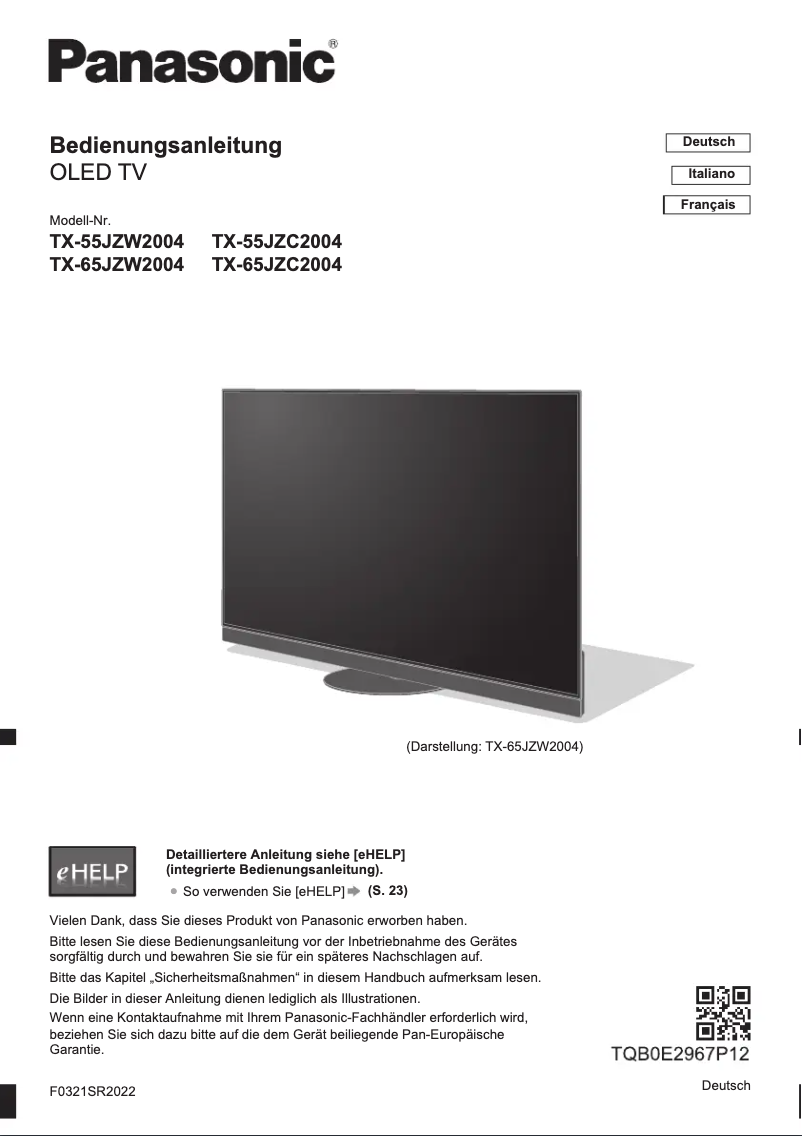

Manuals of product TX-65JZW2004
Editorial note
The Panasonic TX-65JZW2004 stands out for its exceptional picture quality thanks to OLED technology and 4K Ultra HD resolution, offering vibrant colors and rich contrasts for an immersive viewing experience. Its versatile connectivity, with four HDMI ports and two USB ports, allows for easy connection of various multimedia devices, while its advanced audio features, including Dolby Atmos decoders, ensure an optimized sound experience depending on the type of content being viewed. The modern and sleek design, combined with a VESA-compatible wall mount, facilitates integration into different living spaces. However, this model also has some drawbacks. Its relatively high energy consumption, rated G, can lead to significant electricity bills. Additionally, the lack of smart features such as streaming apps limits access to certain online content, requiring additional equipment for users wishing to enjoy these services. The weight of the television, which reaches 28 kg with the stand, can complicate its installation and transport. In terms of performance, the product scores highly, particularly due to its picture quality and audio features, but some users may be disappointed by the absence of modern formats like AMD FreeSync, which can affect the gaming experience. In terms of value for money, although the picture quality and audio features are solid, the high energy costs could influence the overall value in the long term. Finally, while the provided documentation is comprehensive, it may seem daunting to some users. In summary, the Panasonic TX-65JZW2004 is a high-performing television with an attractive design, but it is important to consider its limitations regarding energy consumption and smart features.Score details
User experience
The user experience is generally positive due to the exceptional image quality and advanced audio features, although the lack of streaming apps may be a drawback for some.
Performance
The performance is excellent with 4K Ultra HD image quality and OLED technology, but the high energy consumption and the absence of certain modern formats like AMD FreeSync may limit its appeal to gamers.
Design
The design is modern and sleek, with VESA-compatible wall mounting, but the weight of the television can make installation and transport difficult.
Value for money
The value for money is reasonable considering the image quality and audio features, but high energy costs could affect the overall value in the long term.
Usability
Usability is enhanced by versatile connectivity and the built-in web browser, but the lack of smart features limits access to certain online content.
Features
The features are solid with Dolby Atmos decoders and multiple sound modes, although the absence of certain modern features may disappoint some users.
Support
The support is adequate with a manual and guide available, but additional information on the missing contrast ratio may be necessary for a complete understanding.
Documentation
The documentation is comprehensive with 463 pages, providing good coverage of the features, but it could be overwhelming for some users.
Advantages
Exceptional 4K OLED picture quality
Connectivity with 4 HDMI and 2 USB
Dolby Atmos audio and various sound modes
Modern design, VESA compatible for mounting
Smart features with built-in Wi-Fi
Disadvantages
High energy consumption (class G)
No built-in smart features
Heavy weight, difficult installation
Unspecified contrast ratio
Lack of AMD FreeSync for gaming
Technical Specifications TX-65JZW2004
General Information
-
ModelTX-65JZW2004
-
Brand
-
Category
-
Type
-
SKU1431050
-
MPN1431050
Weight and dimensions
-
Width (without support)1448 mm
-
Width (without support)1448 mm
-
Depth (support included)350 mm
-
Height (support included)910 mm
-
Depth (without support)69 mm
-
Height (without support)888 mm
-
Weight (with support)28000 g
-
Weight (without support)23000 g
Packaging information
-
Package width1806 mm
-
Package depth229 mm
-
Package height971 mm
-
Package weight36000 g
Power
-
Consumption (max)568 W
-
Energy efficiency class (HDR)G
-
Energy efficiency class (HDR)G
-
Energy consumption (SDR) for 1000 hours139 kWh
-
Energy consumption (HDR) for 1000 hours153 kWh
-
AC input voltage220-240 V
-
AC input frequency50 - 60 Hz
-
Electricity consumption (stop)0.3 W
-
Energy consumption (standby mode)0.5 W
-
Typical electricity consumption- W
Screen
-
Contrast ratio-
-
Interpolation movement technology-
-
Image format-
-
Screen diagonal (cm)164 cm
-
Screen size65 "
-
Marketing name of the dynamic contrast ratioUltimate Contrast
-
Native refresh rate100 Hz
-
Screen brightness- cd/m²
-
Response time- ms
-
Type HD4K Ultra HD
-
Screen resolution3840 x 2160 pixels
-
Display technologyOLED
-
Screen shapeFlat
Representation / realization
-
Noise reduction-
-
USB RecordingYes
-
Teletext2000 pages
-
HDR technology (high dynamic range)Dolby Vision, Dolby Vision IQ, High Dynamic Range 10 (HDR10), High Dynamic Range 10+ (HDR10 Plus), Hybrid Log-Gamma (HLG)
-
USB RecordingYes
-
USB RecordingYes
-
USB RecordingYes
-
USB RecordingYes
Packaging contents
-
Remote control providedYes
-
Remote control providedYes
Design
-
Product colorBlack
-
Ambient lightingYes
-
Ambient lightingYes
-
Ambient lightingYes
-
VESA standard300 x 300 mm
Network
-
BluetoothYes
-
BluetoothYes
-
BluetoothYes
-
BluetoothYes
Audio
-
Enhanced Audio Return Channel (eARC)Yes
-
Sound modesMusic, Speech, Standard
-
Integrated audio decodersDolby Atmos
-
Number of speakers8
-
Rated power of RMS125 W
Management features
-
On-Screen Display (OSD)Yes
-
On-Screen Display (OSD)Yes
-
On-Screen Display (OSD)Yes
-
On-Screen Display (OSD)Yes
-
On-Screen Display (OSD)Yes
-
On-Screen Display (OSD)Yes
-
Number of OSD languages27
Smart TV / smart TV
-
Screen mirrorYes
-
Screen mirrorYes
-
Screen mirrorYes
-
Installed operating systemmy Home Screen
-
Operating system version6.0
-
Screen mirrorYes
Connectivity
-
Integrated PC connector (D-Sub)No
-
HDCPYes
-
Common Interface Plus (CI+) Version1.4
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports1
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports1
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports1
-
Quantity of USB 2.0 Ports2
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports1
-
HDCPYes
-
Quantity of HDMI ports4
-
Integrated PC connector (D-Sub)No
-
HDMI version2.1
TV Tuner
-
Analog signal format system-
-
Tuner typeAnalog and digital
-
Digital signal system formatDVB-C, DVB-S2, DVB-T, DVB-T2, DVB-T2 HD
Frequently Asked Questions
What is the optimal viewing distance for my Panasonic television?
What should I do if my television is no longer receiving a signal?
What are the dimensions of the screen on my television?
What does the acronym HDMI stand for?
Is it possible to connect devices from different brands via Bluetooth?
What is the screen size of the Panasonic TX-65JZW2004 model?
What is the resolution of the screen on the Panasonic TX-65JZW2004?
Is the manual for the Panasonic TX-65JZW2004 available in French?
Similar products
More product categories from brand Panasonic
Home appliances Panasonic
Phones Panasonic
Audio Panasonic
Camera and photography Panasonic
Personal care Panasonic
Other Panasonic
Tools Panasonic
Interior Panasonic
More product types from brand Panasonic
Presentation of product TX-65JZW2004 specifications from brand Panasonic
General Information
The Panasonic TX-65JZW2004 is a television from the Panasonic brand, known for its commitment to innovation and quality in the home appliance sector. This model, identified by the EAN code 5025232917839, ensures high-level performance and an enriching user experience thanks to its advanced technical features.
Weight and Dimensions
The dimensions of the Panasonic TX-65JZW2004 are designed to fit various environments. With a width of 1448 mm (including stand), a depth of 350 mm, and a height of 910 mm, it integrates harmoniously into your living space. In stand-free mode, its depth is 69 mm and its height is 888 mm. The total weight with stand is 28 kg, while the weight without stand is 23 kg, which can influence its installation and transport.
Packaging Information
The package of the Panasonic TX-65JZW2004 has dimensions of 1806 mm in width, 229 mm in depth, and 971 mm in height. Its total weight of 36 kg ensures adequate protection during transport and storage.
Power
This television has a maximum consumption of 568 W, with an energy efficiency class of G for both SDR and HDR modes, which can lead to significant electricity costs. Its energy consumption for 1000 hours is 139 kWh for SDR and 153 kWh for HDR. It operates on an AC input voltage of 220-240 V and a frequency of 50 - 60 Hz, with a standby consumption of 0.3 W.
Screen
The Panasonic TX-65JZW2004 is equipped with a 65-inch OLED screen (diagonal of 164 cm) displaying a resolution of 3840 x 2160 pixels in 4K Ultra HD. With a native refresh rate of 100 Hz, it guarantees optimal display fluidity. Although the contrast ratio is not specified, OLED technology ensures vibrant colors and deep blacks for an immersive viewing experience.
Representation / Realization
The television supports several HDR technologies, including Dolby Vision and HDR10, for images with vibrant colors. It also features a Game Mode to enhance performance during gaming sessions. The built-in teletext allows access to 2000 pages of varied information, while the USB recording function facilitates content management.
Contents of the Package
The Panasonic TX-65JZW2004 comes with a desktop stand and a remote control, ensuring easy installation and convenient control of the device.
Design
With its sleek black finish, this television features a modern design that easily fits into any decor. It has a standard VESA mount of 300 x 300 mm, allowing for convenient wall installation. Its ambient lighting adds a warm touch to your interior.
Network
The Panasonic TX-65JZW2004 includes a built-in web browser, Wi-Fi, and Ethernet/LAN and Bluetooth connectivity options, facilitating internet access and connection with other devices.
Audio
This model is equipped with Dolby Atmos audio decoders and offers several sound modes (Music, Speech, Standard), providing an immersive audio experience. With 8 speakers and an RMS power of 125 W, it ensures exceptional sound quality.
Management Features
Compatible with Amazon Alexa and Google Assistant, the Panasonic TX-65JZW2004 offers simplified voice interaction. It also includes a voice guide and on-screen display for intuitive navigation.
Smart TV
Although the model is not classified as a Smart TV, it incorporates features such as HbbTV for accessing interactive content. The my Home Screen 6.0 operating system allows for a smooth user experience, and the screen mirroring function enriches your viewing options.
Connectivity
The Panasonic TX-65JZW2004 has 4 HDMI ports and 2 USB 2.0 ports, ensuring versatile connectivity for various devices. Its compatibility with the HDCP standard guarantees protection for digital content.
TV Tuner
This television is equipped with an analog and digital tuner, supporting DVB-C, DVB-S2, DVB-T, DVB-T2, and DVB-T2 HD formats, thus offering flexibility to capture various broadcast signals.
