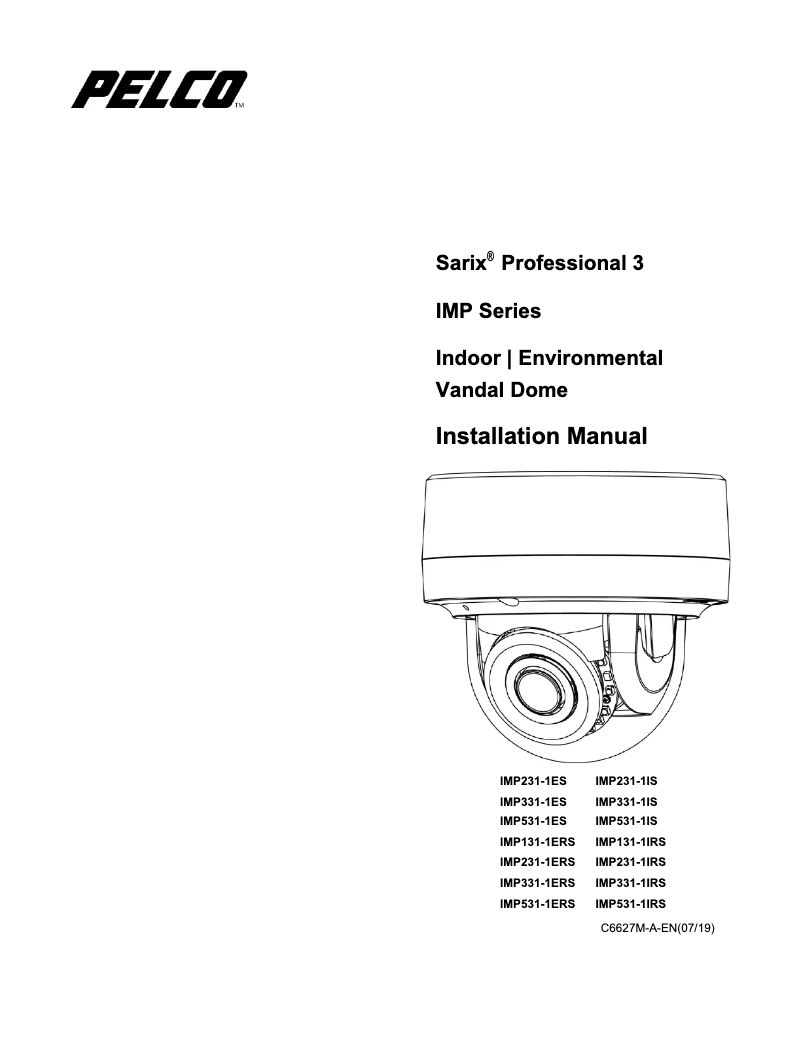

Manual of product Sarix Professional IMP531-1ERS
Technical Specifications Sarix Professional IMP531-1ERS
General Information
-
ModelSARIX PROFESSIONAL IMP531-1ERS
-
Brand
-
Category
-
Type
-
SKU1441557
-
MPN1441557
Video
-
Number of images per second60 ips
-
Maximum resolution2592 x 1944 pixels
-
Total megapixels5 MP
-
Visual compression formatsH.264, H.265, M-JPEG
-
Brightness compensationYes
-
Noise reduction technology3D digital noise reduction
-
Brightness compensationYes
-
Binary rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Representation / realization
-
Supported installationOutdoor
-
TypeIP security camera
-
Connectivity technologyWired
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
-
Number of languages11
-
Languages taken into accountARA, CHI (SIMPL), DEU, ENG, ESP, FRE, ITA, KOR, POR, RUS, TUR
-
CertificationCE, FCC, UL/cUL, ICES-003, RCM, KCC, NOM, EAC, IEC 60068:2-6/2-27, UL/IEC/EN 60950-22, Type 4X
Design
-
International Protection Code (IP)IP66, IP67
-
Mounting typeCeiling/wall
-
FormatDome
-
Product colorBlack, White
-
Material of the case/bodyAluminium, Polycarbonate (PC)
-
Protection functionsImpact resistant, Vandal proof
-
Code IKIK10
Network
-
Wifi-
-
Bluetooth-
-
Network standardsIEEE 802.3at
-
Supported network protocolsTCP/IP, UDP/IP (unicast, multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, 802.1x (EAP), and NTCIP 1205, ARP, DDNS, ICMP, IGMP, RTCP, SFTP, SIP, TLS/ TTLS, WS-discovery
-
Ethernet/LANYes
-
Number of users5 user(s)
-
Streaming methodMulticast, Unicast
-
Ethernet/LANYes
-
Type of Ethernet interfaceFast Ethernet
Environmental conditions
-
Operating temperature-40 - 60 °C
-
Operating relative humidity (H-H)5 - 95 %
-
Temperature out of operation-40 - 70 °C
-
Relative humidity rate (storage)20 - 80 %
Power
-
Energy consumption (Power over Ethernet (PoE))16.8 W
-
Typical electricity consumption15.8 W
-
Consumption (max)19.2 W
-
Power supply typeAC, DC, PoE
-
AC input voltage24 V
-
Output CC in volts12
Storage support
-
Integrated hard drive-
-
Maximum memory card size2000 GB
-
Compatible memory cardsMicroSDHC, MicroSDXC
-
Built-in memory card readerYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Security
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Functions of the IVS system (intelligent video surveillance)Missing item
Camera
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Minimum illumination0.0375 lux
-
Rotation angle355 °
-
Field of view of the lens, horizontal94 °
-
Angle of view of the lens, vertical68 °
-
Angle of view of the lens, diagonal124 °
-
Panoramic0 - 370 °
-
Inclination angle-15 - 90 °
-
White balanceATW, Auto, Manual
-
Camera shutter typeElectronic
-
Camera shutter speed1/10000 - 1 s
Image sensor
-
Number of sensors1
-
Optical sensor size1/2.8 "
-
Progressive scanYes
-
Sensor typeCMOS
Objective system
-
Number of lenses-
-
Auto focusYes
-
Maximum number of openings1.4
-
Focal length2.8-12 mm
-
Auto focusYes
-
TuningMotorized
Weight and dimensions
-
Depth135 mm
-
Depth135 mm
-
Height124.1 mm
-
Weight860 g
Night vision
-
Night visionYes
-
Night vision distance50 m
-
Infrared wavelength850 nm
-
Type of LEDIR
Packaging information
-
Package weight1200 g
Packaging contents
-
Number of cameras1
Audio
-
Audio system2-way
-
Supported audio formatsG.711 A-law, G.711 μ-law
-
Signal-to-noise ratio report50 dB
Similar products
More product categories from brand Pelco
More product types from brand Pelco
Presentation of product Sarix Professional IMP531-1ERS specifications from brand Pelco
Generalities
The brand of the product Pelco Sarix Professional IMP531-1ERS is Pelco. This brand is known for its quality and innovation in the field of household appliances. The product model Pelco Sarix Professional IMP531-1ERS is Sarix Professional IMP531-1ERS | IMP531-1ERS. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Pelco Sarix Professional IMP531-1ERS is 0700880347133. This code allows for the unique identification of the product in the distribution system.
Design
The International Protection Code (IP) for product Pelco Sarix Professional IMP531-1ERS contains IP66, IP67. This code indicates the level of protection against solid objects and moisture. The format of the product Pelco Sarix Professional IMP531-1ERS is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Pelco Sarix Professional IMP531-1ERS is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Pelco Sarix Professional IMP531-1ERS is Black, White. This shade gives it a modern and elegant look. The material of the product case Pelco Sarix Professional IMP531-1ERS is Aluminium, Polycarbonate (PC). This material ensures both durability and elegance. The product Pelco Sarix Professional IMP531-1ERS has Impact resistant, Vandal proof protection features. These characteristics ensure reliable use in various environmental conditions. The IK Code of the product Pelco Sarix Professional IMP531-1ERS is IK10. This IK Code allows for easy identification of the specific design of the item.
Video
The number of frames per second of the product Pelco Sarix Professional IMP531-1ERS is 60 ips. This specification ensures optimal smoothness when playing videos. The total megapixels of the product Pelco Sarix Professional IMP531-1ERS is 5 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product Pelco Sarix Professional IMP531-1ERS is 2592 x 1944 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product Pelco Sarix Professional IMP531-1ERS has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos. Does the product Pelco Sarix Professional IMP531-1ERS have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. Does the product Pelco Sarix Professional IMP531-1ERS have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. The product Pelco Sarix Professional IMP531-1ERS features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. The binary bitrate control of the product Pelco Sarix Professional IMP531-1ERS contains Constant Bit Rate (CBR), Variable Bit Rate (VBR). This control allows for optimizing video quality while effectively managing file sizes.
Representation / realization
The design of the product Pelco Sarix Professional IMP531-1ERS supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Pelco Sarix Professional IMP531-1ERS have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The product Pelco Sarix Professional IMP531-1ERS features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The type of product Pelco Sarix Professional IMP531-1ERS is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Pelco Sarix Professional IMP531-1ERS have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The number of languages of the product Pelco Sarix Professional IMP531-1ERS is 11. This product offers an enriching multilingual experience. The languages considered for the product Pelco Sarix Professional IMP531-1ERS are ARA, CHI (SIMPL), DEU, ENG, ESP, FRE, ITA, KOR, POR, RUS, TUR. This product thus caters to a wide international audience. The certification of the product Pelco Sarix Professional IMP531-1ERS contains CE, FCC, UL/cUL, ICES-003, RCM, KCC, NOM, EAC, IEC 60068:2-6/2-27, UL/IEC/EN 60950-22, Type 4X. This certification guarantees compliance with the required safety and performance standards.
Network
The supported network protocols of the product Pelco Sarix Professional IMP531-1ERS are TCP/IP, UDP/IP (unicast, multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, 802.1x (EAP), and NTCIP 1205, ARP, DDNS, ICMP, IGMP, RTCP, SFTP, SIP, TLS/ TTLS, WS-discovery. These protocols ensure efficient and reliable communication for your networking needs. The network standards of the product Pelco Sarix Professional IMP531-1ERS are IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. Does the product Pelco Sarix Professional IMP531-1ERS have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The number of users of the product Pelco Sarix Professional IMP531-1ERS is 5 utilisateur(s). This product is ideal for several people. The streaming method of the product Pelco Sarix Professional IMP531-1ERS is Multicast, Unicast. This method allows for efficient data transmission to multiple users simultaneously. The Wifi of the product Pelco Sarix Professional IMP531-1ERS contains -. This Wifi allows for a fast and reliable wireless connection for all your devices. The Ethernet interface type of the product Pelco Sarix Professional IMP531-1ERS is Fast Ethernet. This type of interface allows for fast and efficient network connections. Does the product Pelco Sarix Professional IMP531-1ERS have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the Pelco Sarix Professional IMP531-1ERS have Bluetooth? -. This feature allows for a convenient wireless connection with other compatible devices.
Environmental conditions
The non-operating temperature of the product Pelco Sarix Professional IMP531-1ERS is -40 - 70 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The relative humidity (storage) rate of the product Pelco Sarix Professional IMP531-1ERS is 20 - 80 %. This rate ensures optimal conditions for the preservation and durability of the product. The operating temperature of the product Pelco Sarix Professional IMP531-1ERS is -40 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Pelco Sarix Professional IMP531-1ERS has an operating relative humidity (H-H) of 5 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Storage support
Does the Pelco Sarix Professional IMP531-1ERS have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Pelco Sarix Professional IMP531-1ERS has compatible memory cards: MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Pelco Sarix Professional IMP531-1ERS is 2000 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Pelco Sarix Professional IMP531-1ERS have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Pelco Sarix Professional IMP531-1ERS is 1. These ports provide a stable and fast network connection for your devices.
Power
The typical power consumption of the product Pelco Sarix Professional IMP531-1ERS is 15.8 W. This feature allows for the assessment of the energy efficiency of the device. The maximum consumption of the product Pelco Sarix Professional IMP531-1ERS is 19.2 W. This specification allows for the assessment of the energy efficiency of the device. The energy consumption of the product Pelco Sarix Professional IMP531-1ERS is 16.8 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The type of power source for the product Pelco Sarix Professional IMP531-1ERS is AC, DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The AC input voltage of the Pelco Sarix Professional IMP531-1ERS is 24 V. This specification ensures optimal compatibility with standard electrical systems. The product Pelco Sarix Professional IMP531-1ERS has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices.
Security
Does the product Pelco Sarix Professional IMP531-1ERS have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product Pelco Sarix Professional IMP531-1ERS have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the Pelco Sarix Professional IMP531-1ERS product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Pelco Sarix Professional IMP531-1ERS have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. The intelligent video surveillance system of the product Pelco Sarix Professional IMP531-1ERS has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring.
Image sensor
The number of sensors of the product Pelco Sarix Professional IMP531-1ERS is 1. This number of sensors allows for precise and efficient image detection. Does the product Pelco Sarix Professional IMP531-1ERS have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Pelco Sarix Professional IMP531-1ERS is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product Pelco Sarix Professional IMP531-1ERS is CMOS. This type of sensor ensures optimal image quality for your needs.
Objective system
The number of lenses in the product Pelco Sarix Professional IMP531-1ERS is -. This number determines the quality and versatility of the lens. Does the product Pelco Sarix Professional IMP531-1ERS have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The maximum number of openings for the product Pelco Sarix Professional IMP531-1ERS is 1.4. This feature allows for optimal use and increased flexibility. The focal length of the product Pelco Sarix Professional IMP531-1ERS is 2.8-12 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. Does the Pelco Sarix Professional IMP531-1ERS have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The adjustment of the Pelco Sarix Professional IMP531-1ERS is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user.
Weight and dimensions
The height of the product Pelco Sarix Professional IMP531-1ERS is 124.1 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Pelco Sarix Professional IMP531-1ERS is 135 mm. This dimension allows for optimal integration into your space. The width of the product Pelco Sarix Professional IMP531-1ERS is 135 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Pelco Sarix Professional IMP531-1ERS is 860 g. This weight is ideal for ensuring optimal use and easy handling.
Camera
Does the product Pelco Sarix Professional IMP531-1ERS have a camera pan command? No. This feature is not available on this model. The minimum illumination of the product Pelco Sarix Professional IMP531-1ERS is 0.0375 lux. This feature ensures optimal performance even in low light conditions. The tilt command of the Pelco Sarix Professional IMP531-1ERS camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The rotation angle of the product Pelco Sarix Professional IMP531-1ERS is 355 °. This angle allows for optimal usage flexibility. The field of view of the Pelco Sarix Professional IMP531-1ERS lens is 94 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Pelco Sarix Professional IMP531-1ERS is 68 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Pelco Sarix Professional IMP531-1ERS is 124 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The panoramic view of the product Pelco Sarix Professional IMP531-1ERS is 0 - 370 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product Pelco Sarix Professional IMP531-1ERS is -15 - 90 °. This angle allows for adjusting the position for optimal comfort. The white balance of the product Pelco Sarix Professional IMP531-1ERS consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The type of shutter of the camera of the product Pelco Sarix Professional IMP531-1ERS is Électronique. This type of shutter allows for precise and fast image capture, ideal for action photography. The shutter speed of the camera of the product Pelco Sarix Professional IMP531-1ERS is 1/10000 - 1 s. This feature allows capturing sharp images even in low light conditions.
Night vision
Does the product Pelco Sarix Professional IMP531-1ERS have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Pelco Sarix Professional IMP531-1ERS is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Pelco Sarix Professional IMP531-1ERS is 50 m. This feature allows for clear and precise observation even in darkness. The infrared wavelength of the product Pelco Sarix Professional IMP531-1ERS is 850 nm. This feature allows for optimal use in various technological applications.
Packaging information
The weight of the Pelco Sarix Professional IMP531-1ERS package is 1200 g. This weight ensures optimal protection during transport and delivery.
Audio
The supported audio formats of the product Pelco Sarix Professional IMP531-1ERS are G.711 A-law, G.711 μ-law. These formats ensure optimal compatibility for an enriching listening experience. The signal-to-noise ratio of the product Pelco Sarix Professional IMP531-1ERS is 50 dB. This high ratio ensures exceptional audio quality, allowing for clear and precise listening without unwanted interference. The audio system of the product Pelco Sarix Professional IMP531-1ERS is stereo. This audio system provides an immersive and high-quality sound experience.
Packaging contents
The number of cameras of the product Pelco Sarix Professional IMP531-1ERS is 1. This product is equipped with a camera that allows capturing high-quality images.
