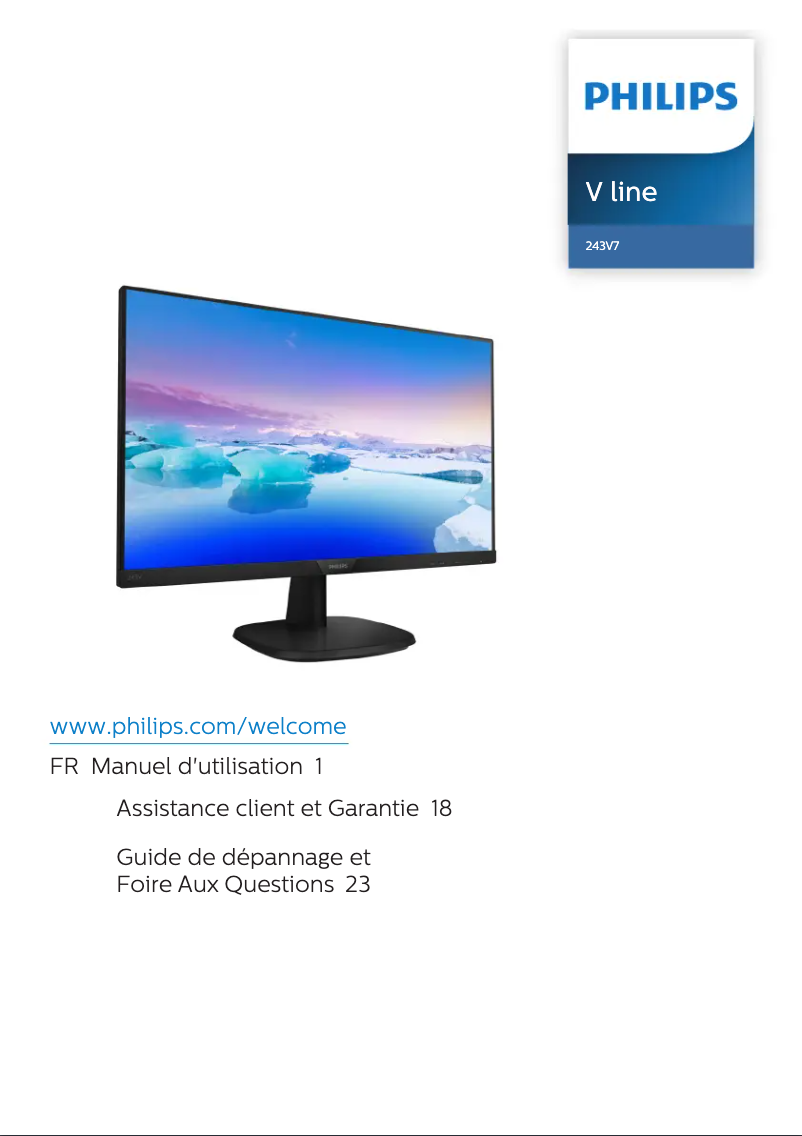

Manual of product V Line 243V7QJABF
Technical Specifications V Line 243V7QJABF
General Information
-
ModelV LINE 243V7QJABF
-
Brand
-
Category
-
Type
-
SKU1128737
-
MPN1128737
Screen
-
Type of panelIPS
-
Type of feedbackW-LED
-
Screen size23.8 "
-
Image format16:9
-
Screen brightness (typical)250 cd/m²
-
Contrast ratio1000:1
-
Dynamic contrast report200000000:1
-
No pixel0.275 x 0.275 mm
-
Pixel density93 pixels per inch
-
Screen resolution1920 x 1080 pixels
-
Image format16:9
-
Response time4 ms
-
Touch screenNo
-
Type HDFull HD
-
Display technologyLED
-
Screen shapeFlat
-
Supported graphic resolutions1920 x 1080 (HD 1080)
-
Marketing name of the dynamic contrast ratioSmartContrast
-
Maximum discount rate75 Hz
-
Vertical viewing angle178 °
-
Vertical viewing angle178 °
-
Number of colors displayed16.7 million colors
-
Horizontal digital frequency30 - 83 kHz
-
Vertical scanning frequency56 - 76 Hz
-
Horizontal viewable size527.04 mm
-
Vertical viewable size296.46 mm
-
DDC/CIYes
-
DDC/CIYes
-
Horizontal digital frequency30 - 83 kHz
-
Vertical scanning frequency56 - 76 Hz
-
DDC/CIYes
-
DDC/CIYes
-
Screen diagonal (cm)60.5 cm
-
Touch screenNo
Other features
-
Recommended resolution1920 x 1080 @ 60 Hz
-
Recyclable packaging materials100 %
-
CertificationUKRAINIAN, cETLus, CB, TUV/ISO9241-307, SEMKO, CU-EAC, EAEU RoHS, RCM, KCC, BSMI, CE Mark, FCC Class B, ICES-003, TUV Cert. — blue light cut-off
-
LowBlue ModeYes
-
Integrated TV tunerNo
-
Mean time between failures50000 h
-
Without heavy metalsHg (mercury)
-
Type of exterior finishTextured
-
LowBlue ModeYes
-
Compliance approvalsUKRAINIAN; cETLus; CB; TUV/ISO9241-307; SEMKO; CU-EAC; EAEU RoHS; RCM; KCC; BSMI; CE Mark; FCC Class B; ICES-003; TUV Cert. — blue light cut-off
-
Image enhancementSmartImage
Representation / realization
-
NVIDIA G-SYNC-
-
AMD FreeSync-
-
Video synchronization componentSeparate sync, Sync-on-green (SOG)
-
Low-Blue-Light TechnologyYes
-
Low-Blue-Light TechnologyYes
Ergonomics
-
Inclination angle-5 - 20 °
-
Plug and PlayYes
-
VESA standard100 x 100 mm
-
Plug and PlayYes
-
Cable lock location typeKensington
-
Height adjustmentNo
-
Plug and PlayYes
-
Multilingual display on screenCHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR
-
Number of OSD languages21
-
Plug and PlayYes
-
IndicatorsOperation, Stand-by
Power
-
Energy efficiency class (HDR)-
-
Electricity consumption (stop)0.5 W
-
Electricity consumption (stop)0.5 W
-
Consumption (max)21 W
-
Typical electricity consumption14.13 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Energy efficiency class (SDR)E
-
Energy consumption (SDR) for 1000 hours18 kWh
-
Energy efficiency rangeA to G
-
Type of power supplyInternal
-
Energy consumption (HDR) for 1000 hours- kWh
-
European Product Registry for Energy Labelling (EPREL)401626
Weight and dimensions
-
Weight (with support)3500 g
-
Weight (without support)3080 g
-
Device width (support included)540 mm
-
Depth (without support)45 mm
-
Height (without support)325 mm
-
Device width (support included)540 mm
-
Depth (support included)209 mm
-
Height (support included)415 mm
Packaging information
-
Package weight4820 g
-
Package width588 mm
-
Package depth115 mm
-
Package height465 mm
-
Type of packagingBox
Environmental conditions
-
Operating temperature0 - 40 °C
-
Temperature out of operation-20 - 60 °C
-
Operating relative humidity (H-H)20 - 80 %
-
Operating altitude0 - 3658 m
-
Non-operating altitude0 - 12192 m
Packaging contents
-
User manualYes
-
User manualYes
-
Cables includedHDMI, AC
Design
-
Market positionHouse
-
Foot colorsBlack
-
Foot colorsBlack
-
Foot colorsBlack
-
Detachable supportYes
Connectivity
-
PC audio inputYes
-
PC audio inputYes
-
Audio inputNo
-
Headset output1
-
Audio inputNo
-
PC audio inputYes
-
Headset output1
-
DisplayPort version1.2
-
DisplayPort version1.2
-
Audio inputNo
-
PC audio inputYes
-
Headset output1
-
PC audio inputYes
Multimedia
-
Built-in speakersYes
-
Built-in cameraNo
-
Number of speakers2
-
Rated power of RMS4 W
Sustainability
-
Sustainability certificatesRoHS
-
EPEAT Gold
-
ENERGY STAR
Logistics data
-
Harmonized System Code85285210
Similar products
More product categories from brand Philips
Audio Philips
Home appliances Philips
Personal care Philips
Household appliances Philips
Interior Philips
Phones Philips
Other Philips
Garden and outdoor Philips
Software Philips
More product types from brand Philips
Presentation of product V Line 243V7QJABF specifications from brand Philips
Representation / realization
Does the product Philips V Line 243V7QJABF have NVIDIA G-SYNC? No. This technology helps eliminate screen tearing and improve gaming smoothness. Does the product Philips V Line 243V7QJABF have Low-Blue-Light Technology? Oui. This technology helps reduce eye strain by filtering harmful blue light, thus providing optimal visual comfort. Does the product Philips V Line 243V7QJABF have Flicker-Free Technology? Oui. This technology helps eliminate flicker effects, providing a more enjoyable and comfortable visual experience. The video synchronization component of the Philips V Line 243V7QJABF product contains Separate sync, Sync-on-green (SOG). This component ensures precise synchronization for optimal image quality. Does the product Philips V Line 243V7QJABF have AMD FreeSync? No. This technology helps eliminate screen tearing and ensures a smooth gaming experience.
Generalities
The brand of the product Philips V Line 243V7QJABF is Philips. This brand is known for its quality and innovation in the field of household appliances. The product model Philips V Line 243V7QJABF is V Line 243V7QJABF | 243V7QJABF/00. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Philips V Line 243V7QJABF is 8712581746025, 4058154237724, 8712581761370. This code allows for the unique identification of the product in the distribution system.
Other features
The product Philips V Line 243V7QJABF contains 100% recyclable packaging materials. These materials help reduce environmental impact and promote more responsible consumption. Does the product Philips V Line 243V7QJABF have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device. The recommended resolution of the product Philips V Line 243V7QJABF is 1920 x 1080 @ 60 Hz. This specification ensures an optimal visual experience. The certification of the product Philips V Line 243V7QJABF contains UKRAINIAN, cETLus, CB, TUV/ISO9241-307, SEMKO, CU-EAC, EAEU RoHS, RCM, KCC, BSMI, CE Mark, FCC Class B, ICES-003, TUV Cert. — blue light cut-off. This certification guarantees compliance with the required safety and performance standards. Does the product Philips V Line 243V7QJABF have a built-in TV tuner? No. This product does not allow you to receive television channels directly. The average time between failures of the product Philips V Line 243V7QJABF is 50000 h. This feature demonstrates the reliability and durability of the product, ensuring prolonged use without interruptions. Does the product Philips V Line 243V7QJABF have No heavy metals? Hg (mercure). This feature ensures that the product does not contain harmful substances for health. The exterior finish of the product Philips V Line 243V7QJABF is Texturé. This finish adds an aesthetic touch and a shine that enhances the overall appearance of the product. Does the product Philips V Line 243V7QJABF have a LowBlue Mode? Oui. This feature helps reduce eye strain by filtering out harmful blue light. The product Philips V Line 243V7QJABF has Compliance Approvals: UKRAINIAN; cETLus; CB; TUV/ISO9241-307; SEMKO; CU-EAC; EAEU RoHS; RCM; KCC; BSMI; CE Mark; FCC Class B; ICES-003; TUV Cert. — blue light cut-off. These certifications ensure compliance with the required safety and quality standards. The product Philips V Line 243V7QJABF features an image enhancement. This functionality allows for optimizing visual quality for an immersive and enjoyable experience.
Ergonomics
The tilt angle of the product Philips V Line 243V7QJABF is -5 - 20 °. This angle allows for adjusting the position for optimal comfort. Does the product Philips V Line 243V7QJABF have a cable lock port? No. This product does not have this security feature. The product Philips V Line 243V7QJABF has the VESA Standard 100 x 100 mm. This standard ensures optimal compatibility with wall mounts and articulated arms, thus facilitating the installation and adjustment of your screen. Does the product Philips V Line 243V7QJABF have VESA Mounting? Oui. This feature allows you to easily attach your screen to a wall mount, thereby optimizing space and improving user comfort. The type of cable lock location for the product Philips V Line 243V7QJABF is Kensington. This type of lock provides optimal security to protect your device against theft. Does the product Philips V Line 243V7QJABF have a height adjustment? No. This product does not allow for height adjustment. Does the product Philips V Line 243V7QJABF have an on-screen display (OSD)? Oui. This display allows for intuitive navigation through the product settings. The number of OSD languages of the product Philips V Line 243V7QJABF is 21. This feature allows for easy use in multiple languages, making the product accessible to a wide audience. Does the product Philips V Line 243V7QJABF have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable. The multilingual display on the Philips V Line 243V7QJABF screen contains CHI (SIMPL), CHI (TR), CZE, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, JPN, KOR, POL, POR, RUS, SWE, TUR, UKR. This system allows users to easily navigate in multiple languages, making the experience more accessible and user-friendly. Does the product Philips V Line 243V7QJABF have indicators? Operation, Stand-by. These indicators allow you to visualize the operating status of the device.
Screen
The panel type of the product Philips V Line 243V7QJABF is IPS. This type of panel offers excellent display quality and vibrant colors. The type of feedback for the product Philips V Line 243V7QJABF is W-LED. This type of feedback offers optimal display quality and vibrant colors. The screen size of the product Philips V Line 243V7QJABF is 23.8 ". This dimension allows for an optimal visual experience for all your content. The image format of the product Philips V Line 243V7QJABF is 16:9. This format is ideal for an immersive visual experience. The typical screen brightness of the product Philips V Line 243V7QJABF is 250 cd/m². This feature ensures optimal visibility in various lighting conditions. The contrast ratio of the product Philips V Line 243V7QJABF is 1000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The dynamic contrast ratio of the product Philips V Line 243V7QJABF is 200000000:1. This ratio helps enhance image quality by providing deeper blacks and brighter whites. The image format of the product Philips V Line 243V7QJABF is 16:9. This format is ideal for an immersive visual experience. The pixel pitch of the product Philips V Line 243V7QJABF is 0.275 x 0.275 mm. This pixel pitch ensures optimal display quality without distortion. The pixel density of the product Philips V Line 243V7QJABF is 93 pixels par pouce. This feature ensures optimal display quality for an enriching visual experience. The screen resolution of the product Philips V Line 243V7QJABF is 1920 x 1080 pixels. This feature ensures optimal display quality for a pleasant visual experience. The response time of the product Philips V Line 243V7QJABF is 4 ms. This fast response time ensures a smooth and responsive visual experience. Does the product Philips V Line 243V7QJABF have 3D Compatibility? No. This product does not support 3D technology. The HD Type of the product Philips V Line 243V7QJABF is Full HD. This HD Type ensures exceptional image quality for an immersive viewing experience. The display technology of the product Philips V Line 243V7QJABF is LED. This technology ensures optimal image quality for an immersive visual experience. The screen shape of the product Philips V Line 243V7QJABF is Plat. This feature ensures an optimal visual experience for all your multimedia needs. The supported graphic resolutions of the product Philips V Line 243V7QJABF are 1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The marketing name of the dynamic contrast ratio of the product Philips V Line 243V7QJABF is SmartContrast. This ratio allows for images with deep blacks and bright whites, thus providing an immersive visual experience. The maximum discount rate of the product Philips V Line 243V7QJABF is 75 Hz. This rate ensures optimal display fluidity for an enhanced user experience. The horizontal viewing angle of the product Philips V Line 243V7QJABF is 178 °. This angle allows for optimal viewing from different angles, thus providing an immersive and comfortable experience. The vertical viewing angle of the Philips V Line 243V7QJABF is 178 °. This angle allows for optimal viewing from different angles, thus providing an enhanced visual experience. The number of colors displayed for the product Philips V Line 243V7QJABF is 16,7 millions de couleurs. This detail is essential for appreciating the visual quality of the screen. The horizontal scanning range of the product Philips V Line 243V7QJABF is 30 - 83 kHz. This range allows for excellent display quality and optimal image smoothness. The vertical scanning frequency of the product Philips V Line 243V7QJABF is 56 - 76 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The horizontal viewable size of the product Philips V Line 243V7QJABF is 527.04 mm. This specification ensures an optimal visual experience for all your content. The vertical viewable size of the product Philips V Line 243V7QJABF is 296.46 mm. This dimension allows for an optimal visual experience for users. The vertical scanning frequency of the product Philips V Line 243V7QJABF is 56 - 76 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. Does the product Philips V Line 243V7QJABF have separate H/V Sync? Oui. This feature allows for adjusting the synchronization of horizontal and vertical display for an optimal viewing experience. Does the product Philips V Line 243V7QJABF have Sync on Green (SOG)? Oui. This feature helps improve the smoothness of the displayed images. The horizontal digital frequency of the product Philips V Line 243V7QJABF is 30 - 83 kHz. This specification ensures optimal performance for your display needs. Does the product Philips V Line 243V7QJABF have SRGB? Oui. This specification ensures accurate color reproduction on the screen. Does the product Philips V Line 243V7QJABF have DDC/CI? Oui. This specification allows communication between the screen and the computer, thus facilitating the adjustment of display settings. The screen diagonal of the product Philips V Line 243V7QJABF is 60.5 cm. This feature allows for an immersive and high-quality visual experience. Does the product Philips V Line 243V7QJABF have a touchscreen? Non.
Weight and dimensions
The weight (with support) of the product Philips V Line 243V7QJABF is 3500 g. This weight includes all the necessary accessories for its use. The unsupported depth of the product Philips V Line 243V7QJABF is 45 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Philips V Line 243V7QJABF is 3080 g. This weight is essential for assessing the maneuverability and transport of the product. The width of the product Philips V Line 243V7QJABF is 540 mm. This dimension allows for optimal integration into various spaces. The height of the product Philips V Line 243V7QJABF is 325 mm. This dimension is essential to ensure the product fits your space. The width of the device Philips V Line 243V7QJABF is 540 mm. This dimension includes the stand, ensuring a seamless integration into your space. The depth of the product Philips V Line 243V7QJABF is 209 mm. This dimension is essential to ensure optimal integration into your space. The height (including support) of the product Philips V Line 243V7QJABF is 415 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Power
The power consumption (standby) of the product Philips V Line 243V7QJABF is 0.5 W. This feature helps to minimize energy consumption when the device is in standby mode. The maximum consumption of the product Philips V Line 243V7QJABF is 21 W. This specification allows for the assessment of the energy efficiency of the device. The energy consumption in standby mode of the product Philips V Line 243V7QJABF is 0.5 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The typical power consumption of the product Philips V Line 243V7QJABF is 14.13 W. This feature allows for the assessment of the energy efficiency of the device. The AC input voltage of the Philips V Line 243V7QJABF is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Philips V Line 243V7QJABF is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The energy efficiency class (SDR) of the product Philips V Line 243V7QJABF is E. This class indicates the level of energy performance of the product, which can impact your energy bills and the environment. The product Philips V Line 243V7QJABF has an energy consumption (SDR) for 1000 hours of 18 kWh. This specification allows for the assessment of the product's energy efficiency. The energy efficiency range of the product Philips V Line 243V7QJABF is A à G. This range ensures optimal energy consumption, thereby contributing to savings on your bills and protecting the environment. The power supply type of the product Philips V Line 243V7QJABF is Interne. This specification ensures reliable and efficient use of the device. The energy efficiency class (HDR) of the product Philips V Line 243V7QJABF is -. This class indicates the level of energy performance of the product, thus contributing to a more responsible use of energy. The energy consumption (HDR) of the product Philips V Line 243V7QJABF is - kWh for 1000 hours. This feature allows for the assessment of the product's energy efficiency over an extended period. The European Product Register for Energy Labelling (EPREL) code for the product Philips V Line 243V7QJABF contains 401626. This code is essential to ensure transparency and energy efficiency of devices.
Packaging information
The width of the package of the product Philips V Line 243V7QJABF is 588 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Philips V Line 243V7QJABF is 465 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Philips V Line 243V7QJABF is 115 mm. This dimension is essential to ensure proper packaging and secure transport. The weight of the Philips V Line 243V7QJABF package is 4820 g. This weight ensures optimal protection during transport and delivery. The packaging type of the product Philips V Line 243V7QJABF is Boîte. This type of packaging ensures optimal protection and facilitates transportation.
Packaging contents
Does the product Philips V Line 243V7QJABF come with a Support included? Oui. This allows you to fully enjoy your purchase without having to worry about buying additional accessories. Does the product Philips V Line 243V7QJABF have a User Manual? Oui. This document provides clear instructions for optimal use of the product. The included cable of the product Philips V Line 243V7QJABF contains a power plug. This cable is essential for ensuring an optimal electrical connection.
Environmental conditions
The operating temperature of the product Philips V Line 243V7QJABF is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The operating altitude of the product Philips V Line 243V7QJABF is 0 - 3658 m. This specification ensures optimal performance across a wide range of altitudes. The product Philips V Line 243V7QJABF has an operating relative humidity (H-H) of 20 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Philips V Line 243V7QJABF is -20 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The altitude of non-operation for the product Philips V Line 243V7QJABF is 0 - 12192 m. This specification ensures that the product can operate efficiently across a wide range of altitudes.
Design
The market position of the product Philips V Line 243V7QJABF is Maison. This product is primarily aimed at professionals, offering features tailored to their specific needs. The color of the feet of the product Philips V Line 243V7QJABF is Noir. This feature adds a touch of elegance and style to the whole. The color of the product Philips V Line 243V7QJABF is Noir. This shade gives it a modern and elegant look. The front chassis of the product Philips V Line 243V7QJABF is Noir. This front chassis offers a sleek and sturdy finish, perfect for a modern design. Does the product Philips V Line 243V7QJABF have a detachable support? No. This product does not have that feature.
Sustainability
The product Philips V Line 243V7QJABF has Sustainability Certificates: RoHS, EPEAT Gold, ENERGY STAR. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Logistics data
The Harmonized System code for the product Philips V Line 243V7QJABF is 85285210. This code allows for the unique identification of goods in international trade.
Multimedia
Does the product Philips V Line 243V7QJABF have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience. Does the Philips V Line 243V7QJABF have a built-in camera? Non. This camera allows you to capture precious moments with ease. The RMS rated power of the product Philips V Line 243V7QJABF is 4 W. This specification ensures optimal sound quality for an enriching multimedia experience. The number of speakers of the product Philips V Line 243V7QJABF is 2. This number ensures optimal sound quality for an enriching multimedia experience.
Connectivity
Does the product Philips V Line 243V7QJABF have a power input section? Oui. This section ensures a reliable and efficient power supply for the optimal operation of the device. Does the product Philips V Line 243V7QJABF have HDCP? Oui. This specification ensures the protection of digital content against unauthorized copying. The number of VGA (D-Sub) ports on the Philips V Line 243V7QJABF is 1. This port allows for easy connection with various devices and monitors. Does the product Philips V Line 243V7QJABF have a built-in USB hub? Non. This feature allows you to connect multiple USB devices simultaneously, thus enhancing your user experience. Does the product Philips V Line 243V7QJABF have a DVI Port? Non. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. Does the Philips V Line 243V7QJABF have HDMI? Oui. This connectivity allows for the transmission of both high-quality videos and audios. The number of HDMI ports on the Philips V Line 243V7QJABF is 1. This detail is essential for determining compatibility with your multimedia devices. The number of DisplayPort interfaces of the product Philips V Line 243V7QJABF is 1.2. This specification allows for optimal connectivity with various devices. The product Philips V Line 243V7QJABF has DisplayPort version 1.2. This specification allows for improved connectivity for high resolutions and refresh rates. The product Philips V Line 243V7QJABF has an audio input. This feature allows you to connect various audio devices for an enhanced sound experience. Does the product Philips V Line 243V7QJABF have a headphone output? Oui. This feature allows you to easily connect headphones or a headset for an immersive audio experience. The headphone output of the Philips V Line 243V7QJABF is %. This output allows for easy connection of headphones or a headset for an optimal audio experience. Does the product Philips V Line 243V7QJABF have a PC audio input? Oui. This feature allows for easy connection of audio devices for an optimal sound experience.
