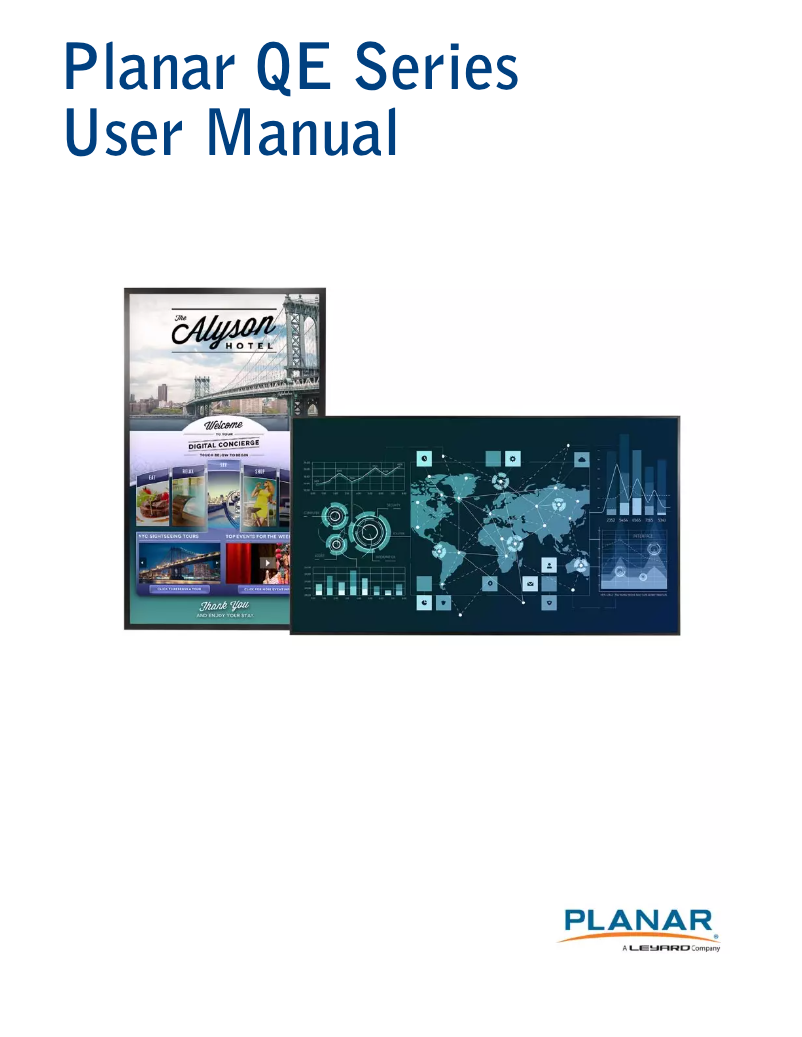

Manual of product QE9850
Technical Specifications QE9850
General Information
-
ModelQE9850
-
Brand
-
Category
-
Type
-
SKU1203071
-
MPN1203071
Screen
-
Screen size98 "
-
Screen resolution3840 x 2160 pixels
-
Display technologyLCD
-
Type HD4K Ultra HD
-
Screen brightness400 cd/m²
-
Touch screenNo
-
Image format16:9
-
Response time8 ms
-
Active display area (w x h)2159 x 1214 mm
-
Contrast ratio1300:1
-
Dynamic contrast report20000:1
-
Vertical viewing angle178 °
-
Vertical viewing angle178 °
-
Number of colors displayed1 billion colors
-
No pixel0.562 x 0.562 mm
-
LED backlightingEdge-Lit LED
Representation / realization
-
HDCPYes
-
UtilityCommercial
-
Service hours (hours/days)24/7
Weight and dimensions
-
Width2192 mm
-
Height1247 mm
-
Depth97 mm
Design
-
Frame width (at the bottom)15.7 mm
-
Supported installationInterior
-
Product colorBlack
-
Product designDigital signage flat screen
-
VESA mountYes
-
VESA standard600 x 400 mm
Other features
-
Maximum discount rate120 Hz
-
User manualYes
Power
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Typical electricity consumption410 W
-
Energy consumption (standby mode)1 W
Computer system
-
Computer system-
-
Integrated into the processor-
Environmental conditions
-
Operating temperature0 - 35 °C
-
Operating relative humidity (H-H)20 - 85 %
Connectivity
-
USB port-
-
Ethernet/LAN-
-
Wifi-
-
Quantity of DisplayPort interfaces1
-
Quantity of HDMI ports4
-
HDMI version1.4/2.0
-
DVI PortNo
-
VGA input ports (D-Sub)0
Audio
-
Built-in speakersYes
-
Number of built-in speakers2
-
Rated power of RMS20 W
Packaging contents
-
Cables includedAC, IR
-
Remote control providedYes
Similar products
More product categories from brand Planar
More product types from brand Planar
Presentation of product QE9850 specifications from brand Planar
Weight and dimensions
The width of the product Planar QE9850 is 2192 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Planar QE9850 is 97 mm. This dimension allows for optimal integration into your space. The height of the product Planar QE9850 is 1247 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Representation / realization
Does the product Planar QE9850 have HDCP? Oui. This specification ensures the protection of digital content against unauthorized copying. The usefulness of the product Planar QE9850 is Commercial. This product has been designed to meet specific needs and provide an optimal experience for its users. The service hours for the product Planar QE9850 are 24/7. These hours ensure optimal availability to meet your needs at any time.
Generalities
The brand of the product Planar QE9850 is Planar. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Planar QE9850 is 0810689007418. This code allows for the unique identification of the product in the distribution system. The product model Planar QE9850 is QE9850 | 997-8799-01. This model ensures optimal performance and an enhanced user experience.
Screen
The screen size of the product Planar QE9850 is 98 ". This dimension allows for an optimal visual experience for all your content. The screen resolution of the product Planar QE9850 is 3840 x 2160 pixels. This feature ensures optimal display quality for a pleasant visual experience. The HD Type of the product Planar QE9850 is 4K Ultra HD. This HD Type ensures exceptional image quality for an immersive viewing experience. The display technology of the product Planar QE9850 is LCD. This technology ensures optimal image quality for an immersive visual experience. The brightness of the Planar QE9850 screen is 400 cd/m². This feature ensures optimal visibility even in varying lighting conditions. Does the product Planar QE9850 have a touchscreen? Non. The image format of the product Planar QE9850 is 16:9. This format is ideal for an immersive visual experience. The response time of the product Planar QE9850 is 8 ms. This fast response time ensures a smooth and responsive visual experience. The active display area of the product Planar QE9850 is 2159 x 1214 mm. This dimension allows for an optimal visual experience for all your content. The contrast ratio of the product Planar QE9850 is 1300:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The dynamic contrast ratio of the product Planar QE9850 is 20000:1. This ratio helps enhance image quality by providing deeper blacks and brighter whites. The horizontal viewing angle of the product Planar QE9850 is 178 °. This angle allows for optimal viewing from different angles, thus providing an immersive and comfortable experience. The vertical viewing angle of the Planar QE9850 is 178 °. This angle allows for optimal viewing from different angles, thus providing an enhanced visual experience. The number of colors displayed for the product Planar QE9850 is 1 milliard de couleurs. This detail is essential for appreciating the visual quality of the screen. The pixel pitch of the product Planar QE9850 is 0.562 x 0.562 mm. This pixel pitch ensures optimal display quality without distortion. The LED backlighting of the product Planar QE9850 contains Edge-Lit LED. This backlighting ensures optimal brightness for an enhanced visual experience.
Other features
The maximum discount rate of the product Planar QE9850 is 120 Hz. This rate ensures optimal display fluidity for an enhanced user experience. Does the product Planar QE9850 have a User Manual? Oui. This document provides clear instructions for optimal use of the product.
Design
The design of the product Planar QE9850 is a pistol grip drill. This ergonomic design allows for a comfortable grip and optimal control during use. The color of the product Planar QE9850 is Noir. This shade gives it a modern and elegant look. The width of the frame at the bottom of the product Planar QE9850 is 15.7 mm. This feature contributes to the stability and aesthetics of the product. The design of the product Planar QE9850 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Planar QE9850 have VESA Mounting? Oui. This feature allows you to easily attach your screen to a wall mount, thereby optimizing space and improving user comfort. The product Planar QE9850 has the VESA Standard 600 x 400 mm. This standard ensures optimal compatibility with wall mounts and articulated arms, thus facilitating the installation and adjustment of your screen.
Power
The AC input frequency of the product Planar QE9850 is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The typical power consumption of the product Planar QE9850 is 410 W. This feature allows for the assessment of the energy efficiency of the device. The AC input voltage of the Planar QE9850 is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The energy consumption in standby mode of the product Planar QE9850 is 1 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings.
Computer system
The computer system of the product Planar QE9850 contains -. This computer system is designed to provide optimal performance and high reliability. The technical detail "Integrated into the processor" of the product Planar QE9850 is -. This essential component ensures optimal performance and increased efficiency.
Environmental conditions
The operating temperature of the product Planar QE9850 is 0 - 35 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Planar QE9850 has an operating relative humidity (H-H) of 20 - 85 %. This specification ensures optimal operation in a wide range of ambient humidity.
Packaging contents
The included cable of the product Planar QE9850 contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the product Planar QE9850 come with a remote control? Oui.
Audio
Does the product Planar QE9850 have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience. The RMS rated power of the product Planar QE9850 is 20 W. This specification ensures optimal sound quality for an enriching multimedia experience. The number of built-in speakers of the product Planar QE9850 is 2. These speakers provide immersive audio quality for an optimal listening experience.
Connectivity
The number of DisplayPort interfaces of the product Planar QE9850 is 1. This specification allows for optimal connectivity with various devices. The number of HDMI ports on the Planar QE9850 is 4. This detail is essential for determining compatibility with your multimedia devices. The product Planar QE9850 has an HDMI Version 1.4/2.0. This specification ensures optimal connectivity for your multimedia devices. Does the product Planar QE9850 have a DVI Port? Non. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. The VGA (D-Sub) input port of the Planar QE9850 contains 0. This port allows for easy connection with various devices, ensuring high-quality video transmission. Does the Planar QE9850 have a USB Port? -. This feature allows for easy and quick connection to various devices. Does the product Planar QE9850 have Ethernet/LAN? -. This specification determines the network connectivity of the product. The Wifi of the product Planar QE9850 contains -. This Wifi allows for a fast and reliable wireless connection for all your devices.
