Thumbnail of product TS-128A from brand QNAP
Logo of brand QNAP

Server QNAP TS-128A

QNAP
Computers and accessories
Server

The TS-128A is a product in the category Computers and accessories, specifically of type Server. We have listed 2 manuals of types User Manual, Technical Sheet for product Server QNAP TS-128A. We have also listed 84 specifications for product Server QNAP TS-128A. Have a question about product QNAP TS-128A and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manuals of product TS-128A

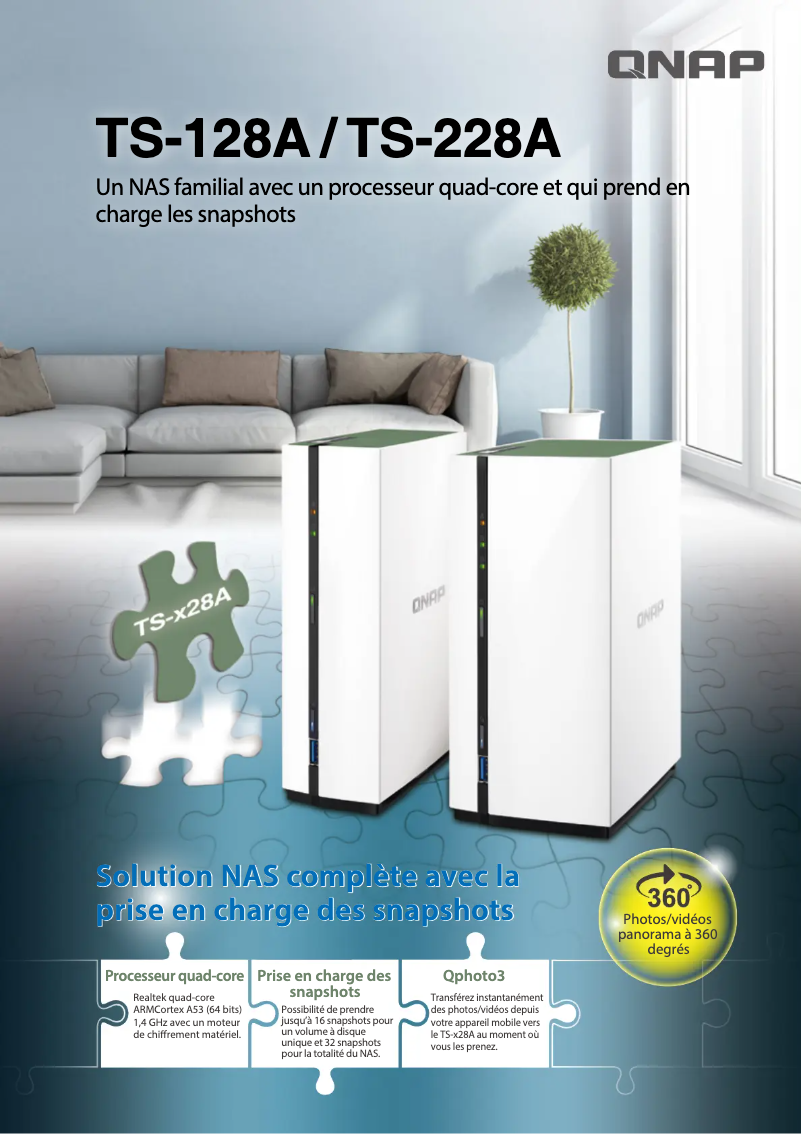

First page image of the manual for TS-128A

User Manual
751 pages
View manual
First page image of the manual for TS-128A

Technical Sheet
2 pages
View manual

Technical Specifications TS-128A

General Information

Storage support

  • Storage unit interface
    -
  • Hot-swappable drive bays
    -
  • Total capacity of installed storage
    0 To
  • Type of installed storage drive
    No
  • Type of installed storage drive
    No
  • Number of installed storage readers
    0
  • Supported storage drive types
    HDD
  • Number of supported storage units
    1
  • Storage unit size
    - "
  • Storage reader capacity
    0 Go
  • RAID support
    Yes
  • RAID support
    Yes
  • Supported file systems
    FAT32, HFS+, NTFS, ext3, ext4
  • Supported storage reader interfaces
    Serial ATA, Serial ATA II, Serial ATA III
  • Supported storage disk sizes
    3.5 "

Processor

  • Processor family
    Realtek
  • Number of processor cores
    4
  • Processor frequency
    1.4 GHz
  • Processor model
    RTD1295
  • The architecture of the processor
    ARM Cortex-A53

Memory

  • Type of internal memory
    DDR4
  • Internal memory
    1 GB
  • Flash memory
    4000 MB

Network

  • Supported WLAN adapter
    Yes
  • LAN Ethernet: data transfer rate
    1000 Mbit/s
  • Wifi
    No
  • Supported WLAN adapter
    Yes
  • Supported WLAN adapter
    Yes
  • Supported WLAN adapter
    Yes
  • Supported WLAN adapter
    Yes

Connectivity

  • Fibre Channel Ports
    -
  • Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports
    1
  • USB port
    Yes
  • Quantity of USB 2.0 Ports
    2
  • Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports
    1

Design

  • Chassis type
    Mini Tower
  • Cooling type
    Active
  • Product color
    White
  • Number of fans
    1 fan(s)
  • Fan diameter
    40 mm
  • Indicators
    Network, Status, System

Representation / realization

  • Type
    NAS
  • Device class
    Home and telecommuting
  • Automatic recognition of computer components
    Yes
  • Supported browsers
    Apple Safari 7, Google Chrome, Microsoft Internet Explorer 10, Mozilla Firefox
  • Automatic recognition of computer components
    Yes
  • Backup functions
    Cloud, iSCSI LUN
  • Automatic recognition of computer components
    Yes
  • Security-supported algorithm
    256-bit AES, FIPS 140-2, HTTPS, SNMP, SSH
  • Automatic recognition of computer components
    Yes
  • Automatic recognition of computer components
    Yes
  • Automatic recognition of computer components
    Yes
  • Automatic recognition of computer components
    Yes
  • Automatic recognition of computer components
    Yes
  • Automatic recognition of computer components
    Yes

Software

  • Installed operating system
    QNAP Turbo System
  • Operating system version
    4.3.4
  • Support for the Mac operating system
    Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
  • Support for the server operating system
    Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
  • Support for the Linux operating system
    Yes
  • Support for the Windows operating system
    Windows 10, Windows 7, Windows 8

Weight and dimensions

  • Width
    60 mm
  • Depth
    125 mm
  • Height
    187.7 mm
  • Weight
    560 g
  • Package weight
    1740 g

Power

  • Power location
    External
  • Power Supply Unit (PSU) capacity
    36 W
  • Typical electricity consumption
    7.06 W
  • Power consumption (in HDD standby)
    2.9 W
  • AC input voltage
    100 - 240 V
  • AC input frequency
    50 - 60 Hz

Packaging contents

  • External power adapter
    Yes
  • External power adapter
    Yes
  • Cables included
    AC, LAN (RJ-45)

Other features

  • Energy management
    Yes

Environmental conditions

  • Operating temperature
    0 - 40 °C
  • Relative humidity rate (storage)
    5 - 95 %
