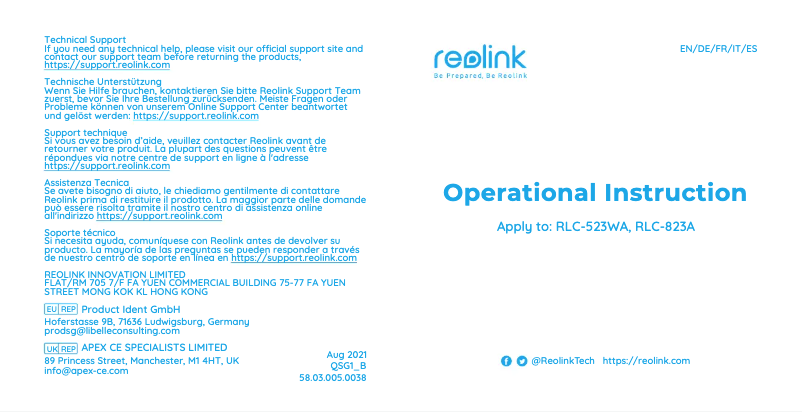

Manual of product RLC-823A
Technical Specifications RLC-823A
General Information
-
ModelRLC-823A
-
Brand
-
Category
-
Type
-
SKU1548590
-
MPN1548590
Weight and dimensions
-
Weight1800 g
-
Diameter136 mm
-
Product length201 mm
Design
-
Protection functionsRaincoat
-
International Protection Code (IP)IP66
-
Mounting typeWall
-
Product colorBlack, White
Environmental conditions
-
Operating temperature-10 - 55 °C
-
Operating relative humidity (H-H)20 - 85 %
Network
-
Number of users20 user(s)
-
Supported network protocolsHTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
-
Ethernet/LANYes
-
Type of Ethernet interfaceFast Ethernet
-
WifiNo
-
WifiNo
Video
-
Video recordingYes
-
Maximum resolution3840 x 2160 pixels
-
Total megapixels8 MP
-
Supported video formatH.265
-
Number of images per second25 fps
Minimum system requirements
-
Support for the Mac operating systemYes
-
Support for the Mac operating systemYes
-
Supported mobile systemAndroid, iOS
Camera
-
Panoramic0 - 360 °
-
Panoramic speed150 °/sec
-
Inclination angle0 - 90 °
-
Tilt speed60 °/sec
-
Field of view of the lens, horizontal96 °
-
Angle of view of the lens, vertical69 °
Audio
-
Built-in speakersYes
-
Built-in speakersYes
-
Audio system2-way
Storage support
-
Integrated hard driveNo
-
Compatible memory cardsMicroSD (TransFlash)
-
Maximum memory card size256 GB
Management features
-
Reset buttonYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Power
-
Power supply typeDC, PoE
-
Output CC in volts12
-
Output CC in amperes2 A
Night vision
-
Night visionYes
-
Night vision distance60 m
-
Type of LEDIR
-
Number of lighting LEDs4
-
Infrared wavelength850 nm
Representation / realization
-
Day/Night ModeYes
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
Day/Night ModeYes
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.8
Objective system
-
Number of lenses1
-
Zoom capacityYes
-
Optical zoom5 x
-
Focal length2.7 - 13.5 mm
-
Minimum opening amount1.6
-
Maximum number of openings3.3
Packaging contents
-
Number of cameras1
Security
-
Classification of vehicle and human targetsYes
-
Classification of vehicle and human targetsYes
Similar products
More product categories from brand Reolink
More product types from brand Reolink
Presentation of product RLC-823A specifications from brand Reolink
Weight and dimensions
The diameter of the product Reolink RLC-823A is 136 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Reolink RLC-823A is 1800 g. This weight is ideal for ensuring optimal use and easy handling. The length of the product Reolink RLC-823A is 201 mm. This dimension is essential to ensure optimal use.
Generalities
The brand of the product Reolink RLC-823A is Reolink. This brand is known for its quality and innovation in the field of household appliances. The product model Reolink RLC-823A is RLC-823A | RL-RLC-823A. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Reolink RLC-823A is 6972489773970. This code allows for the unique identification of the product in the distribution system.
Design
The product Reolink RLC-823A has Imperméable protection features. These characteristics ensure reliable use in various environmental conditions. The color of the product Reolink RLC-823A is Black, White. This shade gives it a modern and elegant look. The International Protection Code (IP) for product Reolink RLC-823A contains IP66. This code indicates the level of protection against solid objects and moisture. The mounting type of the product Reolink RLC-823A is Mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product.
Environmental conditions
The operating temperature of the product Reolink RLC-823A is -10 - 55 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Reolink RLC-823A has an operating relative humidity (H-H) of 20 - 85 %. This specification ensures optimal operation in a wide range of ambient humidity.
Video
Does the product Reolink RLC-823A have a Video Recording? Oui. This feature allows you to capture moving moments with optimal quality. The supported video format of the product Reolink RLC-823A contains H.265. This format allows for smooth and high-quality playback of your multimedia content. The maximum resolution of the product Reolink RLC-823A is 3840 x 2160 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product Reolink RLC-823A is 8 MP. This total ensures exceptional image quality for your photos. The number of frames per second of the product Reolink RLC-823A is 25 ips. This specification ensures optimal smoothness when playing videos.
Network
The number of users of the product Reolink RLC-823A is 20 utilisateur(s). This product is ideal for several people. The Ethernet interface type of the product Reolink RLC-823A is Fast Ethernet. This type of interface allows for fast and efficient network connections. Does the product Reolink RLC-823A have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The supported network protocols of the product Reolink RLC-823A are HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P. These protocols ensure efficient and reliable communication for your networking needs. Does the Reolink RLC-823A have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Wifi of the product Reolink RLC-823A contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices.
Minimum system requirements
Does the product Reolink RLC-823A support the Windows operating system? Oui. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience. The supported mobile system of the product Reolink RLC-823A contains Android, iOS. This system allows for smooth usage on major mobile platforms. Does the product Reolink RLC-823A support the Mac operating system? Oui. This feature ensures optimal compatibility for Mac users.
Storage support
The maximum size of the memory card for the product Reolink RLC-823A is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Reolink RLC-823A has compatible memory cards: MicroSD (TransFlash). These memory cards ensure optimal performance for storing your data. Does the Reolink RLC-823A have a built-in hard drive? No. This feature means that the product does not have internal storage.
Camera
The panoramic view of the product Reolink RLC-823A is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product Reolink RLC-823A is 0 - 90 °. This angle allows for adjusting the position for optimal comfort. The tilt speed of the product Reolink RLC-823A is 60 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The panning speed of the product Reolink RLC-823A is 150 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The field of view of the Reolink RLC-823A lens is 96 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Reolink RLC-823A is 69 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions.
Management features
Does the product Reolink RLC-823A have a Reset Button? Oui. This button allows you to easily reset the product settings.
Audio
Does the product Reolink RLC-823A have a built-in Microphone? Oui. This microphone allows for clear and precise audio capture, ideal for calls and recordings. The audio system of the product Reolink RLC-823A is stereo. This audio system provides an immersive and high-quality sound experience. Does the product Reolink RLC-823A have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Reolink RLC-823A is 1. These ports provide a stable and fast network connection for your devices.
Power
The product Reolink RLC-823A has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product Reolink RLC-823A is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The product Reolink RLC-823A has a DC output in amperes of 2 A. This specification ensures a stable power supply suitable for your needs.
Night vision
The number of lighting LEDs in the product Reolink RLC-823A is 4. This number determines the light intensity and energy efficiency of the device. The type of LED of the product Reolink RLC-823A is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Reolink RLC-823A is 60 m. This feature allows for clear and precise observation even in darkness. Does the product Reolink RLC-823A have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The infrared wavelength of the product Reolink RLC-823A is 850 nm. This feature allows for optimal use in various technological applications.
Representation / realization
Does the product Reolink RLC-823A have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The product Reolink RLC-823A features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The type of product Reolink RLC-823A is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Reolink RLC-823A supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Reolink RLC-823A have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort.
Image sensor
The number of sensors of the product Reolink RLC-823A is 1. This number of sensors allows for precise and efficient image detection. The sensor type of the product Reolink RLC-823A is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Reolink RLC-823A is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots.
Packaging contents
The number of cameras of the product Reolink RLC-823A is 1. This product is equipped with a camera that allows capturing high-quality images.
Security
Does the product Reolink RLC-823A have a Target Classification for vehicles and humans? Oui. This feature ensures accurate identification of threats, whether they are human-related or vehicle-related, thereby enhancing overall security. Does the product Reolink RLC-823A have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections.
Objective system
Does the product Reolink RLC-823A have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The number of lenses in the product Reolink RLC-823A is 1. This number determines the quality and versatility of the lens. The focal length of the product Reolink RLC-823A is 2.7 - 13.5 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The optical zoom of the product Reolink RLC-823A is 5 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The minimum opening number of the product Reolink RLC-823A is 1.6. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. The maximum number of openings for the product Reolink RLC-823A is 3.3. This feature allows for optimal use and increased flexibility.
