Thumbnail of product M 320F from brand Ricoh
Logo of brand Ricoh

Printer Ricoh M 320F

Ricoh
Computers and accessories
Printer

The Ricoh M 320F printer is a high-performance multifunction device, ideal for home and professional environments. With laser printing technology, it delivers exceptional print quality, with a maximum resolution of 1200 x 1200 DPI for clear and precise documents and images.

This printer supports color printing and is capable of printing up to 32 pages per minute in black and white, making it an efficient choice for everyday printing tasks. Additionally, its duplex printing feature optimizes paper usage, thereby contributing to waste reduction.

In terms of connectivity, the Ricoh M 320F is equipped with Wi-Fi, Ethernet, and USB ports, ensuring easy and fast connection with various devices. Support for modern network protocols, such as IPv4 and IPv6, ensures efficient print management in diverse network environments.

With a total paper capacity of 300 sheets and the possibility of a maximum input of 550 sheets, this device is designed to handle large volumes of documents without interruption. Its 4.3-inch touchscreen makes navigating features easy, making it intuitive and convenient to use.

Finally, the Ricoh M 320F is also environmentally friendly, possessing certifications such as ENERGY STAR and EPEAT, ensuring optimal energy efficiency and a reduced environmental impact.

In summary, the Ricoh M 320F printer is a versatile and high-performing solution, suitable for both professional and personal use, offering a combination of print quality, connectivity, and energy efficiency.

Manual of product M 320F

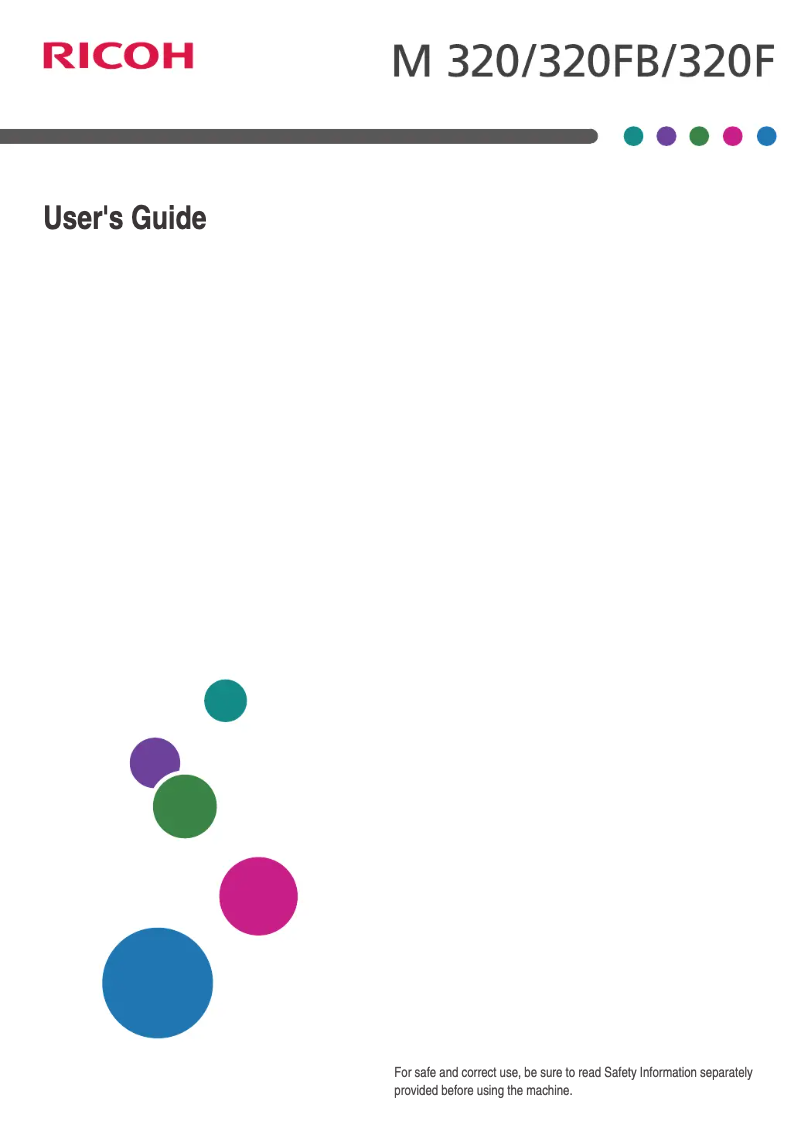

First page image of the manual for M 320F

User Manual
516 pages
View manual
8 10

Editorial note

The Ricoh M 320F stands out for its laser printing technology that ensures exceptional quality with a maximum resolution of 1200 x 1200 DPI. This printer is particularly suited for professional environments requiring high-quality documents. Its versatile connectivity, including Wi-Fi, Ethernet, and USB ports, facilitates direct printing from various devices, making its use practical and modern. However, some drawbacks are worth noting. The duplex printing mode is manual, which can slow down workflow, especially for users with many documents to print. Additionally, the inability to scan double-sided may be a disadvantage for those who need efficient scanning functionality. Weighing 18 kg, the device can also be difficult to move around an office, and the maximum output capacity of 50 sheets may require frequent interventions for high-volume printing users. In terms of performance, the Ricoh M 320F scores well. Printing performance is solid, although the duplex printing speed is limited to 13 pages per minute. Energy consumption is also impressive, with sustainability certifications such as ENERGY STAR and EPEAT, highlighting a commitment to energy efficiency and environmental respect. Overall, the Ricoh M 320F represents good value for money, considering its features and print quality. However, the limitations in scanning and duplex printing, as well as its output capacity, may lead some users to reconsider their choice based on their specific needs.

Score details

User experience

The user experience is generally positive due to versatile connectivity and an intuitive interface, although some features require manual intervention.

Performance

Print performance is excellent with laser technology, but the double-sided printing speed is limited, which can slow down workflow.

Battery life

Energy consumption is efficient, with sustainability certifications ensuring a low environmental impact.

Design

The design is functional, but the weight of 18 kg can make moving it difficult, which can be a problem in an office environment.

Features

Although the product offers many useful features, the lack of double-sided scanning and manual printing mode can be seen as limitations.

Value for money

The value for money is good considering the features and print quality, but the maximum output capacity may require frequent interventions.

Advantages

High-quality laser printing 1200 x 1200 DPI

Wi-Fi, Ethernet, and USB connectivity

Manual duplex printing to save paper

Monthly duty cycle of up to 35,000 pages

ENERGY STAR and EPEAT certified for sustainability

Disadvantages

No automatic duplex scanning

Manual duplex printing, time-consuming

Weight of 18 kg, difficult to move

Slow duplex printing speed

Maximum output capacity of 50 sheets

Technical Specifications M 320F

General Information

Weight and dimensions

  • Width
    405 mm
  • Depth
    392 mm
  • Height
    420 mm
  • Weight
    18000 g

Network

  • Wi-Fi Direct
    Yes
  • Wi-Fi Direct
    Yes
  • Wi-Fi Direct
    Yes
  • Wiring technology
    10/100Base-T(X)
  • Wifi standards
    802.11b, Wi-Fi 5 (802.11ac)
  • Wi-Fi Direct
    Yes
  • LAN Ethernet: data transfer rate
    10, 100 Mbit/s
  • Support for network protocols (IPv6)
    TCP/IP
  • Support for network protocols (IPv6)
    TCP/IP
  • Mobile printing technologies
    Apple AirPrint, Mopria Print Service

Print speed

  • Duplex printing mode
    -
  • Printing technology
    Laser
  • Printing
    Monochrome printing
  • Preheating time
    30 s
  • Double-sided printing
    Yes
  • Maximum resolution
    1200 x 1200 DPI
  • Print speed (black, normal quality, A4/US Letter)
    32 ppm
  • Duplex printing speed (Black, normal quality, A4/US Letter)
    13 ppm
  • Copy time for the first page (Black, normal)
    7.1 s

Design

  • Product color
    Black, White
  • Color display
    Yes
  • Screen size
    4.3 "
  • Order type
    Touchscreen
  • Market position
    Domestic and professional
  • Color display
    Yes

Digitization

  • Type of scanner
    -
  • Digitization
    Color scanning
  • Double-sided scanning
    No
  • Maximum scanning resolution
    1200 x 1200 DPI
  • Scan to
    E-mail, FTP, TWAIN, USB
  • Maximum scanning resolution
    1200 x 1200 DPI
  • Supported image formats
    JPEG, MMR, TIFF
  • Support for text formats
    PDF
  • Maximum scan area
    216 x 356 mm

Copier

  • Copy
    Color copy
  • Maximum copy size
    A4
  • Function ID-Card Copy
    Yes
  • Function ID-Card Copy
    Yes
  • Maximum number of copies
    99 copies
  • Max. resolution of copies
    600 x 600 DPI
  • Resizing copy
    25 - 400 %

Fax

  • Fax
    -
  • Modem speed
    33.6 Kbit/s
  • Fax transmission speed
    3 sec/page

Representation / realization

  • Internal memory
    256 MB

Input and output capacity

  • Total power capacity
    300 sheets
  • Maximum output capacity
    50 sheets
  • Maximum input capacity
    550 sheets
  • Maximum output capacity
    50 sheets
  • Total number of power supply units
    1
  • Input capacity of the paper tray 1
    250 sheets

Paper management

  • Maximum ISO A series paper size
    A4
  • Weight of paper tray support
    52 - 162 g/m²
  • Type of paper tray support
    Envelopes, Labels, Letterhead, Plain paper, Recycled paper
  • ISO, Format Series A (A0...A9)
    A4, A5, A6
  • ISO, Formats Series-B (B0...B9)
    B5, B6

Connectivity

  • Direct printing
    Yes
  • Quantity of USB 2.0 Ports
    3
  • USB connector
    USB Type-A / USB Type-B
  • Direct printing
    Yes

Features

  • Number of print cartridges
    -
  • Printer fonts
    PCL, PostScript
  • Service cycle (Maximum)
    35000 pages per month
  • Languages of the page description
    PCL 5e, PCL 6, PS3
  • Double-sided functions
    Copy, Print
  • Printing colors
    Black

Minimum system requirements

  • Support for the Windows operating system
    Windows 10
  • Support for the server operating system
    Windows 8.1
  • Support for the Linux operating system
    Windows Server 2012 R2
  • Support for the Linux operating system
    Windows Server 2016
  • Windows Server 2019
  • Yes
  • Yes

Power

  • AC input voltage
    220 - 240 V
  • AC input frequency
    50/60 Hz
  • Average power consumption in Print mode
    520 W
  • Energy consumption (loan)
    65.7 W
  • Energy consumption (in standby mode)
    0.87 W
  • Consumption (max)
    960 W
  • Energy Star, typical electrical consumption (TEC)
    0.423 kWh/week

Sustainability

  • Sustainability certificates
    ENERGY STAR
  • Compliance with sustainability
    EPEAT
  • Yes

Frequently Asked Questions

What is the weight of the Ricoh M 320F?
The Ricoh M 320F weighs 18,000 g.
What is the recommended method for removing paper jammed in the printer?
To remove a jammed paper, turn off the printer and carefully pull out the paper. Make sure the print head is not protruding and that no pieces of paper remain inside.
Why does my printer not recognize original cartridges?
Non-authentic cartridges may not be detected by the printer, resulting in a message indicating that the cartridge is empty. Refer to the cartridge manual for solutions, and if the problem persists, contact the seller.
What could be the reasons for poor print quality?
Poor print quality can be due to several factors. Check that the cartridges or toners are full. Inkjet printers may require cleaning if the cartridges are dry or if the print head is damaged. For laser printers, it is advisable to calibrate the device.
What is the difference between a laser printer and an inkjet printer?
A laser printer uses toner, while an inkjet printer uses ink.
Why does my inkjet printer leave black streaks on prints?
This is often due to a faulty cartridge that needs to be replaced.
What does the acronym DPI mean?
DPI stands for Dots Per Inch and refers to the number of ink droplets applied to the paper for each inch during printing.
How many cartridges can the Ricoh M 320F hold?
The Ricoh M 320F can accommodate several cartridges.
What is the size of the screen on the Ricoh M 320F?
The screen on the Ricoh M 320F measures 4.3 inches.
What is the height of the Ricoh M 320F?
The height of the Ricoh M 320F is 420 mm.
What is the width of the Ricoh M 320F?
The Ricoh M 320F has a width of 405 mm.
What is the depth of the Ricoh M 320F?
The depth of the Ricoh M 320F is 392 mm.
Is the manual for the Ricoh M 320F available in French?
Unfortunately, the manual for the Ricoh M 320F is not available in French; it is only offered in English.

Similar products

Ricoh Aficio MP C2500
1
Ricoh Computers and accessories Printer
Thumbnail of product Ricoh Aficio MP C2500
Discover the technical sheet of Aficio MP C2500 from Ricoh and its manuals...
Available manuals:

Dell E514dw
1
Dell Computers and accessories Printer
Thumbnail of product Dell E514dw
Discover the technical sheet of E514dw from Dell and its manuals...
Available manuals:

Ricoh MP C306ZSP
1
Ricoh Computers and accessories Printer
Thumbnail of product Ricoh MP C306ZSP
Discover the technical sheet of MP C306ZSP from Ricoh and its manuals...
Available manuals:

Canon imageCLASS MF624Cw
1
Canon Computers and accessories Printer
Thumbnail of product Canon imageCLASS MF624Cw
Discover the technical sheet of imageCLASS MF624Cw from Canon and its manuals...
Available manuals:

Ricoh MP5000
1
Ricoh Computers and accessories Printer
Thumbnail of product Ricoh MP5000
Discover the technical sheet of MP5000 from Ricoh and its manuals...
Available manuals:

Ricoh MP C306ZSPF
1
Ricoh Computers and accessories Printer
Thumbnail of product Ricoh MP C306ZSPF
Discover the technical sheet of MP C306ZSPF from Ricoh and its manuals...
Available manuals:

Canon imageCLASS MF232w
1
Canon Computers and accessories Printer
Thumbnail of product Canon imageCLASS MF232w
Discover the technical sheet of imageCLASS MF232w from Canon and its manuals...
Available manuals:

Samsung SL-M2020W
1
Samsung Computers and accessories Printer
Thumbnail of product Samsung SL-M2020W
Discover the technical sheet of SL-M2020W from Samsung and its manuals...
Available manuals:

Ricoh Aficio MP C6000
1
Ricoh Computers and accessories Printer
Thumbnail of product Ricoh Aficio MP C6000
Discover the technical sheet of Aficio MP C6000 from Ricoh and its manuals...
Available manuals:

Ricoh Aficio MP C4500
1
Ricoh Computers and accessories Printer
Thumbnail of product Ricoh Aficio MP C4500
Discover the technical sheet of Aficio MP C4500 from Ricoh and its manuals...
Available manuals:

More product categories from brand Ricoh

More product types from brand Ricoh

Presentation of product M 320F specifications from brand Ricoh

General Information

The Ricoh M 320F model, from the renowned Ricoh brand known for its innovation and quality, offers optimal performance for all your printing needs. Its EAN code, 4961311962943, allows for unique identification in the distribution system.

Weight and Dimensions

With dimensions of 405 mm in width, 392 mm in depth, and 420 mm in height, the Ricoh M 320F is designed to easily fit into various work environments. Weighing 18 kg, it remains quite manageable while offering appreciated robustness.

Network

The Ricoh M 320F ensures efficient connectivity thanks to its built-in Wi-Fi function, allowing for fast and reliable wireless connection. It is also equipped with Ethernet/LAN, guaranteeing optimal network performance with 10/100Base-T(X) cabling. Support for Wi-Fi standards 802.11b and Wi-Fi 5 (802.11ac) as well as the Wi-Fi Direct function facilitate sharing and printing from your mobile devices. Additionally, it supports IPv4 and IPv6 network protocols for effective print management.

Print Speed

The laser printing technology of the Ricoh M 320F offers a maximum resolution of 1200 x 1200 DPI, ensuring prints of exceptional quality. The standard print speed is 32 pages per minute (ppm) in black and white, while duplex printing is done manually at 13 ppm. With a warm-up time of only 30 seconds and a first page copy delay of 7.1 seconds, this device is ideal for intensive professional use.

Design

The Ricoh M 320F features a modern design with a black and white finish. Its 4.3-inch touchscreen makes it easy to use and navigate its features. This model is designed to meet the needs of professional users while providing a user-friendly interface.

Scanning

This model allows color scanning with an optical resolution of 1200 x 1200 DPI, ensuring faithful reproductions. It supports several scanning protocols, including E-mail and USB, but does not offer duplex scanning. The maximum scan area is 216 x 356 mm.

Copier

The Ricoh M 320F offers color copying capabilities up to A4, with a maximum resolution of 600 x 600 DPI. Although it does not have automatic duplex copying, it allows for up to 99 copies with size adjustments between 25% and 400% according to your needs.

Fax

The built-in fax machine allows for sending and receiving documents at a speed of 33.6 Kbit/s, ensuring fast transmission with optimal efficiency.

Input and Output Capacity

The total feed capacity is 300 sheets, with a maximum input capacity of 550 sheets for efficient document handling. The output capacity is 50 sheets, which may require frequent attention during high-volume printing.

Paper Management

Compatible with A4, A5, and B5 paper sizes, and with a paper weight ranging from 52 to 162 g/m², the Ricoh M 320F allows for varied use, including for labels and recycled paper.

Connectivity

The Ricoh M 320F has 3 USB 2.0 ports for quick and easy connection to various devices, and allows for direct printing from these devices, simplifying the printing process.

Features

Supporting PCL and PostScript printer fonts, the Ricoh M 320F is capable of handling up to 35,000 pages per month, thus meeting the demands of intensive work environments.

Minimum System Requirements

Compatible with Windows operating systems (including Windows 10 and 8.1), Mac, and Linux, the Ricoh M 320F ensures easy integration into various computing environments.

Power

Operating on an input voltage of 220 - 240 V and a frequency of 50/60 Hz, the Ricoh M 320F has a power consumption of 520 W in print mode, with low consumption in sleep mode.

Durability

Certified ENERGY STAR and EPEAT, the Ricoh M 320F meets high standards for energy efficiency and environmental impact, ensuring responsible use.
