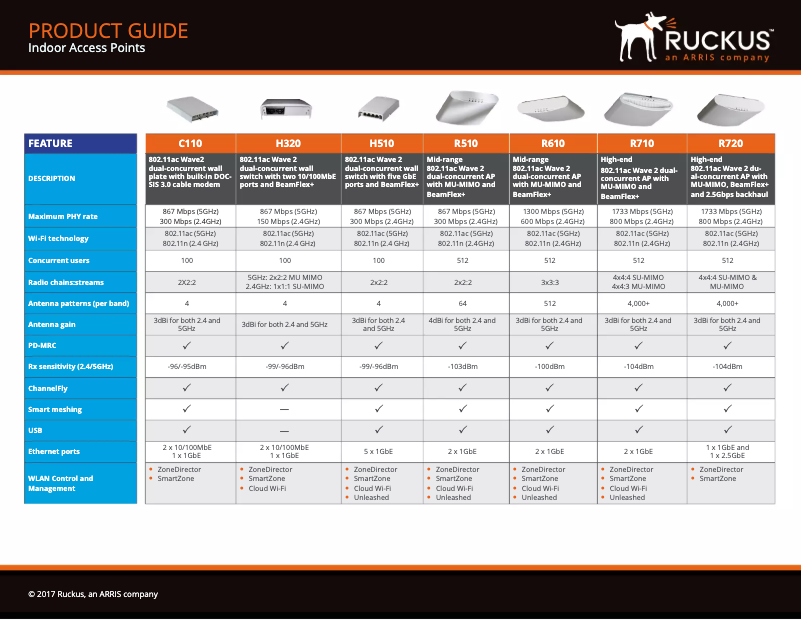

Manual of product R710
Technical Specifications R710
General Information
-
ModelR710
-
Brand
-
Category
-
Type
-
SKU985742
-
MPN985742
Features
-
VLAN SupportYes
-
VLAN SupportYes
-
Number of users512 user(s)
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
-
Maximum data transfer rate via the wireless local area network1733 Mbit/s
-
Maximum data transfer rate via the wireless local area network1733 Mbit/s
-
VLAN SupportYes
-
Network standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.2x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
-
VLAN SupportYes
-
Modulation256-QAM
-
Receiver sensitivity-104dBm
-
Raise the functions of AP modeMesh network
Connectivity
-
Quantity of USB 2.0 Ports1
-
Number of Ethernet LAN ports (RJ-45)2
Power
-
AC input voltage12 V
-
Input current2 A
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Typical electricity consumption9.4 W
-
Consumption (max)25 W
Weight and dimensions
-
Depth220 mm
-
Depth220 mm
-
Height60 mm
-
Weight1050 g
Design
-
Product colorWhite
-
InternalNo
-
Cable anti-theft lockYes
-
PositioningCeiling, Table, Wall
-
Cable anti-theft lockYes
-
Cable lock location typeKensington
Antenna
-
Antenna typeInternal
-
Antenna gain level (max)3 dBi
Security
-
VPN supportL2TP
-
Security-supported algorithm802.1x RADIUS, AES, WPA-PSK
-
Functions of the Service Set Identifier (SSID)Hidden SSID
-
Remote Authentication Dial-In User Service (RADIUS) user authentication composition serviceYes
Certificate
-
CertificationRoHS
-
WEEE
-
EN 60601-1-2
-
UL 2043
-
EN50121-1
-
EN50121-4
-
IEC 61373
Management features
-
Web-based managementYes
Protocols
-
Management protocolsSNMP
-
DHCP serverYes
Similar products
More product categories from brand Ruckus Wireless
Presentation of product R710 specifications from brand Ruckus Wireless
Generalities
The product model Ruckus Wireless R710 is R710 | 901-R710-WW00. This model ensures optimal performance and an enhanced user experience. The brand of the product Ruckus Wireless R710 is Ruckus Wireless. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Ruckus Wireless R710 is 5054444054933. This code allows for the unique identification of the product in the distribution system.
Power
The AC input voltage of the Ruckus Wireless R710 is 12 V. This specification ensures optimal compatibility with standard electrical systems. The typical power consumption of the product Ruckus Wireless R710 is 9.4 W. This feature allows for the assessment of the energy efficiency of the device. The input current of the product Ruckus Wireless R710 is 2 A. This input current ensures optimal performance and increased energy efficiency. Does the Ruckus Wireless R710 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The maximum consumption of the product Ruckus Wireless R710 is 25 W. This specification allows for the assessment of the energy efficiency of the device.
Connectivity
The number of USB 2.0 ports on the Ruckus Wireless R710 is 1. These ports allow for a fast and efficient connection for your devices. The number of Ethernet LAN (RJ-45) ports of the product Ruckus Wireless R710 is 2. These ports provide a stable and fast network connection for your devices.
Features
Is the Ruckus Wireless R710 product 2.4 GHz? Oui. This specification ensures effective and stable wireless connectivity. The number of users of the product Ruckus Wireless R710 is 512 utilisateur(s). This product is ideal for several people. The data transfer rate of the product Ruckus Wireless R710 is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. Does the Ruckus Wireless R710 have 5 GHz? Oui. This feature allows for a faster and more stable wireless connection. The maximum data transfer rate of the product Ruckus Wireless R710 is 1733 Mbit/s. This rate ensures a fast and efficient connection for all your networking needs. The maximum data transfer rate via the wireless local area network of the product Ruckus Wireless R710 is 1733 Mbit/s. This high rate allows for a fast and smooth connection for all your devices. Does the product Ruckus Wireless R710 support VLAN? Oui. This feature allows for optimized network management by segmenting traffic. The modulation of the product Ruckus Wireless R710 is 256-QAM. This feature allows for the operation of the product to be adapted according to the specific needs of the user. Does the product Ruckus Wireless R710 have Wi-Fi Multimedia (WWM)/(WME)? Oui. This feature allows for smooth and fast streaming of multimedia content via a wireless connection. The network standards of the product Ruckus Wireless R710 are IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.2x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u. These standards ensure optimal compatibility with various equipment and protocols. The sensitivity of the Ruckus Wireless R710 receiver is -104dBm. This feature ensures a stable and high-performance connection, even in challenging environments. The AP mode of the Ruckus Wireless R710 product includes 802.11k and 802.11v for intelligent roaming, dual-link AC backup, unified AC management and maintenance, Dual-MPP mesh network, mesh network, Hotspot 2.0, Plug and Play installation, service continuity during CAPWAP link disconnection, unified authentication on the AC, configuration-free WDS deployment, and a wireless distribution system (WDS).
Weight and dimensions
The depth of the product Ruckus Wireless R710 is 220 mm. This dimension allows for optimal integration into your space. The width of the product Ruckus Wireless R710 is 220 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Ruckus Wireless R710 is 60 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Ruckus Wireless R710 is 1050 g. This weight is ideal for ensuring optimal use and easy handling.
Antenna
The type of antenna of the product Ruckus Wireless R710 is Interne. This antenna is designed to provide optimal performance in a compact space. The maximum gain level of the antenna for the product Ruckus Wireless R710 is 3 dBi. This gain level helps optimize the reception and transmission of signals.
Design
The color of the product Ruckus Wireless R710 is Blanc. This shade gives it a modern and elegant look. Does the product Ruckus Wireless R710 have an Internal? No. This product does not have any internal components. The positioning of the product Ruckus Wireless R710 is Ceiling, Table, Wall. This positioning allows for optimizing its use and ensuring an optimal user experience. Does the product Ruckus Wireless R710 have indicators? Oui. These indicators allow you to visualize the operating status of the device. Does the product Ruckus Wireless R710 have a cable lock port? No. This product does not have this security feature. The type of cable lock location for the product Ruckus Wireless R710 is Kensington. This type of lock provides optimal security to protect your device against theft.
Security
The supported security algorithm of the product Ruckus Wireless R710 contains 802.1x RADIUS, AES, WPA-PSK. This algorithm ensures optimal protection of your data. The VPN support of the product Ruckus Wireless R710 contains L2TP. This support allows for a secure and reliable connection for your online data. Does the product possess the Remote Authentication Dial-In User Service (RADIUS) user service? Oui. This service allows for secure management of remote connections, thus ensuring the authenticity of users. The Service Set Identifier (SSID) of the Ruckus Wireless R710 product contains Hidden SSID. This SSID allows for managing the broadcast of the wireless network and enhancing the security of the connection.
Certificate
The certification of the product Ruckus Wireless R710 contains RoHS, WEEE, EN 60601-1-2, UL 2043, EN50121-1, EN50121-4, IEC 61373. This certification guarantees compliance with the required safety and performance standards.
Management features
The Ruckus Wireless R710 product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Protocols
The DHCP server of the product Ruckus Wireless R710 is Oui. This server allows for the dynamic assignment of IP addresses to devices on a network, thus facilitating the management of connections. The product management protocol Ruckus Wireless R710 contains SNMP. This protocol allows for efficient and centralized management of network devices.
