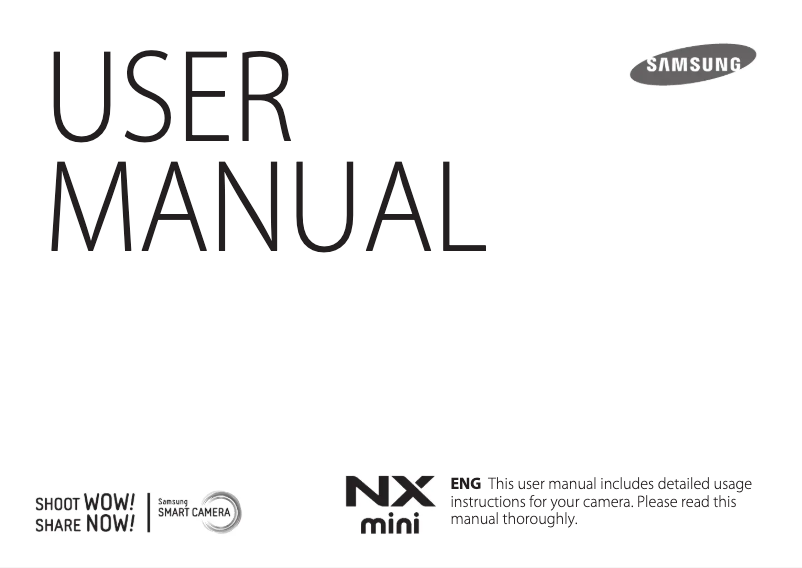

Manual of product NX F1 Mini
Editorial note
The Samsung NX F1 Mini stands out for its exceptional image quality, thanks to its 20.5 MP CMOS sensor that allows for capturing precise details and vibrant colors. The advanced autofocus features, including Multi Point Auto Focus and face detection, ensure sharp and well-framed images, providing an enriching photographic experience. The battery life is also a strong point, with a capacity of 2330 mAh allowing for up to 650 shots without interruption. Additionally, the 3-inch tilting touchscreen adds flexibility in use, although it has a lower resolution than some competitors, which may affect the viewing experience. However, the Samsung NX F1 Mini has some drawbacks. The optical zoom is limited, which may restrict long-distance shooting capabilities without loss of quality. The lack of internal memory forces users to invest in memory cards, which can incur additional costs. Furthermore, the user interface can be complex for beginners, making it less intuitive to handle. Finally, although the product is lightweight and easy to handle, the flash range is relatively weak, which can be problematic in very dark environments. In summary, the Samsung NX F1 Mini is a camera that offers many advantages but could benefit from improvements in certain aspects for an optimal user experience.Score details
User experience
The user interface can be complex for beginners, making the device less intuitive to use. However, the advanced features and tiltable touchscreen enhance the overall experience.
Performance
The image quality is exceptional thanks to a 20.5 MP CMOS sensor, allowing for precise detail capture and vibrant colors. The advanced autofocus features ensure sharp images.
Battery life
The battery life is impressive, with a capacity of 2330 mAh, allowing for up to 650 shots without interruption.
Design
The 3-inch touchscreen is tiltable, offering flexibility in use. However, its resolution is lower than that of some competitors, which may affect the viewing experience.
Features
The various exposure modes, such as aperture priority, offer creative flexibility. Nevertheless, the limited optical zoom may restrict long-distance shooting capabilities.
Value for money
Although the product offers many features, the lack of internal memory forces users to invest in memory cards for storage, which can add an extra cost.
Robustness
The product is lightweight and easy to handle, but the flash range is relatively low, which can be problematic in very dark environments.
Advantages
20.5 MP CMOS sensor for accurate images
Autofocus and face detection
3-inch tiltable touchscreen
Wi-Fi connectivity for easy sharing
Various exposure modes for creativity
Long-lasting battery, up to 650 photos
Disadvantages
Limited optical zoom for distant shots.
No internal memory, requires cards.
Complex user interface for beginners.
Low flash range in low light.
Screen resolution lower than competitors.
Technical Specifications NX F1 Mini
General Information
-
ModelNX F1 MINI
-
Brand
-
Category
-
Type
-
SKU450977
-
MPN450977
Image quality
-
Megapixel20.5 MP
-
Camera typeMILC
-
Image sensor size- "
-
Sensor typeCMOS
-
Maximum image resolution5472 x 3648 pixels
-
Photo capture resolution5472 x 3648, 3888 x 2592, 2976 x 1984, 1728 x 1152, 2736 x 1824, 5472 x 3080, 3712 x 2088, 2944 x 1656, 1920 x 1080, 3648 x 3648, 2640 x 2640, 2000 x 2000, 1024 x 1024
-
Image stabilizerYes
-
Image stabilizer locationLens
-
Supported aspect ratios1:1, 4:3, 16:9
-
Total megapixels20.9 MP
-
Image sensor size (l xh)13.2 x 8.8 mm
-
Supported image formatsJPG
Objective system
-
Minimum opening amount-
-
Maximum number of openings-
-
Digital zoom- x
-
Digital zoom- x
-
Focal length9 - 27 mm
-
Maximum focal length (35mm equiv)- mm
-
Maximum focal length (35mm equiv)- mm
-
Lens mount interfaceSamsung NX
Tuning
-
Auto Focusing (AF) ModesContinuous Auto Focus
-
Autofocus (AF) assistance beamContrast Detection Auto Focus
-
Object detection by autofocus (AF)Single Auto Focus
-
Yes
-
Face
Exposure to light
-
ISO Sensitivity160,200,400,800,1600,3200,6400,12800,25600
-
Type of exposureAperture priority AE, Auto, Manual, Shutter priority AE
-
Correction of light exposure± 3EV (1/3EV step)
-
Light measurementCentre-weighted, Evaluative (Multi-pattern), Spot
-
Automatic Exposure Lock (AE)Yes
-
The ISO sensitivity (min)160
-
The ISO sensitivity (max)25600
Shutter
-
Maximum shutter speed of the camera1/16000 s
-
Minimum shutter speed of the camera30 s
Flash
-
Flash modesAuto
-
Number of flash guidesFill-in
-
Flash range (tele)Red-eye reduction
-
Flash range (tele)4.9 m
-
External flash connector- m
-
Flash sync speed-- m
-
Flash exposure correctionYes
-
1/200 s
-
±2EV (1/2 EV step)
Video
-
Video recordingYes
-
Maximum video resolution1920 x 1080 pixels
-
Video resolutions320 x 240, 640 x 480, 1280 x 720, 1920 x 1080 pixels
-
Motion JPEG frame rate30 fps
-
Analog signal format systemNTSC, PAL
-
Type HDFull HD
-
Supported video formatH.264, MP4
Audio
-
Voice recordingYes
-
Voice recordingYes
-
Supported audio formatsAAC
Memory
-
Internal memory- Mo
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Memory locations1
Screen
-
ScreenTFT
-
Screen size3 "
-
Screen resolution480 x 320 pixels
-
Digital display resolution460800 pixels
-
Touch screenYes
-
Field of vision100 %
-
Touch screenYes
Connectivity
-
PictBridge-
-
USB Version2.0
-
DC InputYes
-
HDMI version1.3a
-
DC InputYes
Network
-
Contactless paymentYes
-
Wifi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
-
Contactless paymentYes
Camera
-
Histogram-
-
White balanceAuto
-
Scene modesCloudy
-
Shooting modesCustom modes
-
Photographic effectsDaylight
-
Automatic delay deviceFlash
-
Camera playbackFluorescent
-
Languages taken into accountTungsten
-
Image editing
-
GPS (satellite)Children
-
Support for the Windows operating systemFireworks
-
Support for the Mac operating systemFood
-
Night
-
Panorama
-
Party (indoor)
-
Portrait
-
Sunset
-
Landscape (scenery)
-
-
Aperture priority
-
Auto
-
Manual
-
Shutter priority
-
-
Vivid
-
-
2, 30 s
-
-
Movie
-
Single image
-
Slide show
-
Thumbnails
-
-
ARA
-
CHI (SIMPL)
-
CHI (TR)
-
CZE
-
DAN
-
DEU
-
DUT
-
ENG
-
ESP
-
EST
-
FIN
-
FRE
-
GRE
-
HEB
-
HUN
-
ITA
-
KOR
-
LAV
-
LIT
-
NOR
-
POL
-
POR
-
RUM
-
RUS
-
SER
-
SWE
-
THA
-
TUR
-
VLS
-
-
Crop
-
Resizing
-
Rotating
-
Trimming
-
-
Yes
-
-
Windows 7 Enterprise
-
Windows 7 Enterprise x64
-
Windows 7 Home Basic
-
Windows 7 Home Basic x64
-
Windows 7 Home Premium
-
Windows 7 Home Premium x64
-
Windows 7 Professional
-
Windows 7 Professional x64
-
Windows 7 Starter
-
Windows 7 Starter x64
-
Windows 7 Ultimate
-
Windows 7 Ultimate x64
-
Windows 8
-
Windows 8 Enterprise
-
Windows 8 Enterprise x64
-
Windows 8 Pro
-
Windows 8 Pro x64
-
Windows 8 x64
-
-
Mac OS X 10.5 Leopard
-
Mac OS X 10.6 Snow Leopard
-
Mac OS X 10.7 Lion
-
Mac OS X 10.8 Mountain Lion
-
Mac OS X 10.9 Mavericks
Other features
-
Power supply typeBattery, USB
-
Minimal disk space110 MB
-
Minimum RAM256 MB
-
Minimal processorIntel Core 2 Duo 1.66GHz, AMD Athlon X2 Dual-Core 2.2GHz
Battery
-
Battery technology-
-
Battery voltage3.8 V
-
Battery life (CIPA standard)650 clichés
-
Battery capacity2330 mAh
Design
-
Product colorBlack
Environmental conditions
-
Operating temperature0 - 40 °C
-
Operating relative humidity (H-H)5 - 85 %
Weight and dimensions
-
Width110.4 mm
-
Depth22.5 mm
-
Height61.9 mm
-
Weight158 g
-
Weight (including the battery)196 g
Packaging contents
-
Provided softwareAdobe Photoshop Lightroom 5, iLauncher
-
Quick Start GuideYes
-
Quick Start GuideYes
Frequently Asked Questions
What is the weight of the Samsung NX F1 Mini?
What is the size of the screen of the Samsung NX F1 Mini?
What is the height of the Samsung NX F1 Mini?
What is the resolution of the screen of the Samsung NX F1 Mini?
What is the width of the Samsung NX F1 Mini?
What is the depth of the Samsung NX F1 Mini?
Is the manual for the Samsung NX F1 Mini available in French?
Similar products
More product categories from brand Samsung
Television and multimedia Samsung
Home appliances Samsung
Household appliances Samsung
Phones Samsung
Audio Samsung
Other Samsung
Interior Samsung
Tools Samsung
Software Samsung
More product types from brand Samsung
Presentation of product NX F1 Mini specifications from brand Samsung
General Information
The Samsung NX F1 Mini camera is a creation of the prestigious brand Samsung, known for its technological innovations in the field of photography. This model, identified by the code NX F1 Mini | EV-NXF1ZZB2ICH, is designed to offer optimal performance and an enhanced user experience. The associated EAN code, which allows for the identification of this product in distribution systems, includes several references: 8806085983052, 8806086002028, 8806086002042, 8806086163743, 8806086192620, 8806086192637, 8806086192644, 8806086210119, 8806086241861, 8806086241878.
Image Quality
With a 20.5 MP sensor, the Samsung NX F1 Mini guarantees images of remarkable quality, allowing for the capture of every detail with impressive precision. This model uses a CMOS sensor that promotes excellent light management, essential for shooting in various lighting conditions. The maximum image resolution is 5472 x 3648 pixels, offering exceptional clarity. Additionally, the built-in image stabilizer helps reduce blurriness caused by movement, ensuring sharp shots. The supported aspect ratios, including 1:1, 4:3, 16:9, add flexibility when composing images.
Lens System
The Samsung NX F1 Mini is equipped with a lens system with a focal length of 9 to 27 mm, allowing for a variety of shots, from landscapes to portraits. Although the optical zoom is limited, it allows for capturing details both near and far. The Samsung NX mount ensures compatibility with various lenses, providing increased flexibility for photographers.
Focusing
The autofocus mode includes options such as Multi Point Auto Focus, Single Auto Focus, and Tracking Auto Focus. These features ensure precise and quick focusing, essential for capturing fleeting moments. The presence of an autofocus assist beam optimizes focusing in low-light conditions.
Light Exposure
The ISO sensitivity of the Samsung NX F1 Mini ranges from 160 to 25600, allowing for great flexibility when capturing images in various lighting environments. The different exposure modes, such as Aperture priority AE and Shutter priority AE, offer creative options for controlling depth of field and shutter speed. The exposure compensation of ±3EV allows for precise adjustments to the brightness of images.
Video
This model supports video recording with a maximum resolution of 1920 x 1080 pixels, ensuring optimal image quality. Its frame rate of 30 fps ensures smooth playback of videos. The supported video formats include H.264 and MP4, providing compatibility for various types of multimedia playback.
Connectivity
The Samsung NX F1 Mini features built-in Wi-Fi connectivity, allowing for easy sharing of photos and videos. Additionally, it supports PictBridge for direct printing of images without going through a computer. The USB 2.0 and HDMI 1.3a connectivity allows for fast transfers and connection to external devices.
Battery
Powered by a nickel-metal hybrid (NiMH) battery, the Samsung NX F1 Mini offers a battery life of 650 shots with a capacity of 2330 mAh. This lifespan allows for capturing many moments without interruption, making the device ideal for extended outings.
Design
The Samsung NX F1 Mini comes in an elegant black hue, combining modernity and functionality. Compact and lightweight, it is designed for easy portability, facilitating daily use.
Environmental Conditions
This model operates within a temperature range of 0 to 40 °C and can function in relative humidity conditions of 5 to 85 %, ensuring its reliability in various environments.
Weight and Dimensions
The Samsung NX F1 Mini measures 110.4 mm in width, 22.5 mm in depth, and 61.9 mm in height, with a lightweight of 196 g including the battery, making it a practical choice for photographers on the go.
Package Contents
The device comes with Adobe Photoshop Lightroom 5 software and a quick start guide, allowing users to immediately start exploring the features of their new camera.
