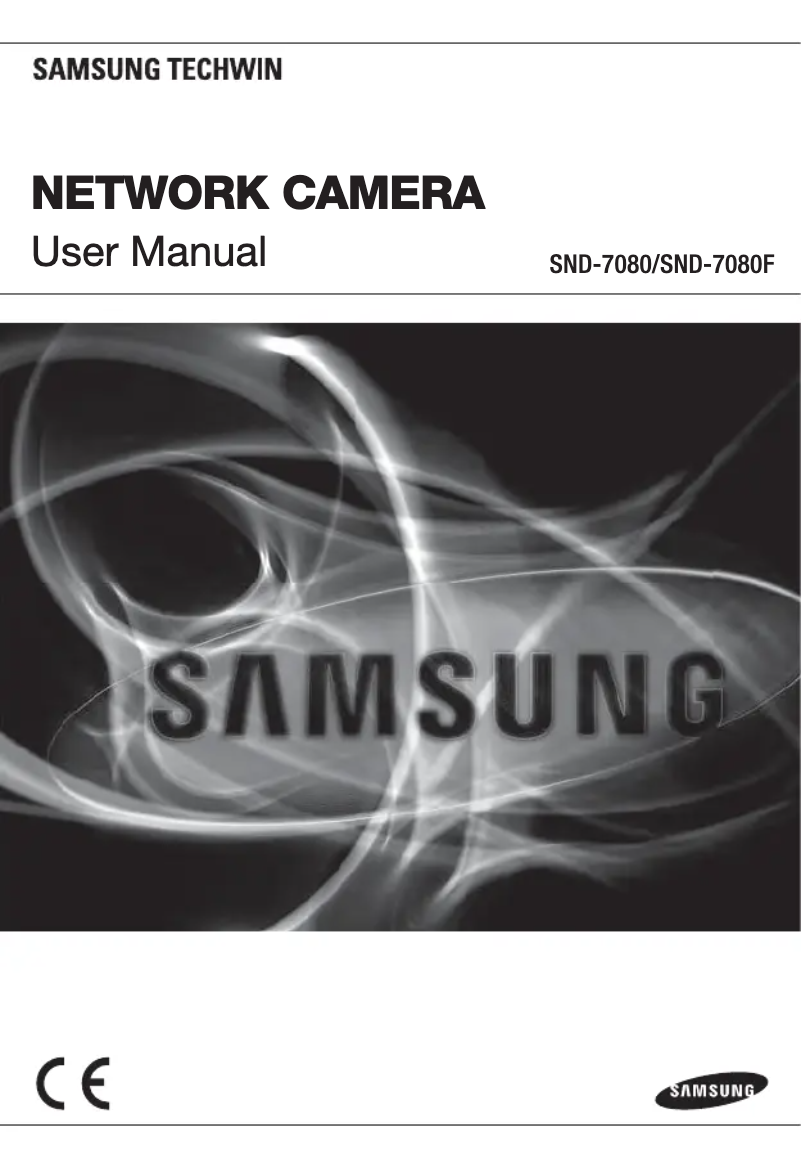

Manual of product SND-7080
Technical Specifications SND-7080
General Information
-
ModelSND-7080
-
Brand
-
Category
-
Type
-
SKU181326
-
MPN181326
Video
-
Maximum resolution2048 x 1536 pixels
-
Supported video formatH.264, MPEG
-
Supported graphic resolutions320 x 240, 1280 x 960, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 640 x 480 (VGA), 800 x 600 (SVGA)
-
Supported video modes1080p, 720p
-
Number of images per second30 ips
-
Total megapixels3 MP
Camera
-
Minimum illumination0.001 lux
-
Field of view of the lens, horizontal100 °
-
Angle of view of the lens, vertical74.6 °
-
Inclination angle0 - 90 °
-
Panoramic0 - 355 °
-
Rotation angle355 °
-
White balanceManual
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/2.8 "
-
Progressive scanYes
Objective system
-
Optical zoom2.8 x
-
Focal length3 - 8.5 mm
Security
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Security-supported algorithmHTTPS
Storage support
-
Integrated hard drive-
-
Built-in memory card readerYes
-
Compatible memory cardsSD, SDHC
Night vision
-
Night visionYes
Representation / realization
-
TypeIP security camera
-
Entry/exit alarmYes
-
Supported installationIndoor and outdoor
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Connectivity technologyWired
Design
-
FormatDome
-
Product colorIvory
-
Mounting typeCeiling
-
Material of the case/bodyPlastic
Connectivity
-
InterfaceRJ-45
-
DC InputYes
-
Component output1
-
Component output1
-
Component output1
-
DC InputYes
Audio
-
Signal-to-noise ratio report50 dB
Network
-
Ethernet/LANYes
-
Wiring technology10/100Base-T(X)
-
WifiNo
-
Supported network protocolsTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS
Other features
-
Compliance with industry standardsIEEE 802.3af
-
Power requirements12V DC, 24V AC, PoE (IEEE802.3af)
-
Value1.2
-
Number of simultaneous users (local + network)10 user(s)
-
I/O PortsLine in, Line out
Minimum system requirements
-
Support for the Mac operating systemYes
-
Support for the Mac operating systemYes
Weight and dimensions
-
Height129.4 mm
-
Diameter133 mm
-
Weight700 g
Power
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Typical electricity consumption8 W
-
Power supply typePoE
Packaging contents
-
User GuideYes
-
User GuideYes
Sustainability
-
Sustainability certificatesRoHS
Environmental conditions
-
Operating temperature-10 - 50 °C
-
Operating relative humidity (H-H)0 - 90 %
Similar products
More product categories from brand Samsung
Television and multimedia Samsung
Home appliances Samsung
Household appliances Samsung
Phones Samsung
Audio Samsung
Other Samsung
Interior Samsung
Tools Samsung
Software Samsung
More product types from brand Samsung
Presentation of product SND-7080 specifications from brand Samsung
Generalities
The brand of the product Samsung SND-7080 is Samsung. This brand is known for its quality and innovation in the field of household appliances. The product model Samsung SND-7080 is SND-7080 | SND-7080P. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Samsung SND-7080 is 6950207314728. This code allows for the unique identification of the product in the distribution system.
Video
The maximum resolution of the product Samsung SND-7080 is 2048 x 1536 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported video mode of the product Samsung SND-7080 is 1080p, 720p. This mode allows you to enjoy optimal image quality for your videos. The supported video format of the product Samsung SND-7080 contains H.264, MPEG. This format allows for smooth and high-quality playback of your multimedia content. The supported graphic resolutions of the product Samsung SND-7080 are 320 x 240,1280 x 960,1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1600 x 1200 (UXGA),1920 x 1080 (HD 1080),2048 x 1536 (QXGA),640 x 480 (VGA),800 x 600 (SVGA). These resolutions provide optimal display quality for your content. The number of frames per second of the product Samsung SND-7080 is 30 ips. This specification ensures optimal smoothness when playing videos. The total megapixels of the product Samsung SND-7080 is 3 MP. This total ensures exceptional image quality for your photos.
Image sensor
The sensor type of the product Samsung SND-7080 is CMOS. This type of sensor ensures optimal image quality for your needs. Does the product Samsung SND-7080 have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Samsung SND-7080 is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots.
Camera
The field of view of the Samsung SND-7080 lens is 100 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The minimum illumination of the product Samsung SND-7080 is 0.001 lux. This feature ensures optimal performance even in low light conditions. The vertical field of view of the product Samsung SND-7080 is 74.6 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The tilt angle of the product Samsung SND-7080 is 0 - 90 °. This angle allows for adjusting the position for optimal comfort. The panoramic view of the product Samsung SND-7080 is 0 - 355 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The rotation angle of the product Samsung SND-7080 is 355 °. This angle allows for optimal usage flexibility. The white balance of the product Samsung SND-7080 consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images.
Security
Does the product Samsung SND-7080 have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the Samsung SND-7080 product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. The supported security algorithm of the product Samsung SND-7080 contains HTTPS. This algorithm ensures optimal protection of your data.
Objective system
The optical zoom of the product Samsung SND-7080 is 2.8 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The focal length of the product Samsung SND-7080 is 3 - 8.5 mm. This specification determines the field of view and the distance at which subjects can be captured accurately.
Night vision
Does the product Samsung SND-7080 have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Storage support
Does the Samsung SND-7080 have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the Samsung SND-7080 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product Samsung SND-7080 has compatible memory cards: SD, SDHC. These memory cards ensure optimal performance for storing your data.
Design
The format of the product Samsung SND-7080 is a bar. This format allows for practical and efficient use in various contexts. The material of the product case Samsung SND-7080 is Plastique. This material ensures both durability and elegance. The mounting type of the product Samsung SND-7080 is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Samsung SND-7080 is Ivoire. This shade gives it a modern and elegant look.
Audio
The signal-to-noise ratio of the product Samsung SND-7080 is 50 dB. This high ratio ensures exceptional audio quality, allowing for clear and precise listening without unwanted interference.
Connectivity
The product Samsung SND-7080 has an Interface RJ-45. This interface allows for easy and quick connection with various devices. The number of Ethernet LAN (RJ-45) ports of the product Samsung SND-7080 is 1. These ports provide a stable and fast network connection for your devices. The RS-485 port of the Samsung SND-7080 contains 1. This port allows for robust serial communication and is ideal for industrial applications. Does the product Samsung SND-7080 have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The output component of the product Samsung SND-7080 contains 1. This specification ensures optimal connectivity for efficient use. Does the product Samsung SND-7080 have a DC Input? Oui. This specification ensures compatibility with DC power supplies.
Representation / realization
The type of product Samsung SND-7080 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The PTZ control of the product Samsung SND-7080 is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. Does the product Samsung SND-7080 have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The design of the product Samsung SND-7080 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Samsung SND-7080 have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Samsung SND-7080 have an entry/end Alarm? Oui. This feature effectively secures access to your space. The product Samsung SND-7080 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Network
The supported network protocols of the product Samsung SND-7080 are TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS. These protocols ensure efficient and reliable communication for your networking needs. The Wifi of the product Samsung SND-7080 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Samsung SND-7080 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The wiring technology of the product Samsung SND-7080 contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs.
Other features
The value of the product Samsung SND-7080 is 1.2. This specification indicates the performance and quality of the product. The product Samsung SND-7080 has compliance with industrial standards IEEE 802.3af. This compliance ensures that the product meets the established standards to ensure its quality and safety. The power requirements of the product Samsung SND-7080 are 12V DC, 24V AC, PoE (IEEE802.3af). These requirements ensure optimal operation of the device. The number of simultaneous users (local + network) of the product Samsung SND-7080 is 10 utilisateur(s). This feature allows for smooth and efficient use by multiple users at the same time. The I/O port of the product Samsung SND-7080 contains Line in, Line out. This I/O port offers varied connectivity to meet all your needs.
Minimum system requirements
Does the product Samsung SND-7080 support the Mac operating system? Oui. This feature ensures optimal compatibility for Mac users. Does the product Samsung SND-7080 support the Windows operating system? Oui. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience.
Weight and dimensions
The height of the product Samsung SND-7080 is 129.4 mm. This dimension is essential to ensure that the product fits perfectly in your space. The diameter of the product Samsung SND-7080 is 133 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Samsung SND-7080 is 700 g. This weight is ideal for ensuring optimal use and easy handling.
Power
Does the Samsung SND-7080 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The typical power consumption of the product Samsung SND-7080 is 8 W. This feature allows for the assessment of the energy efficiency of the device. The type of power source for the product Samsung SND-7080 is PoE. This type of power supply ensures optimal performance and efficient use of the device.
Packaging contents
Does the product Samsung SND-7080 have a User Manual? Oui. This document provides clear instructions for optimal use of the product. Does the product Samsung SND-7080 have a User Guide? Oui. This guide will allow you to fully enjoy all the features of the product.
Environmental conditions
The product Samsung SND-7080 has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Samsung SND-7080 is -10 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Sustainability
The product Samsung SND-7080 has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
