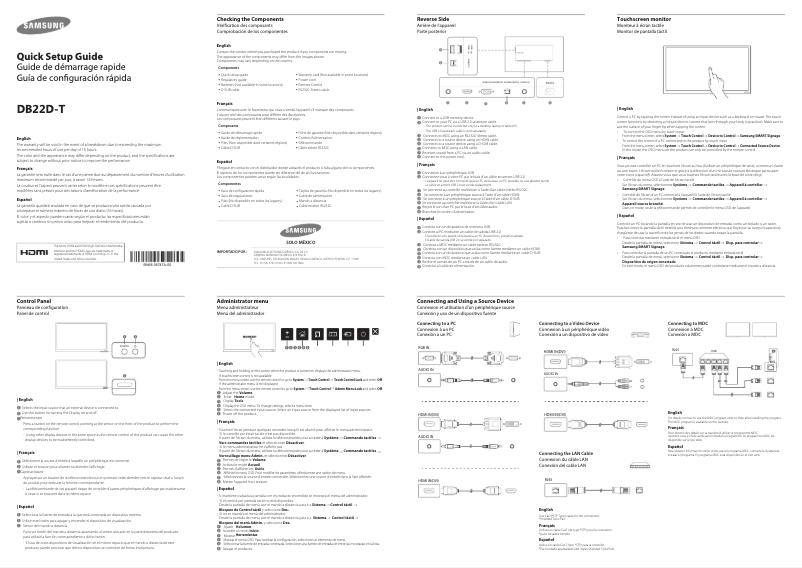

Manuals of product DB22D-T
Technical Specifications DB22D-T
General Information
-
ModelDB22D-T
-
Brand
-
Category
-
Type
-
SKU274189
-
MPN274189
Screen
-
Touch screen-
-
Display technologyLED
-
Screen size21.5 "
-
Screen resolution1920 x 1080 pixels
-
Screen brightness220 cd/m²
-
Type HDFull HD
-
Response time14 ms
-
Contrast ratio1000:1
-
Dynamic contrast report50000:1
-
Vertical viewing angle178 °
-
Vertical viewing angle178 °
-
Number of colors displayed16.78 million colors
-
No pixel0.2482 x 0.2482 mm
-
Active display area (w x h)476.64 x 268.11 mm
-
Horizontal scanning domain30 - 81 kHz
-
Vertical scanning frequency48 - 75 Hz
-
Supported graphic resolutions1920 x 1080 (HD 1080)
-
Supported video modes1080p
-
Color palette72 %
-
Panel life- h
-
LED backlightingDirect LED BLU
Connectivity
-
Ethernet/LANYes
-
Number of Ethernet LAN ports (RJ-45)1
-
DVI PortNo
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
Representation / realization
-
Multi-display supported-
-
HDCP-
-
Integrated TV tunerNo
-
Service hours (hours/days)16/7
Other features
-
Quick Start GuideYes
-
Energy efficiency class (old)C
-
System on a Chip (SoC) typeSamsung SMART Signage Platform (SSSP) Gen 2
-
Quick Start GuideYes
-
Dot clock scan frequency148.5 MHz
Design
-
Product colorBlack
-
VESA mountYes
-
VESA standard100 x 100 mm
-
Frame width (at the bottom)24.5 mm
-
Frame width (side)14.9 mm
-
Frame width (top)17.5 mm
-
Product designDigital signage flat screen
Audio
-
Built-in speakersYes
-
Number of built-in speakers2
-
Rated power of RMS2 W
Power
-
Typical electricity consumption40 W
-
Energy consumption (standby mode)- W
-
AC input voltage100 - 240 V
-
Electricity consumption (stop)0.5 W
-
Electricity consumption (stop)0.5 W
-
Consumption (max)44 W
-
Thermal dissipation511.9 BTU/h
Computer system
-
Computer systemYes
-
Type of computer systemSystem on Chip (SoC)
Weight and dimensions
-
Width507.5 mm
-
Depth59.3 mm
-
Height311.2 mm
-
Weight4400 g
Environmental conditions
-
Operating temperature0 - 40 °C
-
Operating relative humidity (H-H)10 - 80 %
Packaging information
-
Package width570 mm
-
Package depth128 mm
-
Package height376 mm
-
Package weight5700 g
Certificate
-
CertificationFCC (USA) : Part 15, Subpart B Class A
-
CE (Europe) : EN55022:2006+A1:2007
-
EN55024:1998+A1:2001+A2:2003
-
VCCI (Japan) : VCCI V-3 / 2010.04 Class A
-
KCC / EK (Korea) : Tunerless : KN22 / KN24
-
BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) CNS14972 (Digital)
-
C-Tick (Australia) : AS / NZS CISPR22:2009
-
CCC (China) : GB9254-2008
-
GB17625.1-2012
-
GOST (Russia / CIS) : GOST R 51317 Series
-
GOST 22505-97
-
EN55022:2006+A1:2007
-
EN55024:1998+A1:2001+A2:2003
-
CB (Europe) : IEC60950-1 / EN60950-1
-
CCC (China) : GB4943.1-2011
-
PSB (Singapore) : PSB+IEC60950-1
-
NOM (Mexico) : NOM-001-SCFI-1993
-
IRAM (Argentina) : IRAM+IEC60950-1
-
SASO (Saudi Arabia) : SASO+IEC60950-1
-
BIS (India) : IEC60950-1 / IS13252
-
NOM (Mexico) : Tunerless : NOM-019-SCFI-1998
-
KC (Korea) : K 60950-1
-
EAC (Russia) : EAC+IEC60950-1
-
INMETRO (Brazil) : INMETRO+IEC60950-1
-
BSMI (Taiwan) : BSMI+IEC60950-1
-
RCM (Australia) : IEC60950-1 / AS / NZS 60950-1
-
CSA (Canada) : cUL
-
UL (USA) : cUL60950-1
-
TUV (Germany) : CE
-
NEMKO (Norway) : CE
Packaging contents
-
Remote control providedYes
-
Remote control providedYes
-
Cables includedAC, VGA
-
Remote control providedYes
Similar products
More product categories from brand Samsung
Television and multimedia Samsung
Home appliances Samsung
Household appliances Samsung
Phones Samsung
Audio Samsung
Other Samsung
Interior Samsung
Tools Samsung
Software Samsung
More product types from brand Samsung
Presentation of product DB22D-T specifications from brand Samsung
Generalities
The product model Samsung DB22D-T is DB22D-T | DB22D-T. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Samsung DB22D-T is 8806086419871, 0887276039558. This code allows for the unique identification of the product in the distribution system. The brand of the product Samsung DB22D-T is Samsung. This brand is known for its quality and innovation in the field of household appliances.
Representation / realization
Does the product Samsung DB22D-T have a built-in TV tuner? No. This product does not allow you to receive television channels directly. Does the product Samsung DB22D-T have HDCP? -. This specification ensures the protection of digital content against unauthorized copying. The service hours for the product Samsung DB22D-T are 16/7. These hours ensure optimal availability to meet your needs at any time. The multi-display support of the product Samsung DB22D-T is -. This feature allows you to enhance your visual experience by connecting multiple screens simultaneously.
Connectivity
Does the product Samsung DB22D-T have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The VGA (D-Sub) input port of the Samsung DB22D-T contains 1. This port allows for easy connection with various devices, ensuring high-quality video transmission. Does the product Samsung DB22D-T have a DVI Port? Non. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. The number of HDMI ports on the Samsung DB22D-T is 1. This detail is essential for determining compatibility with your multimedia devices. The number of Ethernet LAN (RJ-45) ports of the product Samsung DB22D-T is 1. These ports provide a stable and fast network connection for your devices.
Other features
Does the product Samsung DB22D-T have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable. The energy efficiency class (old) of the product Samsung DB22D-T is C. This feature indicates the level of energy performance of the product. Does the product Samsung DB22D-T have a Quick Start Guide? Yes. This guide allows you to quickly and easily start using the product. The type of system on a chip (SoC) of the product Samsung DB22D-T is Samsung SMART Signage Platform (SSSP) Gen 2. This system allows for advanced integration of features for optimal performance. The dot clock scanning frequency of the Samsung DB22D-T product is 148.5 MHz. This feature ensures optimal display quality and smoothness in images.
Audio
Does the product Samsung DB22D-T have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience. The number of built-in speakers of the product Samsung DB22D-T is 2. These speakers provide immersive audio quality for an optimal listening experience. The RMS rated power of the product Samsung DB22D-T is 2 W. This specification ensures optimal sound quality for an enriching multimedia experience.
Screen
The display technology of the product Samsung DB22D-T is LED. This technology ensures optimal image quality for an immersive visual experience. The screen resolution of the product Samsung DB22D-T is 1920 x 1080 pixels. This feature ensures optimal display quality for a pleasant visual experience. The screen size of the product Samsung DB22D-T is 21.5 ". This dimension allows for an optimal visual experience for all your content. The brightness of the Samsung DB22D-T screen is 220 cd/m². This feature ensures optimal visibility even in varying lighting conditions. The HD Type of the product Samsung DB22D-T is Full HD. This HD Type ensures exceptional image quality for an immersive viewing experience. The response time of the product Samsung DB22D-T is 14 ms. This fast response time ensures a smooth and responsive visual experience. The contrast ratio of the product Samsung DB22D-T is 1000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The horizontal viewing angle of the product Samsung DB22D-T is 178 °. This angle allows for optimal viewing from different angles, thus providing an immersive and comfortable experience. The vertical viewing angle of the Samsung DB22D-T is 178 °. This angle allows for optimal viewing from different angles, thus providing an enhanced visual experience. The dynamic contrast ratio of the product Samsung DB22D-T is 50000:1. This ratio helps enhance image quality by providing deeper blacks and brighter whites. The number of colors displayed for the product Samsung DB22D-T is 16,78 millions de couleurs. This detail is essential for appreciating the visual quality of the screen. The pixel pitch of the product Samsung DB22D-T is 0.2482 x 0.2482 mm. This pixel pitch ensures optimal display quality without distortion. The active display area of the product Samsung DB22D-T is 476.64 x 268.11 mm. This dimension allows for an optimal visual experience for all your content. The horizontal scanning range of the product Samsung DB22D-T is 30 - 81 kHz. This range allows for excellent display quality and optimal image smoothness. The vertical scanning frequency of the product Samsung DB22D-T is 48 - 75 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The supported graphic resolutions of the product Samsung DB22D-T are 1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The supported video mode of the product Samsung DB22D-T is 1080p. This mode allows you to enjoy optimal image quality for your videos. The color palette of the product Samsung DB22D-T is 72 %. This palette offers a variety of shades that enhance the product's aesthetics. Does the product Samsung DB22D-T have a touchscreen? -. The lifespan of the Samsung DB22D-T panel is - h. This feature ensures prolonged use and optimal performance. The LED backlighting of the product Samsung DB22D-T contains BLU de LED directe. This backlighting ensures optimal brightness for an enhanced visual experience.
Design
The color of the product Samsung DB22D-T is Noir. This shade gives it a modern and elegant look. The width of the frame at the bottom of the product Samsung DB22D-T is 24.5 mm. This feature contributes to the stability and aesthetics of the product. The product Samsung DB22D-T has the VESA Standard 100 x 100 mm. This standard ensures optimal compatibility with wall mounts and articulated arms, thus facilitating the installation and adjustment of your screen. Does the product Samsung DB22D-T have VESA Mounting? Oui. This feature allows you to easily attach your screen to a wall mount, thereby optimizing space and improving user comfort. The width of the frame (side) of the product Samsung DB22D-T is 14.9 mm. This dimension contributes to the strength and overall aesthetics of the product. The design of the product Samsung DB22D-T is a pistol grip drill. This ergonomic design allows for a comfortable grip and optimal control during use. The width of the frame (at the top) of the product Samsung DB22D-T is 17.5 mm. This feature contributes to the aesthetics and robustness of the product.
Power
The typical power consumption of the product Samsung DB22D-T is 40 W. This feature allows for the assessment of the energy efficiency of the device. The AC input voltage of the Samsung DB22D-T is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The energy consumption in standby mode of the product Samsung DB22D-T is - W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The energy consumption in standby mode of the product Samsung DB22D-T is 0.5 W. This feature helps to reduce the energy impact when the device is not in use. The power consumption (standby) of the product Samsung DB22D-T is 0.5 W. This feature helps to minimize energy consumption when the device is in standby mode. The maximum consumption of the product Samsung DB22D-T is 44 W. This specification allows for the assessment of the energy efficiency of the device. The thermal dissipation of the product Samsung DB22D-T is 511.9 BTU/h. This thermal dissipation ensures optimal operation and prevents overheating, thereby guaranteeing the durability and performance of the device.
Computer system
The computer system of the product Samsung DB22D-T contains Oui. This computer system is designed to provide optimal performance and high reliability. The type of computer system of the product Samsung DB22D-T is Système sur puce (System on Chip ou SoC). This type of system allows for a compact and efficient integration of the essential components for the operation of the device.
Weight and dimensions
The width of the product Samsung DB22D-T is 507.5 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Samsung DB22D-T is 311.2 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Samsung DB22D-T is 59.3 mm. This dimension allows for optimal integration into your space. The weight of the product Samsung DB22D-T is 4400 g. This weight is ideal for ensuring optimal use and easy handling.
Certificate
The certification of the product Samsung DB22D-T contains FCC (USA) : Part 15, Subpart B Class A, CE (Europe) : EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003, VCCI (Japan) : VCCI V-3 / 2010.04 Class A, KCC / EK (Korea) : Tunerless : KN22 / KN24, BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) CNS14972 (Digital), C-Tick (Australia) : AS / NZS CISPR22:2009, CCC (China) : GB9254-2008, GB17625.1-2012, GOST (Russia / CIS) : GOST R 51317 Series, GOST 22505-97, EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003\nCB (Europe) : IEC60950-1 / EN60950-1, CCC (China) : GB4943.1-2011, PSB (Singapore) : PSB+IEC60950-1, NOM (Mexico) : NOM-001-SCFI-1993, IRAM (Argentina) : IRAM+IEC60950-1, SASO (Saudi Arabia) : SASO+IEC60950-1, BIS (India) : IEC60950-1 / IS13252, NOM (Mexico) : Tunerless : NOM-019-SCFI-1998, KC (Korea) : K 60950-1, EAC (Russia) : EAC+IEC60950-1, INMETRO (Brazil) : INMETRO+IEC60950-1, BSMI (Taiwan) : BSMI+IEC60950-1, RCM (Australia) : IEC60950-1 / AS / NZS 60950-1, CSA (Canada) : cUL, UL (USA) : cUL60950-1, TUV (Germany) : CE, NEMKO (Norway) : CE. This certification guarantees compliance with the required safety and performance standards.
Environmental conditions
The operating temperature of the product Samsung DB22D-T is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Samsung DB22D-T has an operating relative humidity (H-H) of 10 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity.
Packaging information
The width of the package of the product Samsung DB22D-T is 570 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Samsung DB22D-T package is 5700 g. This weight ensures optimal protection during transport and delivery. The height of the package of the product Samsung DB22D-T is 376 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Samsung DB22D-T is 128 mm. This dimension is essential to ensure proper packaging and secure transport.
Packaging contents
Does the product Samsung DB22D-T have a warranty card? Oui. This card allows you to benefit from additional protection for your purchase. Does the product Samsung DB22D-T come with batteries? Oui. This allows you to enjoy your purchase immediately without having to worry about sourcing batteries. Does the product Samsung DB22D-T come with a remote control? Oui. The included cable of the product Samsung DB22D-T contains a power plug. This cable is essential for ensuring an optimal electrical connection.
