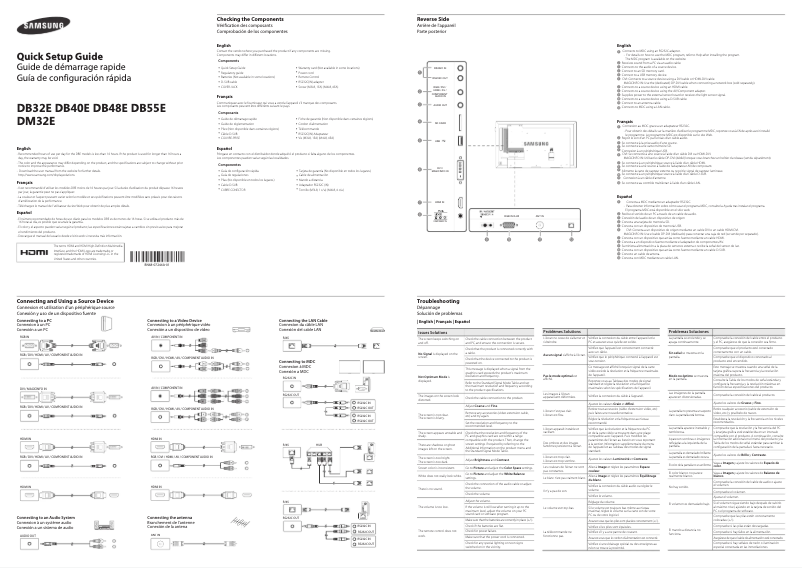

Manuals of product DB55E
Technical Specifications DB55E
General Information
-
ModelDB55E
-
Brand
-
Category
-
Type
-
SKU468860
-
MPN468860
Screen
-
Touch screen-
-
Display technologyLED
-
Screen size55 "
-
Screen resolution1920 x 1080 pixels
-
Screen brightness350 cd/m²
-
Type HDFull HD
-
Response time6 ms
-
Contrast ratio5000:1
-
Dynamic contrast report50000:1
-
Vertical viewing angle178 °
-
Vertical viewing angle178 °
-
Number of colors displayed16.78 million colors
-
No pixel0.21 x 0.63 mm
-
Active display area (w x h)680.4 x 1209.6 mm
-
Horizontal scanning domain30 - 81 kHz
-
Vertical scanning frequency48 - 75 Hz
-
Panel life- h
-
LED backlightingDirect LED BLU
-
Color palette72 %
-
Image format16:9
Connectivity
-
WifiYes
-
Number of Ethernet LAN ports (RJ-45)1
-
WifiYes
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
USB portNo
-
WifiYes
-
WifiYes
Representation / realization
-
Integrated TV tuner-
-
Multi-display supported-
-
HDCPYes
-
HDCPYes
-
Service hours (hours/days)16/7
Other features
-
Quick Start GuideYes
-
Energy efficiency class (old)B
-
Quick Start GuideYes
-
System on a Chip (SoC) typeSamsung SMART Signage Platform (SSSP) Gen 3
-
Dot clock scan frequency148.5 MHz
Design
-
Product colorBlack
-
VESA mountYes
-
VESA standard400 x 400 mm
-
Frame width (at the bottom)15 mm
-
Frame width (top)9.5 mm
-
Frame width (top)9.5 mm
-
Product designDigital signage flat screen
Audio
-
Number of built-in speakers2
-
Rated power of RMS20 W
-
Built-in speakersYes
Power
-
Typical electricity consumption123 W
-
Energy consumption (in standby mode)0.5 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Energy consumption (in standby mode)0.5 W
-
Consumption (max)176 W
-
Thermal dissipation2047.8 BTU/h
Technical details
-
Sustainability certificatesENERGY STAR
Computer system
-
Computer systemYes
-
Type of computer systemSystem on Chip (SoC)
Weight and dimensions
-
Width1230.6 mm
-
Depth49.9 mm
-
Height706.9 mm
-
Weight15400 g
Environmental conditions
-
Operating temperature0 - 40 °C
-
Operating relative humidity (H-H)10 - 80 %
Packaging contents
-
Assembly kitYes
-
Cables includedAC, VGA
-
Assembly kitYes
-
Assembly kitYes
-
Assembly kitYes
Packaging information
-
Package width1348 mm
-
Package depth148 mm
-
Package height810 mm
-
Package weight19500 g
Certificate
-
CertificationFCC (USA) Part 15, Subpart B Class A
-
CE (Europe) : EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003
-
VCCI (Japan) : VCCI V-3 /2010.04 Class A
-
KCC/EK (Korea) : Tuner : KN13 / KN20, Tunerless : KN22 / KN24
-
BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital)
-
C-Tick (Australia) : AS/NZS CISPR22:2009
-
CCC(China) : GB9254-2008, GB17625.1-2012
-
GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97, EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003
-
CB (Europe) : IEC60950-1/EN60950-1
-
CCC (China) : GB4943.1-2011
-
PSB (Singapore) : PSB+IEC60950-1
-
NOM (Mexico) : NOM-001-SCFI-1993
-
IRAM (Argentina) : IRAM+IEC60950-1
-
SASO (Saudi Arabia) : SASO+IEC60950-1
-
BIS(India) : IEC60950-1 / IS13252
-
NOM(Mexico) : Tuner : NOM-001-SCFI-1993, Tunerless : NOM-019-SCFI-1998
-
KC(Korea) : K 60950-1
-
EAC(Russia) : EAC+IEC60950-1
-
INMETRO(Brazil) : INMETRO+IEC60950-1
-
BSMI(Taiwan) : BSMI+IEC60950-1
-
RCM(Australia) : IEC60950-1/AS/NZS 60950-1
-
CSA (Canada) : cUL
-
UL(USA) : cUL60950-1
-
TUV (Germany) : CE
-
NEMKO (Norway) : CE
Similar products
More product categories from brand Samsung
Television and multimedia Samsung
Home appliances Samsung
Household appliances Samsung
Phones Samsung
Audio Samsung
Other Samsung
Interior Samsung
Tools Samsung
Software Samsung
More product types from brand Samsung
Presentation of product DB55E specifications from brand Samsung
Generalities
The brand of the product Samsung DB55E is Samsung. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Samsung DB55E is 4053162881150, 8806086656344, 8806086657495. This code allows for the unique identification of the product in the distribution system. The product model Samsung DB55E is DB55E | DB55E. This model ensures optimal performance and an enhanced user experience.
Representation / realization
Does the product Samsung DB55E have a built-in TV tuner? No. This product does not allow you to receive television channels directly. Does the product Samsung DB55E have HDCP? Oui. This specification ensures the protection of digital content against unauthorized copying. Does the product Samsung DB55E have a picture-in-picture (PIP) feature? Oui. This feature allows multiple images to be displayed simultaneously, providing an enhanced visual experience. The multi-display support of the product Samsung DB55E is -. This feature allows you to enhance your visual experience by connecting multiple screens simultaneously. The service hours for the product Samsung DB55E are 16/7. These hours ensure optimal availability to meet your needs at any time.
Other features
Does the product Samsung DB55E have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable. The type of system on a chip (SoC) of the product Samsung DB55E is Samsung SMART Signage Platform (SSSP) Gen 3. This system allows for advanced integration of features for optimal performance. The energy efficiency class (old) of the product Samsung DB55E is B. This feature indicates the level of energy performance of the product. Does the product Samsung DB55E have a Quick Start Guide? Yes. This guide allows you to quickly and easily start using the product. The dot clock scanning frequency of the Samsung DB55E product is 148.5 MHz. This feature ensures optimal display quality and smoothness in images.
Connectivity
Does the product Samsung DB55E have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The product Samsung DB55E does not have DVI-D ports. This feature may be important depending on your connectivity needs. Does the product Samsung DB55E have a DVI Port? Oui. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. The number of HDMI ports on the Samsung DB55E is 1. This detail is essential for determining compatibility with your multimedia devices. The VGA (D-Sub) input port of the Samsung DB55E contains 1. This port allows for easy connection with various devices, ensuring high-quality video transmission. The product Samsung DB55E has an input component of the audiovisual device (YPbPr/YCbCr) 1. This specification allows for a high-quality connection for an optimal visual experience. The number of Ethernet LAN (RJ-45) ports of the product Samsung DB55E is 1. These ports provide a stable and fast network connection for your devices. Does the Samsung DB55E have a USB Port? Non. This feature allows for easy and quick connection to various devices. The integrated audio connector (L,R) of the product Samsung DB55E has 1. This connector allows for a high-quality stereo audio connection for an optimal sound experience. The audio output (left, right) of the product Samsung DB55E contains 1. This specification allows for an immersive stereo sound experience. Does the product Samsung DB55E have an RS-232C? Oui. This specification ensures standardized connectivity for serial communications. The Wifi of the product Samsung DB55E contains Oui. This Wifi allows for a fast and reliable wireless connection for all your devices.
Screen
The display technology of the product Samsung DB55E is LED. This technology ensures optimal image quality for an immersive visual experience. The screen size of the product Samsung DB55E is 55 ". This dimension allows for an optimal visual experience for all your content. The screen resolution of the product Samsung DB55E is 1920 x 1080 pixels. This feature ensures optimal display quality for a pleasant visual experience. The brightness of the Samsung DB55E screen is 350 cd/m². This feature ensures optimal visibility even in varying lighting conditions. The HD Type of the product Samsung DB55E is Full HD. This HD Type ensures exceptional image quality for an immersive viewing experience. The response time of the product Samsung DB55E is 6 ms. This fast response time ensures a smooth and responsive visual experience. The contrast ratio of the product Samsung DB55E is 5000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The horizontal viewing angle of the product Samsung DB55E is 178 °. This angle allows for optimal viewing from different angles, thus providing an immersive and comfortable experience. The vertical viewing angle of the Samsung DB55E is 178 °. This angle allows for optimal viewing from different angles, thus providing an enhanced visual experience. The dynamic contrast ratio of the product Samsung DB55E is 50000:1. This ratio helps enhance image quality by providing deeper blacks and brighter whites. The number of colors displayed for the product Samsung DB55E is 16,78 millions de couleurs. This detail is essential for appreciating the visual quality of the screen. The pixel pitch of the product Samsung DB55E is 0.21 x 0.63 mm. This pixel pitch ensures optimal display quality without distortion. The active display area of the product Samsung DB55E is 680.4 x 1209.6 mm. This dimension allows for an optimal visual experience for all your content. The horizontal scanning range of the product Samsung DB55E is 30 - 81 kHz. This range allows for excellent display quality and optimal image smoothness. The vertical scanning frequency of the product Samsung DB55E is 48 - 75 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. Does the product Samsung DB55E have a touchscreen? -. The lifespan of the Samsung DB55E panel is - h. This feature ensures prolonged use and optimal performance. The LED backlighting of the product Samsung DB55E contains BLU de LED directe. This backlighting ensures optimal brightness for an enhanced visual experience. The color palette of the product Samsung DB55E is 72 %. This palette offers a variety of shades that enhance the product's aesthetics. The image format of the product Samsung DB55E is 16:9. This format is ideal for an immersive visual experience.
Design
The color of the product Samsung DB55E is Noir. This shade gives it a modern and elegant look. The width of the frame at the bottom of the product Samsung DB55E is 15 mm. This feature contributes to the stability and aesthetics of the product. Does the product Samsung DB55E have VESA Mounting? Oui. This feature allows you to easily attach your screen to a wall mount, thereby optimizing space and improving user comfort. The product Samsung DB55E has the VESA Standard 400 x 400 mm. This standard ensures optimal compatibility with wall mounts and articulated arms, thus facilitating the installation and adjustment of your screen. The width of the frame (side) of the product Samsung DB55E is 9.5 mm. This dimension contributes to the strength and overall aesthetics of the product. The width of the frame (at the top) of the product Samsung DB55E is 9.5 mm. This feature contributes to the aesthetics and robustness of the product. The design of the product Samsung DB55E is a pistol grip drill. This ergonomic design allows for a comfortable grip and optimal control during use.
Audio
The RMS rated power of the product Samsung DB55E is 20 W. This specification ensures optimal sound quality for an enriching multimedia experience. The number of built-in speakers of the product Samsung DB55E is 2. These speakers provide immersive audio quality for an optimal listening experience. Does the product Samsung DB55E have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience.
Technical details
The product Samsung DB55E has Sustainability Certificates: ENERGY STAR. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Computer system
The type of computer system of the product Samsung DB55E is Système sur puce (System on Chip ou SoC). This type of system allows for a compact and efficient integration of the essential components for the operation of the device. The computer system of the product Samsung DB55E contains Oui. This computer system is designed to provide optimal performance and high reliability.
Power
The typical power consumption of the product Samsung DB55E is 123 W. This feature allows for the assessment of the energy efficiency of the device. The AC input frequency of the product Samsung DB55E is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The AC input voltage of the Samsung DB55E is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The energy consumption in standby mode of the product Samsung DB55E is 0.5 W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The energy consumption in standby mode of the product Samsung DB55E is 0.5 W. This feature helps to reduce the energy impact when the device is not in use. The maximum consumption of the product Samsung DB55E is 176 W. This specification allows for the assessment of the energy efficiency of the device. The thermal dissipation of the product Samsung DB55E is 2047.8 BTU/h. This thermal dissipation ensures optimal operation and prevents overheating, thereby guaranteeing the durability and performance of the device.
Weight and dimensions
The weight of the product Samsung DB55E is 15400 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Samsung DB55E is 706.9 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product Samsung DB55E is 1230.6 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Samsung DB55E is 49.9 mm. This dimension allows for optimal integration into your space.
Environmental conditions
The operating temperature of the product Samsung DB55E is 0 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Samsung DB55E has an operating relative humidity (H-H) of 10 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity.
Packaging contents
The included cable of the product Samsung DB55E contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the product Samsung DB55E come with a remote control? Oui. Does the product Samsung DB55E have a warranty card? Oui. This card allows you to benefit from additional protection for your purchase. Does the product Samsung DB55E come with batteries? Oui. This allows you to enjoy your purchase immediately without having to worry about sourcing batteries. Does the Samsung DB55E product come with a mounting kit? Oui. This kit will allow you to easily assemble your product.
Packaging information
The width of the package of the product Samsung DB55E is 1348 mm. This dimension is essential to ensure optimal transport and storage. The height of the package of the product Samsung DB55E is 810 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Samsung DB55E is 148 mm. This dimension is essential to ensure proper packaging and secure transport. The weight of the Samsung DB55E package is 19500 g. This weight ensures optimal protection during transport and delivery.
Certificate
The certification of the product Samsung DB55E contains FCC (USA) Part 15, Subpart B Class A, CE (Europe) : EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003, VCCI (Japan) : VCCI V-3 /2010.04 Class A, KCC/EK (Korea) : Tuner : KN13 / KN20, Tunerless : KN22 / KN24, BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital), C-Tick (Australia) : AS/NZS CISPR22:2009, CCC(China) :GB9254-2008, GB17625.1-2012, GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97, EN55022:2006+A1:2007, EN55024:1998+A1:2001+A2:2003 \nCB (Europe) : IEC60950-1/EN60950-1, CCC (China) : GB4943.1-2011, PSB (Singapore ) : PSB+IEC60950-1, NOM (Mexico ) : NOM-001-SCFI-1993, IRAM (Argentina ) : IRAM+IEC60950-1, SASO (Saudi Arabia ) : SASO+IEC60950-1, BIS(India) : IEC60950-1 / IS13252, NOM(Mexico) : Tuner : NOM-001-SCFI-1993, Tunerless : NOM-019-SCFI-1998, KC(Korea) : K 60950-1, EAC(Russia) : EAC+IEC60950-1, INMETRO(Brazil) : INMETRO+IEC60950-1, BSMI(Taiwan) : BSMI+IEC60950-1, RCM(Australia) : IEC60950-1/AS/NZS 60950-1, CSA (Canada) : cUL, UL(USA) : cUL60950-1, TUV (Germany) : CE, NEMKO (Norway) : CE. This certification guarantees compliance with the required safety and performance standards.
