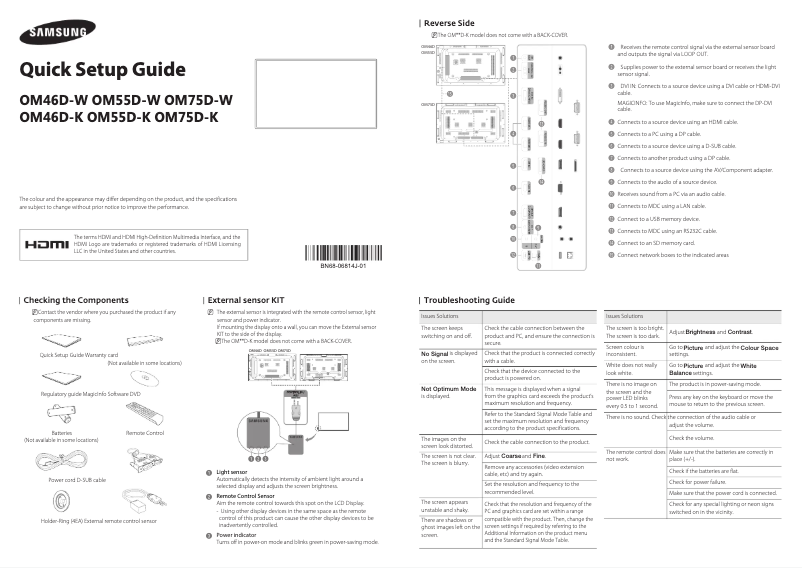

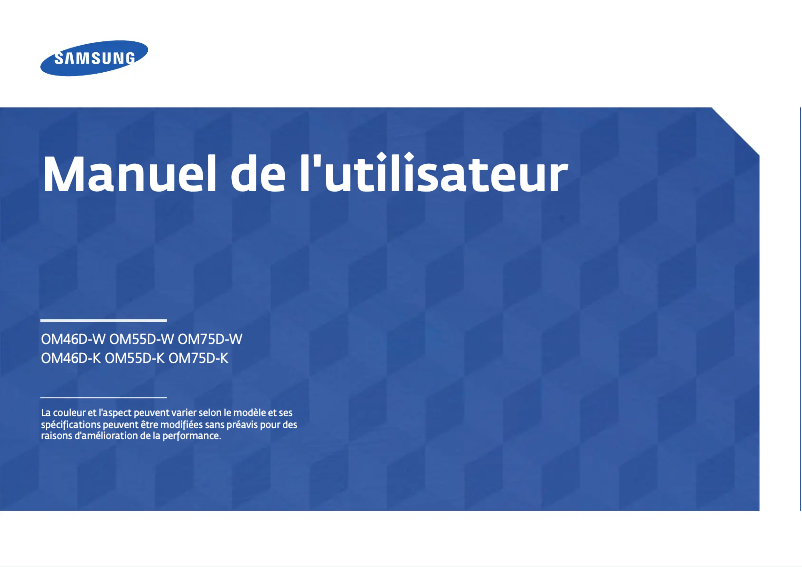

Manuals of product OM46D-K
Technical Specifications OM46D-K
General Information
-
ModelOM46D-K
-
Brand
-
Category
-
Type
-
SKU775532
-
MPN775532
Screen
-
Touch screen-
-
Display technologyLED
-
Screen size46 "
-
Screen resolution1920 x 1080 pixels
-
Screen brightness2500 cd/m²
-
Type HDFull HD
-
Response time8 ms
-
Contrast ratio5000:1
-
Vertical viewing angle178 °
-
Vertical viewing angle178 °
-
Number of colors displayed16.78 million colors
-
No pixel- mm
-
Image format16:9
-
Panel life- h
-
LED backlightingDirect-lit LED
-
Type of panelSPVA
-
Horizontal scanning domain30 - 81 kHz
-
Vertical scanning frequency48 - 75 Hz
-
Active display area (w x h)1018.08 x 572.67 mm
-
Color palette72 %
Connectivity
-
RS-232CYes
-
Quantity of DisplayPort interfaces2
-
RS-232CYes
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
USB portNo
-
Quantity of DisplayPort interfaces2
-
RS-232CYes
-
DisplayPort version1.2
Representation / realization
-
Integrated TV tuner-
-
Multi-display supported-
-
HDCP-
-
Picture-in-Picture (PIP)Yes
-
Service hours (hours/days)24/7
Other features
-
Quick Start GuideYes
-
Energy efficiency class (old)D
-
System on a Chip (SoC) typeSamsung SMART Signage Platform (SSSP) Gen 2
-
Quick Start GuideYes
-
Dot clock scan frequency148.5 MHz
Design
-
Product colorBlack
-
VESA mountYes
-
VESA standard600 x 400 mm
-
Frame width (at the bottom)6.5 mm
-
Frame width (side)7.8 mm
-
Frame width (top)9.3 mm
-
Product designDigital signage flat screen
Technical details
-
Sustainability certificatesRoHS
Audio
-
Built-in speakers-
Power
-
Typical electricity consumption220 W
-
Energy consumption (standby mode)- W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
-
Electricity consumption (stop)0.5 W
-
Electricity consumption (stop)0.5 W
-
Consumption (max)395 W
Computer system
-
Computer systemYes
-
Type of computer systemSystem on Chip (SoC)
Weight and dimensions
-
Width1036.32 mm
-
Depth142.24 mm
-
Height589.28 mm
-
Weight18700 g
Environmental conditions
-
Operating relative humidity (H-H)10 - 80 %
-
Operating temperature0 - 30 °C
Certificate
-
CertificationFCC (USA) : Part 15, Subpart B Class A
-
CE (Europe) : EN55022, EN55024
-
VCCI (Japan) : V-3 (CISPR22)
-
KCC (Korea) : KN22, KN24
-
BSMI (Taiwan) : CNS13438 (CISPR22)
-
C-Tick (Australia) : AS / NZS3548 (CISPR22)
-
CCC (China) : GB9254-2008, GB17625.1-2012
-
UL (USA) : UL 60950-1
-
CSA (Canada) : CSA C22.2 No. 60950-1
-
TUV (Germany) : EN60950-1
-
NEMKO (Norway) : EN60950-1
-
KC (Korea) : K60950-1
-
CCC (China) : GB4943.1-2011
-
PSB (Singapore) : IEC60950-1
-
GOST (Russia) : IEC60950-1
-
EN55022
-
SIQ (Slovenia) : IEC60950-1
-
EN55022
-
PCBC (Poland) : IEC60590-1
-
EN55022
-
NOM (Mexico) : NOM-019-SCFI-1998
-
IRAM (Argentina) : IEC60950-1
-
SASO (Saudi Arabia) : IEC60950-1
Packaging information
-
Package width1123 mm
-
Package depth236 mm
-
Package height686 mm
-
Package weight24200 g
Packaging contents
-
Remote control providedYes
-
Remote control providedYes
-
Cables includedAC, VGA
-
Remote control providedYes
Similar products
More product categories from brand Samsung
Television and multimedia Samsung
Home appliances Samsung
Household appliances Samsung
Phones Samsung
Audio Samsung
Other Samsung
Interior Samsung
Tools Samsung
Software Samsung
More product types from brand Samsung
Presentation of product OM46D-K specifications from brand Samsung
Generalities
The brand of the product Samsung OM46D-K is Samsung. This brand is known for its quality and innovation in the field of household appliances. The product model Samsung OM46D-K is OM46D-K | LH46OMDPKBC. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Samsung OM46D-K is 4053162881051, 4056572747849. This code allows for the unique identification of the product in the distribution system.
Representation / realization
Does the product Samsung OM46D-K have a picture-in-picture (PIP) feature? Oui. This feature allows multiple images to be displayed simultaneously, providing an enhanced visual experience. Does the product Samsung OM46D-K have HDCP? -. This specification ensures the protection of digital content against unauthorized copying. The multi-display support of the product Samsung OM46D-K is -. This feature allows you to enhance your visual experience by connecting multiple screens simultaneously. Does the product Samsung OM46D-K have a built-in TV tuner? No. This product does not allow you to receive television channels directly. The service hours for the product Samsung OM46D-K are 24/7. These hours ensure optimal availability to meet your needs at any time.
Connectivity
Does the product Samsung OM46D-K have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The number of HDMI ports on the Samsung OM46D-K is 2. This detail is essential for determining compatibility with your multimedia devices. Does the product Samsung OM46D-K have a DVI Port? Oui. This port allows you to connect devices with a digital video interface, ensuring optimal image quality. The product Samsung OM46D-K does not have DVI-D ports. This feature may be important depending on your connectivity needs. The VGA (D-Sub) input port of the Samsung OM46D-K contains 1. This port allows for easy connection with various devices, ensuring high-quality video transmission. The product Samsung OM46D-K has a composite video input. This input allows for easy connection of analog video devices for an optimal viewing experience. The product Samsung OM46D-K has an input component of the audiovisual device (YPbPr/YCbCr) 1. This specification allows for a high-quality connection for an optimal visual experience. The integrated audio connector (L,R) of the product Samsung OM46D-K has 1. This connector allows for a high-quality stereo audio connection for an optimal sound experience. The audio output (left, right) of the product Samsung OM46D-K contains 1. This specification allows for an immersive stereo sound experience. The number of Ethernet LAN (RJ-45) ports of the product Samsung OM46D-K is 1. These ports provide a stable and fast network connection for your devices. Does the Samsung OM46D-K have a USB Port? Non. This feature allows for easy and quick connection to various devices. The number of DisplayPort interfaces of the product Samsung OM46D-K is 2. This specification allows for optimal connectivity with various devices. Does the product Samsung OM46D-K have an RS-232C? Oui. This specification ensures standardized connectivity for serial communications. The product Samsung OM46D-K has DisplayPort version 1.2. This specification allows for improved connectivity for high resolutions and refresh rates.
Screen
The display technology of the product Samsung OM46D-K is LED. This technology ensures optimal image quality for an immersive visual experience. The screen size of the product Samsung OM46D-K is 46 ". This dimension allows for an optimal visual experience for all your content. The brightness of the Samsung OM46D-K screen is 2500 cd/m². This feature ensures optimal visibility even in varying lighting conditions. The screen resolution of the product Samsung OM46D-K is 1920 x 1080 pixels. This feature ensures optimal display quality for a pleasant visual experience. The HD Type of the product Samsung OM46D-K is Full HD. This HD Type ensures exceptional image quality for an immersive viewing experience. The response time of the product Samsung OM46D-K is 8 ms. This fast response time ensures a smooth and responsive visual experience. The contrast ratio of the product Samsung OM46D-K is 5000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The horizontal viewing angle of the product Samsung OM46D-K is 178 °. This angle allows for optimal viewing from different angles, thus providing an immersive and comfortable experience. The vertical viewing angle of the Samsung OM46D-K is 178 °. This angle allows for optimal viewing from different angles, thus providing an enhanced visual experience. The number of colors displayed for the product Samsung OM46D-K is 16,78 millions de couleurs. This detail is essential for appreciating the visual quality of the screen. The pixel pitch of the product Samsung OM46D-K is - mm. This pixel pitch ensures optimal display quality without distortion. The image format of the product Samsung OM46D-K is 16:9. This format is ideal for an immersive visual experience. Does the product Samsung OM46D-K have a touchscreen? -. The lifespan of the Samsung OM46D-K panel is - h. This feature ensures prolonged use and optimal performance. The LED backlighting of the product Samsung OM46D-K contains LED à éclairage direct. This backlighting ensures optimal brightness for an enhanced visual experience. The panel type of the product Samsung OM46D-K is SPVA. This type of panel offers excellent display quality and vibrant colors. The horizontal scanning range of the product Samsung OM46D-K is 30 - 81 kHz. This range allows for excellent display quality and optimal image smoothness. The vertical scanning frequency of the product Samsung OM46D-K is 48 - 75 Hz. This specification ensures optimal display smoothness for a pleasant visual experience. The active display area of the product Samsung OM46D-K is 1018.08 x 572.67 mm. This dimension allows for an optimal visual experience for all your content. The color palette of the product Samsung OM46D-K is 72 %. This palette offers a variety of shades that enhance the product's aesthetics.
Technical details
The product Samsung OM46D-K has Sustainability Certificates: RoHS. These certificates ensure that the product meets high standards for energy efficiency and environmental respect.
Other features
Does the product Samsung OM46D-K have a Quick Start Guide? Yes. This guide allows you to quickly and easily start using the product. The energy efficiency class (old) of the product Samsung OM46D-K is D. This feature indicates the level of energy performance of the product. Does the product Samsung OM46D-K have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable. The type of system on a chip (SoC) of the product Samsung OM46D-K is Samsung SMART Signage Platform (SSSP) Gen 2. This system allows for advanced integration of features for optimal performance. The dot clock scanning frequency of the Samsung OM46D-K product is 148.5 MHz. This feature ensures optimal display quality and smoothness in images.
Audio
Does the product Samsung OM46D-K have built-in speakers? -. These speakers provide an immersive and convenient audio experience.
Design
Does the product Samsung OM46D-K have VESA Mounting? Oui. This feature allows you to easily attach your screen to a wall mount, thereby optimizing space and improving user comfort. The color of the product Samsung OM46D-K is Noir. This shade gives it a modern and elegant look. The width of the frame at the bottom of the product Samsung OM46D-K is 6.5 mm. This feature contributes to the stability and aesthetics of the product. The product Samsung OM46D-K has the VESA Standard 600 x 400 mm. This standard ensures optimal compatibility with wall mounts and articulated arms, thus facilitating the installation and adjustment of your screen. The width of the frame (side) of the product Samsung OM46D-K is 7.8 mm. This dimension contributes to the strength and overall aesthetics of the product. The width of the frame (at the top) of the product Samsung OM46D-K is 9.3 mm. This feature contributes to the aesthetics and robustness of the product. The design of the product Samsung OM46D-K is a pistol grip drill. This ergonomic design allows for a comfortable grip and optimal control during use.
Power
The energy consumption in standby mode of the product Samsung OM46D-K is - W. This feature helps reduce electricity consumption when the device is not in use, thus contributing to energy savings. The typical power consumption of the product Samsung OM46D-K is 220 W. This feature allows for the assessment of the energy efficiency of the device. The AC input voltage of the Samsung OM46D-K is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product Samsung OM46D-K is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The energy consumption in standby mode of the product Samsung OM46D-K is 0.5 W. This feature helps to reduce the energy impact when the device is not in use. The power consumption (standby) of the product Samsung OM46D-K is 0.5 W. This feature helps to minimize energy consumption when the device is in standby mode. The maximum consumption of the product Samsung OM46D-K is 395 W. This specification allows for the assessment of the energy efficiency of the device.
Computer system
The type of computer system of the product Samsung OM46D-K is Système sur puce (System on Chip ou SoC). This type of system allows for a compact and efficient integration of the essential components for the operation of the device. The computer system of the product Samsung OM46D-K contains Oui. This computer system is designed to provide optimal performance and high reliability.
Weight and dimensions
The width of the product Samsung OM46D-K is 1036.32 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Samsung OM46D-K is 142.24 mm. This dimension allows for optimal integration into your space. The height of the product Samsung OM46D-K is 589.28 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Samsung OM46D-K is 18700 g. This weight is ideal for ensuring optimal use and easy handling.
Environmental conditions
The product Samsung OM46D-K has an operating relative humidity (H-H) of 10 - 80 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Samsung OM46D-K is 0 - 30 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Certificate
The certification of the product Samsung OM46D-K contains FCC (USA) : Part 15, Subpart B Class A, CE (Europe) : EN55022, EN55024, VCCI (Japan) : V-3 (CISPR22), KCC (Korea) : KN22, KN24, BSMI (Taiwan) : CNS13438 (CISPR22), C-Tick (Australia) : AS / NZS3548 (CISPR22), CCC (China) : GB9254-2008, GB17625.1-2012\nUL (USA) : UL 60950-1, CSA (Canada) : CSA C22.2 No. 60950-1, TUV (Germany) : EN60950-1, NEMKO (Norway) : EN60950-1, KC (Korea) : K60950-1, CCC (China) : GB4943.1-2011, PSB (Singapore) : IEC60950-1, GOST (Russia) : IEC60950-1, EN55022, SIQ (Slovenia) : IEC60950-1, EN55022, PCBC (Poland) : IEC60590-1, EN55022, NOM (Mexico) : NOM-019-SCFI-1998, IRAM (Argentina) : IEC60950-1, SASO (Saudi Arabia) : IEC60950-1. This certification guarantees compliance with the required safety and performance standards.
Packaging information
The width of the package of the product Samsung OM46D-K is 1123 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Samsung OM46D-K package is 24200 g. This weight ensures optimal protection during transport and delivery. The height of the package of the product Samsung OM46D-K is 686 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package Samsung OM46D-K is 236 mm. This dimension is essential to ensure proper packaging and secure transport.
Packaging contents
The included cable of the product Samsung OM46D-K contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the product Samsung OM46D-K come with batteries? Oui. This allows you to enjoy your purchase immediately without having to worry about sourcing batteries. Does the product Samsung OM46D-K come with a remote control? Oui. Does the product Samsung OM46D-K have a warranty card? Oui. This card allows you to benefit from additional protection for your purchase.
